Overheat protection: Automatically shuts off heating and provides audible and visual alarms in case of overheating.
Electric interlock safety: Prevents the start of a cycle if the door is not properly locked or prohibits door opening when the chamber is pressurized or power is disconnected.
Door-temperature interlock safety: Prevents explosion of liquids by cooling them down to a safe temperature limit (20℃ lower than the local boiling point) before opening the door.
Anti-burning protection: Automatically cuts off heating with audible and visual alarms when the autoclave is lacking water.
Steam pressure safety valve: Automatically activates when the chamber pressure exceeds the limit.
Electrical circuit safety device: Includes over-current and short-circuit protection for enhanced safety.
Automatic sterilization: The autoclave performs heating, sterilization, steam discharge, and drying automatically. These processes can be easily set and monitored through the LCD touch screen.
Built-in steam generator: Ensures that the media remains uncontaminated during sterilization.
Buzzer alerts: Provides audible signals for working errors and signals the end of the sterilization cycle.
Automatic atmospheric pressure adjustment: Allows for installation and operation in plateau areas by automatically adjusting to the prevailing atmospheric pressure.
Optional printer: Offers the choice to connect a printer for real-time recording of the sterilization process, error logs, and alarm information.
Model | ST-B45N |
Capacity | 45L |
External Size(WxDxH) | 870x600x520mm |
Chamber Size(ØxH) | Ø316x590mm |
Chamber Material | SUS304 |
Sterilization Temperature | 105~136 ℃ |
Designed Temperature | 150℃ |
Max. Working Temperature | 136 ℃ |
Temp. Accuracy | 0.1℃ |
Temp. Uniformity | ≤±0.5℃ |
Designed Pressure | 0.3Mpa |
Sterilization Pressure | 0.23Mpa |
Temp. Controller | PID control by microprocessor |
Display | LCD touch screen |
Drying Function | YES |
Drying Time | 15min |
Sterilization Program | Dressings/Fabric program Medical instrument program Rubber program Liquid program DIY program |
Water Injection Method | Built-in water tank |
Power Consumption | 3.6KW |
Power Supply | 220V 50Hz |

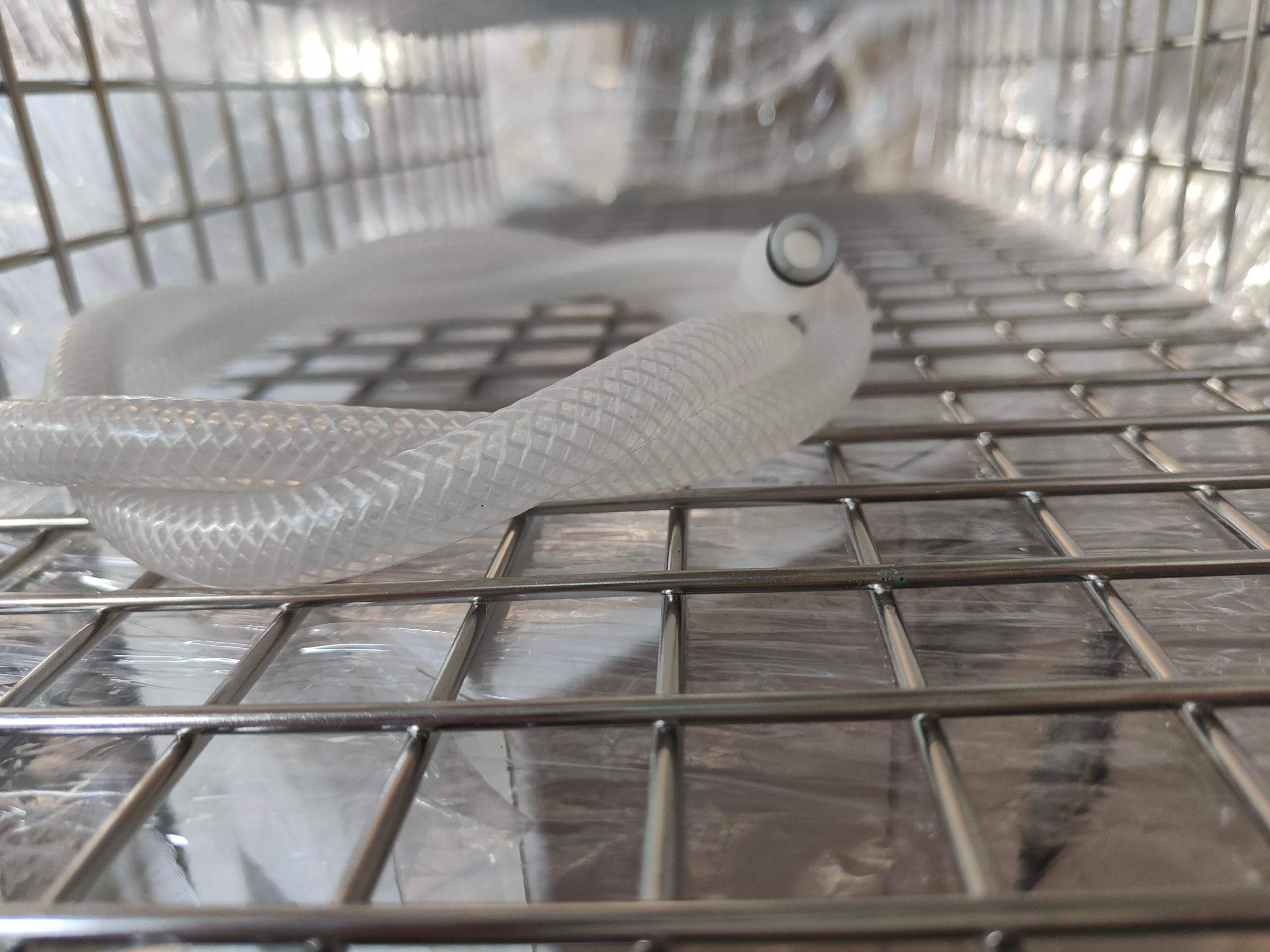

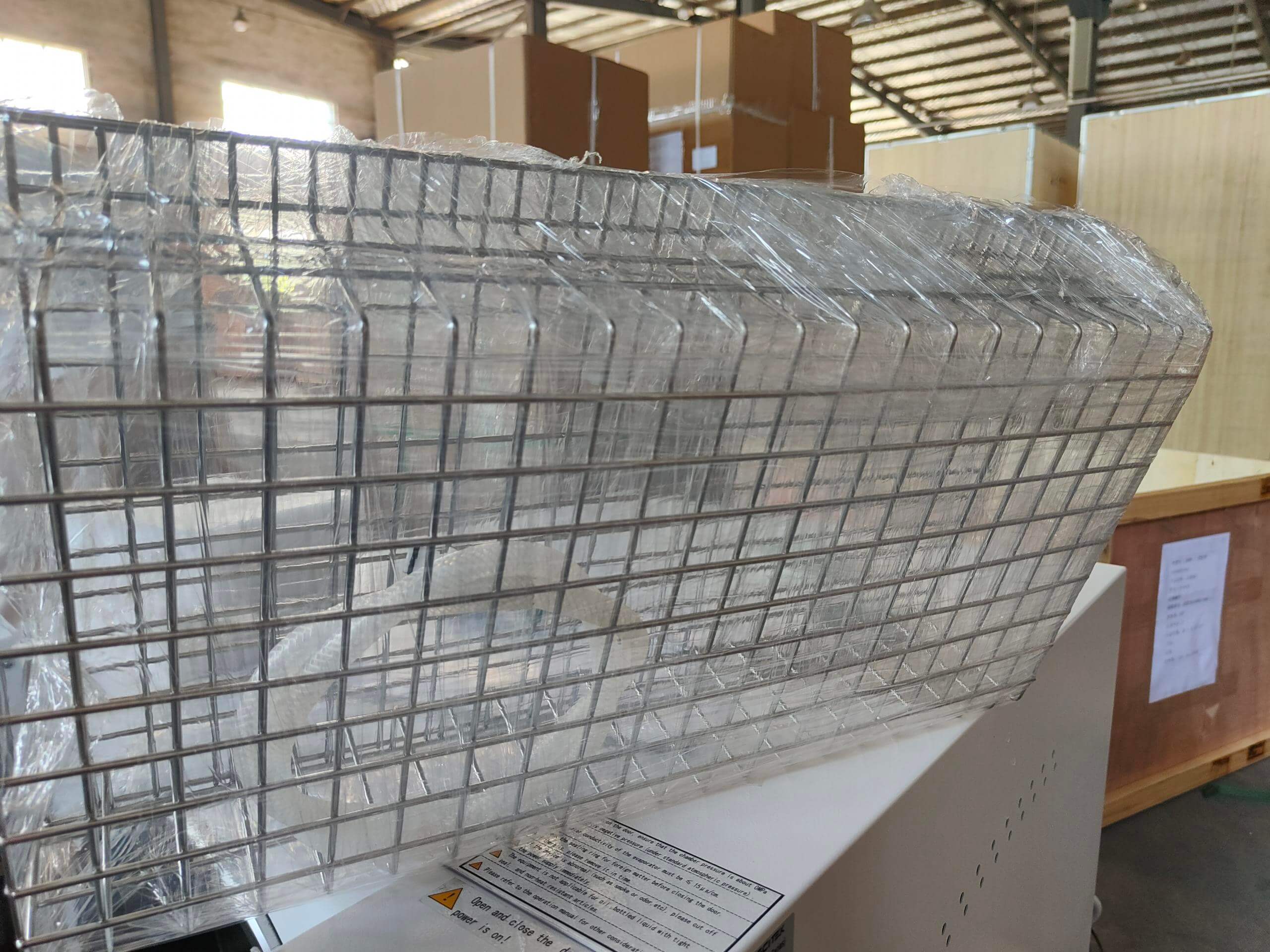

Standard Sterilization Shelf | 1pcs SS shelf |
Optional Accessories | Printer |
Net Weight | 65kg |
Gross Weight | 120kg |
Shipping Size(WxDxH) | 1150x700x700mm |
