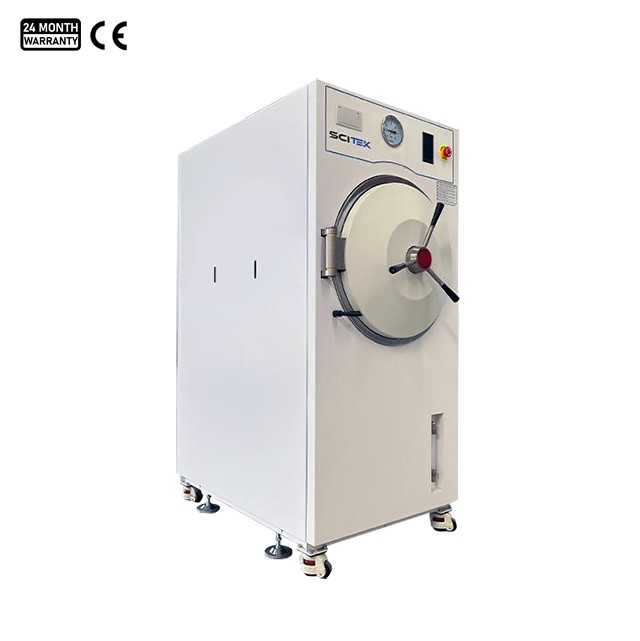

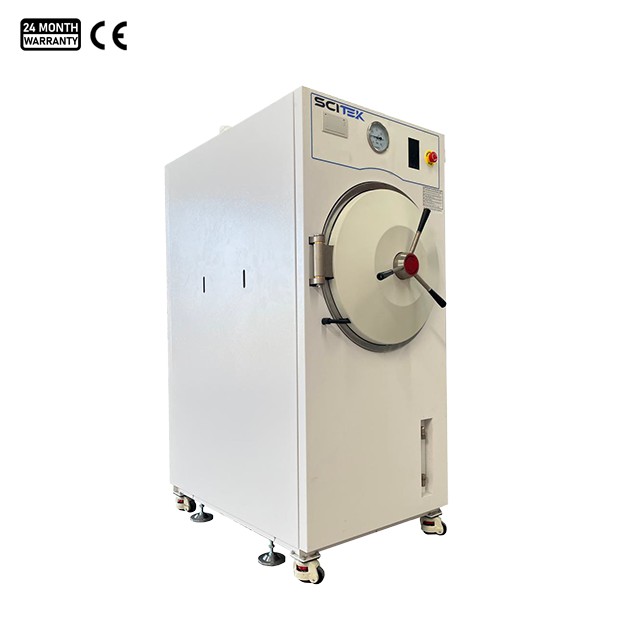

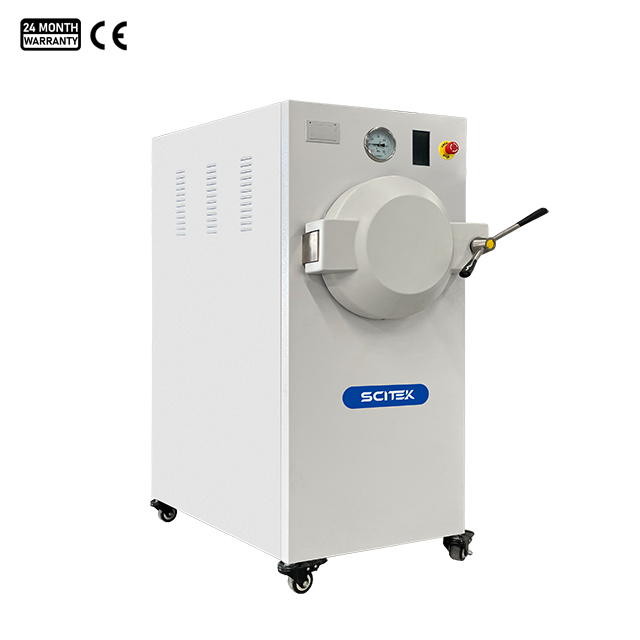

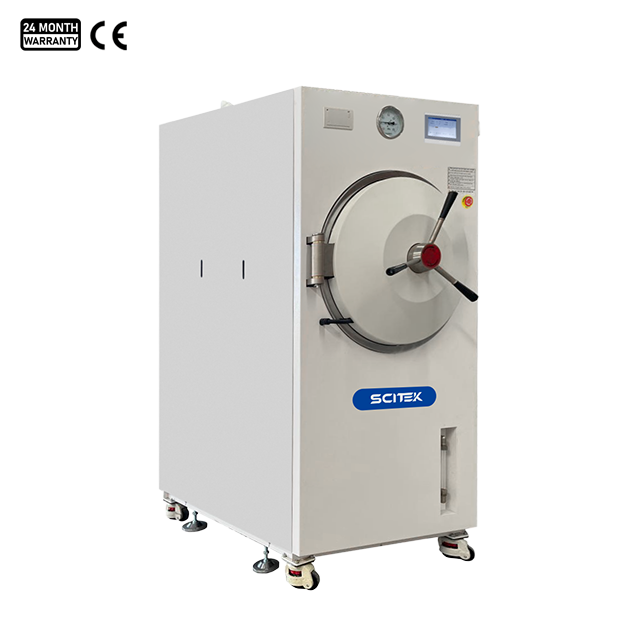

Horizontal Pressure Steam Autoclave

Model : ST-H60; ST-H80; ST-H100; ST-H135; ST-H150;ST-H185; ST-H200; ST-H300; ST-H450

Capacity (L) : 60 / 80 / 100 / 135 / 150 / 185 / 200 / 300 / 450
Chamber Size(mm) : Ø386x500 / Ø386x700 / Ø386x950 / Ø500x700 / Ø500x780
                                    Ø500x950 / Ø500x1000 / Ø650x950 / Ø650x1360
Sterilization Temperature (℃) : 105~136
Max. Sterilization Pressure (Mpa) : 0.23
Drying Function : YES
Designed for rapid heating and complete drying, this horizontal pressure steam autoclave meets the ever-changing demands of laboratory sterilisation.
Availability:
Quantity:

Horizontal Pressure Steam Autoclave Features:

  1. Overheat protection: Automatically cutting off heating with audible and visual alarming when the autoclave is overheated.

  2. Electric interlock safety: Preventing from starting a cycle if door is not properly locked or from door opening if the chamber is pressurized or the power is disconnected.

  3. Door-temperature interlock safety: Preventing from explosion of liquids if the liquids temperature is not cooled down the safe limit (20℃ lower than the local boiling point).

  4. Anti-burning protection: Automatically cutting off heating with audible and visual alarming when the autoclave is lack of water.

  5. Steam pressure safety valve: Automatically works when the chamber pressure exceeds the limit.

  6. Electrical circuit safety device for over-current and shortcut protection.

  7. Automatic operation of sterilization (heating, sterilization, steam discharge and drying) can be easily set and monitored by the LCD touch screen.

  8. Built-in steam generator prevents the media from contamination.

  9. Buzzer for working errors and the end of the cycle.

  10. Automatic atmospheric pressure adjustment for the installation and operation in plateau areas.

  11. Optional printer, real-time record sterilization process, error and alarm information.

Horizontal Pressure Steam Autoclave Specifications:

ModelST-H60ST-H80ST-H100ST-H135ST-H150ST-H185ST-H200ST-H300ST-H450
Capacity60L80L100L135L150L185L200L300L450L

External Size

(WxDxH)(mm)

985x600x1450

985x600x1450

1200x600x1450

1000x710x1550

1330x710x1550

1250x710x1550

1320x710x1550

1350x900x1750

1750x900x1750

Chamber Size

(ØxH)(mm)

Ø386x500Ø386x700Ø386x950Ø500x700Ø500x780Ø500x950Ø500x1000Ø650x950Ø650x1360

Chamber

Material

SUS304

Sterilization

Temperature

105~136 ℃

Designed

Temperature

150℃

Max.Working

Temperature

136 ℃
Temp.Accuracy0.1℃
Temp.Uniformity≤±0.5℃

Designed

Pressure

0.3Mpa

Sterilization

Pressure

0.23Mpa
Temp. ControllerPID control by microprocessor
DisplayLCD touch screen
Drying FunctionYES
Drying Time15min

Sterilization

Program

●Dressings/Fabric program  ●Medical instrument program  ●Rubber program  ●Liquid program  ●DIY program

Power

Consumption

5.7KW5.7KW6KW9.35KW9.35KW10.8KW10.8KW12KW20KW
Power Supply380V 50Hz380V 50Hz380V 50Hz380V 50Hz380V 50Hz380V 50Hz380V 50Hz380V 50Hz380V 50Hz

Standard

Sterilization

Shelf

1pcs1pcs1pcs1pcs1pcs1pcs1pcs1pcs1pcs

Optional

Accessories

Printer
Net Weight105kg120kg140kg225kg240kg255kg265kg350kg450kg
Gross Weight165kg185kg210kg315kg340kg365kg380kg470kg570kg

Shipping Size

(WxDxH)(mm)

1280x700x1600

1280x700x1600

1450x700x1600

1300x850x1900

1400x900x1900

1440x930x2020

1490x930x2020

1650x1100x2120

2100x1100x2120
