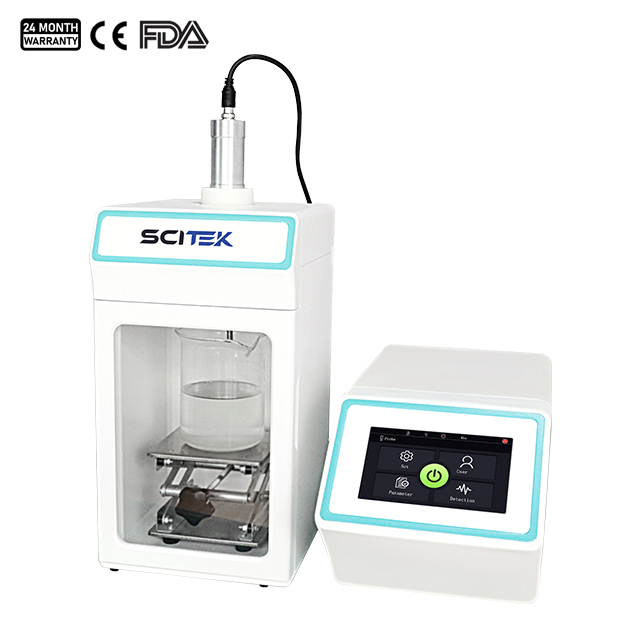

The ultrasonic cell disruptor uses advanced comminution technology with all the features required for ultrasonic disruption. High frequency sound waves are used to agitate and disrupt cell membranes to extract proteins, nucleic acids and other valuable biomolecules. The ultrasonic cell disruptor breaks down most cells, bacteria, spores, and DNA/chromatin and is suitable for use in most laboratories, universities, and other areas.
Ultrasonic Cell Disruptor Features:
2D exponential ultrasonic probes with higher output efficiency
3 Operation Modes: Continuous, pulse and timer (Timer 1min ~ 99h)
7" touch screen for easy operation & observation
10 user groups for programmable procedures
1%~100% variable power output
19-25KHz auto-tracking and auto amplitude compensation with real time display
0℃~300℃ sample temperature monitoring andprotection
Operating power AC 85V - 260V, fit for every laboratory in the world
Details of Ultrasonic Cell Disruptor:
Ultrasonic Cell Disruptor Specifications:
| Model | UCD-S200 | UCD-S600 | UCD-S800 | UCD-S1200 | UCD-S1500 | UCD-S3000 |
| Capacity | 0.1-200ml | 0.1-600ml | 0.1-800ml | 0.1-1200ml | 0.1-1500ml | 0.1-3000ml |
| Frequencies | 19~25KHz | 19~25KHz | 19~25KHz | 19~25KHz | 19~25KHz | 19~25KHz |
| Power supply | 300W | 550W | 650W | 950W | 1200W | 2000W |
| Standard Probe | Φ3mm | Φ6mm | Φ8mm | Φ13mm | Φ16mm | Φ20mm |
| Optional Probes | Φ3 (0.1~ 50ml) Φ6 (50~200ml) | Φ3(0.1~50mL) Φ6(50~300mL) Φ8(200~500mL) | Φ3(0.1~50mL) Φ6(50~400mL) Φ8(200~800mL) | Φ6(50~300 mL) Φ8(300~600 mL) Φ13(500~1200 mL) | Φ13(50~1000mL) Φ16 (500~ 1500mL) | Φ13 (50 ~ 1000mL) Φ16(500~1500mL) Φ20 (500 ~ 3000mL) |
Application of Split ultrasonic liquid processor:
EP tube microsample, small processing capacity, routine laboratory, large processing capacity
The ultrasonic liquid processor is used for the crushing of many kinds of animal and plant cells, virus cells.
Melting, emulsification, traction, separation, rinsing, accelerated chemical reaction and so on.
It is widely used in the fields of microbiology, zoology as well as biology and medicinal chemistry.
Details of Ultrasonic Cell Disruptor(UCD-S3000):

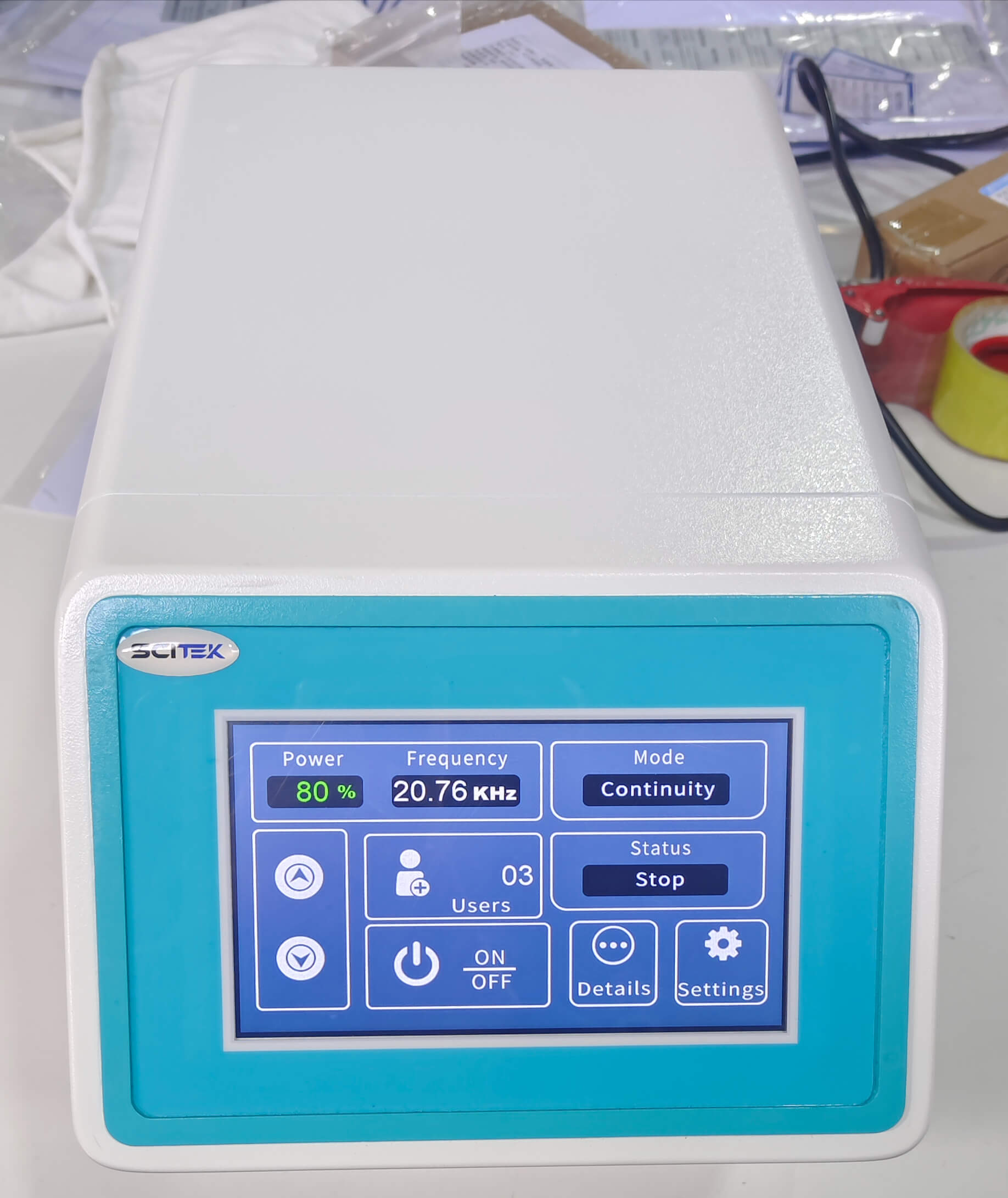

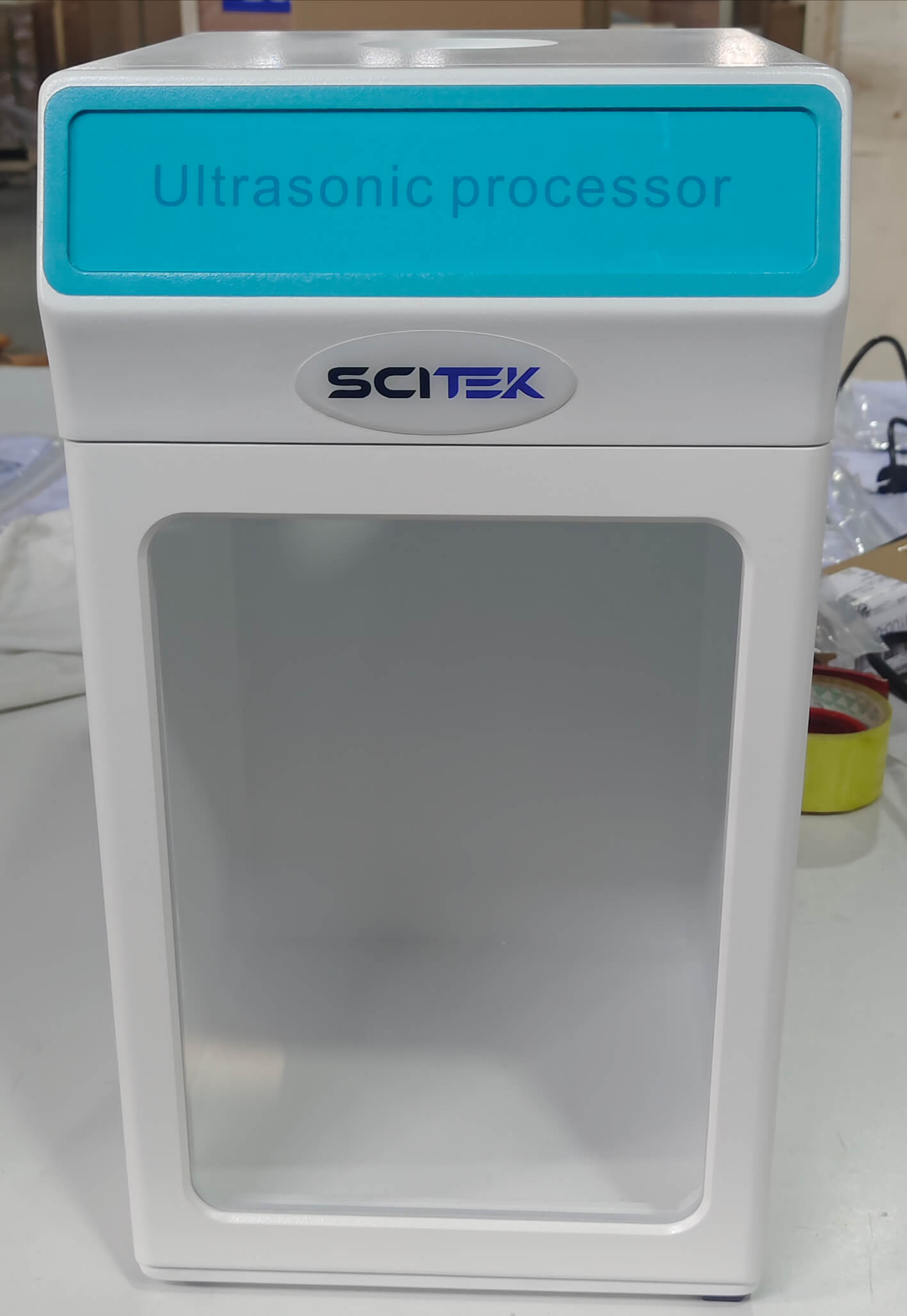

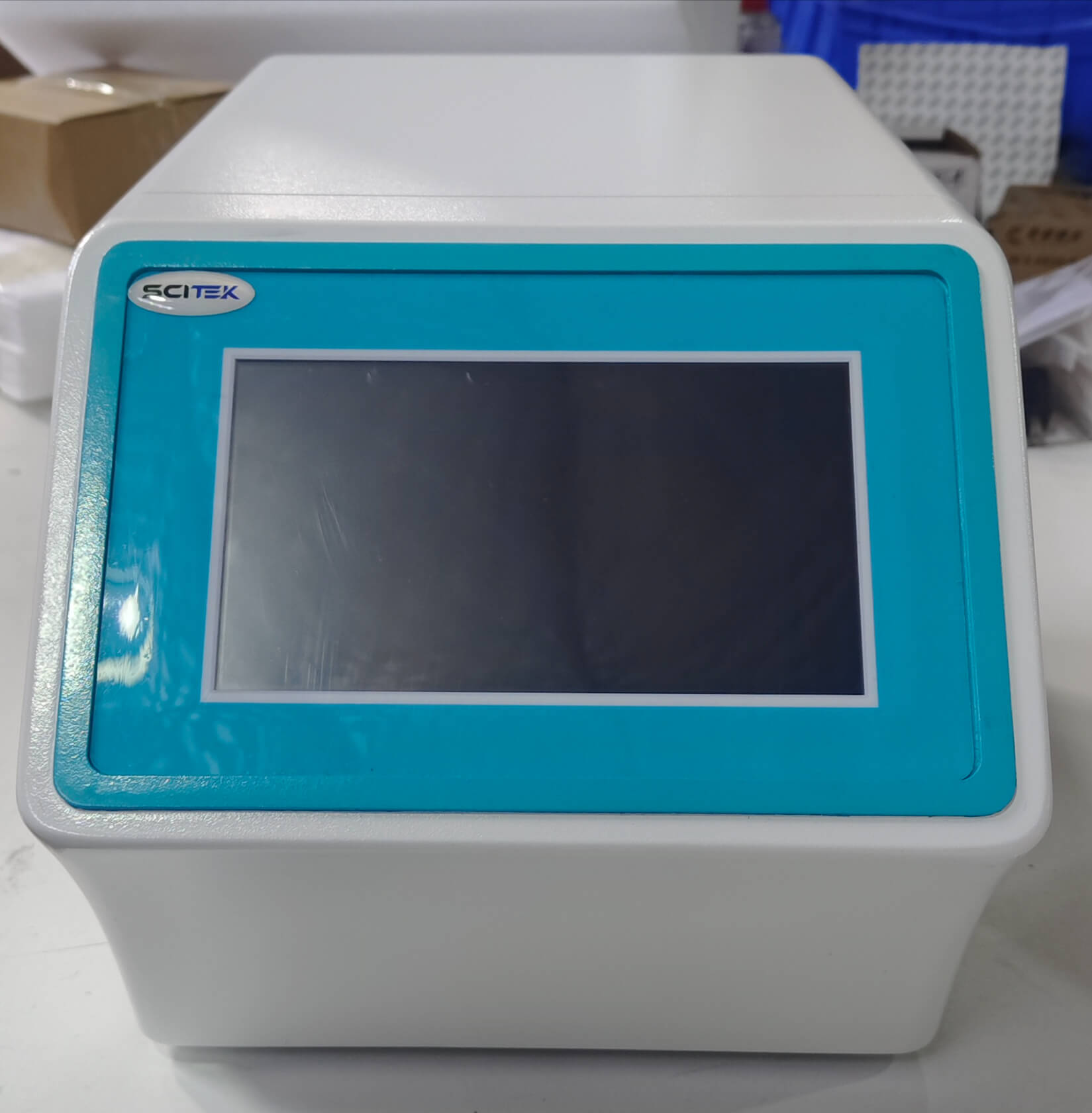

The ultrasonic cell disruptor's simple and elegant design allows for easy placement on the lab bench and easy handling and identification.

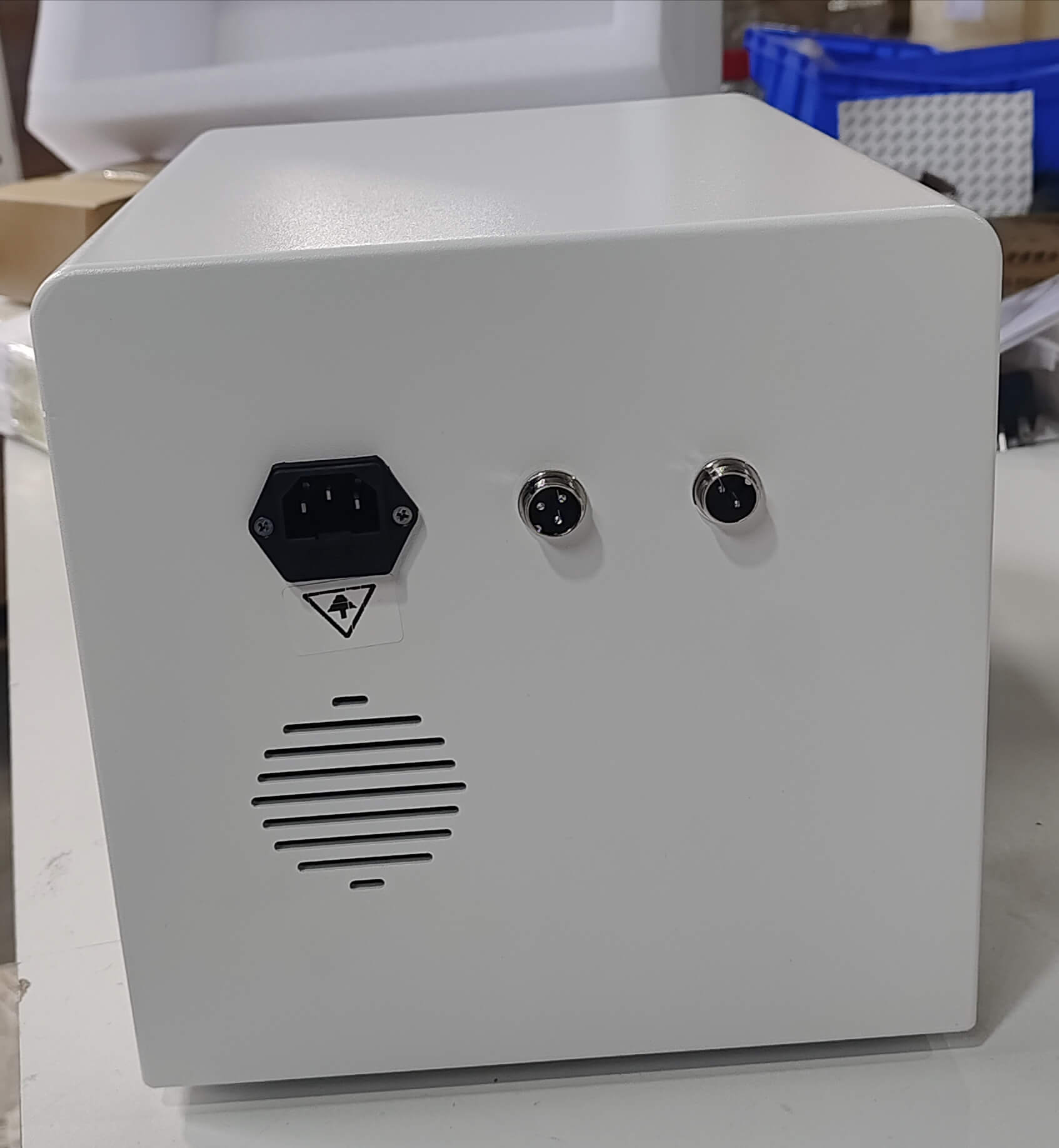

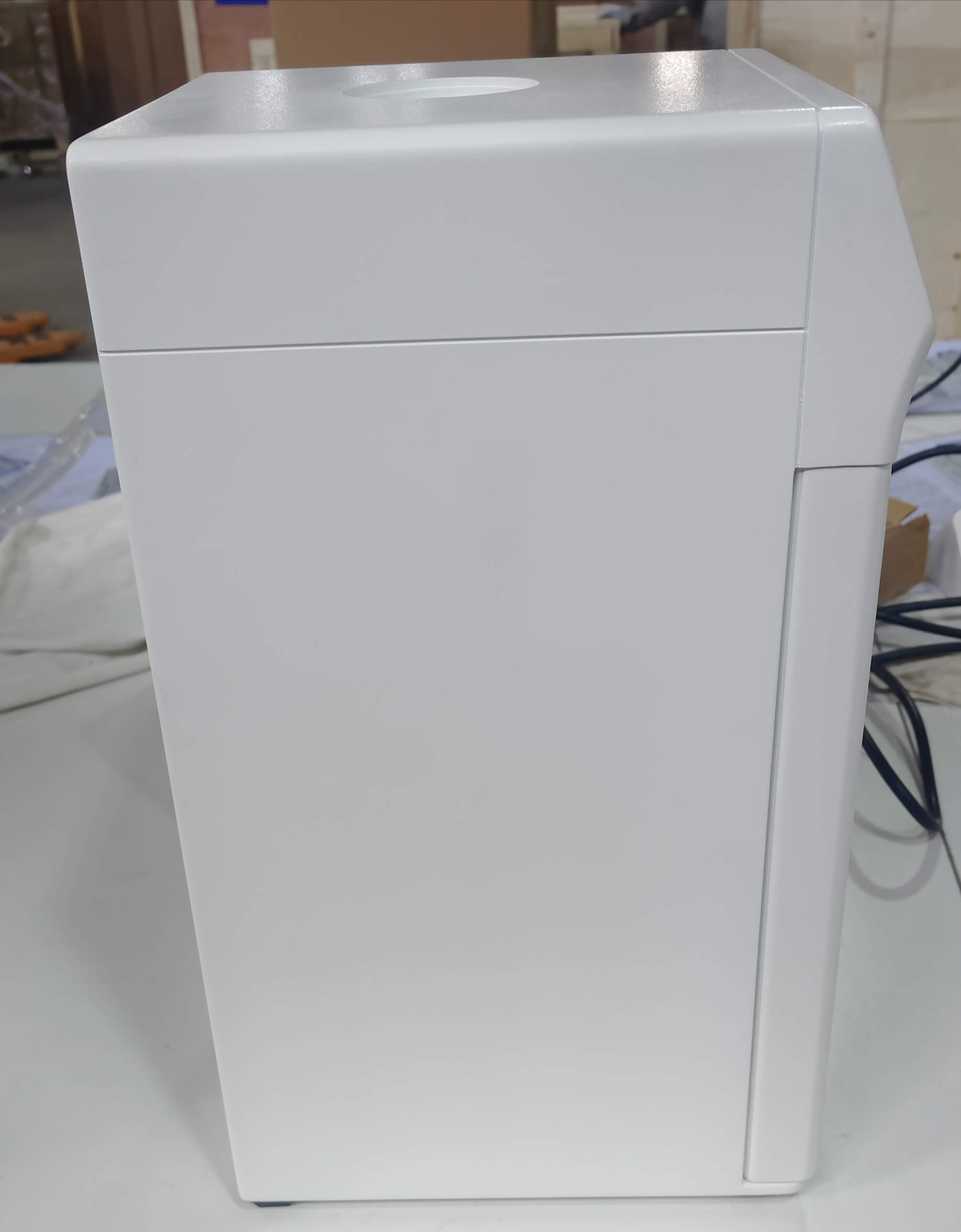

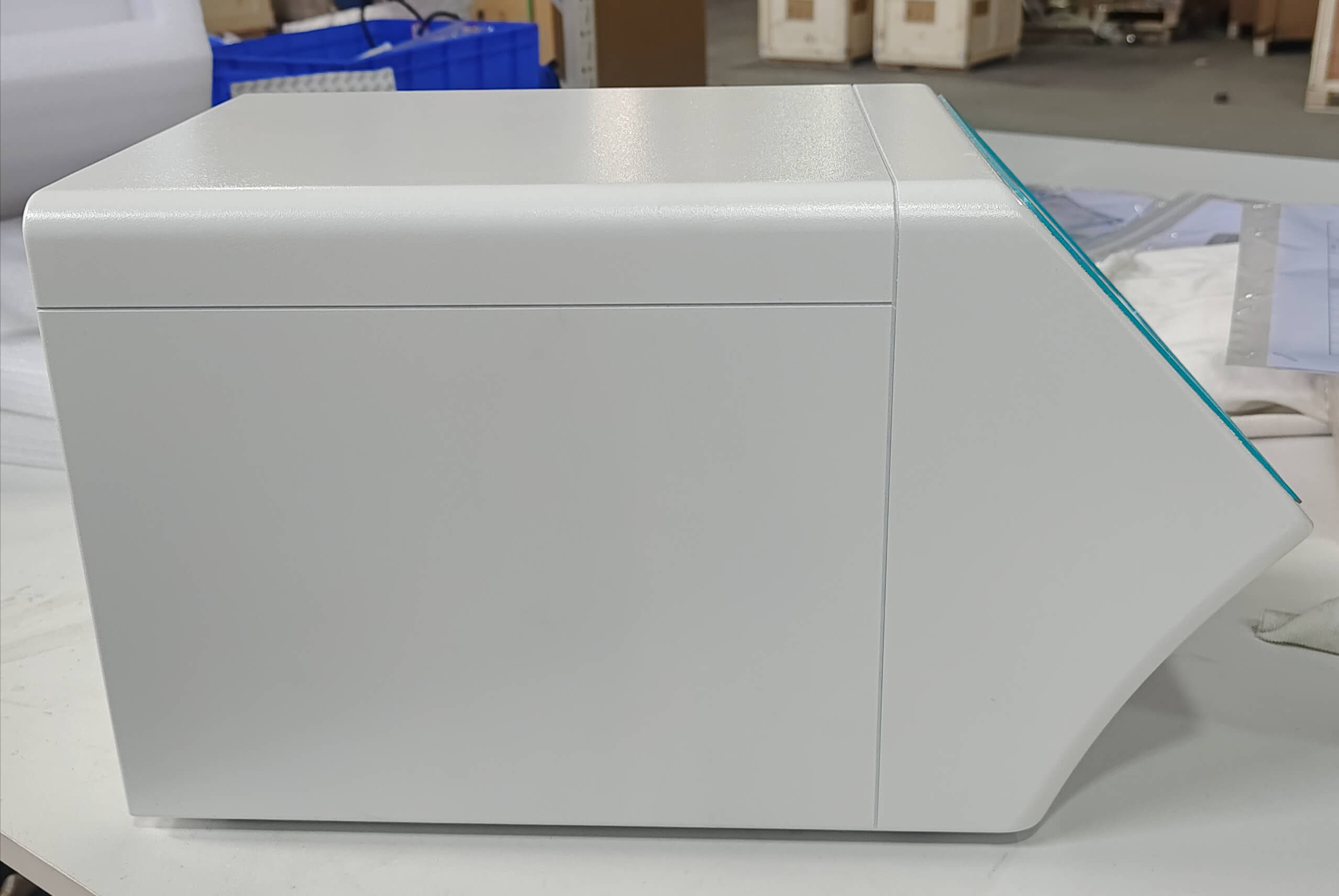

On the back of the instrument, you can see the power connector and two metal ports, which are used to connect the power cord and probe and other components. There is a heat sink on the side, which helps to dissipate the heat inside the instrument to ensure stable operation, reflecting the design of the instrument in terms of functionality and stability.

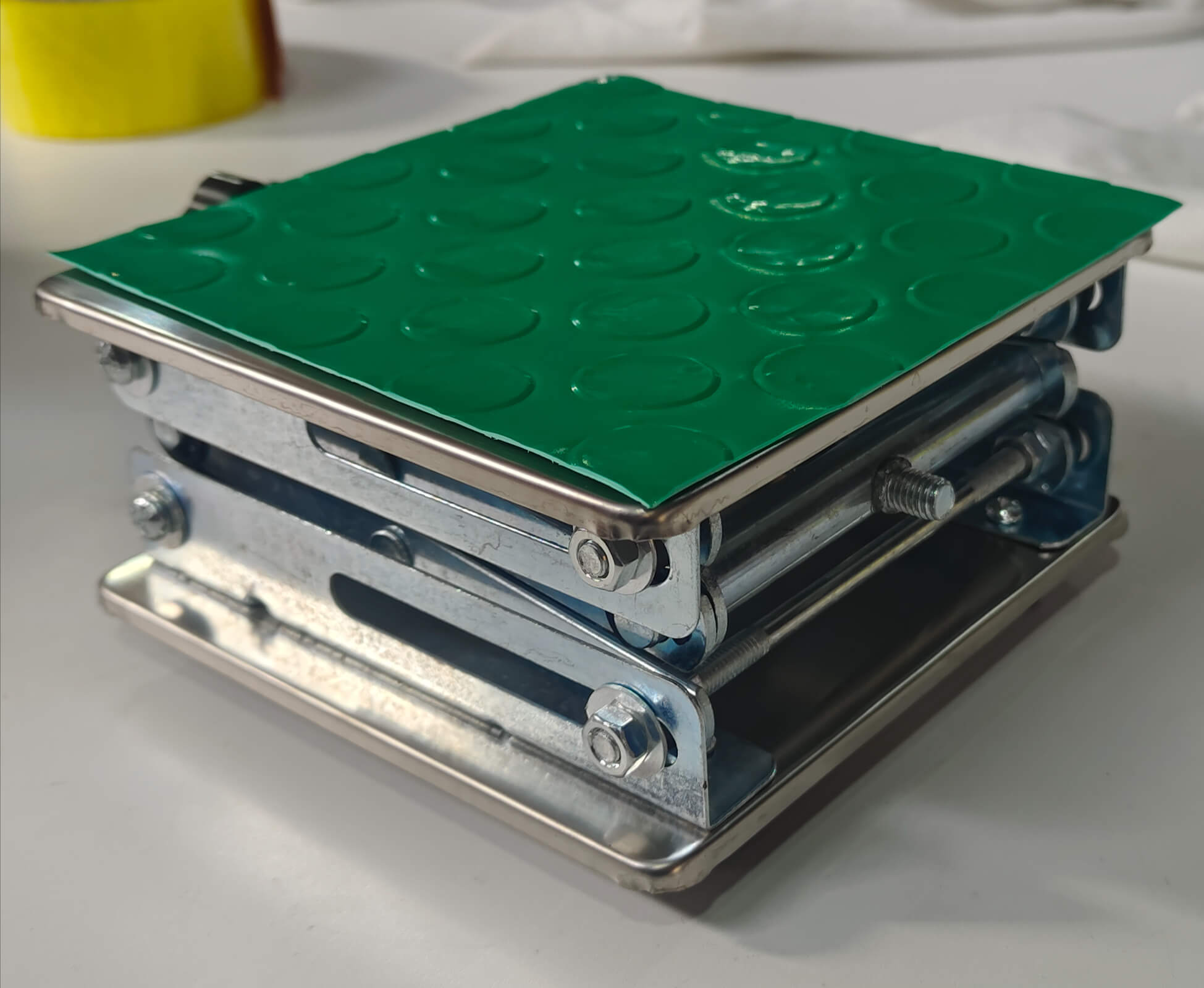

The lifting table is made of metal and covered with green rubber pads with rounded bumps to prevent slipping. The height-adjustable lifting table can flexibly adjust the distance between the sample container and the probe to ensure the effective transmission of ultrasonic energy in ultrasonic cell fragmentation experiments.

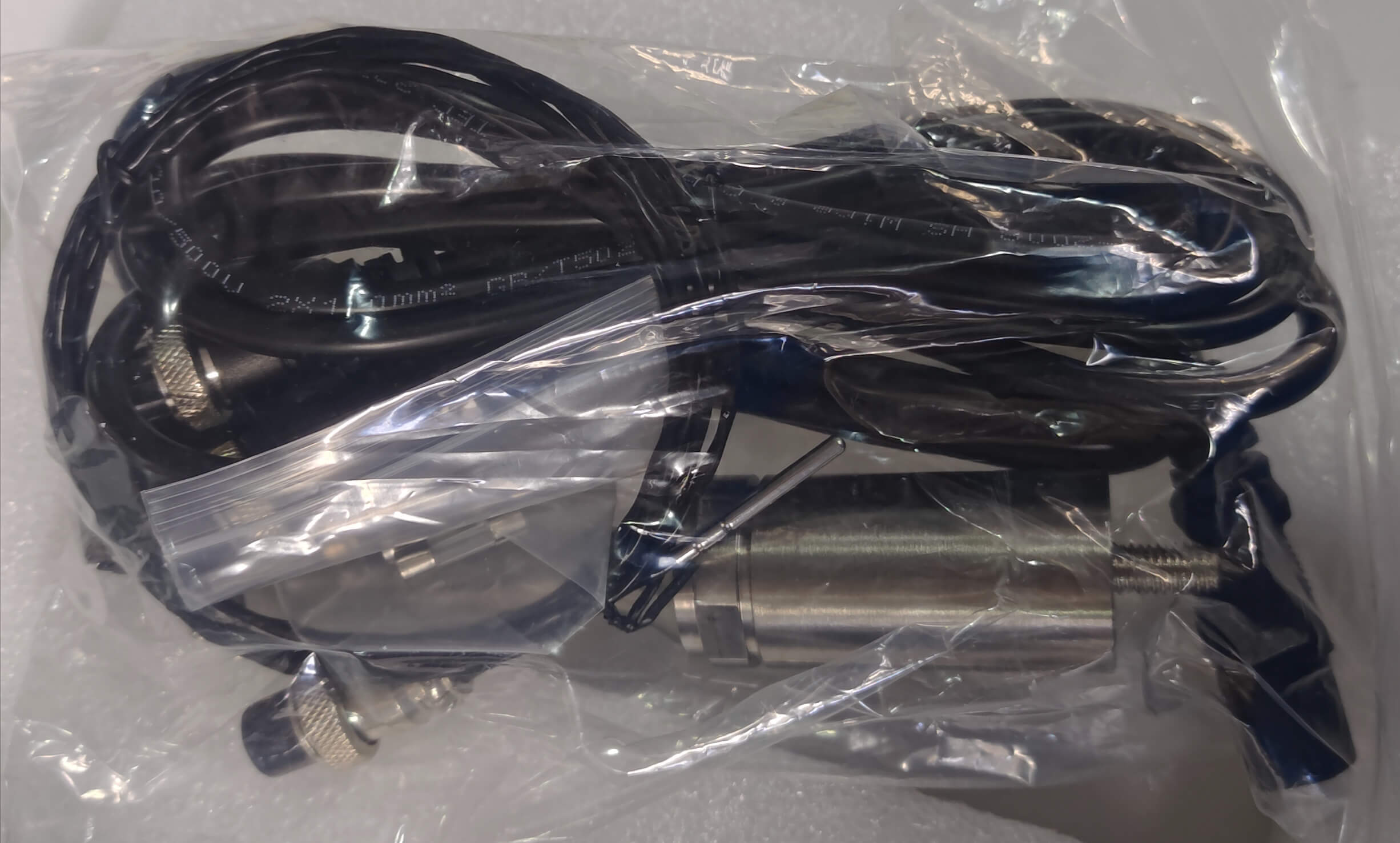

Black power cord, metal probe and connecting cable, and small screws. These accessories are key components for the proper functioning of the instrument and for different experimental operations. The probe is used to emit ultrasound energy and the power cord provides electrical support.

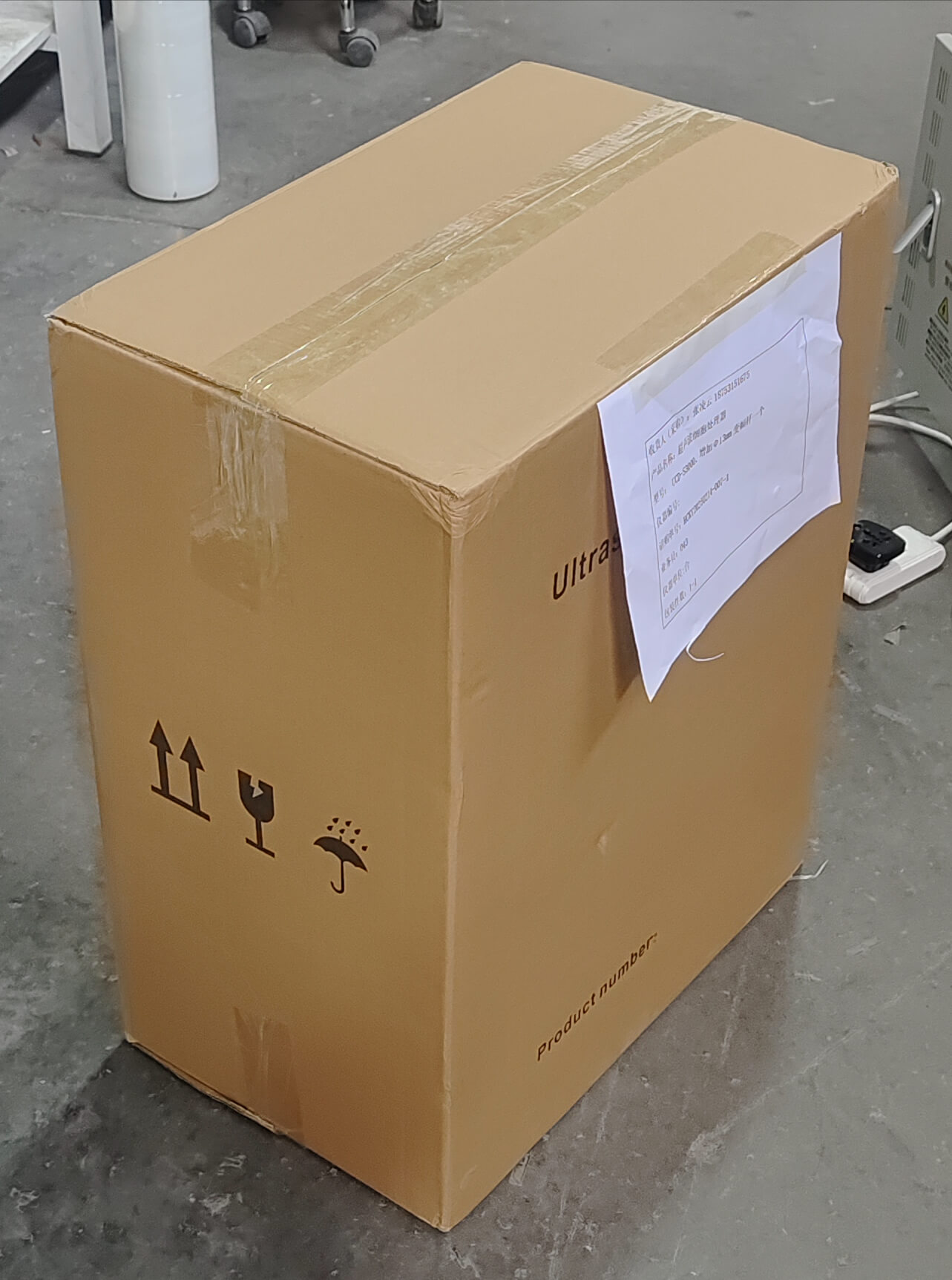

The internal instruments are protected by white foam wrapping, and the “Packing List” is placed on the top, which clearly lists the names, specifications and quantities of the instruments and accessories. The whole package is tightly packed to ensure that the instruments and accessories will not be damaged during transportation.
