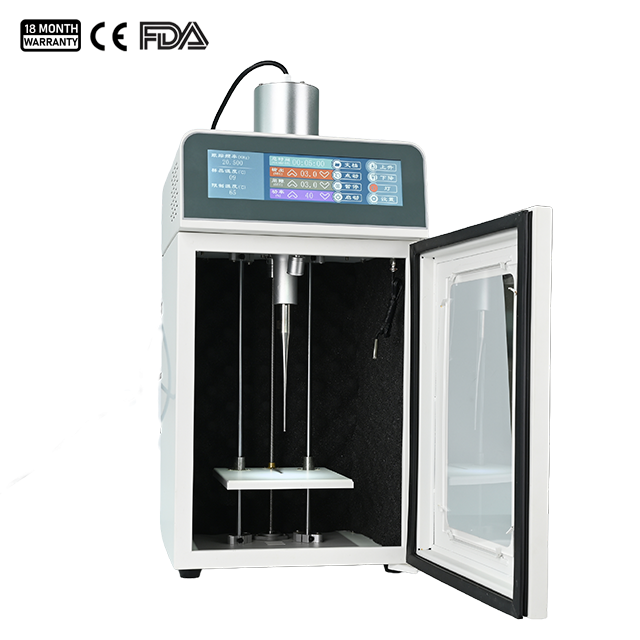

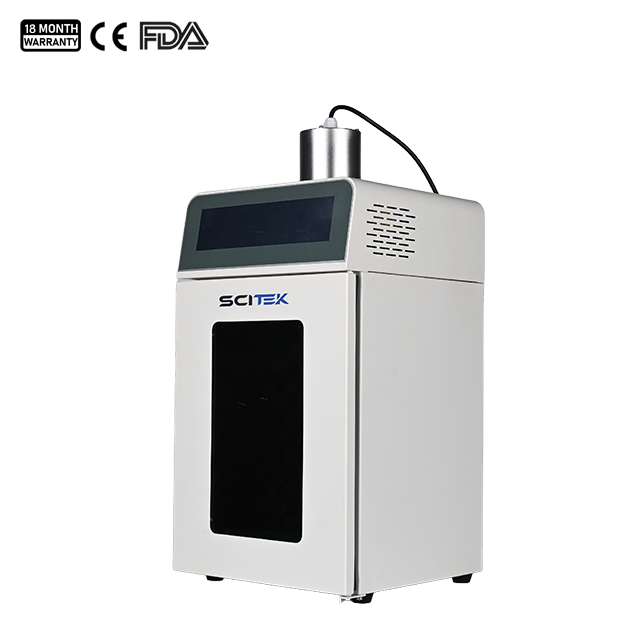

Ultrasonic cell disruptor is a multifunctional and versatile instrument that utilizes intense ultrasonic waves to create cavitation effects in a liquid environment for sonic processing of substances. It can be used for disruption of animal and plant tissues, cells, bacteria, and spores, as well as for emulsification, separation, dispersion, homogenization, extraction, degassing, cleaning, and acceleration of chemical reactions. Additionally, it can disperse and homogenize nanomaterials such as carbon nanotubes and graphite selenide, as well as disintegrate, emulsify, homogenize, and break down soil, rock samples, nonferrous metals, and rare earth materials.
Ultrasonic Cell Disruptor Features:
Digital integration
Fully digital integrated circuit, with consistently stable amplitude output.
Embedded lighting temperature measurement
Embedded lighting and temperature measurement system
Integrated
The all-in-one machine integrates ultrasonic power supply and soundproof box, saving space.
Continuous Operation
Capable of operating continuously for 24 hours, stable and reliable
Electric Lift
Transducer electric lift for easy sample retrieval and placement
Conversion Efficiency
The electrical power conversion efficiency is high and consistent.
Protection: Automatic tracking the frequency, fault alarm.over-temperature protection.
Ultrasonic Cell Disruptor Specifications:
| Model | UCD-I200 | UCD-I300I | UCD-I500 | UCD-I600I | UCD-I1000 |
|---|
| Frequency(KHz) | 19-25 |
| Power(W) | 150 | 250 | 650 | 950 | 1200 |
| Display | 8.8-inch touchscreen |
| Display Content | Time, Power, Temperature, Real-time Frequency and etc |
| Duty Cycle | 0.1-99﹪ |
| Crushing Capacity (ml) | 0.5-200 | 0.5-300 | 0.5-500 | 0.5-600 | 0.5-1000 |
| Standard Amplitude-change Pole 0 (mm) | 6 | 6 | 6 | 20 | 20 |
| Optional Amplitude-change Pole 0 (mm) | 2, 3, 6 | 2, 3, 6 | 2, 3, 6, 10 | 2, 3, 6, 10, 15 | 2, 3, 6, 10, 15, 20 |
| Storage Capacity | 18 groups of program data |
| Timer Function | 0-999 minutes |
| Working Mode | Gap or continuous |
| Temperature | 0-99(℃) |
| Power Supply | 220V/50Hz |
