Ultrasonic cavitation is a unique physical process when strong ultrasound is emitted in liquid. It is accompanied by many effects, mainly as follows: high temperature effect, discharge effect, luminescence effect and jet, impact, pressure effect, etc. This energy is sufficient to crush cells, degrade, reorganize and homogenize various inorganic substances or pulverize nanomaterials.

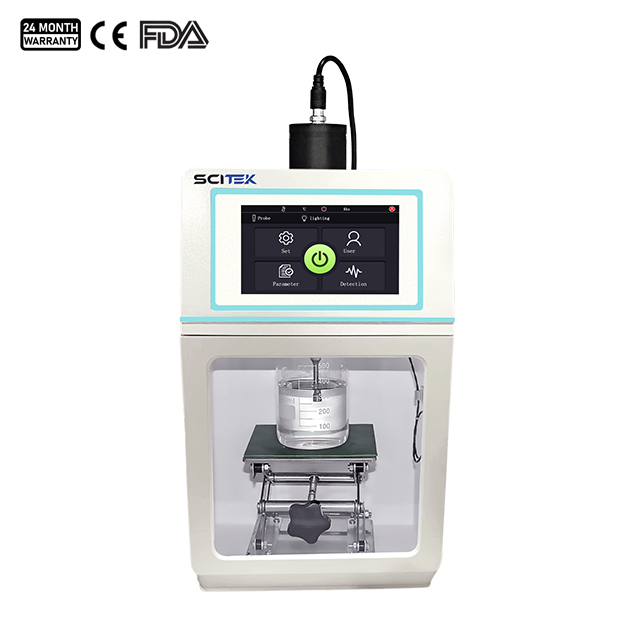

Ultrasonic Cell Disruptor Features:
3D exponential ultrasonic probe with higher output efficiency and longer service life
Operation Modes: Continuous, pulse and timer (Timer 1min~99h)
7" Touch screen for easy operation & oberservation
10 User groups for programmable procedures
1%~100% variable power output
19~26KHz auto-tracking and auto amplitude compersation with real time display
0℃~300℃ sample temperature monitoring and auto protection
Operating power AC 85V~260V, fit for every laboratory in the world
Ultrasonic Cell Disruptor Specifications:
| Model No. | UCD-I300 | UCD-I600 | UCD-I1200 | UCD-I1800 | UCD-I2200 | UCD-I3000 |
| Frequencies | 19~26KHz |
| Power | 300W | 500W | 1000W | 1500W | 1800W | 2000W |
| Capacity | 0.1~300ml | 0.1~500ml | 0.1~1200ml | 0.1~1800ml | 0.1~2200ml | 0.1~3000ml |
| Optional Probes | Φ3(0.1~50ml) Φ6(50~300ml) Φ8(100~300ml) | Φ3(0.1~50ml) Φ6(50~500ml) Φ8(100~500ml) | Φ3(0.1~50ml) Φ6(50~500ml) Φ8(100~800ml)
Φ10(500-1200ml) | Φ3(0.1~50ml) Φ6(50~500ml)
Φ8(100~800ml) Φ10(500~1200ml) Φ13(500~1500ml) Φ16(500~1800ml) | Φ3(0.1~50ml) Φ6(50~500ml) Φ8(100~800ml) Φ10(500~1200ml) Φ13(500-1500ml) Φ16(500~1800ml) Φ18(1000~2200ml) | Φ3(0.1~50ml) Φ6(50~500ml) Φ8(100~800ml) Φ10(500~1200ml) Φ13(500-1500ml) Φ16(500~1800ml) Φ18(1000~2200ml) Φ20(1000~3000ml) |
| Standard Probe | Φ3mm | Φ6mm | Φ10mm | Φ16mm | Φ18mm | Φ20mm |
| Applications | EP tube Microsample | Small Processing Capacity | Routine Laboratory | Routine Laboratory | Large Pprocessing Capacity | Large Processing Capacity |
Details of Ultrasonic Cell Disruptor (UCD-I600):

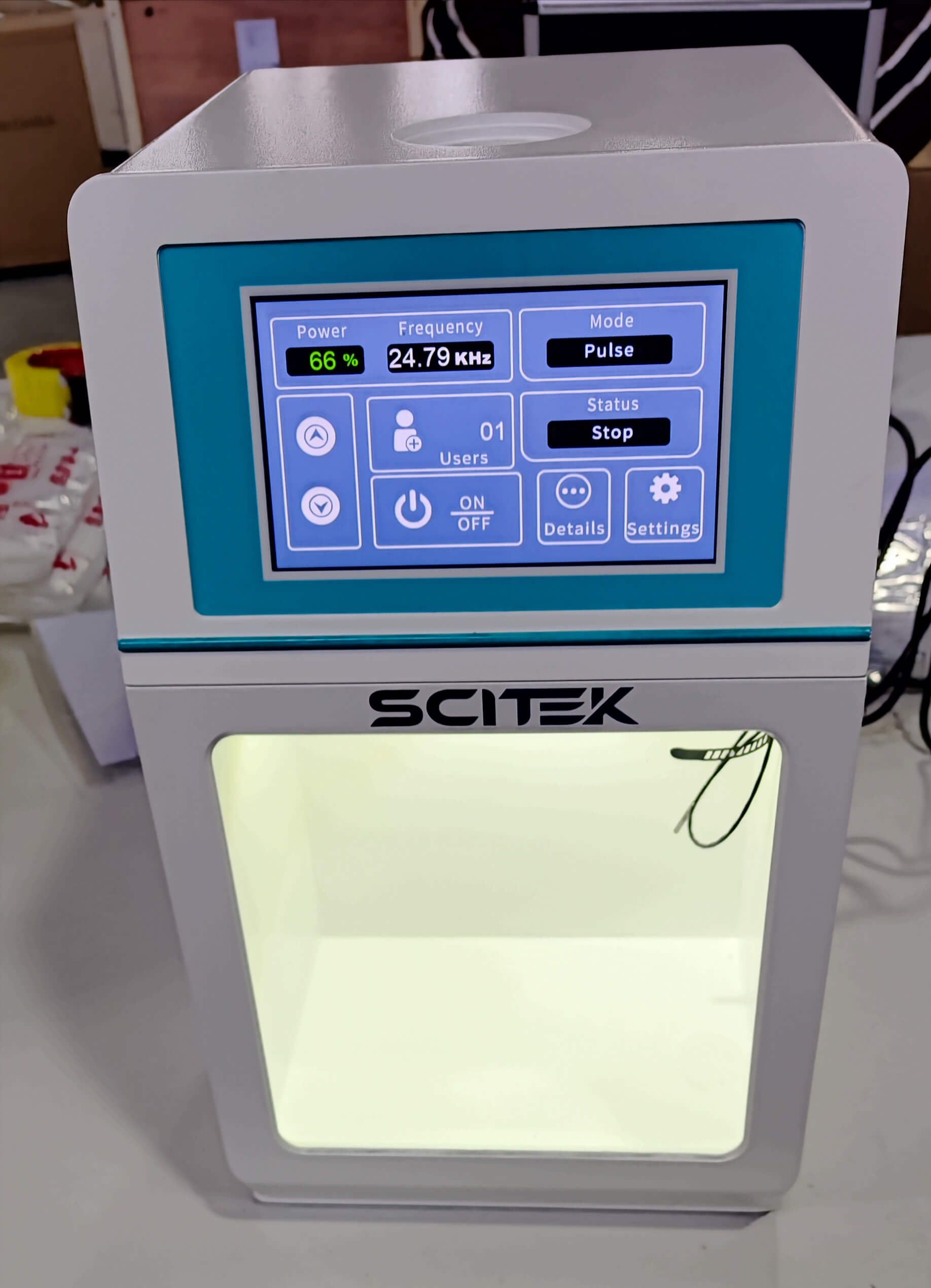

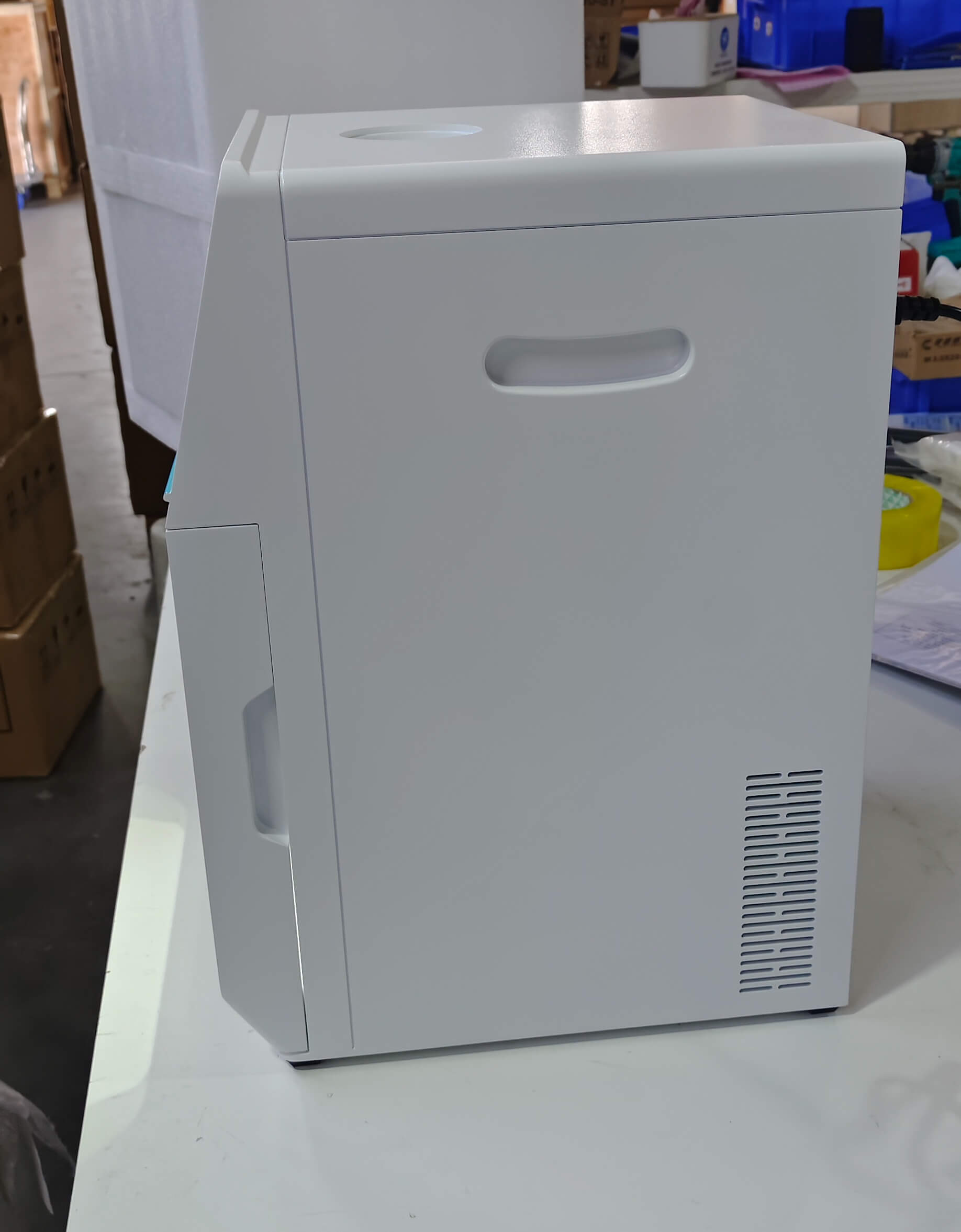

The ultrasonic cell disruptor features a compact, robust design with an intuitive control panel on the front. The display and control buttons allow precise adjustments of frequency, amplitude, and time, making it ideal for efficient cell disruption and homogenization. The durable housing ensures stable operation even during extended use, while the sleek, modern appearance fits easily in any laboratory setup.
The ultrasonic cell disruptor is securely packaged in a sturdy, protective box to prevent any damage during transportation. The interior is cushioned with foam inserts that keep the device and accessories firmly in place. The packaging is designed for easy handling and quick setup upon arrival, ensuring the device reaches users in perfect condition and ready for immediate use.
