1. Reasonable layout and simple operation with fully automatic continuous sectioning function. Three optional modes are available: continuous sectioning, stepping, and single sectioning, and the sectioning speed is adjustable.
2. Features 4.3-inch touch screen design, easy to understand. English and Chinese are optional.
3. External control panel, more convenient operation.
4. Two independent sets of position memory function, multiple setting methods.
5. The clamping head position is digitalized, and It can automatically reach the designated coordinate position based on the input coordinates. A variety of tissue clamping heads are optional, bidirectional sampling, suitable for specimens of different hardness and shapes.
6. Features intelligent sensing and semi-automatic repair capabilities, thereby improving operational efficiency. Only half a circle of the handwheel is required to achieve the repair, and no other operation is required during the whole process. After the half-trimming process, is completed, turn the handwheel in a full circle to automatically switch to the sectioning mode.
7. Unique specimen retraction function with adjustable retraction distance, it avoids damage caused by reverse contant between the specimen tissue and the blade, ensuring smoother blade operation and extending the service life of the blade.
8. The cross-roller dual-guide rail design features a robust structure and stable performance.
9. Features advanced speed regulation method, small vibration, low noise.
10. The blade holder can be accurately displaced laterally, and the full length of the blade can be used without moving the blade with fingers, avoiding danger. At the same time, each blade can be divided into three parts to section paraffin block, which triples the service life of the blade. It is compatible with both wide and narrow blade types, featuring integrated blade guards and blade retraction mechanisms.
11. The surface is made of metal spraying, with high strength, corrosion resistance, smooth lines and elegant appearance.
12. The handwheel can be locked in the upper and lower positions, making the sectioning safer and more convenient.
13. The blade holder adopts a dovetail groove structure base, which is more accurate and stable in forward and backward movement and locking.
14. The large-capacity waste section trough with magnetic function is easy to disassemble and install, making the sectioning clean and hygienic.
15. The specimen positioning system with 0 position can be adjusted on the X/Y axis and the specimen can be positioned horizontally at ±8 degrees.

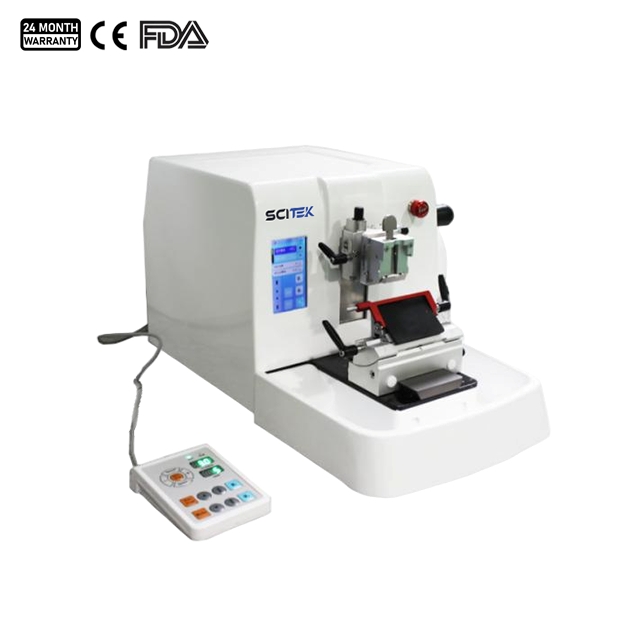

Fully Automatic Microtome Specification:
Model
MT-A3385
Section Thickness Range
0-100 μm (3-5 μm is the best section effect)
Section Thickness Setting
0-5 μm, in 0.5 μm increments
5-20 μm, in 1 μm increments
20-60 μm, in 5 μm increments
60-100 μm, in 10 μm increments
Screen
Numbers can be directly entered through the touch screen
Trimming Thickness Range
0-800 μm
Trimming Thickness Setting
0-10 μm, in 1 μm increments
10-20 μm, in 2 μm increments
20-50 μm, in 5 μm increments
50-100 μm, in 10 μm increments
100-800 μm, in 50 μm increments
Maximum Specimen Size
55×45 mm
Precision Error
± 5%
Rectraction Range
0-250 μm
Total Horizontal Specimen Feed
30 mm
Vertical Specimen Stroke
70 mm
blade holder Angle
0-15°
Languages
2 (Chinese and English)
Power Supply
AC 220/110 V, 50/60 Hz
External Size (W×D×H)
305×450×600 mm
Shipping Size (W×D×H)
480×510×570 mm
N.W. /G.W.
36/46 kg
Fully Automatic Microtome Feature:
1. Reasonable layout and simple operation with fully automatic continuous sectioning function. Three optional modes are available: continuous sectioning, stepping, and single sectioning, and the sectioning speed is adjustable.
2. Features 4.3-inch touch screen design, easy to understand. English and Chinese are optional.
3. External control panel, more convenient operation.
4. Two independent sets of position memory function, multiple setting methods.
5. The clamping head position is digitalized, and It can automatically reach the designated coordinate position based on the input coordinates. A variety of tissue clamping heads are optional, bidirectional sampling, suitable for specimens of different hardness and shapes.
6. Features intelligent sensing and semi-automatic repair capabilities, thereby improving operational efficiency. Only half a circle of the handwheel is required to achieve the repair, and no other operation is required during the whole process. After the half-trimming process, is completed, turn the handwheel in a full circle to automatically switch to the sectioning mode.
7. Unique specimen retraction function with adjustable retraction distance, it avoids damage caused by reverse contant between the specimen tissue and the blade, ensuring smoother blade operation and extending the service life of the blade.
8. The cross-roller dual-guide rail design features a robust structure and stable performance.
9. Features advanced speed regulation method, small vibration, low noise.
10. The blade holder can be accurately displaced laterally, and the full length of the blade can be used without moving the blade with fingers, avoiding danger. At the same time, each blade can be divided into three parts to section paraffin block, which triples the service life of the blade. It is compatible with both wide and narrow blade types, featuring integrated blade guards and blade retraction mechanisms.
11. The surface is made of metal spraying, with high strength, corrosion resistance, smooth lines and elegant appearance.
12. The handwheel can be locked in the upper and lower positions, making the sectioning safer and more convenient.
13. The blade holder adopts a dovetail groove structure base, which is more accurate and stable in forward and backward movement and locking.
14. The large-capacity waste section trough with magnetic function is easy to disassemble and install, making the sectioning clean and hygienic.
15. The specimen positioning system with 0 position can be adjusted on the X/Y axis and the specimen can be positioned horizontally at ±8 degrees.
Fully Automatic Microtome Specification:
Model
MT-A3385
Section Thickness Range
0-100 μm (3-5 μm is the best section effect)
Section Thickness Setting
0-5 μm, in 0.5 μm increments
5-20 μm, in 1 μm increments
20-60 μm, in 5 μm increments
60-100 μm, in 10 μm increments
Screen
Numbers can be directly entered through the touch screen
