Rotary Microtome MT-R2270

Model : MT-R2270

Section Thickness Setting Range : 0–60μm
Minimum Setting of Sectioning Thickness : 1μm
Precision Error : ±1%
Sizes(W×D×H)(mm) : 590×500×330
This rotary microtome has adjustable parameters such as slice thickness and speed to suit different samples and experimental needs.
Availability:
Quantity:

Ratory Microtome Specifications:

ModelMT-R2270
Section Thickness Setting Range0–60μm
Section Thickness Setting Options0–2μm  increment 0.5μm
2–20μm increment 1μm
20–60μm increment 5μm
Trimming Thickness Setting Range0- 60μm
Minimum Setting of Sectioning Thickness1μm
Maximum Specimen Size70×70mm (optional clamp)
Trimming Thickness15μm and 35μm
Specimen Retraction60μm (optional)
Total Horizontal Specimen Feed28mm
Vertical Specimen Stroke70mm
Movement Range of the Base of Blade Holder Base0-60mm (front to back)
Movement Range of the Blade Press Plate0-23mm
Specimen Holder RotationAt any angle within 360 degrees
Specimen OrientationXY – 8°
Precision Error±1%
Sizes(W×D×H)(mm)590×500×330

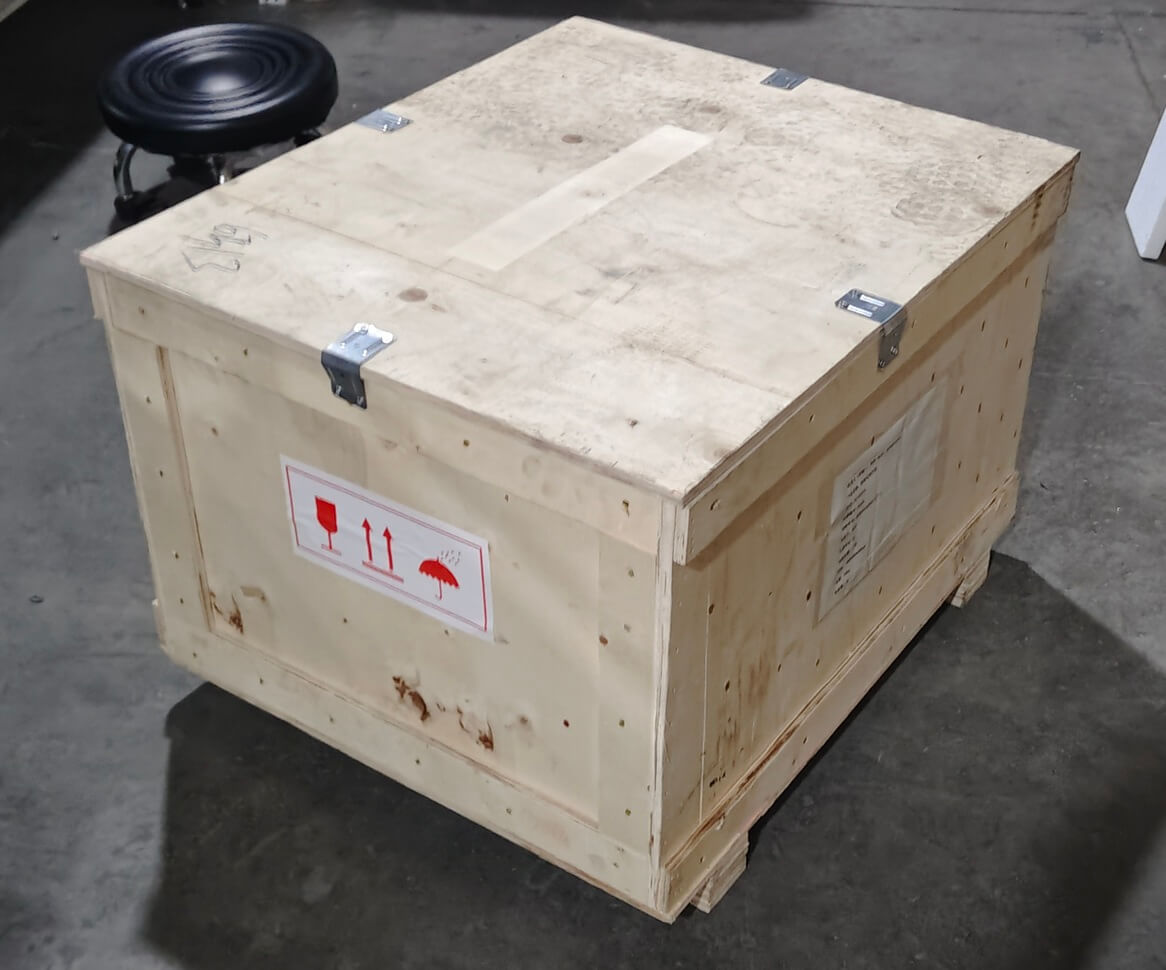

Shipping Size(W×D×H)(mm)710x610x520
N.W./G.W. (kg)44/60

Ratory Microtome Features:

  1. The streamlined housing not only enhances the aesthetic appeal but also simplifies the cleaning process, eliminating the need to open the housing.

  2. Utilizing imported cross-roller guide rails and a screw motion mechanism, it ensures precision and delivers exceptional sectioning performance.

  3. The advanced high-precision micro-drive feed system enables consistent and accurate sectioning.

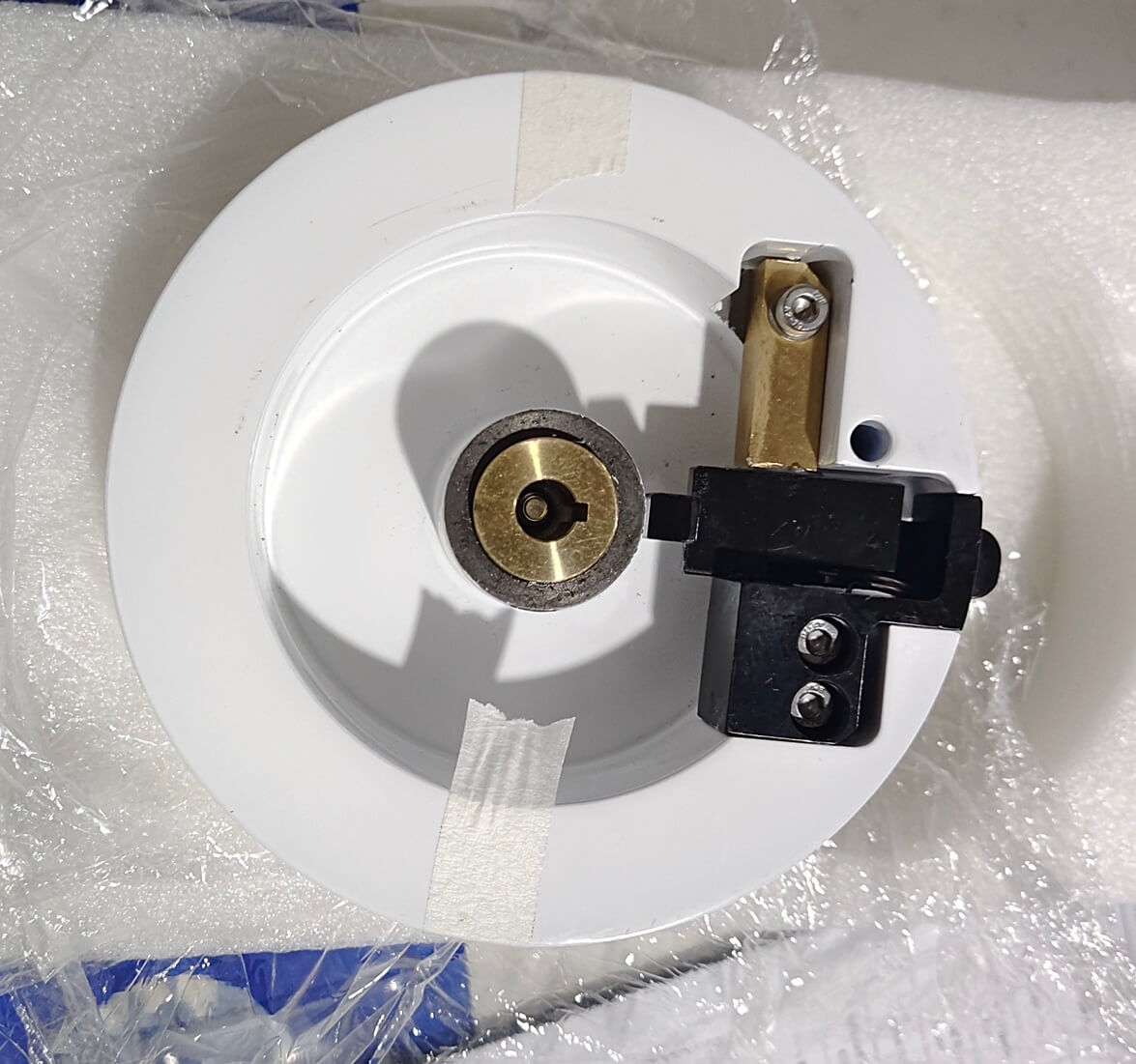

  4. The hand-wheel operates based on a mechanical balance mechanism and can be securely locked at any position, providing maximum safety and convenience.

  5. The cassette holder can be locked at various positions along all three axes, facilitating easy adjustment of the specimen sectioning angle.

  6. The system offers multiple functions, including specimen retraction and trimming, along with an adaptable specimen holding system.

  7. The small coarse-advance hand-wheel is thoughtfully located for ergonomic use.

  8. The precise positioning system not only simplifies adjustments but also provides precise adjustments along the X and Y axes.

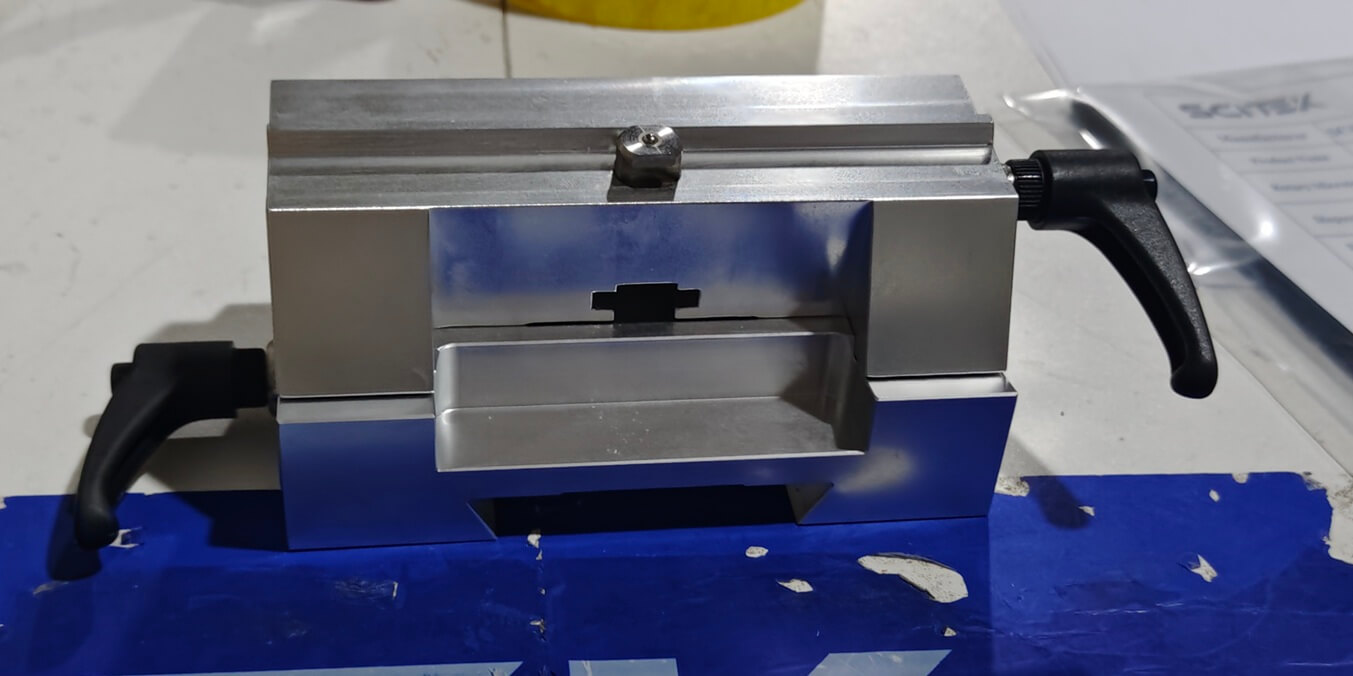

  9. Effortless and swift switching between different specimen clamps is supported, offering two options: paraffin block clamp and cassette clamp.

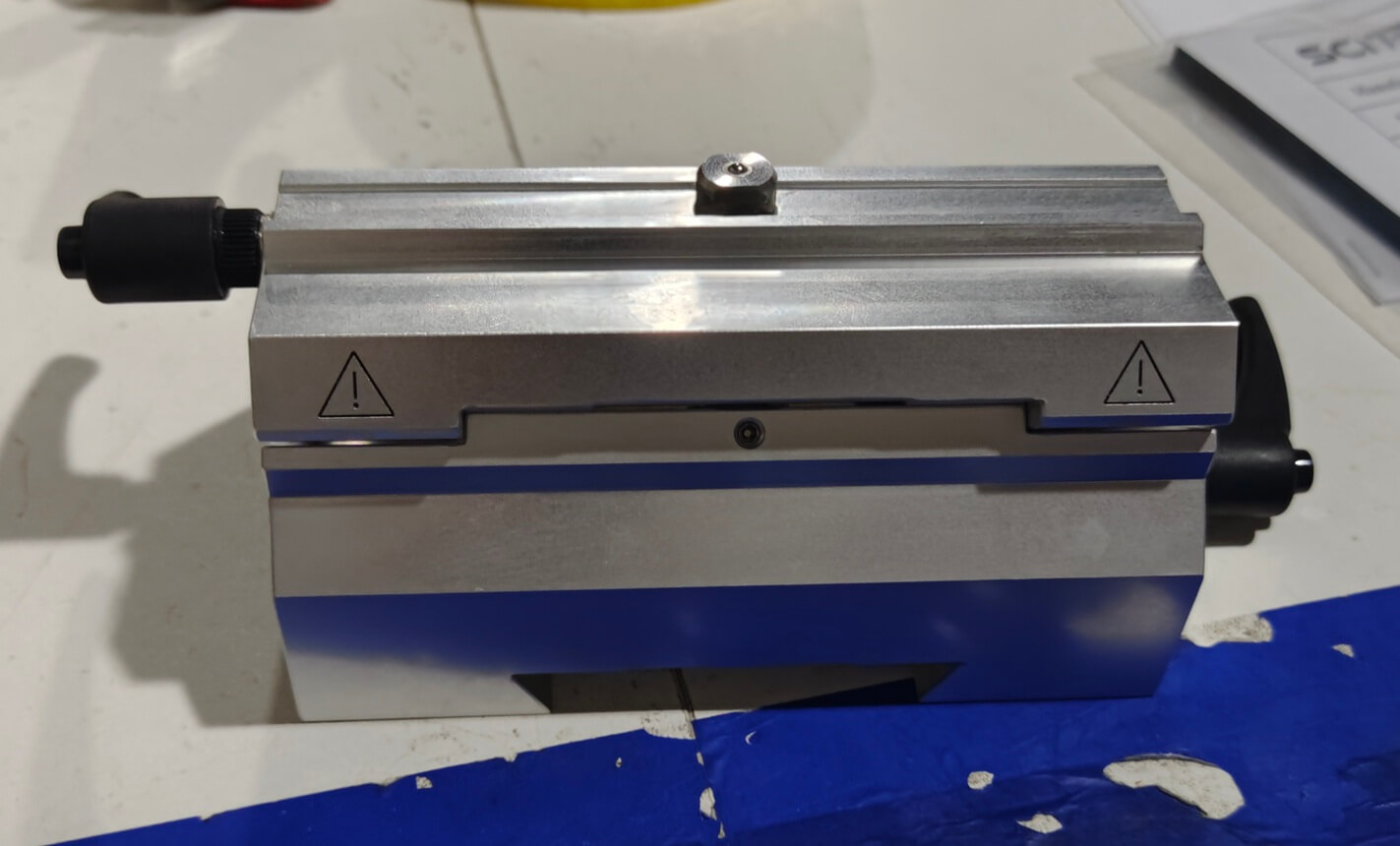

  10. A red bar covering the entire length of the blade holder ensures user protection, and the push bar simplifies blade replacement.

  11. The blade holder can be laterally moved and adjusted without manual blade manipulation, allowing the full blade length to be utilized across three different segments.

  12. The hand-wheel balance is finely tuned and can be securely locked at any position to ensure safe and convenient sectioning.

  13. The top of the housing features a well-designed tray for added convenience.

  14. A magnetically secured large waste tray is easily attachable and detachable for user-friendly maintenance.
