2. Blade holder can be moved forward-or-backward and left-or-right resulting in easy trimming and sectioning operations.
3. LCD screen shows the number of sections and trims; equipped with a safety alert system.
4. 8° X-axis and Y-axis adjustments for precise positioning of the specimen head.
5. Compact Design: The rotary microtome has a compact appearance and take up little lab space for easy placement and operation.
6. Easy to Operate: The control interface of the rotary microtome is simple to understand and does not require complex operating skills. Users can get up and running with slicing quickly.
7. Versatility: Although economical, the rotary microtome has various slicing options to meet the needs of different materials and thicknesses.
8. Reliability: Although economical, the rotary microtome emphasizes reliability and stability to ensure continuous slicing.
9. Safety: The rotary microtome is equipped with a range of safety features, such as tool protection and automatic shutdown, to minimize risk to the operator.
10. Easy Maintenance: Maintenance of a budget microtome is usually relatively easy, extending the life of the equipment.
Specification:
Model
MT-R210I
Section Thickness Range
0-500 μm
Section Thickness Setting
0 - 25 μm for continuous sectioning,
The sectioning thickness can be set at any value ＞ 25 μm
Trimming Thickness Range
0-500 μm
Minimum Sectioning Thickness
1 μm
Maximum Specimen Size
35×25 mm
50×60 mm (optional)
Precision Error
±10％
Specimen Orientation
X/Y axis 8°
Total Horizontal Specimen Feed
30 mm
Vertical Specimen Stroke
55 mm
Movement Range of Blade Holder’s Base
0-50 mm (front-to-back)
Movement Range of the Blade Holder
0-20 mm (left-to-right)
External Size (W×D×H)
340×335×270 mm
Shipping Size (W×D×H)
500×450×400 mm
N.W./G.W.
19/30 kg
Details of Rotary Microtome:
Its compact, solid-metal housing, which enhances operational stability and durability. Anti-slip feet ensure the device remains firmly in place during precision sectioning.
Close-up of the handwheel mechanism, designed for smooth and controlled operation. The locking feature prevents unintended movement, improving safety during specimen setup and cleaning.

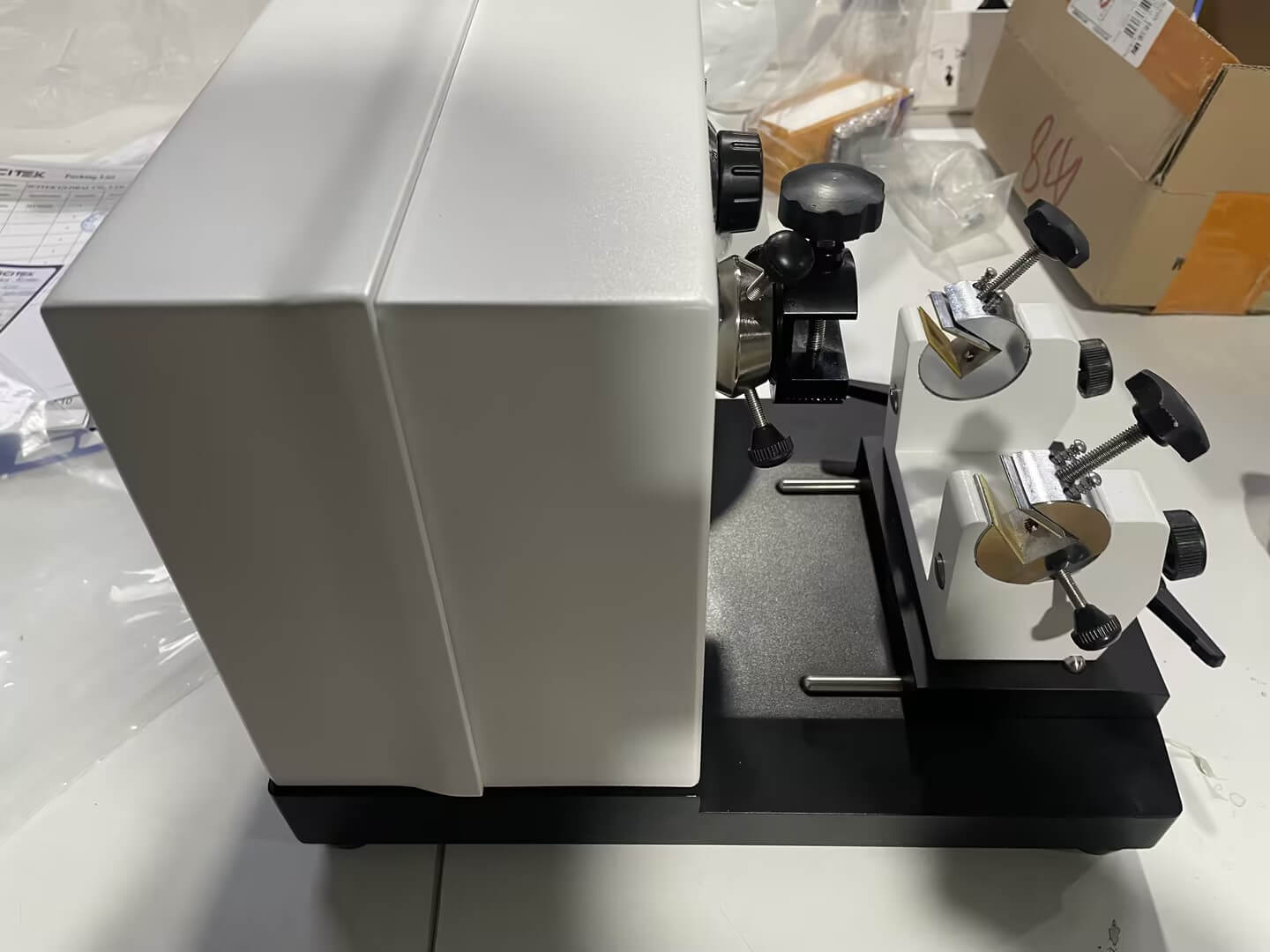

Its high-precision blade holder and specimen clamp. The ergonomic layout allows for efficient sectioning of paraffin-embedded tissue with consistent thickness.
The MT-R210I rotary microtome is professionally packed in a durable wooden crate with reinforced edges, ensuring maximum protection against shock and vibration during international transportation. Internal packaging inside the crate includes foam padding and sealed accessories. The user manual and parts are organized for easy setup upon arrival, ensuring quick and hassle-free installation.
Advantage:
1. Easy-to-clean housing.
2. Blade holder can be moved forward-or-backward and left-or-right resulting in easy trimming and sectioning operations.
3. LCD screen shows the number of sections and trims; equipped with a safety alert system.
4. 8° X-axis and Y-axis adjustments for precise positioning of the specimen head.
5. Compact Design: The rotary microtome has a compact appearance and take up little lab space for easy placement and operation.
6. Easy to Operate: The control interface of the rotary microtome is simple to understand and does not require complex operating skills. Users can get up and running with slicing quickly.
7. Versatility: Although economical, the rotary microtome has various slicing options to meet the needs of different materials and thicknesses.
8. Reliability: Although economical, the rotary microtome emphasizes reliability and stability to ensure continuous slicing.
9. Safety: The rotary microtome is equipped with a range of safety features, such as tool protection and automatic shutdown, to minimize risk to the operator.
10. Easy Maintenance: Maintenance of a budget microtome is usually relatively easy, extending the life of the equipment.
Specification:
Model
MT-R210I
Section Thickness Range
0-500 μm
Section Thickness Setting
0 - 25 μm for continuous sectioning,
The sectioning thickness can be set at any value ＞ 25 μm
Trimming Thickness Range
0-500 μm
Minimum Sectioning Thickness
1 μm
Maximum Specimen Size
35×25 mm
50×60 mm (optional)
Precision Error
±10％
Specimen Orientation
X/Y axis 8°
Total Horizontal Specimen Feed
30 mm
Vertical Specimen Stroke
55 mm
Movement Range of Blade Holder’s Base
0-50 mm (front-to-back)
Movement Range of the Blade Holder
0-20 mm (left-to-right)
External Size (W×D×H)
340×335×270 mm
Shipping Size (W×D×H)
500×450×400 mm
N.W./G.W.
19/30 kg
Details of Rotary Microtome:
Its compact, solid-metal housing, which enhances operational stability and durability. Anti-slip feet ensure the device remains firmly in place during precision sectioning.
Close-up of the handwheel mechanism, designed for smooth and controlled operation. The locking feature prevents unintended movement, improving safety during specimen setup and cleaning.
Its high-precision blade holder and specimen clamp. The ergonomic layout allows for efficient sectioning of paraffin-embedded tissue with consistent thickness.
The MT-R210I rotary microtome is professionally packed in a durable wooden crate with reinforced edges, ensuring maximum protection against shock and vibration during international transportation. Internal packaging inside the crate includes foam padding and sealed accessories. The user manual and parts are organized for easy setup upon arrival, ensuring quick and hassle-free installation.
