Semi-Automated Cell Counter

Model : CTM-EZ300

Sample Volume : 10 μL
Diameter Range : 5–200 μm
Cell Counting Time : Less than 2 s
Data Export Format : JPG, CSV, PDF
Concentration Range : 1×10⁴–3×10⁷ cells/mL

The CTM-EZ300 automated cell counter is designed specifically for cell research, and is widely used in scientific research, biotechnology R&D, and quality control departments within the biopharmaceutical industry (For research use).

Availability:

Quantity:



Inquiry Add to Inquiry List

Product Description

Semi-Automated Cell Counter Application:

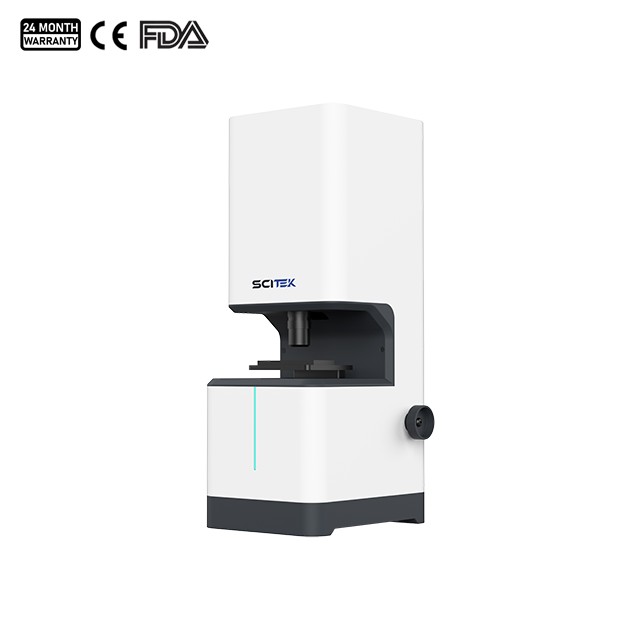

The CTM-EZ300 automated cell counter is a modular cell counting system integrating precision

counting and Al-powered analytics. Designed specifically for cell researchers, it revolutionises

traditional manual counting by offering high-resolution imaging, rapid counting in two seconds,

zero consumables, and a user-friendly workflow. This system significantly accelerates cell experiments

and is widely adopted in scientific research, biotechnology R&D, and biopharma QC departments

(cell therapy production monitoring) (For research use).

Semi-Automated Cell Counter Feature:

1. Cost Efficiency: No dedicated Disposable Hemocytometer is needed, it is compatible with commonly

used laboratory hemocytometers. Reusable design significantly reduces long-term operating costs.

2. High precision and efficiency: Counting in 2 seconds, one-click imaging and analysis—100 times faster

than manual counting with hemocytometer. Automated workflow eliminates visual fatigue and human error,

ensuring data reproducibility.

3. Intelligent Recognition, Trusted Results: powered by a deep learning algorithm, equipped with a 6-megapixel

color CMOS camera and a sharp 4X objective lens, deliver clear, detailed images for consistent and confident analysis.

4. Smart Analytics, Traceable Confidence: Delivers comprehensive data visualization, presenting total cell count,

average diameter (with a clear size distribution histogram), and aggregation & viability percentages.

Direct export of JPG/PDF/CSV files for GLP compliance.

Semi-Automated Cell Counter specification:

Model	CTM-EZ300
Diameter Range	5–200 μm
Concentration Range	1×10⁴–3×10⁷ cells/mL
Sample Volume	10 μL
Cell Counting Time	Less than 2 s
Suitable cells	Routine passaged cell lines (Clean background; cell types without complex backgrounds)
Not suitable cells	Stem cells, primary cells, primary lymphoid or immune cells, NK cells, PBMCs, and other cell types with complex background
Optical Configuration	4X objective + 6 MP
Dual Counting Mode	Brightfield and Trypan Blue viability detection
Illumination	CMOS White LED (adjustable intensity)
Optional Computing Module	Intel core i5 (12 C/16 T) 8 GB RAM, 3.8 GB GPU
Data Export Format	JPG, CSV, PDF
Dimension (W×D×H)	170×195×418 mm
Packing Dimension (W×D×H)	310×295×500 mm
N.W.	6.75 kg
