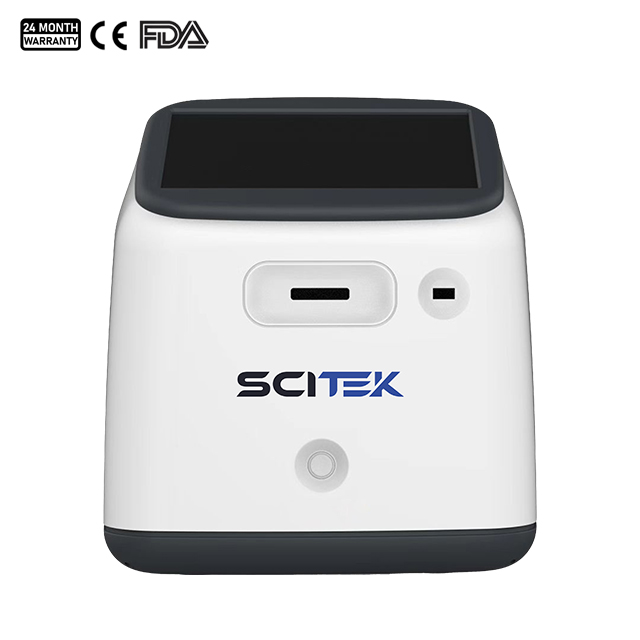

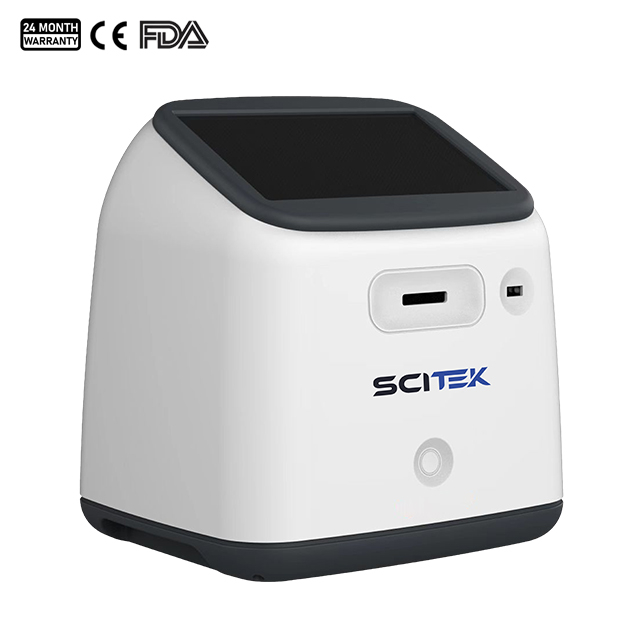

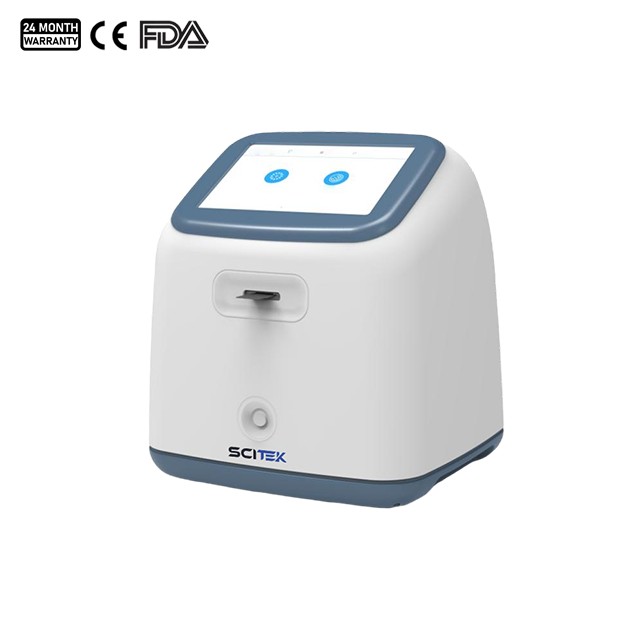

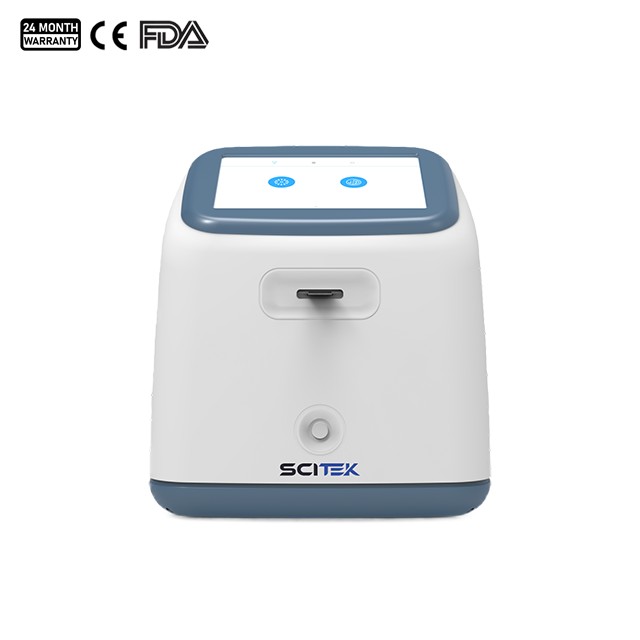

Auto Cytometer

Model : ACTM-B100; ACTM-F200

Optimum Concentration : 1E+06-8E+06 cells/ml
Optical Accuracy : 10X objective NA 0.25
Screen : 10.1 inches 1920x1080 pixel
Availability:
Quantity:
Inquiry Add to Inquiry List

This auto cytometer is a cell counting system that integrates high-definition imaging, accurate counting, and intelligent analysis. It is equipped with a deep learning intelligent recognition algorithm to accurately segment cell clusters, achieving precise counting and data visualization. One-click start, operation is simple and convenient.

Auto Cytometer Specifications:

Product Parameters
Product ModelACTM-B100ACTM-F200
Optimum Concentration1E+06-8E+06 cells/ml
Optical Accuracy10X objective NA 0.25
Screen10.1 inches 1920x1080 pixel
Data Transmission2*USB3.0 LAN port (Supported service)
Storage500GB M.2 SSD Supports larger storage
Size(LxWxH)(mm)308x290x360
Weight8KG10kg
Sample Volume20 μl
Power Input24V = 9.2Ar221W MAX
Imaging6MP High Frame Rate Color CMOS6MP High Frame Rate Color CMOS
Optical: Bright fieldOptical: 3 channels bright field+ 2 fluorescence channels
Fluorescence channel/

Blue Fluorescence:
Ex: 480/30nm;

Em: 535/40nm

Green Fluorescence:
Ex: 540/25nm;
Em: 620/60nm

Package info.620x390x427mm 12kg620x390x427mm 14kg


Previous:
Next:
Get Quotation/Become Distributor

Related Products

Top Automatic Bacterial Colony Counter
Top Automatic Bacterial Colony Counter
3x Bacterial Colony Counter
3x Bacterial Colony Counter

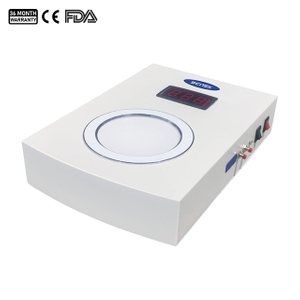

Automatic Colony Counter by Image Analysis
