| External Size (W×D×H)(mm) | 1047×800×2450 | 1247×800×2450 | 1547×800×2450 | 1847×800×2450 |
| Internal Size (W×D×H)(mm) | 787×560×700 | 987×560×700 | 1287×560×700 | 1587×560×700 |
| Max.Opening | 740 mm |
| Work Surface Height | 820 mm |

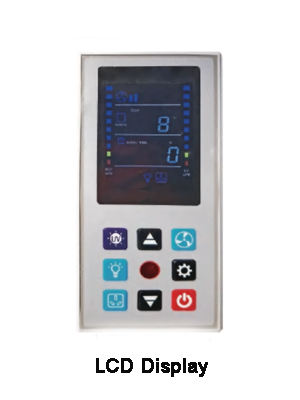

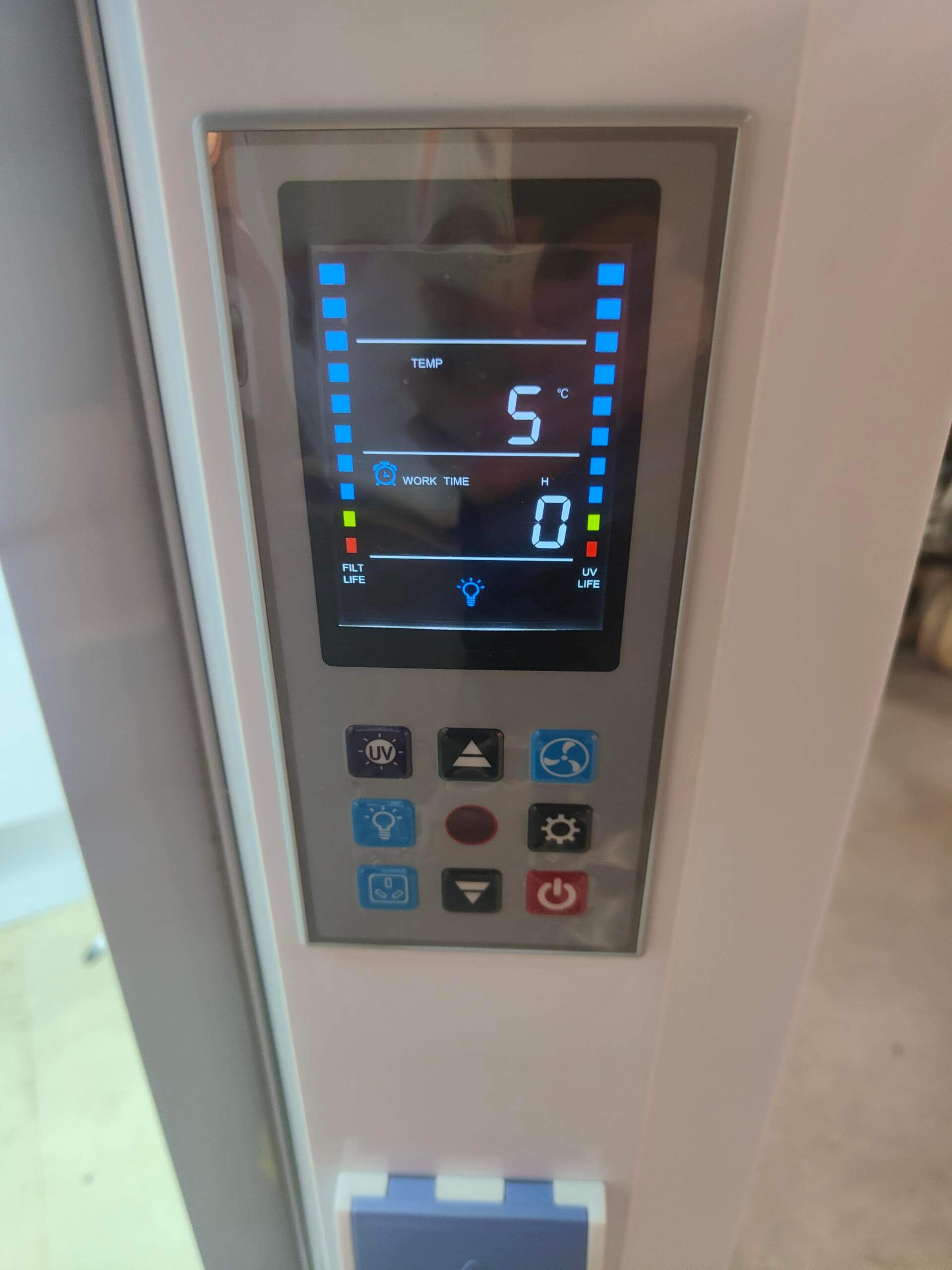

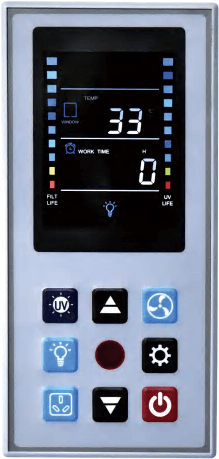

| Control System | Display | Microprocessor controller with LCD display, display the operating status of each function |

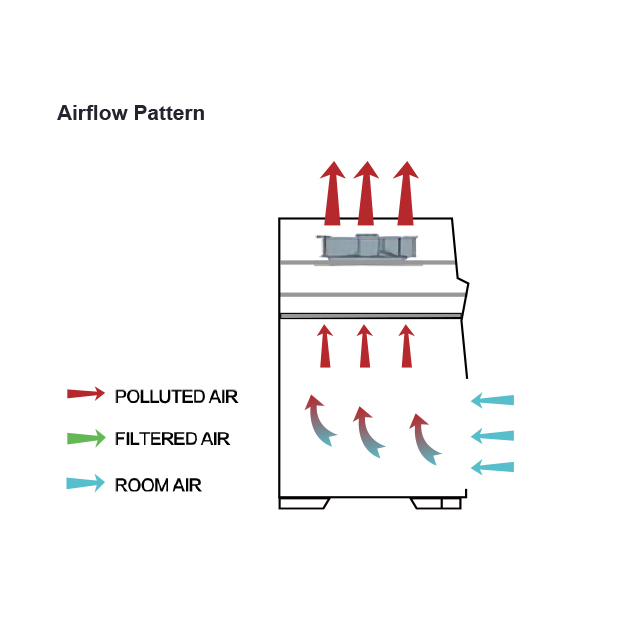

| Airflow System | Airflow Velocity | 0.3–0.8 m/s, speed adjustable |
| Cabinet Construction | Main Body | Made of Porcelain white PP, thickness 8mm, resistant to strong acid, alkali and anti-corrosion. |

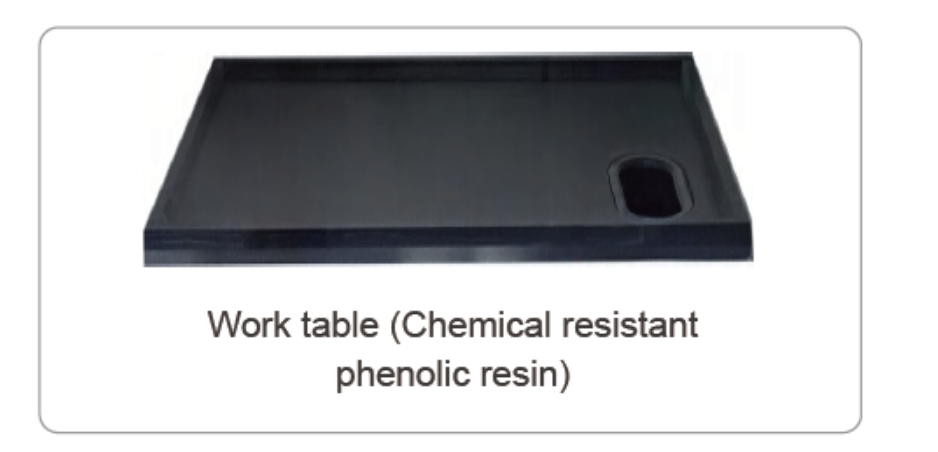

| Work Surface | Chemical resistant phenolic resin |
| Front Window | Manual, 5mm toughened glass, height adjustable.Resistant to acid and alkali |
| Electrical System | LED Lamp | 16W×2 | 16W×2 | 30W×2 | 36W×2 |

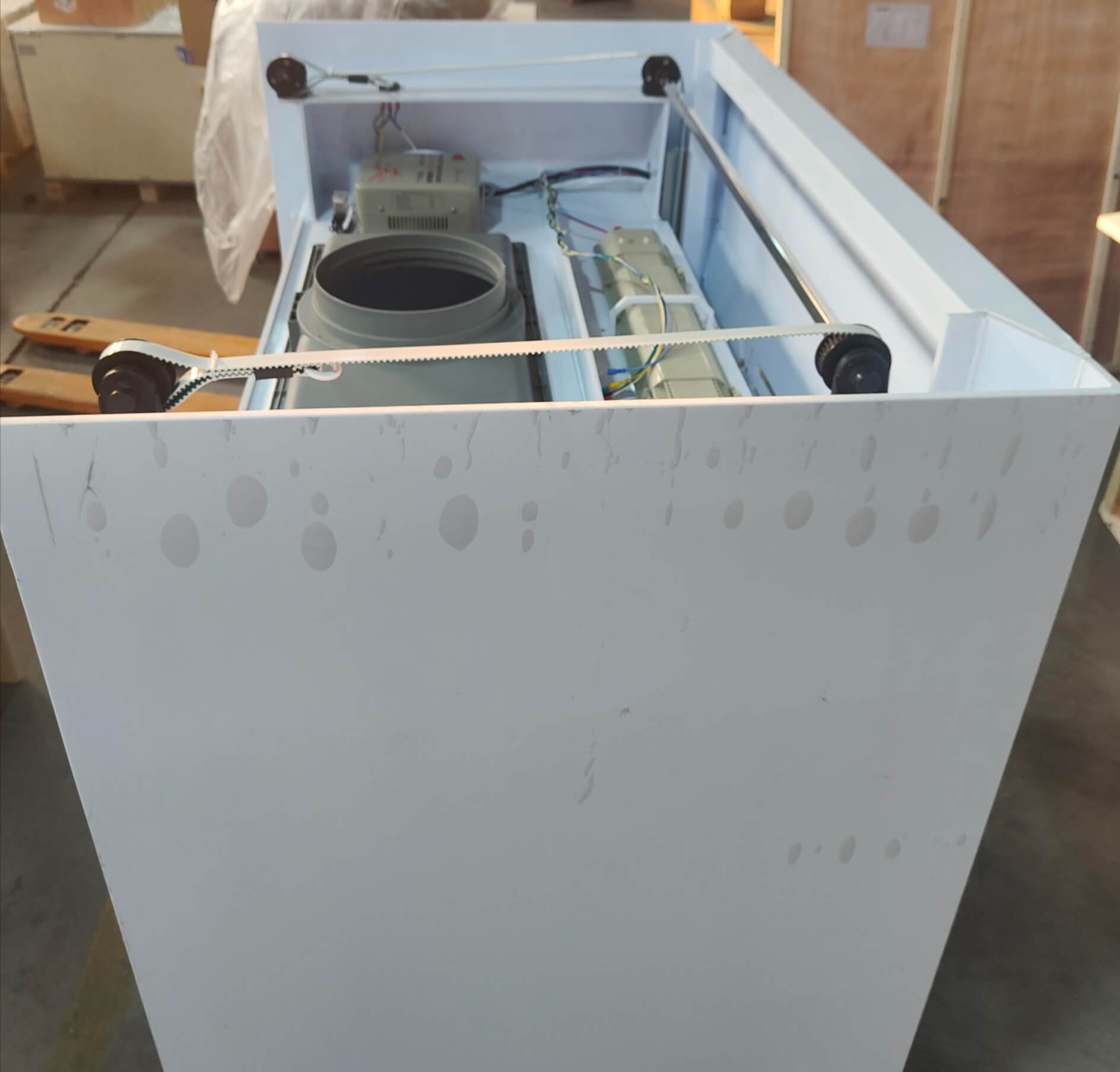

| Blower | Built-in PP centrifugal blower(2 blowers for FMH-1800DP only); Speed adjustable |
| Consumption | 450W | 450W | 450W | 900W |
| Not include socket loading power consumption |
| Power Supply | AC 220±10% V, 50/60 Hz; 110±10% V, 60 Hz |
| Illumination | ≥900 Lux |
| Sound Emission | ≤68 dB(A) |

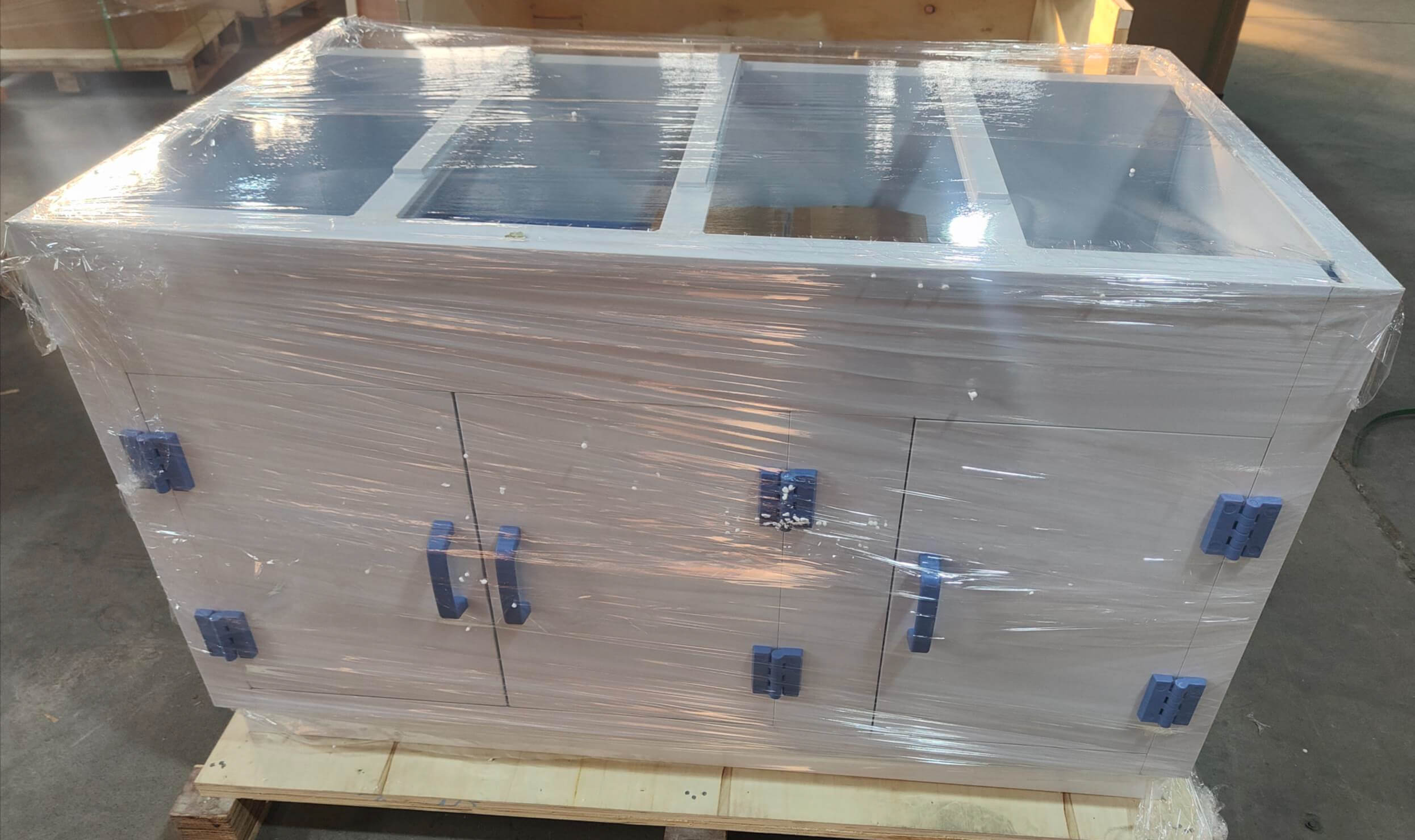

| Standard Accessory | 1.Base Cabinet; |
| 2.LED Lamp; |

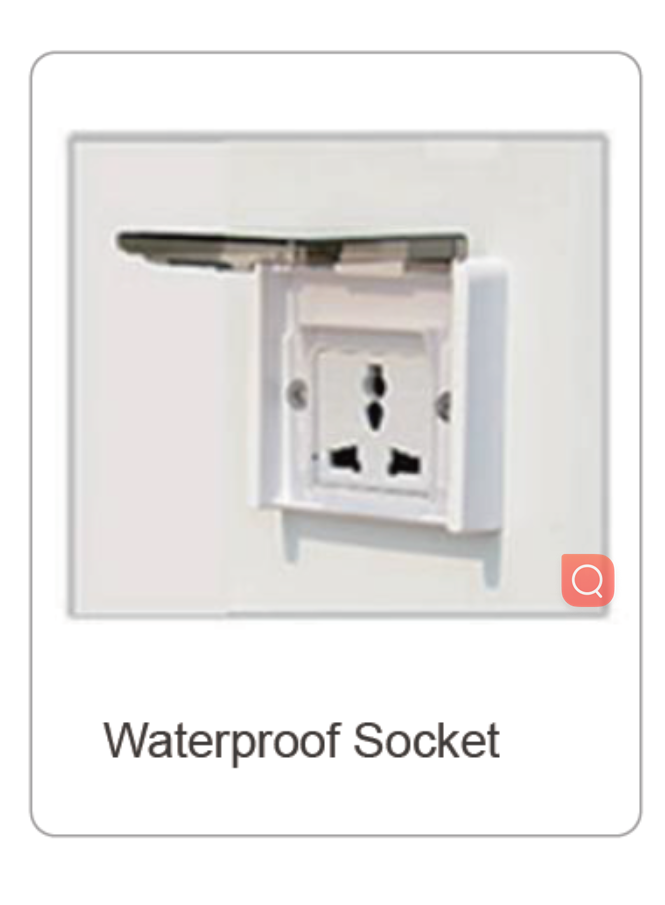

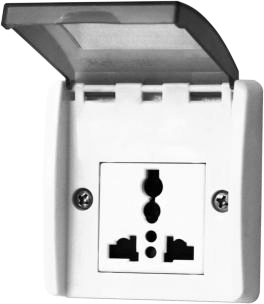

| 3.Waterproof Socket×2; |

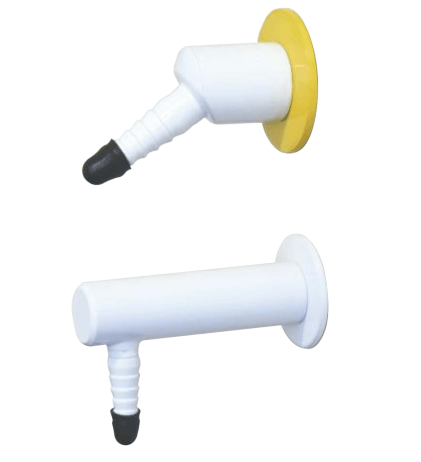

| 4.Water Tap (PP); |
| 5.Gas Tap (PP); |

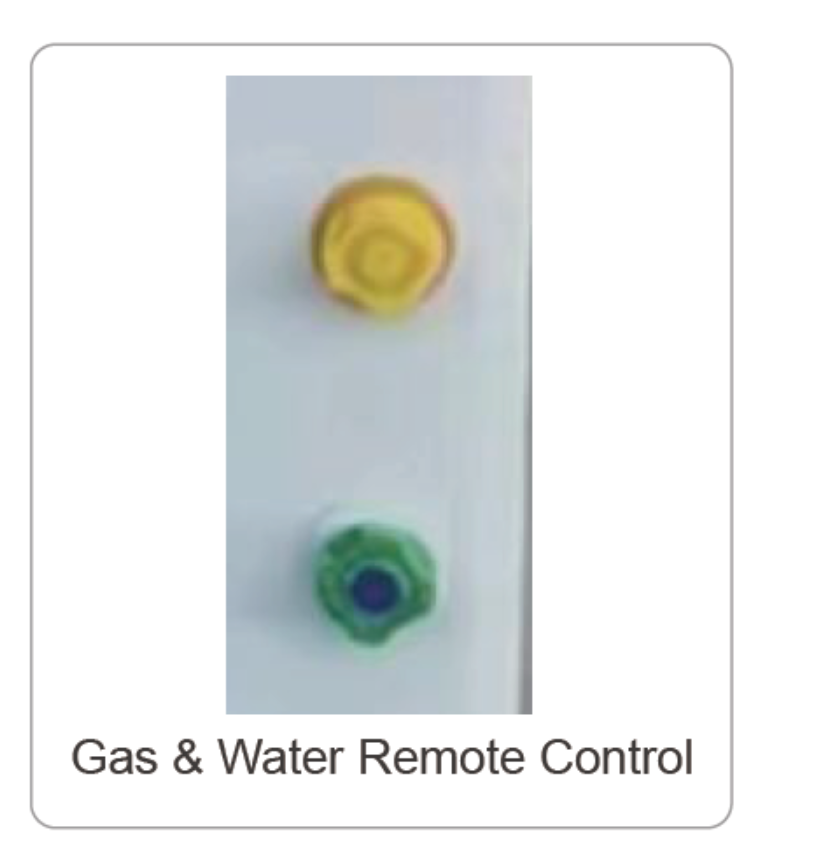

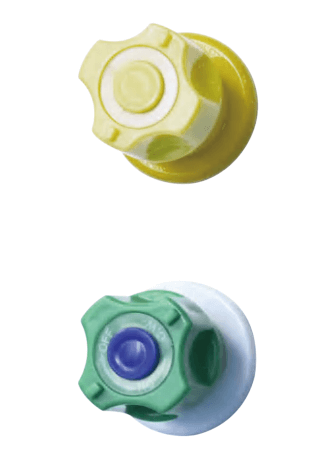

| 6.Gas & Water Remote Control Valve; |

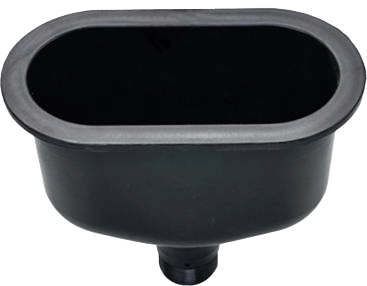

| 7.PP Water Sink; |

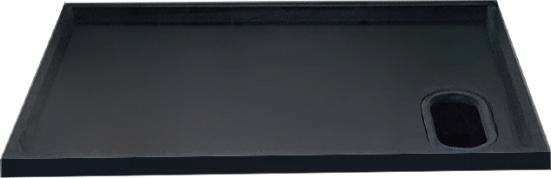

| 8.Work Table: Solid physicochemical board, resistant to acid and alkali; |
| 9.PP Centrifugal Blower×1(2 for FMH-1800DP only); |
10.10 m PVC aluminum foil composite exhaust duct, Diameter: 250mm; (2 pcs of 10m exhaust duct for FMH-1800DP only,duct is retractable and can be cut freely.) Pipe strap ×2 (4 pcs for FMH-1800DP only); |
| Optional Accessory | 1. PP Work Table, epoxy resin board |
| 2. Active Carbon Filter; |
| Gross Weight (kg) | Main Body | 137 | 155 | 180 | 206 |
| Base Cabinet | 89 | 99 | 114 | 140 |
| Shipping Size (W×D×H) (mm) | Main Body | 1188×938×1612 | 1388×938×1612 | 1688×938×1612 | 1988×938×1612 |
| Base Cabinet | 1188×888×1000 | 1388×888×1000 | 1688×888×1000 | 1988×888×1000 |
| Shipping Volume (m³) | 2.9 | 3.4 | 4.1 | 4.8 |
