This is a floor standing platelet incubator/stirring system with an advanced thermoelectric heating and cooling system. The platelet incubator has 5/10 shelves and can hold up to 50/200 platelets. The system features smooth and quiet agitation, a large color touch screen interface, indicator lights, an automatic temperature alarm program, and a thermal printer for printing reports.
Model | ICB-P5 | ICB-P10 | |
---|---|---|---|
Preformance | Cooling Method | Forced air cooling | |
Defrost | No frost | ||
Power Failure Backup | 72h | ||
Temperature Range | 20~24℃ | ||
Ambient Temperature | 10~32℃ | ||
Noise(db) | 49 | 50 | |
Refrigeration System | Refrigerant | R134a | |
Temp. controller | Microprocessor | ||
Sensor | NTC | ||
Display | Digital display | ||
External Material | SPCC sprayed steel | ||
Internal Material | Stainless steel | ||
Alarms | High/Low Temperature | Standard | |
Power Failure | Standard | ||
Sensor Error | Standard | ||
Door Ajar | Standard | ||
Light | UV | ||
Other | Blood bags (450ml)/Drawer | 10/5 layers | 20/10 layers |
Thermal Printer | Standard | ||
Oscillation Amplitude | 50±10mm | ||
Oscillation Frequency | 60±5e/min | ||
Electrical Data | Power Supply | AC220V, 50/60Hz; 110V, 60Hz | |
Consumption(W) | 197 | 280 | |
Current(A) | 0.9 | 1.27 | |
Power consumption (kWh/24h) | 2.69 | 4.4 | |
Size | Internal Size (W×D×H)(mm) | 427x360x457 | 432x462x728 |
External Size (W×D×H)(mm) | 522x600x1035 | 520x340x1290 | |
Shipping Size (W×D×H)(mm) | 600x715x1230 | 605x720x1480 | |
CBM(m³) | 0.5 | 0.8 | |
N.W./G.W. (kg) | 65/95 | 85/120 |
Platelet incubator widely used in hospitals and laboratories. To store blood platelet,biological reagent, chemical products stored suitable for hospitals,blood stations, research institutes and univerity labs.
Platelet incubator adopts 304 stainless steel inner cavity, which is convenient and easy to clean.
Double-layer transparent heat-insulated glass door with inert gas filling inside to ensure cooling performance.
Control fan and forced circulation mechanism to ensure temperature consistency inside the cabinet's large digital display
UV sterilization automatically switches off when the door is opened to prevent harm to the human body.
High-quality oscillating slides for long life and low noise level
Low power, high/low temperature, half-open door, device failure will alarm to ensure safe and reliable storage conditions
Temperature printer can be set according to the demand, monitor the temperature change of the device at any time
4 casters with limiting positions, convenient to move and fix.

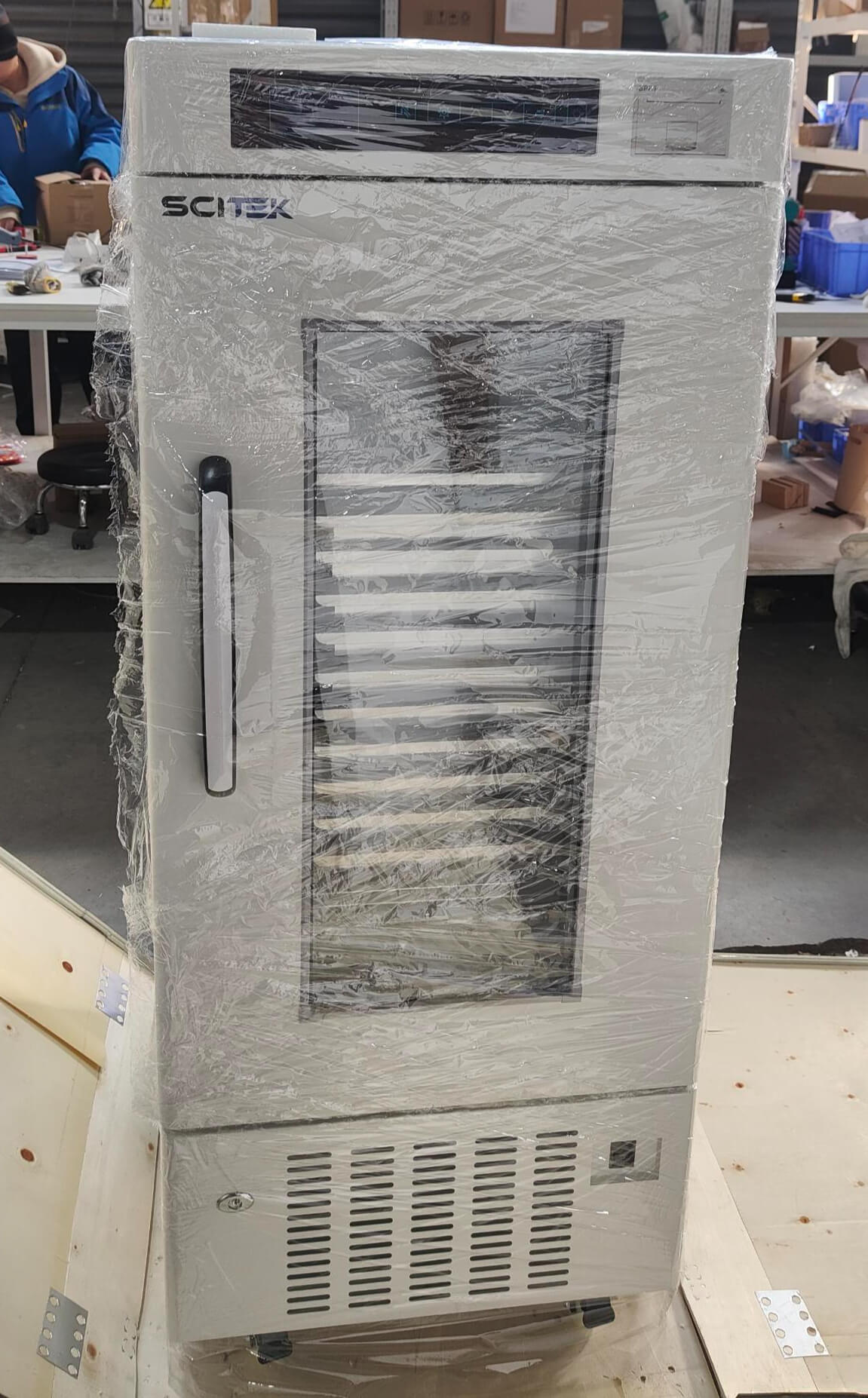

The front view shows the sleek and user-friendly design of the platelet incubator. The control panel is clearly visible, with temperature and oscillation settings, allowing precise control for platelet storage. The door is designed for easy access to the internal compartment where blood bags can be stored.

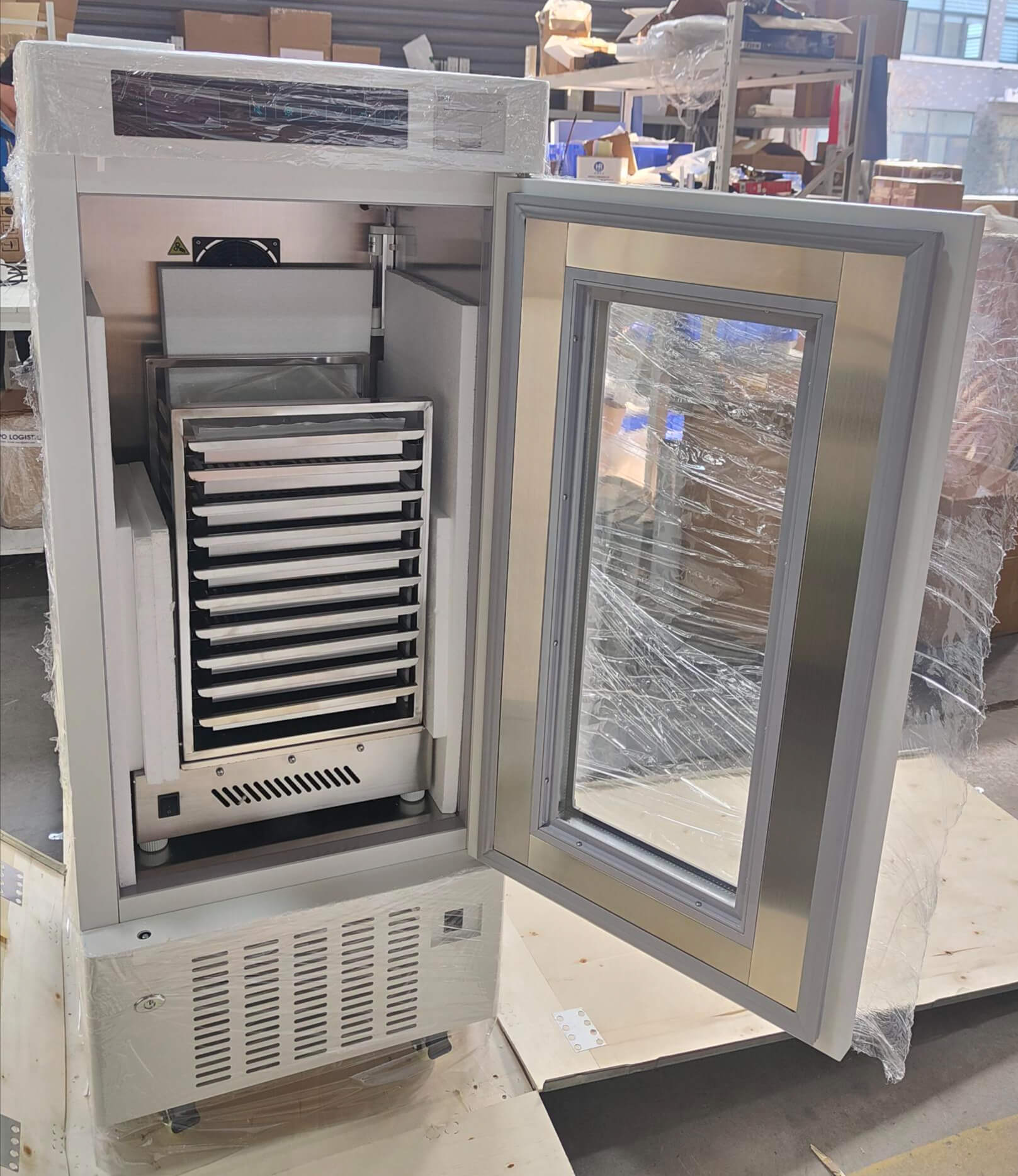

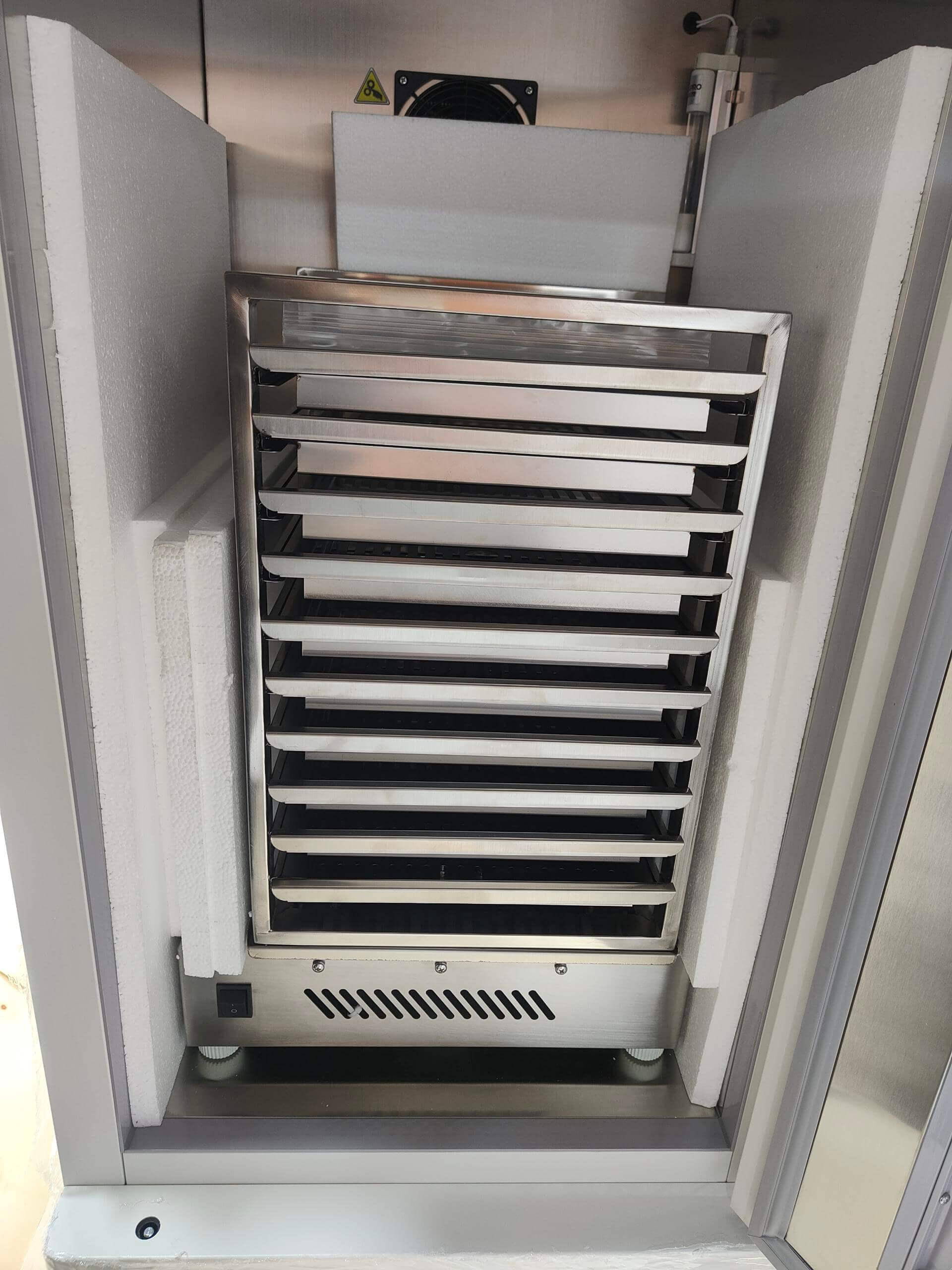

The internal view showcases the well-organized storage space, designed to hold blood bags (450ml) with a capacity of 20 bags per drawer, 10 layers deep. The oscillating motion is visible, with an oscillation amplitude of 50±10mm, ensuring proper agitation of the platelet bags during incubation to maintain optimal conditions.

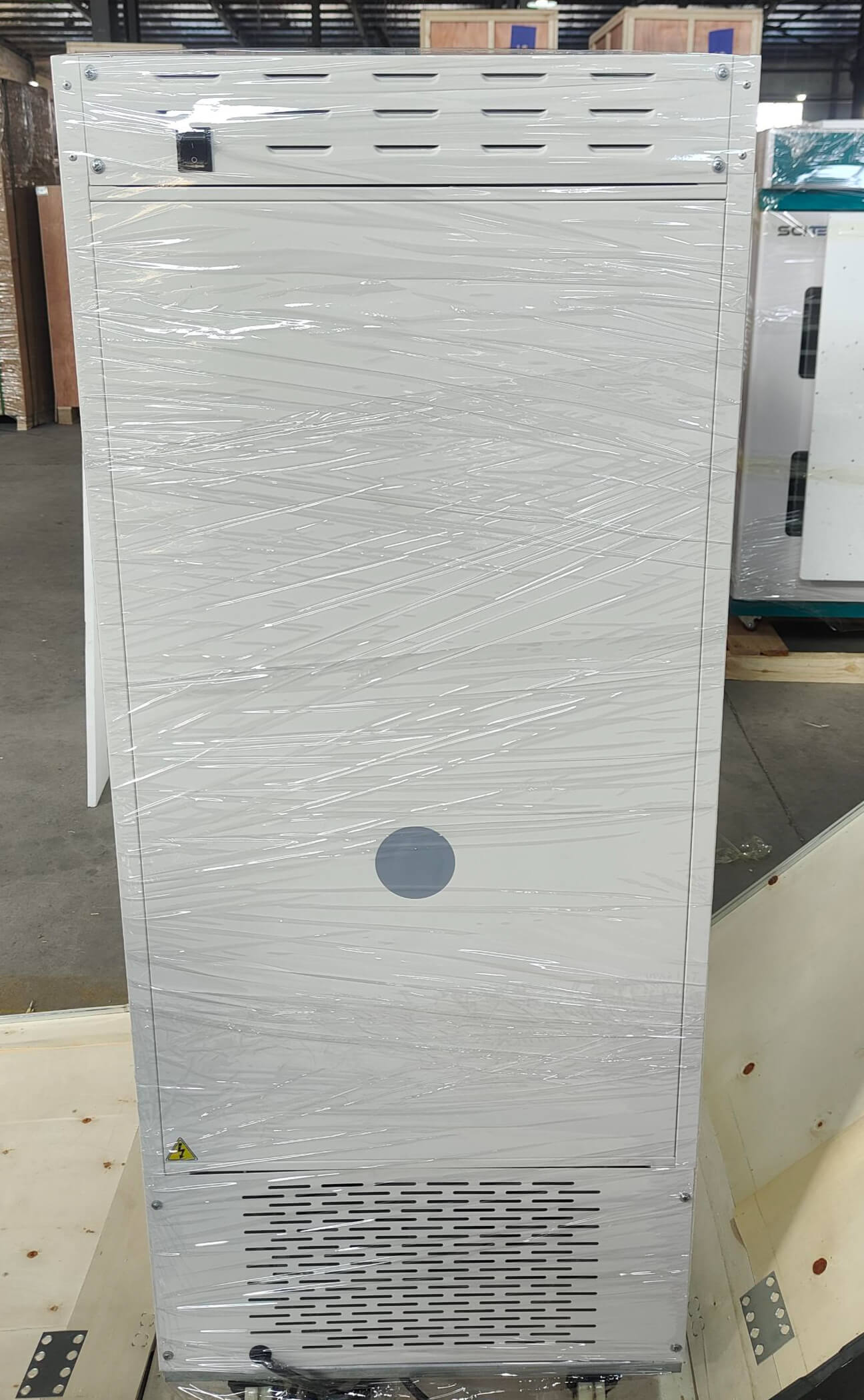

The back view reveals the ventilation and cooling system, ensuring efficient airflow for temperature regulation. The electrical and power connections are located on the rear, allowing for easy maintenance and setup. The back panel also includes necessary safety features for proper function and performance.
