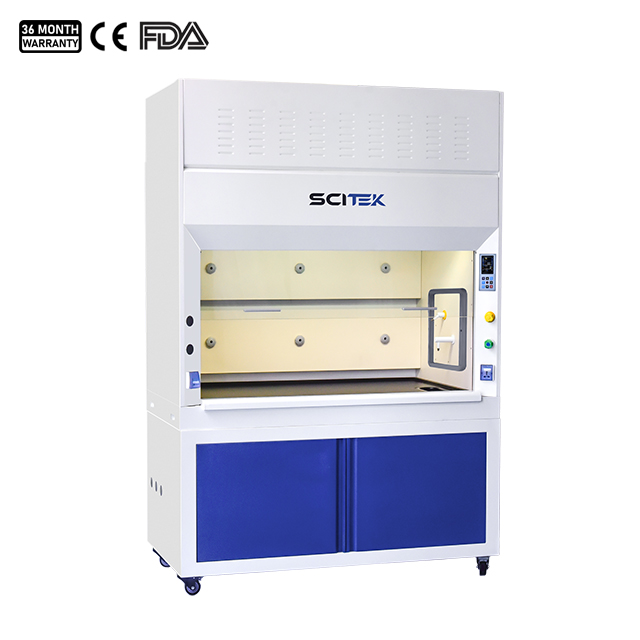

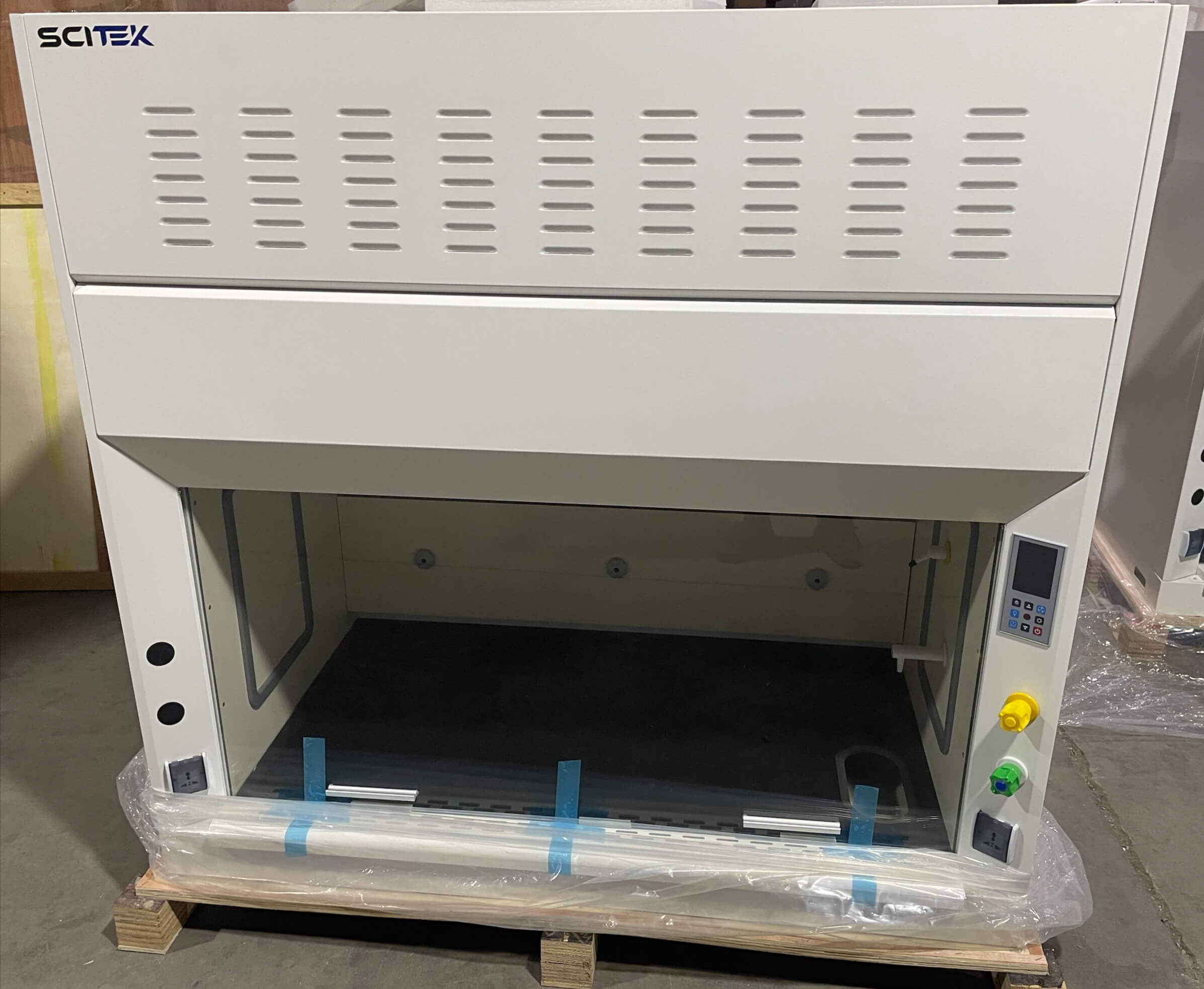

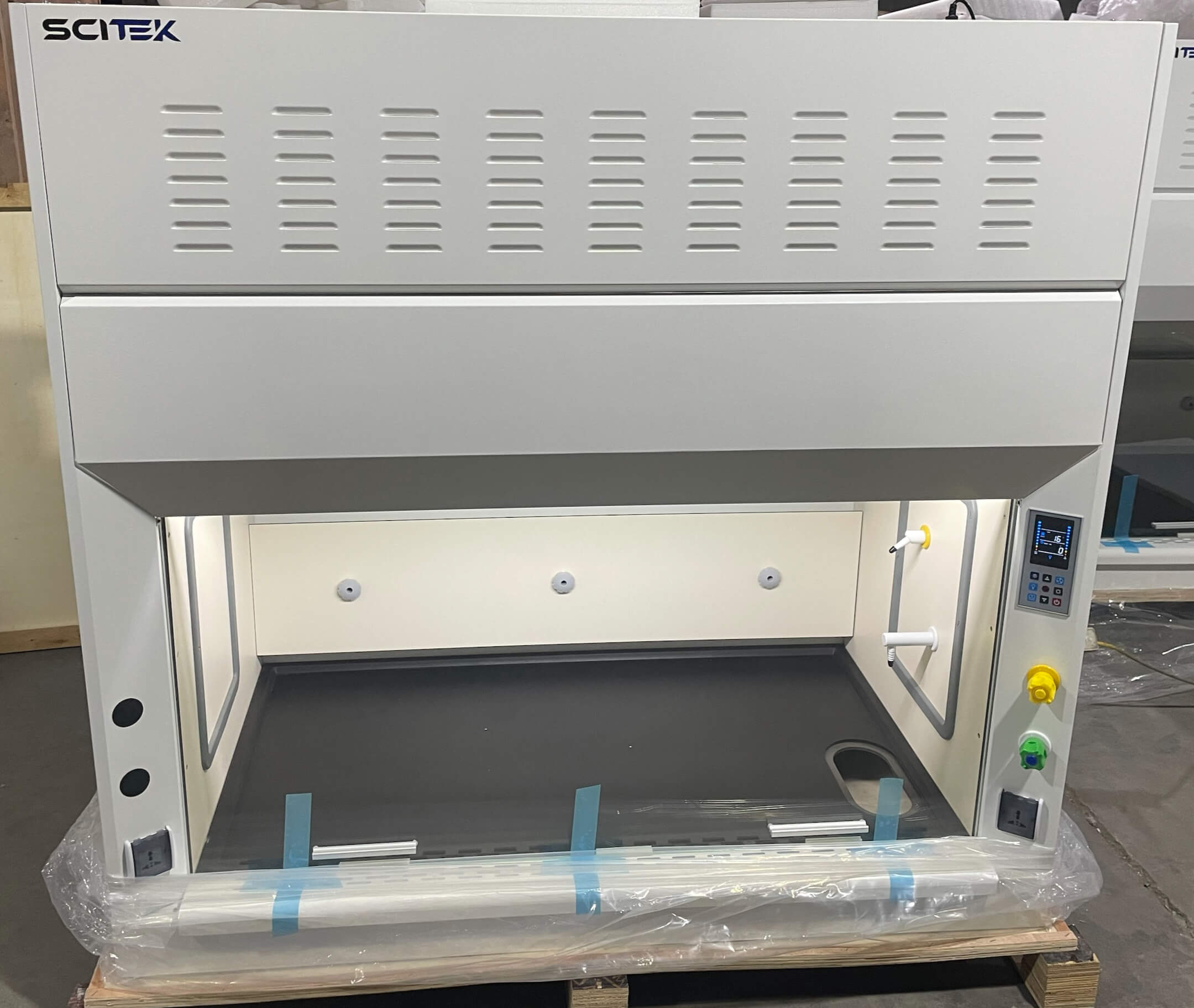

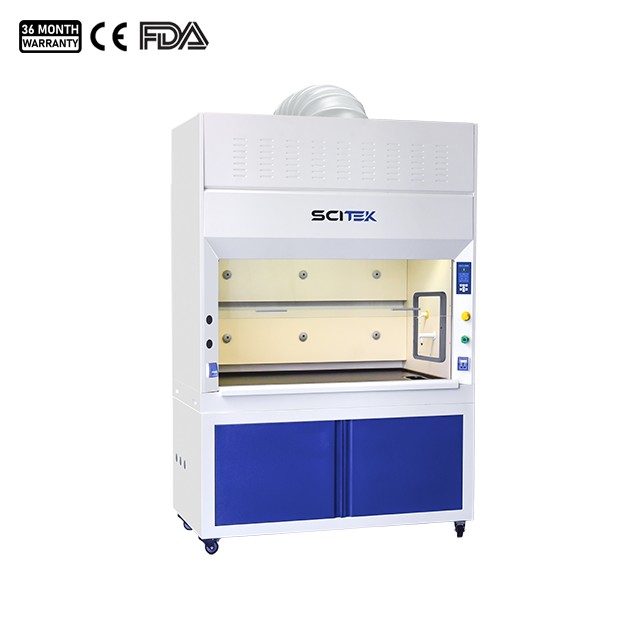

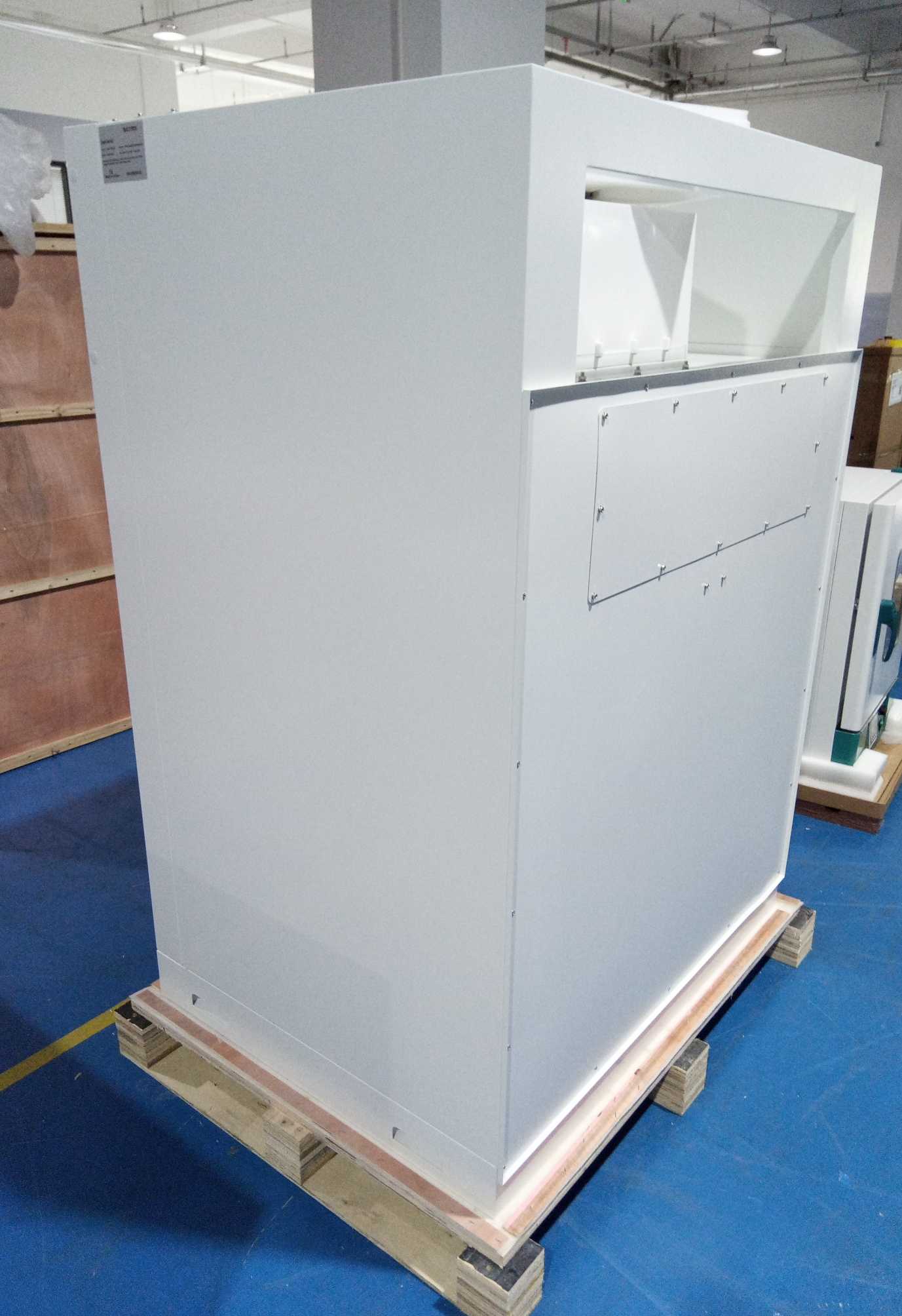

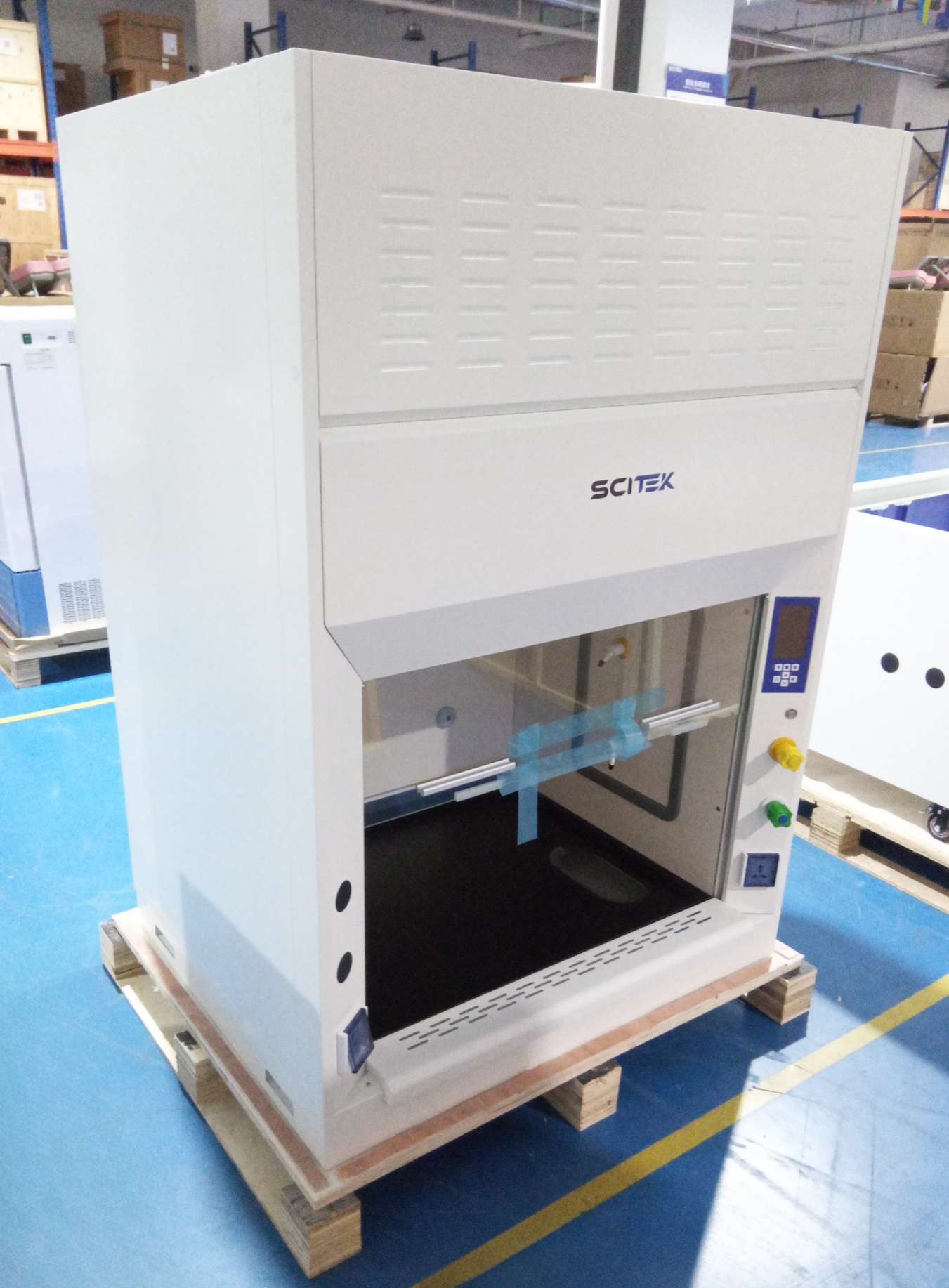

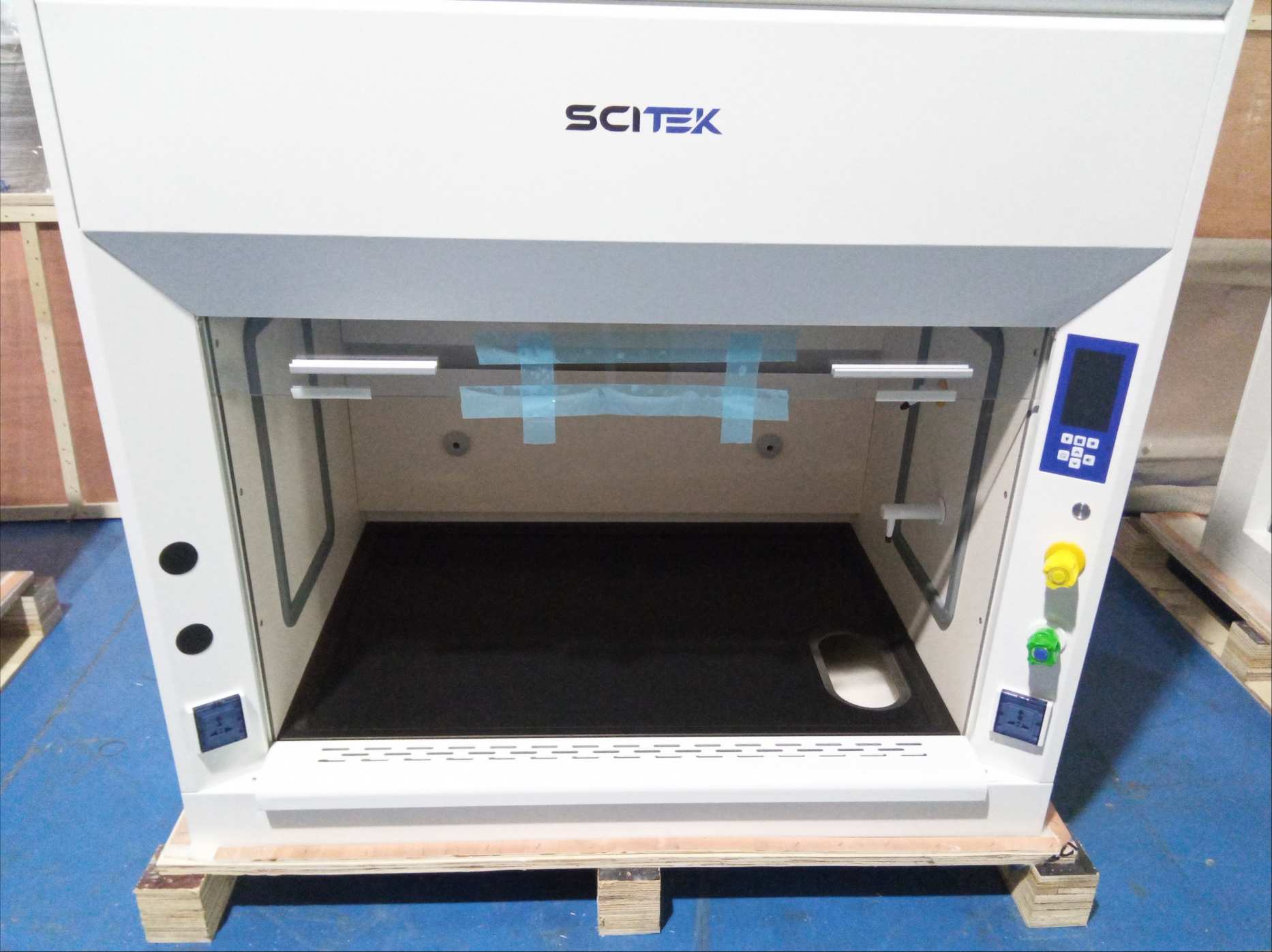

Ducted Fume Hood

Model : FMH-1000DA; FMH-1200DA; FMH-1500DA; FMH-1800DA; MH-1000DA(II); FMH-1200DA(II); FMH-1500DA(II); FMH-1800DA(II)

External Size : 3ft / 4ft / 5ft / 6ft
Maximum Opening : 520mm
Work Surface Height : 850mm
Airflow Velocity : Adjustable 0.3~0.8 m/s
Sound Emission : ≤68dB(A)
This ducted fume hood is suitable for areas with low ceilings or narrow aisles.
Availability:
Quantity:

Ducted Fume Hood Features:

  1. UV lamp for sterilization.

  2. Resistant to weak acid and alkali.

  3. Adjustable air speed: 3 levels.

  4. Manual or motorized front window, height adjustable.

  5. Microprocessor control system, LCD display.

  6. With memory function in case of power-failure.

  7. New design, with a liquid collection tank behind the backpanel to collect the waste liquid generated during the experiment and reduce pollution.

  8. Front panel with bypass Grille, Sash air foil and bypass system achieve function of Air supplement. Meets North American fume hood design standards.

Ducted Fume Hood Specifications:

Model FMH-1000DA FMH-1200DA FMH-1500DA FMH-1800DA
FMH-1000DA(II) FMH-1200DA(II) FMH-1500DA(II) FMH-1800DA(II)
External Size (WxDxH)(mm) 1040×800×2200 1240×800×2200 1540×800×2200 1840×800×2200
Internal Size (WxDxH)(mm) 820×670×730 1020×670×730 1320×670×730 1620×670×730
Max.Opening 520mm
Work Surface Height 850mm
Control System Display Microprocessor controller with LCD display, display the operating status of each function
Airflow System Airflow Velocity 0.3~0.8 m/s, speed adjustable
Cabinet Construction Exterior Electro-Galvanized steel with antimicrobial powder coating
Interior Compact laminate board with good acid and alkali resistance function
Work Surface Chemical resistant phenolic resin
Front Window Manual (FMH-DA series), Motorized (FMH-DA(II) series)
5mm toughened glass; Height adjustable.
Electrical System UV Lamp 20W×1 20W×1 30W×1 30W×1
With timing function, Interlock with front sliding sash.
Emission of 253.7 nanometers for best sterilization effect.
LED Lamp 8W×1 12W×1 16W×1 16W×1
Blower Built-in centrifugal blower; Speed adjustable.
Consumption 400W 400W 500W 500W
Not include socket loading power consumption
Power Supply AC220V±10%, 50/60HZ; 110V±10%, 60Hz
Illumination ≥900Lux
Sound Emission ≤68dB(A)
Standard Accessory

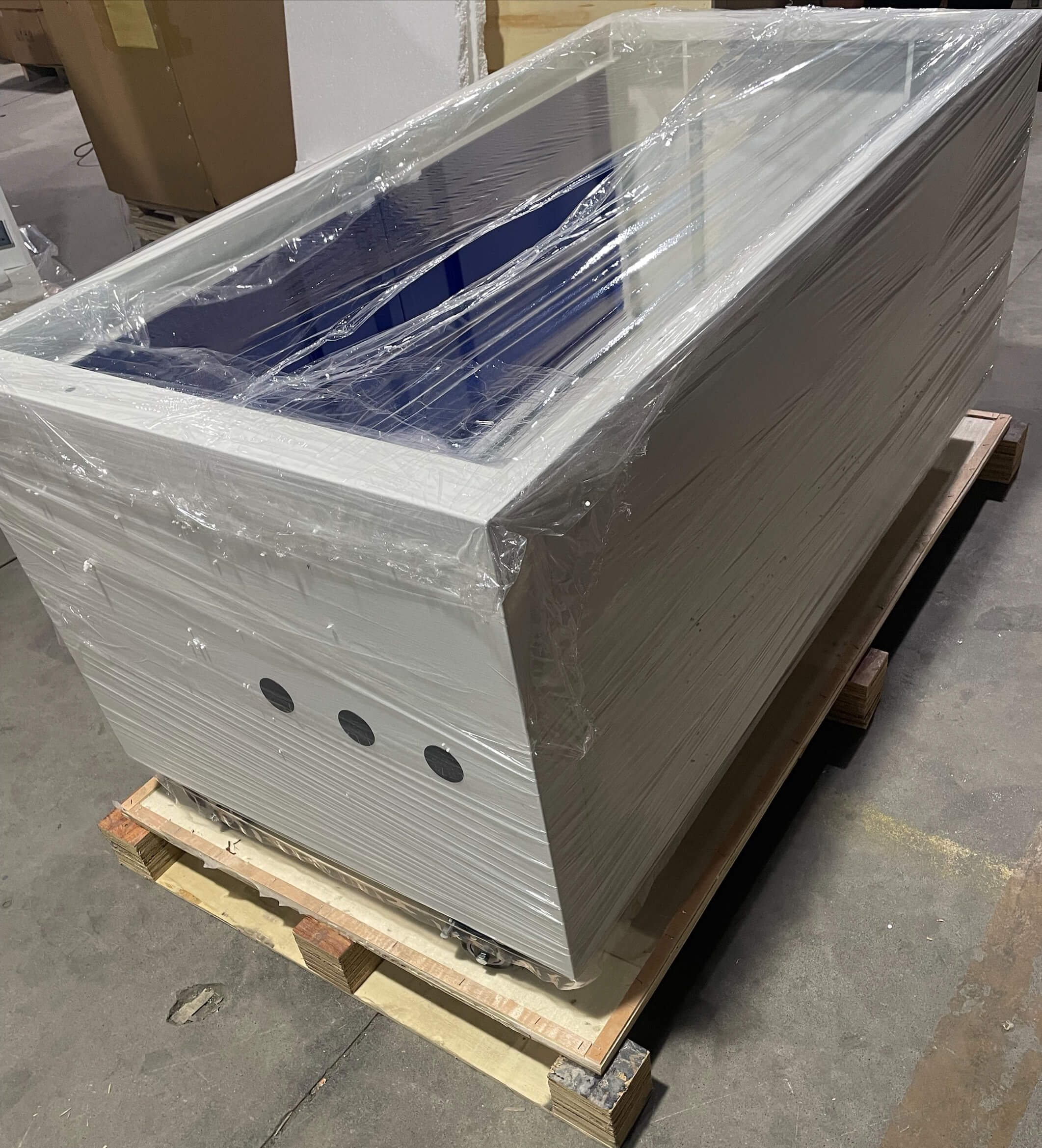

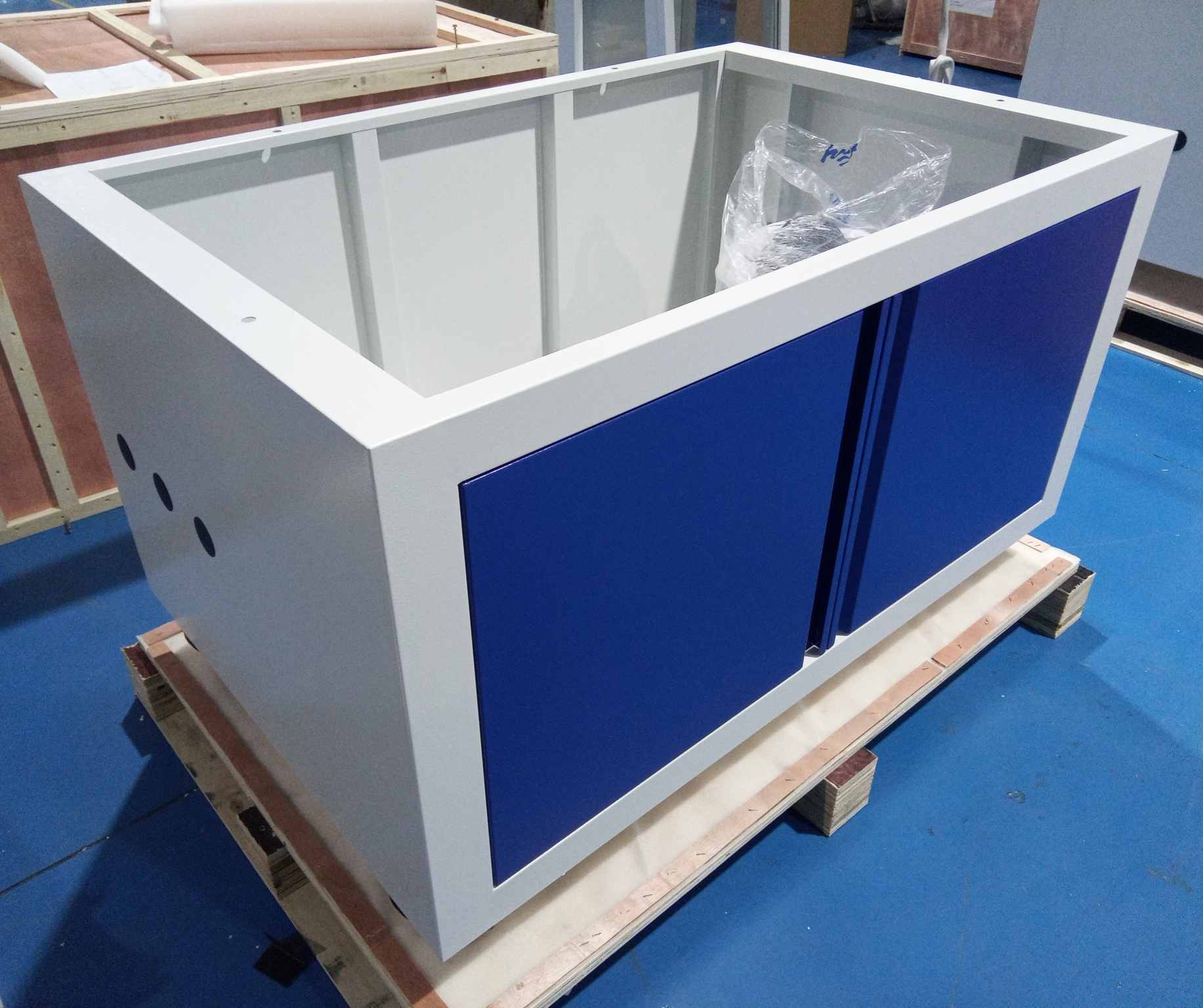

1. Base Cabinet

2. UV Lamp×1;

3. LED Lamp×1;

4. Waterproof Socket×2;

5. Water Sink;

6. Water Tap;

7. Gas Tap;

8. Gas & Water Remote Control Valve;

9. 10m PVC aluminum foil composite exhaust duct, Pipe strap x2 (Duct is retractable and can be cut freely)

Optional Accessory Active carbon filter/HEPA filter
Gross Weight (kg) 286 317 350 400

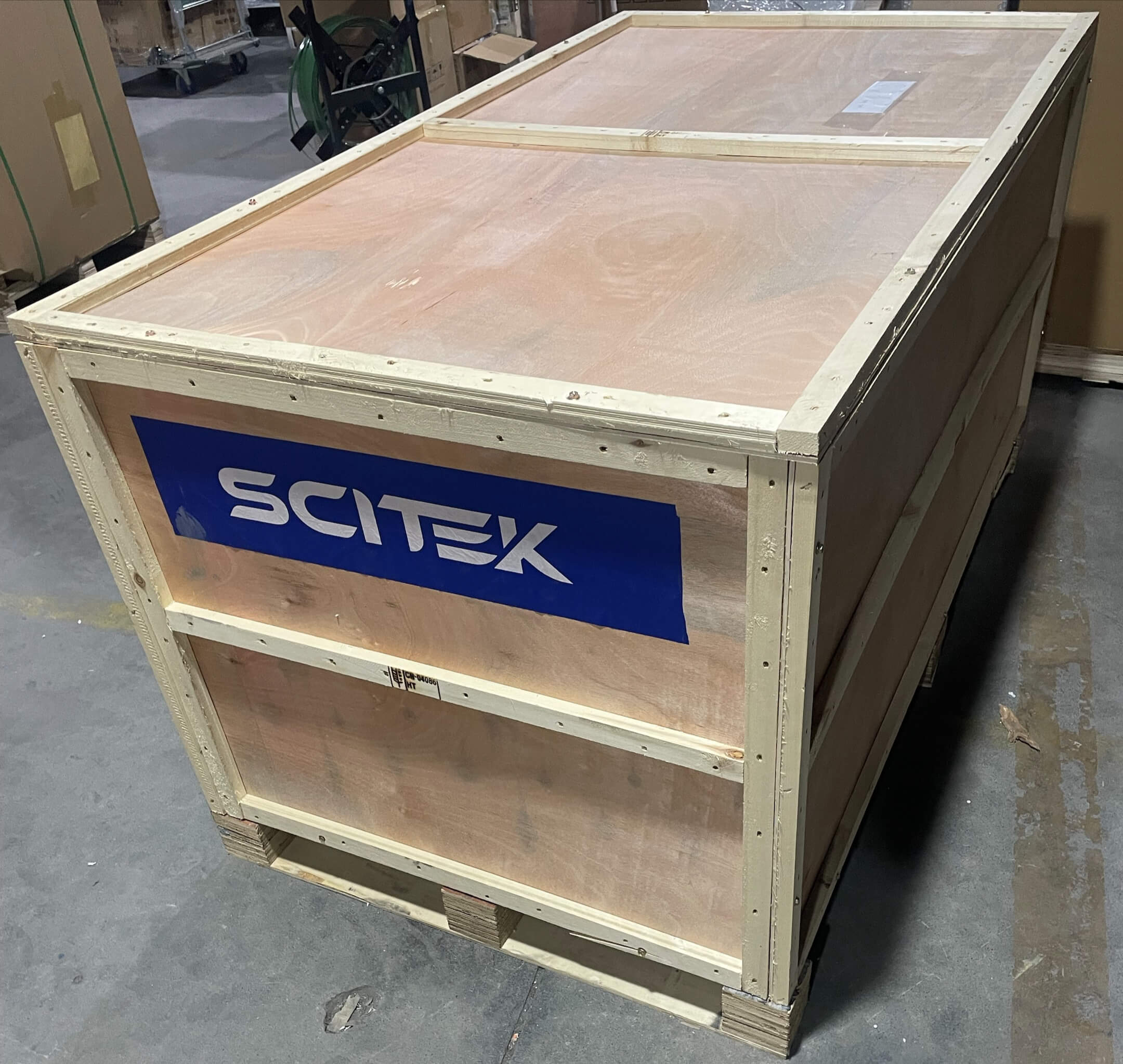

Shipping Size (W×D×H)(mm) Main Body 1190x990x1690 1390x990x1690 1690x990x1690 1990x990x1690
Base Cabinet 1190x990x900 1390x990x900 1690x990x900 1990x990x900
Shipping Volume (m³) 3.1 3.6 4.3 5.1

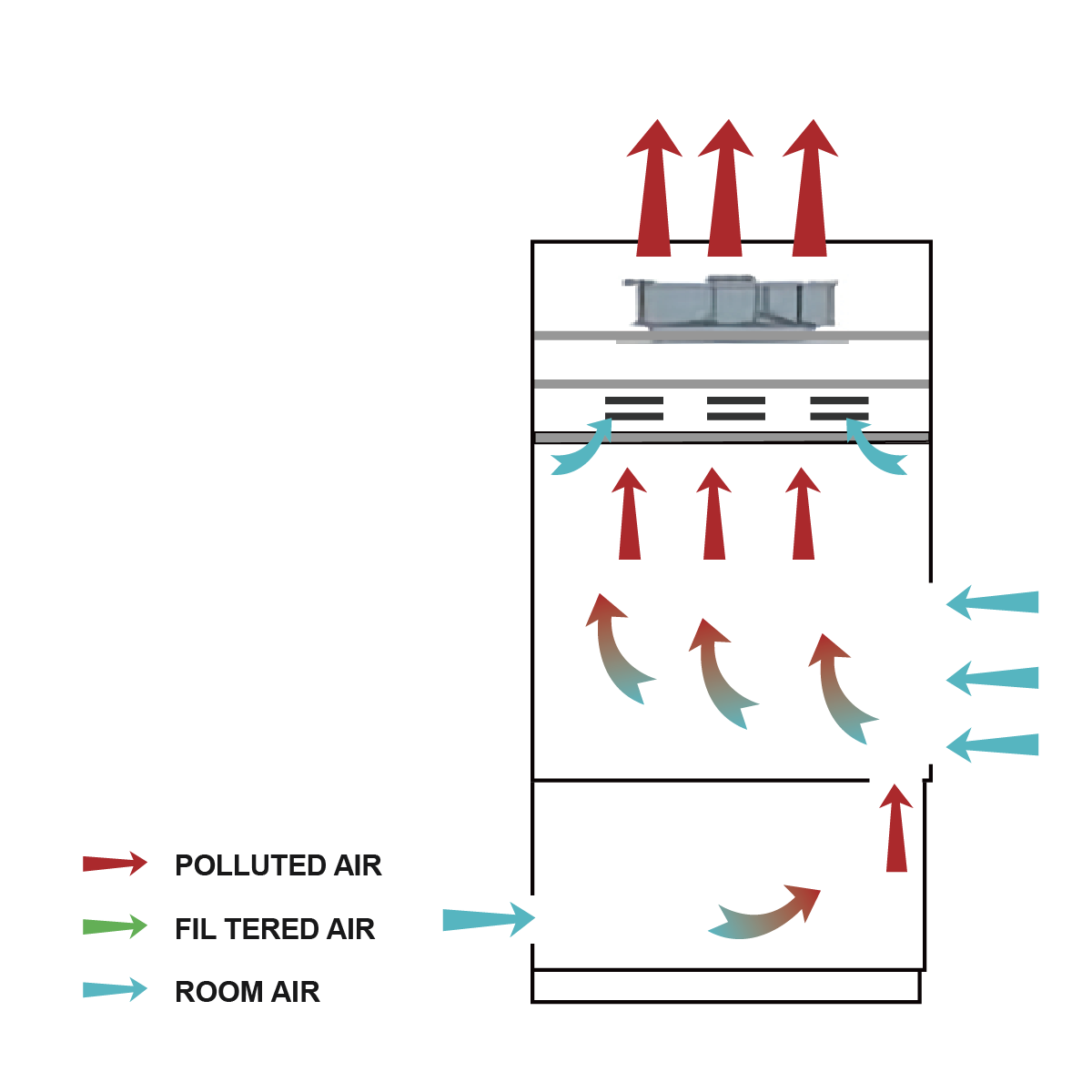

FMH (A) series ducted fume hood is designed as a negative pressure ventilation system that ensures the safety of operators and the laboratory environment. It works by drawing room air inward through the front opening of the hood and continuously ventilating it with an extraction blower. This prevents the spread of contaminated fumes, vapors, toxic gases, aerosols, and corrosive substances that may be generated during experiments. Furthermore, an optional active carbon filter can purify the polluted air before it is exhausted through the duct, thereby protecting the outdoor environment as well.

Details of Ducted Fume Hood:

29

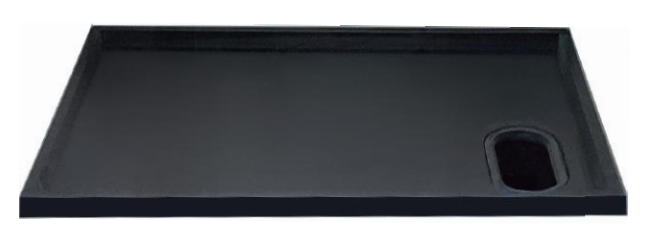

Work Table(Chemical resistant phenolic resin)

30

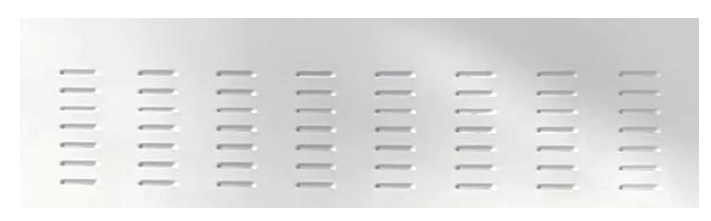

Sash Air Foil And Bypass System On Front Panel

31

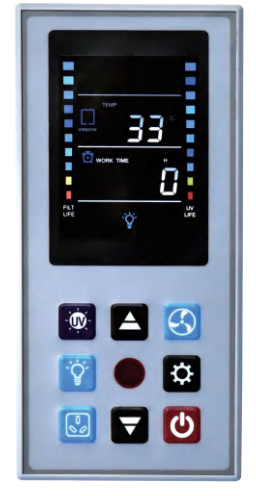

LCD Display

32

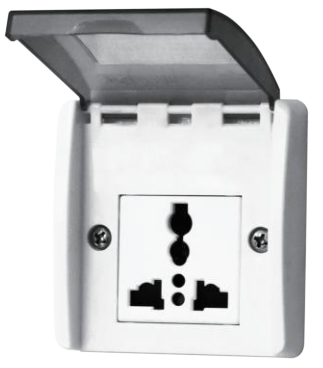

Waterproof Socket

33

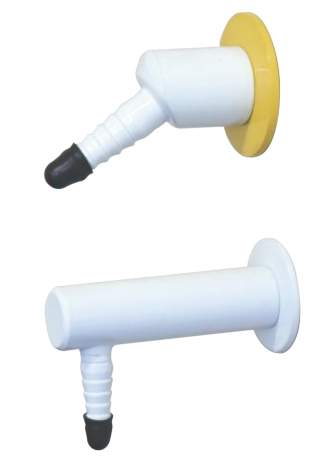

Gas & Water Tap

34

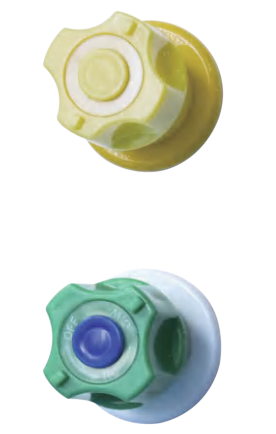

Gas & Water Remote Control
