Microvolume UV-Vis Spectrophotometer, SP-MUV5500C/SP-MUV5500

Nano Prime Series Microvolume UV-Vis Spectrophotometer

Model : NP-5500; NP-5500C; NP-5600; NP-5600C; NP-5800; NP-5800C

Volume Requirements : 0.3–2 μL
Operating System : Win 10/LINUX
Spectral Resolution : 2 nm (FWHM at Hg 546 nm)
Detection Wavelength Range : 220–800/200–850 nm
Light Source : Longevity lifeline xenon flashing light (10⁹ times)
Detector : 3864 Element Linear Silicon CCD Array/2048-element CMOS Linear Image Sensor
Nano Prime Series Microvolume UV-Vis Spectrophotometer—Empowering innovation and redefining the performance boundaries of micro-sample analysis

Availability:

Quantity:



Inquiry Add to Inquiry List

Product Description

Nano Prime Series Microvolume UV-Vis Spectrophotometer

Empowering innovation and redefining the performance boundaries of micro-sample analysis

The Nano Prime series Microvolume UV-Vis Spectrophotometer redefines the precision and efficiency in analytical workflows. Utilizing advanced dual-channel technology and intelligent detection systems, the NanoPrime series seamlessly adapts to diverse research, quality control, and compliance requirements—from academic laboratories to pharmaceutical manufacturing. Whether for nucleic acid/protein quantification, colorimetric analysis, kinetic studies, colloidal gold detection, or other diverse applications, the NanoPrime series delivers reliable, accurate results with a rapid workflow and professional data management.

Nano Prime Series Microvolume UV-Vis Spectrophotometer Core Feature

Extended Detection Range and High Precision:

Dual-channel full-wavelength detection for microvolume and cuvette modes addresses broader absorption spectrum research needs.
With 2 nm wavelength resolution and 0.002 Abs absorbance accuracy, capable of measuring 2–15000/2–30000/2–37500 ng/μL (dsDNA). it precisely measures concentrations across the entire range from ultra-trace levels to high-concentration samples.

Intelligent Pollutant Identification and Result Correction:

NP-5800 and NP-5800C Equipped with an exclusive and advanced intelligent sample detection system that automatically identifies common contaminants in samples (such as proteins, nucleic acids, phenols, guanidine salts, etc.) and provides contamination alerts, type identification, and original concentration result correction functions.
Provides reports on the original concentration, corrected concentration, and contaminant type, fundamentally ensuring sample quality and data accuracy, and helping you obtain optimal experimental results.

Comprehensive application module coverage:

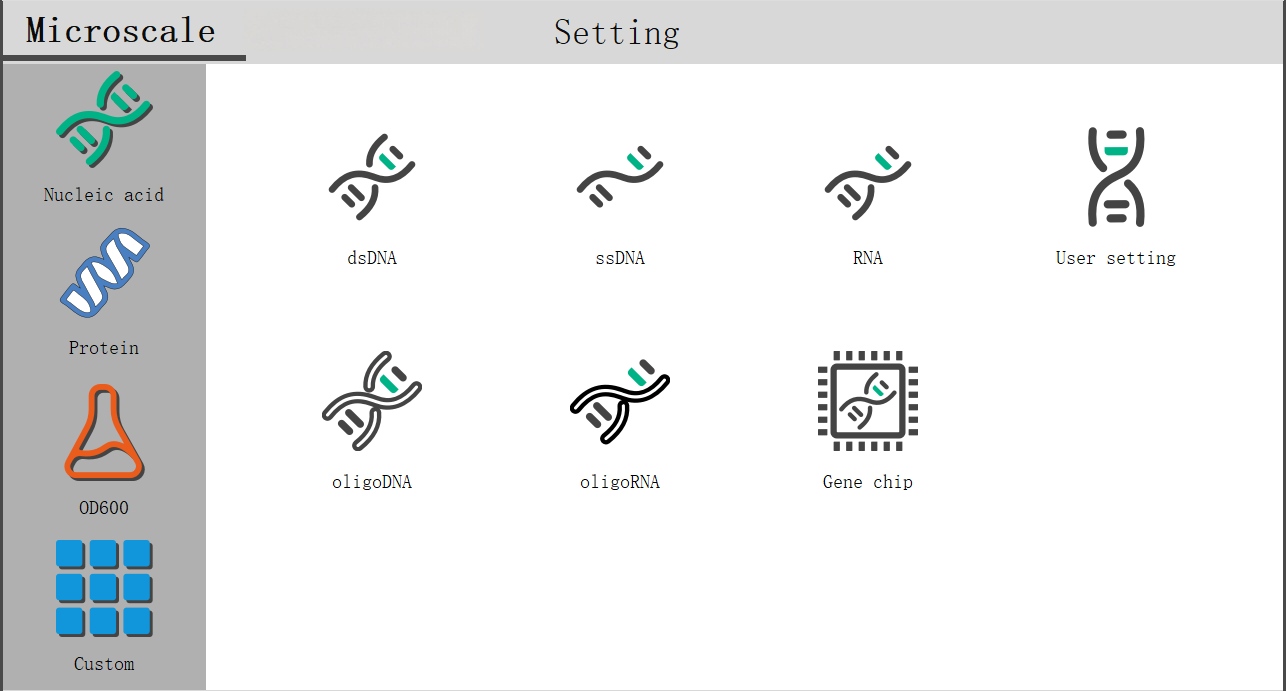

Nucleic Acid Analysis: dsDNA, ssDNA, RNA, Oligos, and gene chips
Protein Quantification: Protein assay & purity analysis (260/280 ratio). BCA, Bradford, Lowry, and Pierce 660.
UV analysis: Full wavelength scanning, purity and impurity analysis, kinetic quantification fulfill diverse analytical demands. Embedded sensors and digital image analysis ensure detection integrity.
Extended Applications: Colloidal gold analysis, OD600 Cell fluid module.

Fast Detection & Smart Control:

Detection time < 3 seconds with multi-point capacitive touchscreen available in sizes from 7 to 10.1 inches,offering smooth and intuitive operation.
Features Auto-Zero Function, instantly completes measurement upon lowering the detection arm.

Professional-grade scalability and data management

Optional accessories: temperature-controlled cuvette holder, adjustable-speed magnetic stirrer, built-in thermal printer, and sample loading column monitoring system.
Superior Connectivity and Data Output: Equipped with abundant interfaces, enabling convenient data transfer and multi-screen collaboration. One-click export of detection spectra and professional reports in various formats significantly improves work efficiency.
Comprehensive data integrity support: Capable of providing full audit trail functionality and a hierarchical permission management system to ensure data traceability.

Nano Prime Series Microvolume UV-Vis Spectrophotometer Specification:

Model		NP-5500	NP-5500C	NP-5600	NP-5600C	NP-5800	NP-5800C
Light Source		Longevity lifeline xenon flashing light (10⁹ times)
Volume Requirements		Ultra trace: 0.3–2 μL
Detector		2048-element CMOS Linear Image Sensor		3864 Element Linear Silicon CCD Array		2048-element CMOS Linear Image Sensor
Detection Wavelength Range		200–850 nm		200–800 nm		200–850 nm
Wavelength and Absorbance Accuracy		±1 nm, 0.002 Abs
Spectral Resolution (Bandwidth)		2 nm (FWHM at Hg 546 nm)
Operating System		Win 10		LINUX
Monitor		7-inch high-definition touch screen display		8-inch touch screen		10.1-inch touch screen, multi-point capacitive touch screen
Detection Time		Less than 3 seconds
Optical Path		Ultra trace mode: 1, 0.5, 0.05 mm (Three optical path automatic conversion)		Ultra trace mode: 1, 0.2, 0.1, 0.03, 0.02 mm (Five optical path automatic conversion)		Ultra trace mode 1, 0.4, 0.1, 0.04, 0.02 mm (Five optical path automatic conversion)
		No	Cuvette mode: 10/5/2/1 mm	No	Cuvette mode: 10/5/2/1 mm	No	Cuvette mode: 10/5/2/1 mm
Detecting repeatability		Detecting repeatability: 0.002 A (1 mm optical path) or 1% CV
Pollutant Identification Function		Ultra trace: 2–15000 ng/µL (dsDNA); 0.06–400 mg/mL (BSA);		Ultra trace: 2–30000 ng/μL(dsDNA); 0.06–895 mg/mL(BSA);		Ultra trace: 2–37500 ng/μl (dsDNA); 0.06–1194 mg/mL(BSA); 0.03–584 mg/mL (IgG); 0.02–303 mg/mL (Lysozyme);
Optional Function	Mixing function	×	×	×	●	×	●
	Print function	×	×	●	●	●	●
	Liquid Column Monitoring Function	×	×	×	×	●	●
	Audit Tracking Function	×	×	×	×	●	●
Supported Languages		Chinese, English, French, German, Arabic, Spanish, Russian, Japanese, and Korean; Language can be customized;
Data Management		Equipped with 2 USB-A ports, Supports USB flash drive data output, Bluetooth, and Wi-Fi connectivity;		Supports USB flash drive data output, Ethernet, Bluetooth, and Wi-Fi connectivity; Equipped with 2 USB-A ports, 1 Type-C port, 1 HDMI port, and 1 Ethernet port, enabling connection to various devices such as mice, keyboards, and desktop computers; Measurement results are automatically saved in spreadsheet mode, and data can be exported via USB; Supports remote control;
