Description : Four / Six beakers desktop type Acrylic Round Beaker : 0.6 L / 1.0 L Running Time : Each step: 0-99 min, 10 step each program Rotation Speed : 10~1000 rpm, in 1-rpm increments, Accuracy: ±0.3% The Jar test is used in a variety of settings, including laboratories at industrial facilities, universities, and scientific research institutes.
The Jar Test apparatus are core laboratory instruments in the water treatment field. They are commonly used to simulate processes such as chemical dosing, flocculation and sedimentation during the purification of tap water and the treatment of sewage.This facilitates the selection of coagulants and determination of the optimal dosage. Results from these tests essential for the operation of water and sewage treatment plants, as well as being widely used in the laboratories of such plants, universities and scientific research institutes.

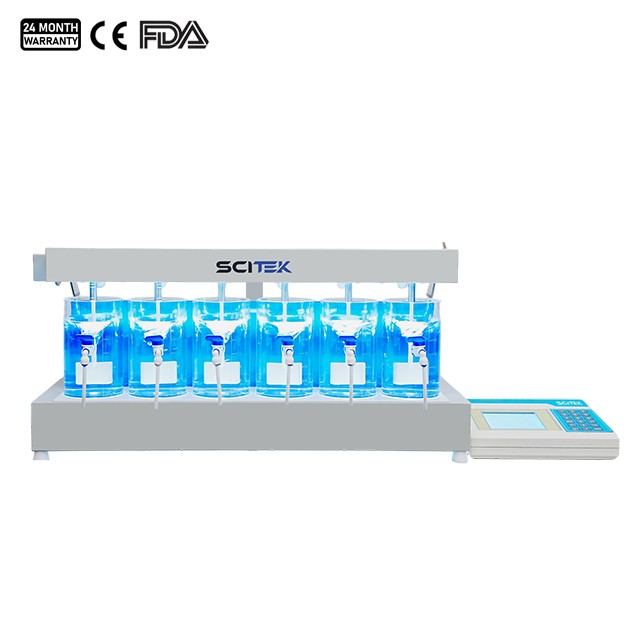

Jar Tester Feature:
1. All parameters (speed,time,G…)are display in the Large-size LCD Each operation step has instruction and the operation is very simple .
2. Store 12 groups of programs, and each one has 10 rotation speed steps. The edit and revision of the program are very convenient.
3. Independent run: six paddles can run different programs at the same time, so the times of the test can be greatly reduced and the influences to the coagulation results by different mixing processes can be compared.
4. High-accurate stepping motor. The speed is controlled by the digital signals sent by the chip, so the speed is very accurate.
5. Calculates G & GT value (speed gradient )automatically to match well with the production practice.
6. Automatic agent dosing: after the set speed or time is reached, the prepared agent can be dosed to the beaker synchronously.
7. Automatic elevating: after mixing is completed, the paddle will elevate above the water surface automatically thus will not influence the sedimentation of flocks.
8. Functions of mixing, agent dosing and elevating & downing are controlled by three PCBs which can be replaced easily if there is malfunction. The service cost is very low and the repair is very quick.
Jar Tester Specification:
Model
JT-4
JT-6
Description
Four beakers desktop type
Six beakers desktop type
Acrylic Square Beaker
/
1.5 L, 11 ×11×17 cm
Acrylic Round Beaker
0.6 L, Φ 9.5 cm, H 13 cm
1.0 L, Ф11 cm, H 18 cm
Consumption (W)
80
180
Rotation Speed
10~1000 rpm, in 1-rpm increments, Accuracy: ±0.3%
Speed Gradient (G)
10~1000 Second, Just for round beaker
Running Time
Each step: 0-99 min, 10 step each program
Temperature
0-50 ℃, Accuracy: ±1 ℃
Power Supply
220 V 50/60 Hz or 110 V 60 Hz
Main Functions
Rotational speed and time program control Program storage Automatic chemical dosing Automatic temperature measurement Automatic lifting of stirring heads Automatic calculation of G-value and GT-value
Rotational speed and time program control Program storage Automatic temperature measurement Automatic calculation of G-value and GT-value
Net Weight (kg)
9
32.5
Size (W×H×D)(mm)
550×380×200
1080×350×400
Shipping Size (W×H×D)(mm)
610×450×270
930×470×500
The Jar Test apparatus are core laboratory instruments in the water treatment field. They are commonly used to simulate processes such as chemical dosing, flocculation and sedimentation during the purification of tap water and the treatment of sewage.This facilitates the selection of coagulants and determination of the optimal dosage. Results from these tests essential for the operation of water and sewage treatment plants, as well as being widely used in the laboratories of such plants, universities and scientific research institutes.
Jar Tester Feature:
1. All parameters (speed,time,G…)are display in the Large-size LCD Each operation step has instruction and the operation is very simple .
2. Store 12 groups of programs, and each one has 10 rotation speed steps. The edit and revision of the program are very convenient.
3. Independent run: six paddles can run different programs at the same time, so the times of the test can be greatly reduced and the influences to the coagulation results by different mixing processes can be compared.
4. High-accurate stepping motor. The speed is controlled by the digital signals sent by the chip, so the speed is very accurate.
5. Calculates G & GT value (speed gradient )automatically to match well with the production practice.
6. Automatic agent dosing: after the set speed or time is reached, the prepared agent can be dosed to the beaker synchronously.
7. Automatic elevating: after mixing is completed, the paddle will elevate above the water surface automatically thus will not influence the sedimentation of flocks.
8. Functions of mixing, agent dosing and elevating & downing are controlled by three PCBs which can be replaced easily if there is malfunction. The service cost is very low and the repair is very quick.
Jar Tester Specification:
Model
JT-4
JT-6
Description
Four beakers desktop type
Six beakers desktop type
Acrylic Square Beaker
/
1.5 L, 11 ×11×17 cm
Acrylic Round Beaker
0.6 L, Φ 9.5 cm, H 13 cm
1.0 L, Ф11 cm, H 18 cm
Consumption (W)
80
180
Rotation Speed
10~1000 rpm, in 1-rpm increments, Accuracy: ±0.3%
Speed Gradient (G)
10~1000 Second, Just for round beaker
Running Time
Each step: 0-99 min, 10 step each program
Temperature
0-50 ℃, Accuracy: ±1 ℃
Power Supply
220 V 50/60 Hz or 110 V 60 Hz
Main Functions
Rotational speed and time program control Program storage Automatic chemical dosing Automatic temperature measurement Automatic lifting of stirring heads Automatic calculation of G-value and GT-value
Rotational speed and time program control Program storage Automatic temperature measurement Automatic calculation of G-value and GT-value
As a professional lab and medical equipment manufacturer, Scitek Global is certified by ISO 9001, ISO 13485, ISO 45001 and ISO 14001. Almost all our products are certified by ETL, CE and FDA .
Scitek Global looks forward to establishing cooperation with more distributors all over the world, and working together to create greater customer value.
