Parallel illumination, scattering hemisphere and integrating sphere optical receiving mode.
Use silicon photovoltaic cells as signal receiver.
Computer operating system, automatic data processing system, no- knob operation and very easy to use.
Equipped with a standard USB interface and has the capability of USB storage.
The accuracy of transmittance is 0.01% and that of haze is 0.01%.
With the adoption of the modulator, the instrument is free of the ambient light effects.
Attach a haze film for easy inspection of instrument operation function. (Note: the haze film should be cleaned with a camera blower.)

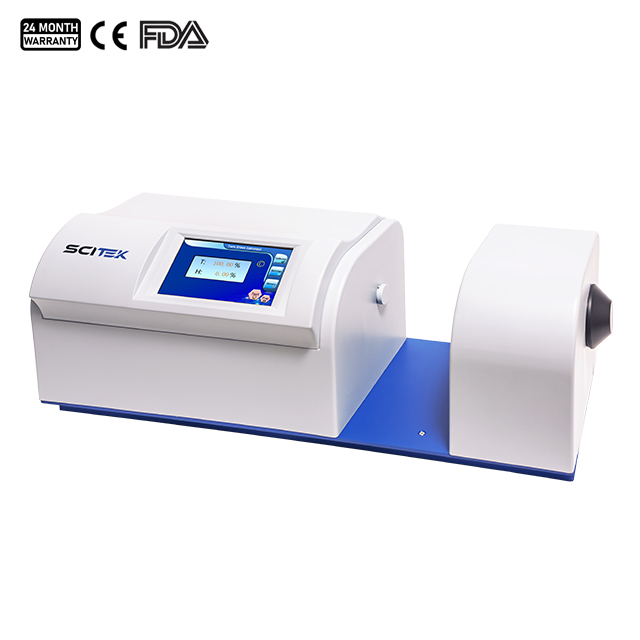

Haze Meter Specifications:
Model
HAZ-820
HAZ-810
HAZ-810L
Illuminant
C light (6774k)/ A light (2856k)
C light (6774k)
C light (6774k)
Light source
Tungsten halogen lamp
LED
Measuring range
Transmittance: 0 – 100.00% Haze: 0 – 100.00%
Resolution
0.01%(transmittance); 0.01%(haze)
Accuracy
Transmittance: ≤±1%(Standard neutral density filter); ≤±2%(Standard Haze slice) Haze: ≤±0.5%
Repeatability
Transmittance: ≤0.5% Haze: ≤0.2
Sample window size
25mm(incident window) 21mm(exit window)
Sample size
Solid standard sample size: 50mm×50mm
Tank dimensions: 50mm×50mm×10mm
Film sample size: 50mm×50mm
Display
7 inch LCD touch screen
Interface
USB, U disk
Data storage
2000 sets
1000 sets
Power supply
220V±22V, 50Hz±1 Hz, 100w
Overall Dimensions
800mm×380mm×490mm
Weight(Gross)
27kg
How often does a haze meter need to be thoroughly recalibrated?
A comprehensive calibration is recommended every 12 months. However, immediate calibration is required—without waiting for the annual cycle—in the following situations:
After the instrument has been subjected to impact, dropped, or shifted during transport;
After replacing the light source, the coating of the integrating sphere, or the photodetector;
When routine verification using a standard plate (recommended weekly) reveals data deviations exceeding specifications;
Operational Recommendations: Before daily use, perform a quick verification (i.e., “calibration check”) using the supplied standard haze plate to ensure the day’s data is reliable; annual calibration should be performed by a qualified metrology institution or the original manufacturer, which will issue a calibration certificate.
