Parallel illumination, scattering hemisphere and integrating sphere optical receiving mode.
Use silicon photovoltaic cells as signal receiver.
Computer operating system, automatic data processing system, no- knob operation and very easy to use.
Smart design with horizontal or vertical set-up.
Reliable and precise transmittance and haze data.
The LED light source assures long-term stable results for many years.

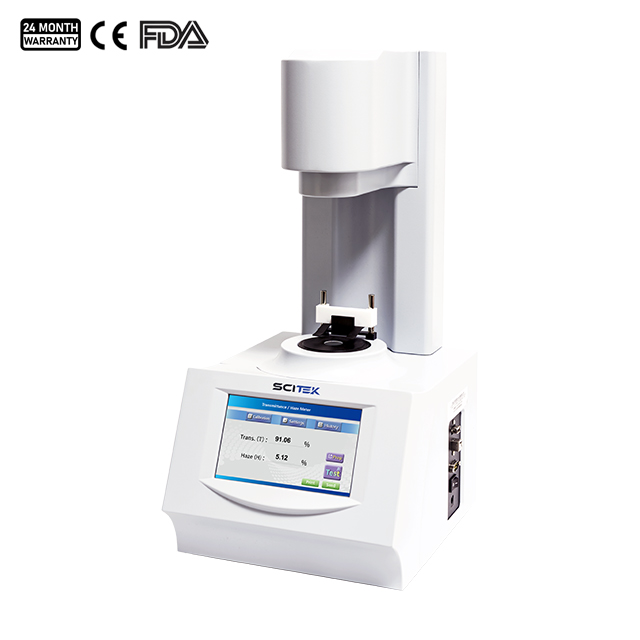

Haze Meter Specifications:
Model
HAZ-806
Illuminant
A light (2856K), C light (6774k), D65 light (6500K)
Light Source
LED
Measuring range
Transmittance: 0-100 % Haze: 0-100%
Resolution
0.01%(transmittance); 0.01%(haze)
Accuracy
Transmittance: ≤±1 % (Standard neutral density filter); Haze: ≤±5 %
Repeatability
Transmittance: ≤0.1% Haze: ≤0.1
Sample window size
25mm(incident window) 21mm(exit window)
Display
Large LCD touch screen
Interface
USB, U disk
Power supply
220V±22V, 50Hz±1Hz, 100w
Overall dimensions
641mm×356mm×436mm
Weight (Gross)
10kg
FAQ
What exactly is the difference between haze and light transmittance?
Light transmittance measures how much light passes through a material—the higher the value, the more “transparent” the material appears.
Haze, on the other hand, measures the degree to which light is scattered after passing through a material—the stronger the scattering, the more “hazy” or “whitish” the material appears.
What is the standard test method for measuring haze in plastics?
The most widely used international standard is ASTM D1003. The testing principle is as follows:
A light beam from a light source is directed perpendicularly onto the sample.
An integrating sphere collects all light that passes through the sample.
A haze meter measures both the total transmitted light (all light that passes through) and the scattered light (light deviating from the incident direction by > 2.5°).
This standard applies to transparent plastic sheets, films, and similar materials of uniform thickness. Before testing, ensure the sample surface is clean and free of scratches.
How often does a haze meter need to be thoroughly recalibrated?
A comprehensive calibration is recommended every 12 months. However, immediate calibration is required—without waiting for the annual cycle—in the following situations:
After the instrument has been subjected to impact, dropped, or shifted during transport;
After replacing the light source, the coating of the integrating sphere, or the photodetector;
When routine verification using a standard plate (recommended weekly) reveals data deviations exceeding specifications;
Operational Recommendations: Before daily use, perform a quick verification (i.e., “calibration check”) using the supplied standard haze plate to ensure the day’s data is reliable; annual calibration should be performed by a qualified metrology institution or the original manufacturer, which will issue a calibration certificate.
As a professional lab and medical equipment manufacturer, Scitek Global is certified by ISO 9001, ISO 13485, ISO 45001 and ISO 14001. Almost all our products are certified by ETL, CE and FDA .
Scitek Global looks forward to establishing cooperation with more distributors all over the world, and working together to create greater customer value.
