Vertical Pressure Steam Sterilizer Features:
Overheat protection: Automatically cutting off heating with audible and visual indication when the autoclave is overheated.
Anti-burning protection: Automatically cutting off heating with audible and visual indication when the autoclave is lack of water.
Interlock safety: Preventing from starting a cycle if door is not properly closed or from door opening if there is pressure inside chamber.
Steam pressure safety valve: Automatically works when the chamber pressure exceeds the limit.
Automatic operation of sterilization with PID microprocessor control and LED display.
Positive pulsing function removes the air efficiently.
Automatic air discharge control prevents boil over of liquids and explosions of bottles
With Power-off memory function.
Vertical Pressure Steam Sterilizer Specifications:
| Model | ST-V50E | ST-V80E | ST-V100E | ST-V120E | ST-V150E |
| Capacity | 50L | 80L | 100L | 120L | 150L |
| External Size (WxDxH)(mm) | 476x616x990 | 546x688x1030 | 566x708x1295 | 620x760x1190 | 680x820x1180 |
| Chamber Size (ØxH)(mm) | Ø316x667 | Ø386x695 | Ø400x800 | Ø450x760 | Ø500x780 |
| Chamber Material | SUS304 |
| Sterilization Temperature | 105~136 ℃ |
| Designed Temperature | 150℃ |
| Max.Working Temperature | 136 ℃ |
| Dissolution Temperature | 40~100℃ |
| Warming Temperature | 40~60℃ |
| Temp.Accuracy | 0.1℃ |
| Designed Pressure | 0.3Mpa |
| Max.Sterilization Pressure | 0.23Mpa |
| Sterilization Time Range | 0~99min |
| Temp. Controller | PID control by microprocessor |
| Display | LED display |
| Drying Function | YES |
| Drying Time | 15min |
| Sterilization Program | ●High temperature instrument program
●Low temperature instrument program
●Culture medium sterilization warming program
●Culture medium dissolution warming program |
| Water Injection Method | Manual |
| Power Consumption | 3KW | 4.5KW | 5.4KW | 5.4KW | 9.3KW |
| Power Supply | 220V 50Hz | 220V 50Hz | 220V 50Hz | 380V 50Hz | 380V 50Hz |
| Standard SS Basket | 2pcs | 2pcs | 2pcs | 2pcs | 2pcs |
| Net Weight | 55kg | 65kg | 80kg | 165kg | 185kg |
| Gross Weight | 90kg | 100kg | 120kg | 205kg | 225kg |
| Shipping Size (WxDxH)(mm) | 730x700x1250 | 800x770x1300 | 800x770x1480 | 950x900x1280 | 950x900x1440 |
Details of Vertical Pressure Steam Sterilizer:
ST-V50E:

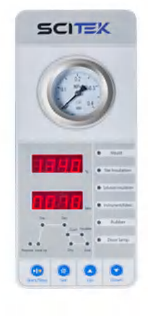

The pressure gauge and various control buttons are clearly displayed in front of the unit to simplify operation.
The handwheel design allows the user to easily rotate and lock the lid and provides a good seal to ensure the stability of the internal environment during the sterilisation process and prevent external contamination.
ST-V100E:
The space-saving vertical construction of the steriliser makes it ideal for laboratories and medical facilities where space is at a premium.
The sturdy handles and secure closures are designed to ensure user safety and ease of operation.

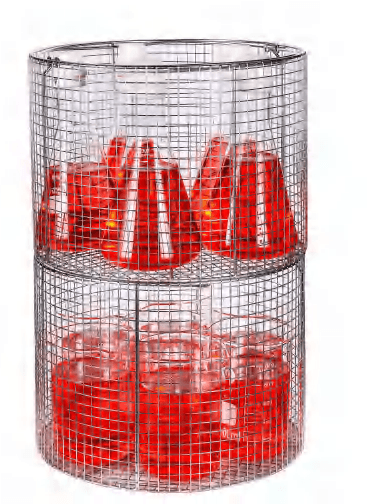

Stainless steel chamber and wire mesh basket to ensure longevity and reliable sterilisation performance.
