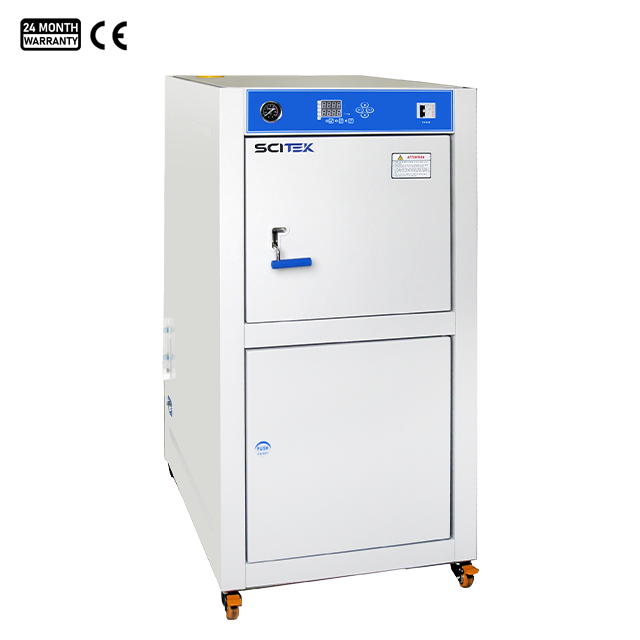

The horizontal pressure steam autoclave utilizes saturated steam to rapidly and efficiently sterilize articles. lt can be used in hospitals, public health centers, health stations, clinics in factories and mines, scientific research institutes, etc, to sterilize medical equipment, surgical dressings, glass utensils, solutions and substrata. It can also be used as cooker in plateau areas and be used to make high quality drinking water in industrial and mining enterprises.
Horizontal Pressure Steam Sterilizer Features:
For 4~6 minutes rapidly sterilization.
Digital display of working status, touch type key.
With-protection of water lacking.
Exhaust the h 3 fixed cycles of sterilizing program and adjustable for user.
The whole process of water adding, temperature rising, sterilizing, drying steam discharging controlled automatically.
Steam-water inner circulation system: no steam discharge, and the environment for sterilizing will be clean and dry.
Safe cool air automatically.
Door safety lock system.
With 2 stainless steel sterilizing plates.
The chamber of the sterilizer is made of stainless steel.
Automatically shut off with beep reminding after sterilization.
With drying function.
Horizontal Pressure Steam Sterilizer Specifications:
| Model | ST-H100YDB |
|---|
| Capacity | 100L |
Chamber Size(ΦxH)(mm)
| Φ390x670 |
| Working Pressure | 0.22MPa |
| Max. Working Temperature | 134℃ |
| Sterilization Temperature | 105~134℃ |
| Sterilization Time Range | 0~99min |
| Temp. Uniformity | ≤±1℃ |
| Consumption | 9KW |
| Power Supply | 220V, 50Hz |
| External Size(WxDxH)(mm) | 930x690x1330 |
| Net Weight | 245kg |
| Gross Weight | 280kg |
| Shipping Size(WxDxH)(mm) | 1100x720x1420 |
