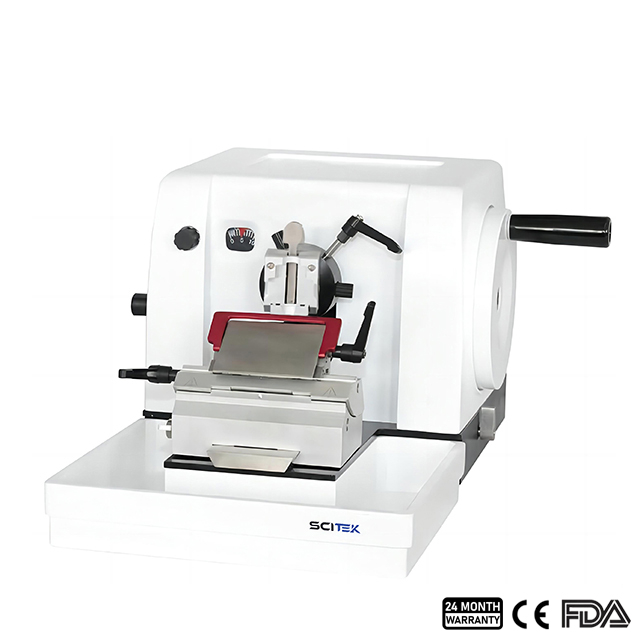

Rotary Microtome MT-R2205

Model : MT-R2205

Section Thickness Range: 0-60 μm
Maximum Specimen Size: 55×45 mm
Specimen Feed: 20 mm
The rotary microtome cuts high quality paraffin sections without the need for a power source.
Availability:
Quantity:
Inquiry Add to Inquiry List

Advantage:

1. It has a clipper-built case, and the user can put blade, wax block, or other consumable on the top of case.

2. It does not need to lubricated and maintain the microtome frequently.

3. The handwheel in the right can be locked in any position, and the handle can be locked in highest position , it is doubly safe for changing the blade or tissue block.

4. The specimen Orienting system: axes X and Y at 8°, rotation of 360°.

5. It adopts the special blade holder. It is more safe and convenient to use the disposable blade directly. It can also prolong the user life of disposable blades.


Specification:

Model

MT-R2205

Section Thickness Range

0-60 μm

Section Thickness Setting

0-2 μm, in 0.5 μm increments

2-10 μm, in 1 μm increments

10-20 μm, in 2 μm increments

20-60 μm, in 5 μm increments

Maximum Specimen Size (H×W)

55×45 mm

Precise Error

± 5%

Total Horizontal Specimen feed

20 mm

Vertical Specimen Stroke

50 mm

Power Supply

AC 220/110 V, 50/60 Hz

External Size (WxDxH)

496×390×267mm

Shipping Size (W×D×H)

520×520×450 mm

N.W./G.W.

27/41 kg
