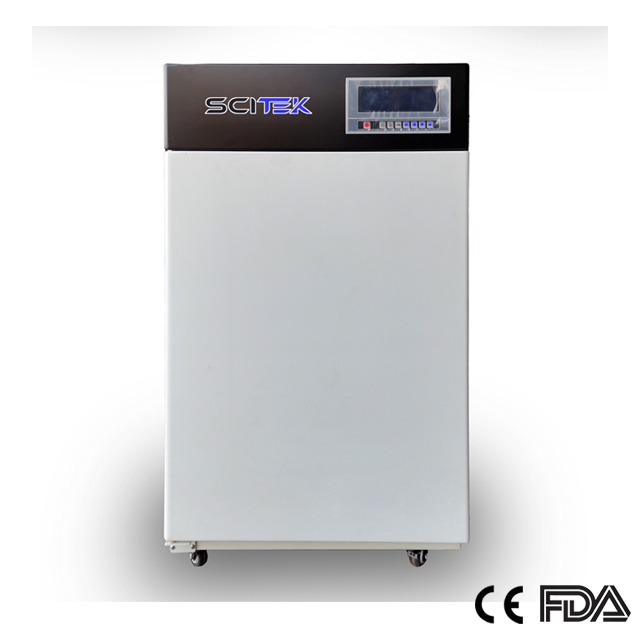

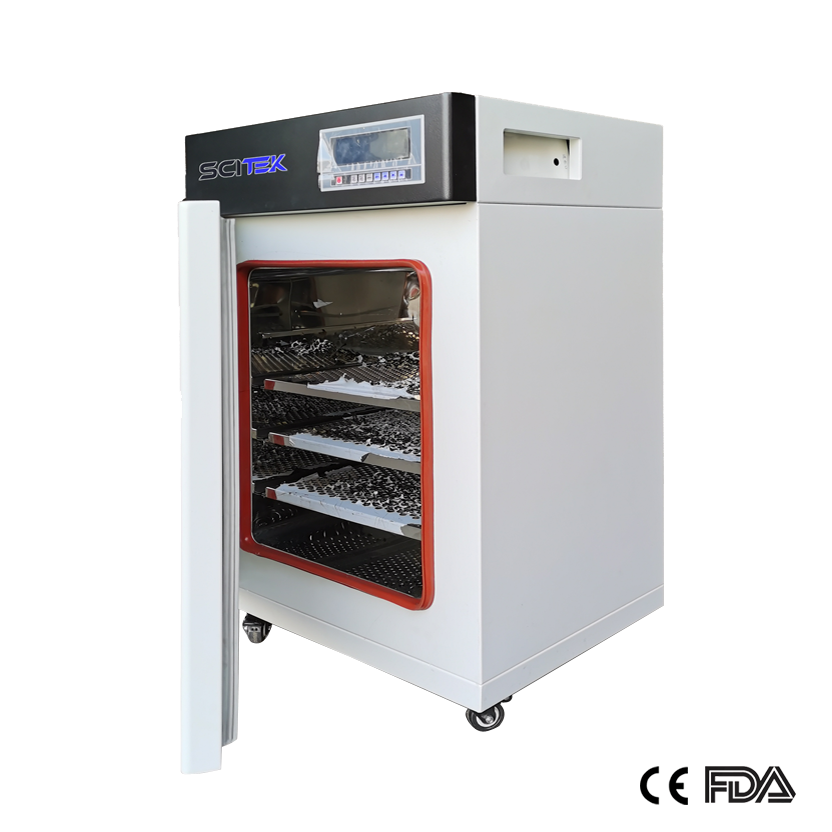

CO2 Incubator, ICB-C Series

Model : ICB-C40, ICB-C80, ICB-C160, ICB-C240

Capacity : 40L / 80L / 155L / 240L
Heating Mode : Air Jacket
Co2 Range : 0~20%
Humidity Range : Natural evaporation≥90%
Temperature Range : RT+5~50℃

Availability:

CO2 Incubator Specifications:

ModelICB-C40ICB-C80ICB-C160ICB-C240
Capacity(L)4080155240
Heating ModeAir Jacket
Size(WxDxH)Internal (mm)400x286x350400x450x500480x530x610600x630x670
External (mm)590x440x576590x687x790670x767x880788x837x940
TemperatureRange (℃)RT+5~50℃
Fluctuation (℃)≤±0.3
Resolution (℃)0.1
Uniformity (℃)±0.1
SensorPT100
HumidityRange≥90%
MethodNatural evaporation
CO2Range0~20%
Fluctuation≤±0.3℃
SensorGS5
ControllerPID
DisplayLCD
MaterialInternal304 stainless steel
ExternalCold rolled steel electrostatic spraying exterior
Shelves(Standard )2233
Test Hole1 CO2 sampling monitoring hole
Safety DeviceIndependent temperature limit alarm,  CO2 and temperature deviation buzzer alarm
ElectricityVoltage/FrequencyAC220/110V;50/60Hz
Consumption (W)350500750950
N.W./G.W. (kg)45/63100/150160/230240/380
Shipping Size (WxDxH) (mm)600x620x740770x976x1070850x947x1160968x1017x1220
OptionalHEPA filter

CO2 Incubator Features:

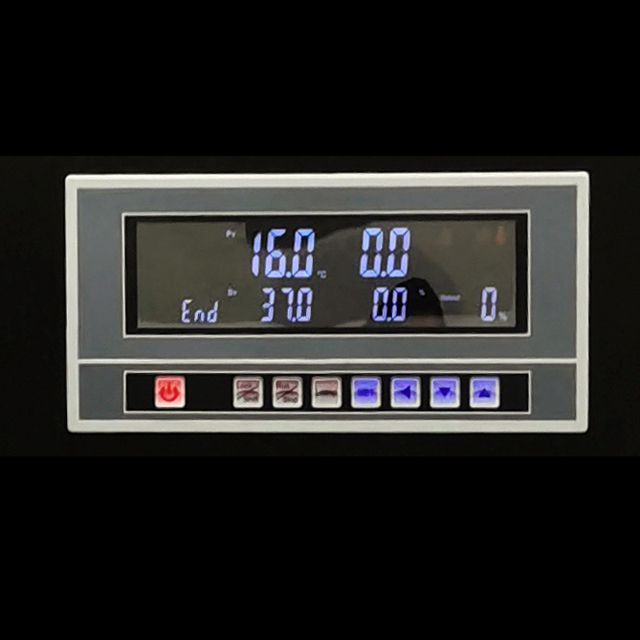

  1. Stackable for two layers for efficient utilization of laboratory space. Large LCD display above outer door can show temperature, CO2 concentration, and relative humidity values. Menu-based operating interface is simple and easy to understand, facilitating observation and use.

  2. Microbial high-efficiency filter. CO2 inlet is equipped with a highly efficient microbial filter of 99.99% efficiency that filters out bacteria and dust particles bigger than 0.3μm.

  3. Automatic control of circulating fan speed. The circulating fan speed can be automatically adjusted. When inside chamber temperature reaches a steady state, fan speed decreases to an appropriate level for cell growth. This prevents excessive sample volatilization caused by high airflow during the experiment.

  4. Door heating system. Incubator equipped door temperature heating system prevents condensation on the inner glass door and reduces the risk of microbial contamination.


Reliability:


  1. The CO2 Incubator is equipped with independent temperature limit alarm system provides audible and visual alarms to operators, ensuring safe operation of experiments without any accidents.

  2. Alarms: Low & high temperature, over-temperature alarms, high or low CO2 concentration alarm,  Door opening alarm.

  3. UV sterilization working status notification.
