Model | ICB-170SCT | ICB-210SCT | ICB-285SCT | |
---|---|---|---|---|
Temperature Control | Temperature Range | 4°C-60°C (Ambient temperature -18°C, minimum 4°C) | ||
Temperature Uniformity | ±0.5°C (At 37°C) | |||
Temperature Accuracy | ±0.1℃ | |||
Temperature Recovery Time | ≤±10 mins | |||
Ambient Temperature Range | 5℃-35℃ | |||
Humidification Mode | Natural humidification | |||
CO2 Concentration Control | CO2 Control Scope | 0-20% | ||
CO2 Control Accuracy | 0.1% | |||
CO2 Stability | ±0.1% | |||
CO2 Accuracy | ±0.3% | |||
CO2 Sensor | Imported infrared ray (IR) sensor | |||
Sterilization Mode | Ultraviolet sterilization | |||
Concentration Recovery Time | ≤5mins, door opened for 30s | |||
Speed Control | Rotation Frequency | 0~300rpm | ||
Rotation Accuracy | ±1rpm | |||
Vibration Range | 25mm (50mm) | |||
Technical Specification | Volume | 170L | 208L | 282L |
Rocker Size(mm) | 480x440 | 780x500 | 920x540 | |
Maximum Capacity | 250mlx20; 500mlx16; 1000mlx9; 2000mlx5; 5000mlx4 and a static culture shelf | 250mlx40; 500mlx28; 1000mlx15; 2000mlx12; | 250mlx60; 500mlx40; 1000mIx24; 2000mlx15; 5000mlx7; | |
Number of Rockers | 1PC | 1PC | 1PC | |
Heating Power | 800W | 1000W | 1300W | |
Refrigeration Power | 150W | 195W | 195W | |
Motor Power | 250W | 250W | 250W | |
Light | 8W | 8W | 8W | |
UV Lamp | 8W | 8W | 8W | |
Power Supply | 220V, 50/60Hz; 110V, 60Hz | |||

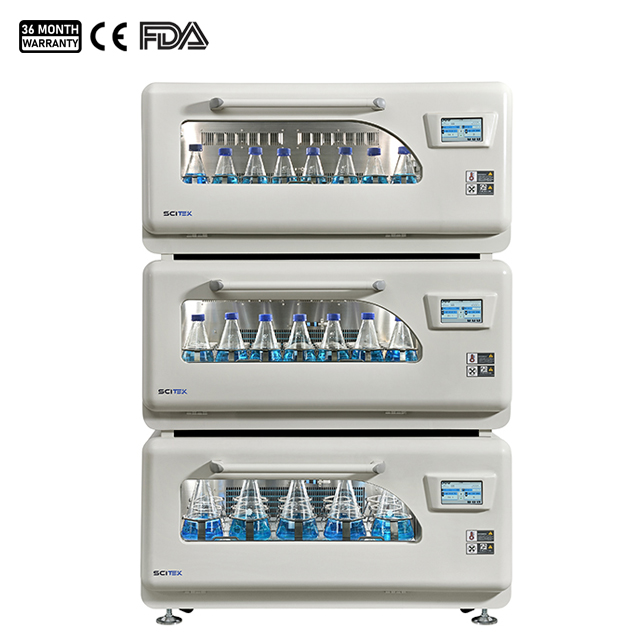

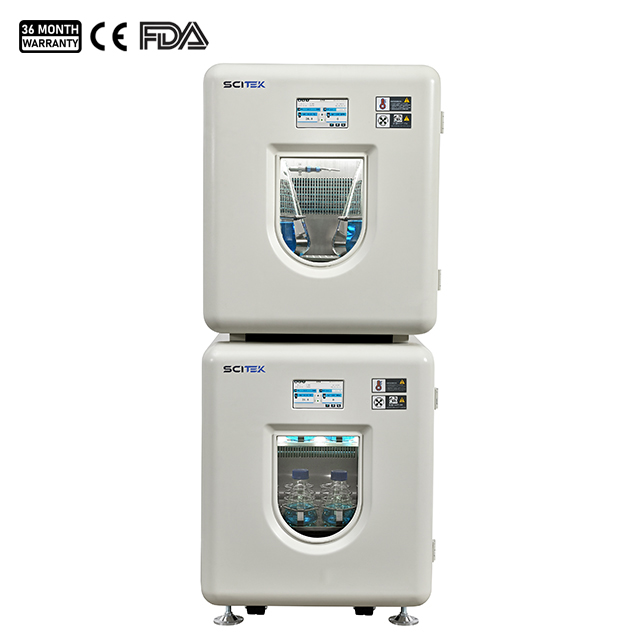

Maximum Stacking | 2 sets | 3 sets | 3 sets | |
Internal Size (WxDxH)(mm) | 580x520x565 | 850x570x430 | 1030x595x460 | |
External Size (W×D×H)(mm) | 715x900x810 | 1200x797x640 | 1410x830x660 | |
Shipping Size (W×D×H)(mm) | 1020x830x1090 | 1330x1000x930 | 1550x1020x1180 | |
N.W./G.W. (kg) | 218/268 | 324/390 | 431/520 | |
Technical Features | Display Mode | 7-inch true color touch screen (switchable in Chinese and English) | ||
Control Mode | P.I.D microcomputer environment scanning microprocessor chip control | |||
Cyclic Mode | Forced circulation convection type | |||
Oscillation Mode | Rotating/Reciprocating switching oscillatory type | Rotary oscillatory type | ||
Driving Mode | Single-axis balanced drive | |||
Rocker | / | Free drawing type | ||
Opening Mode | Side door | Bottom two sets: Pull-down Top: Flip-up | ||
HEPA Filter | The intake gas is sterilized by a 0.2um online filter | |||
Bearing | Imported double-row bearings | |||
Compressor | High quality inverter compressor (Energy saving by 30%) | |||
Motor | High-quality servo motor | |||
Rotating Shaft Material | Quenching and tempering treatment of 45# carbon steel and 220-250HBW | |||
Inner Cavity Material | 304 high-quality imported fully stainless steel plate | |||
Main Material | High-quality and high-strength OT cast iron, channel steel, angle steel and high-quality cold-rolled steel plate | |||
Bottle Gripping Plate Material | High-quality alloy aluminum, oxidation surface treatment | |||
Bottle Gripping Material | Adopt stainless steel mirror material, with an elasticity of 360 degrees and a hardness of 420 degrees, not prone to deformation. | |||
Optional Accessories | Bracket (mm) | 620x800x350 | 1070x720x350 | 1280x720x350 |
Selective Adhesive Plate | The carrying capacity will increase by about 10% | |||
Active Humidification | Steam humidification | |||
Shade | Left-right push-pull type | |||
Light Culture | Simulated day and night lighting environment | |||
Print Function | Embedded built-in micro printer | |||
Interface | USB data storage and export | |||
Remote Communication Monitoring | Computer monitoring | |||
Phone Monitoring | Phone APP remote monitoring |
Suitable for in vitro culture of cells and tissues, including mammalian cells, hybridoma cells, insect cells and plant cells; mild and stable oscillation conditions required for cell culture;molecular biology, such as protein expression.
Stainless steel cavity
Precise control and monitoring

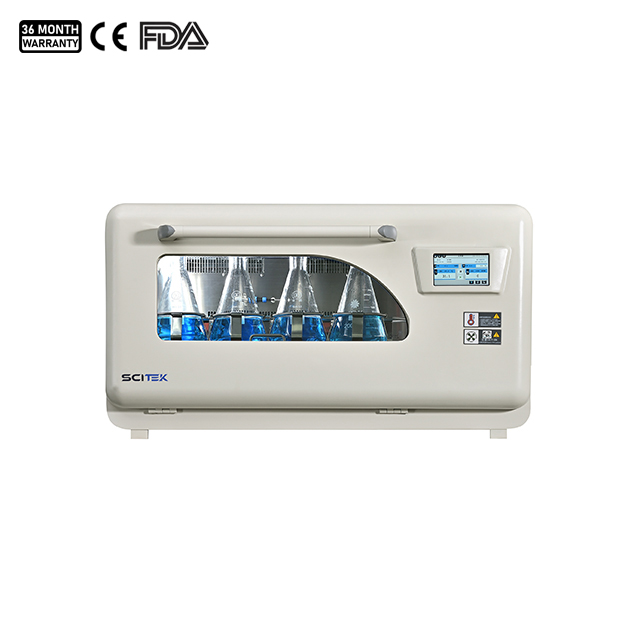

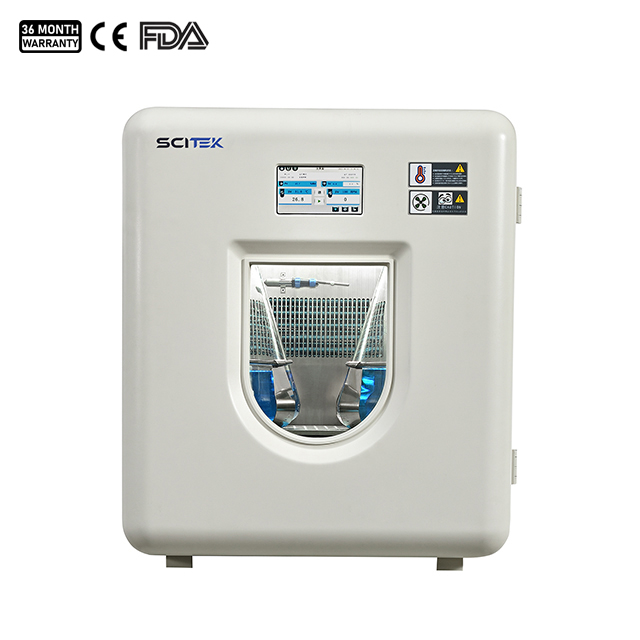

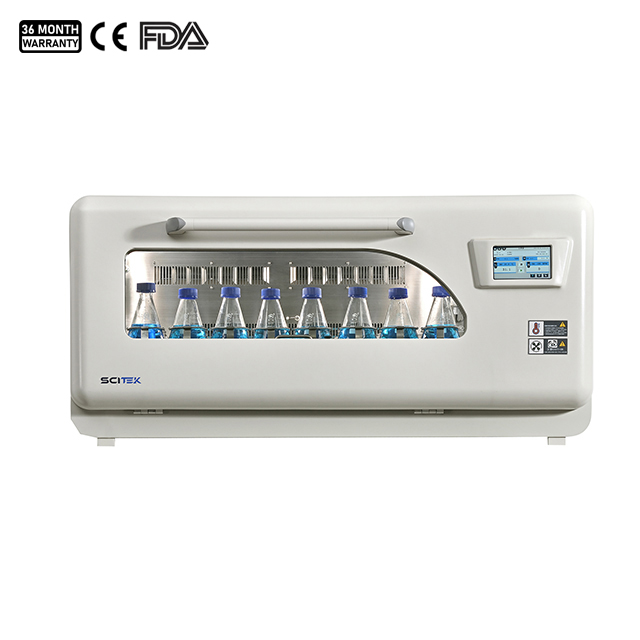

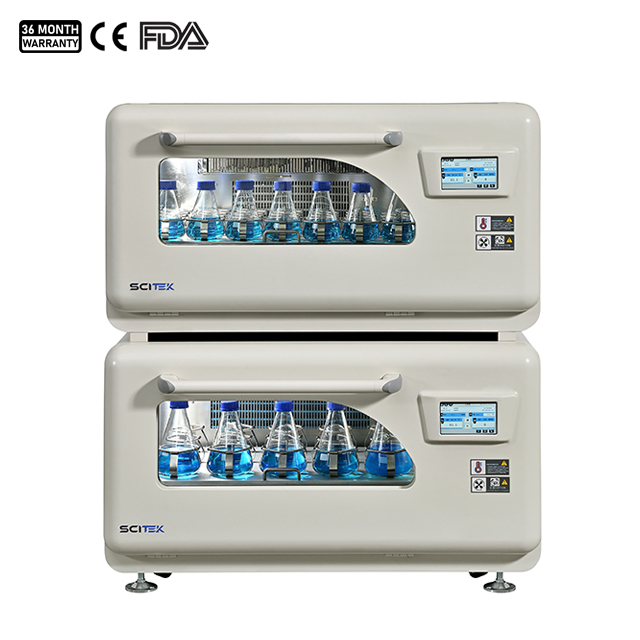

Pull-down door (ICB-210SCT and ICB-285SCT); Front door design (ICB-170SCT)
Double-layer glass door
Lighting/ultraviolet lamp
Cleaning of volumetric flask after rupture
Advanced refrigeration technologies
Intuitive operation and touch panel
Noise-less operation
Excellent control effect
Safe and stable operation
Multiple safety protection (Protection of personnel, protection of samples and protection of testing equipment)
Scitek global is a leading supplier of laboratory and medical equipment for scientific research, healthcare, and educational institutions. With a focus on quality and reliability, we provide a wide range of products, from microscopes and centrifuges to ultrasound machines and surgical instruments.
We have a professional team in research and development, production, pre-sales, transportation, and after-sales, as well as a complete customer maintenance chain. Ensure quality testing in each production process and provide high-quality equipment.

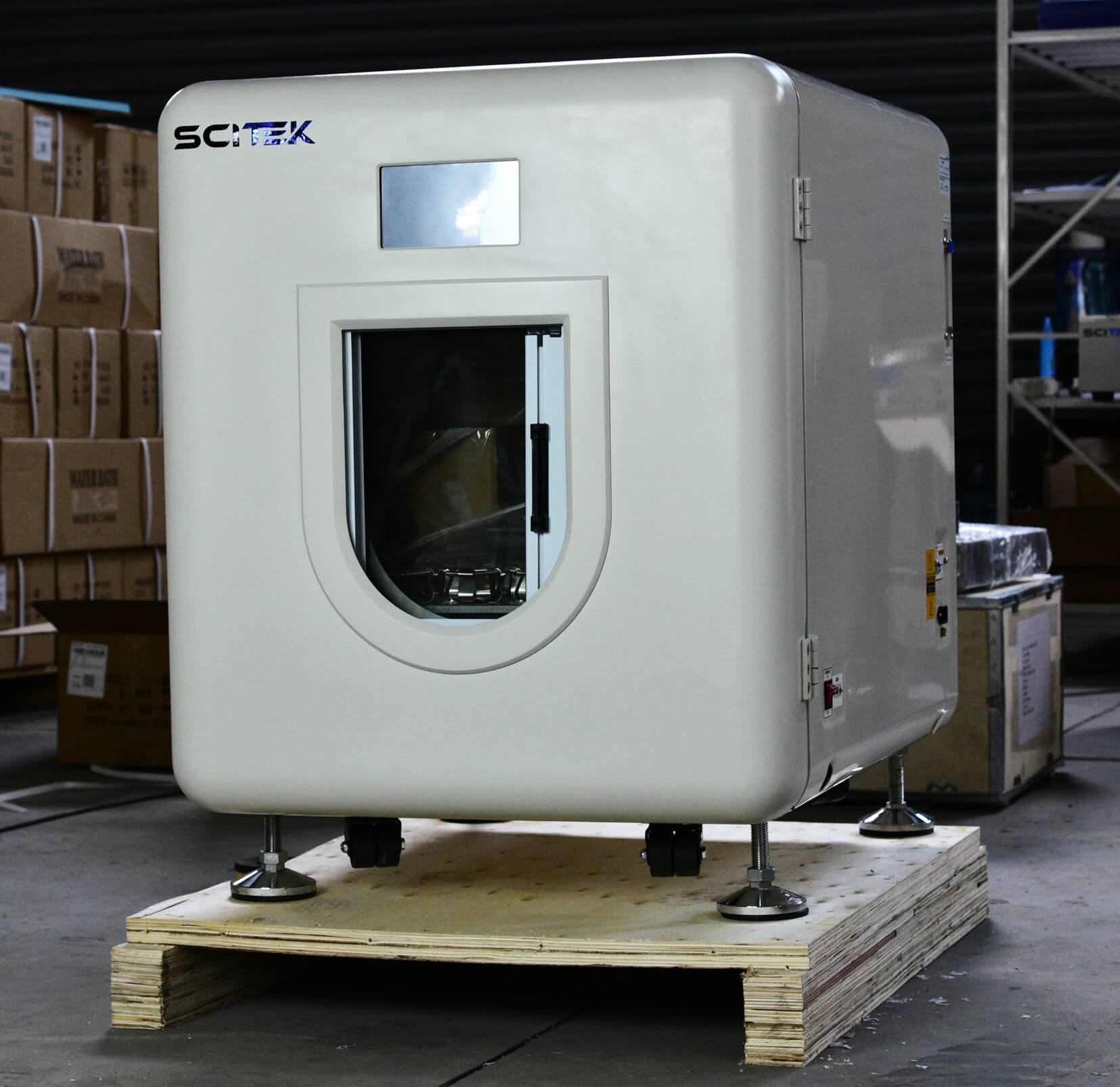

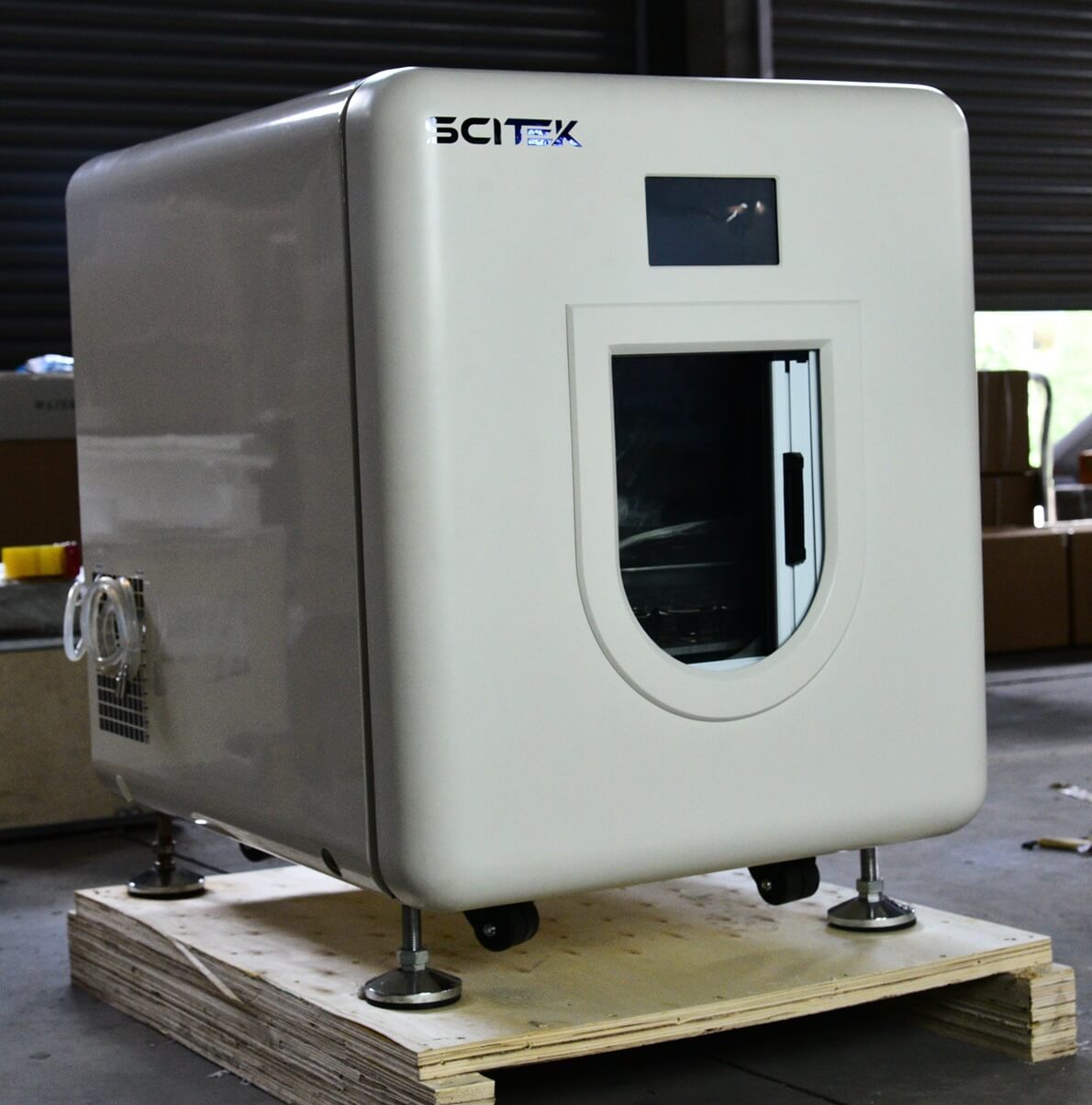

Packing & Delivery
Adopting standard international export packaging, the packaging can adapt to long-term international transportation.
We provide sea freight, air freight, land freight, express service, accept EXW, FCA, FAS, FOB, CFR, CIF, CPT, CIP, DAF, DES, DEQ, DDU, DDP and other trade terms.
Pre-sale services
●24-hour quick response to customer inquiries.
●Recommend models that meet customer requirements.
●Provide competitive prices and detailed product parameters and related information.
●Provide product customization services.
●Sample testing support, production view service.
After-sales service
●Product installation and use training.
●Provide overseas maintenance services in response to customers technical problems.
●Three-year warranty on air protection products, life time maintenance service.
●Online and offline technical personnel training services.
