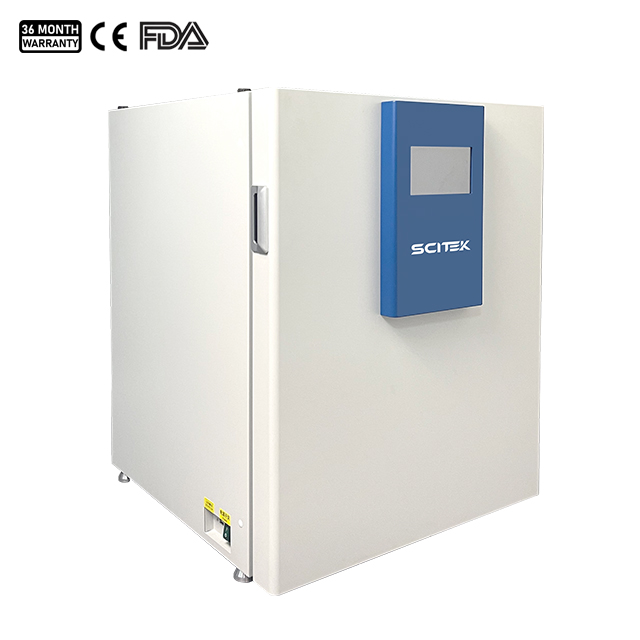

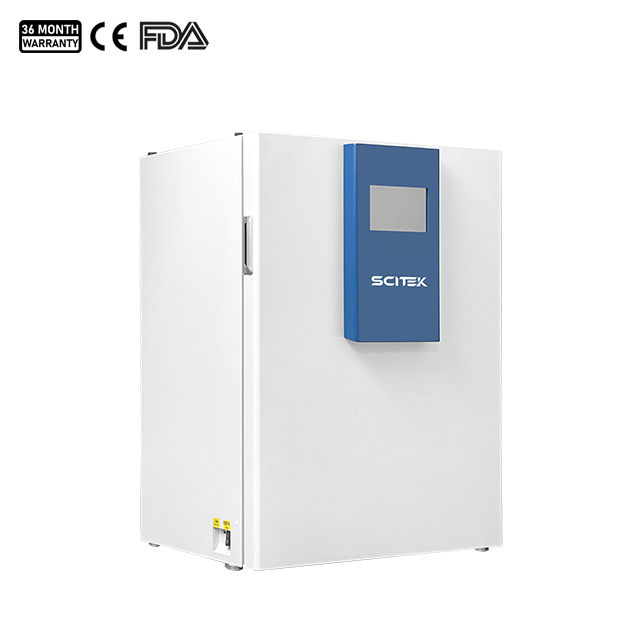

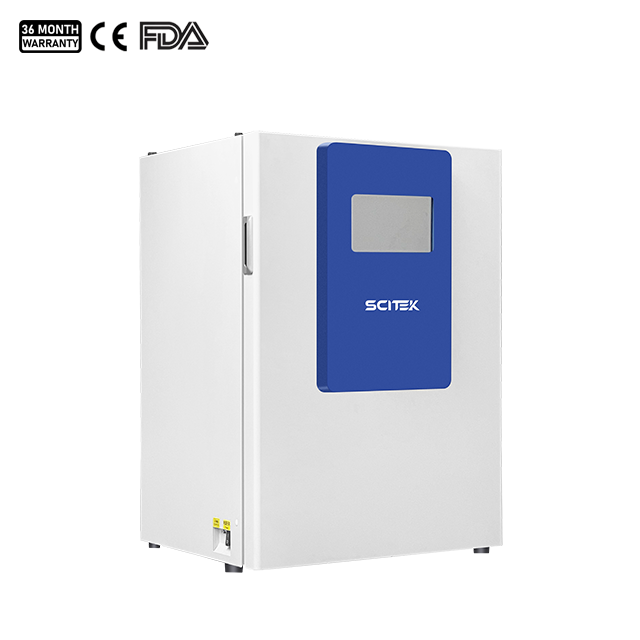

CO2 Incubator AH Series

Model : ICB-C60AH; ICB-C170AH; ICB-C270AH;

Heating mode : Six-sided heating
Temperature control range : RT+3~60℃
Temperature uniformity : ±0.25℃
Temperature fluctuation : ±0.05℃
Temperature accuracy : ±0.1℃

The CO2 incubator has been specifically designed to provide performance reliability, ease of operation and to meet a range of incubation needs from basic research to demanding cutting edge applications.

Availability:

Quantity:



Inquiry Add to Inquiry List

Product Description

CO2 Incubator Feature:

Precise temperature control--Six-sided heating
High-precision infrared (IR) CO2 sensor
Fast recovery of environment in the incubator
7-inch smart touch screen--real-time monitoring, alarm prompt
180 dry heat sterilization
In-situ sterilized HEPA filter--The cleanliness level of the culture room reaches Class A (Class 100 cleanliness) within 5 minutes after closing the door
Antimicrobial powder coating, one-piece inner tank, rounded corner design, no frame, no slide rails, no screws inside, easy to clean

CO2 Incubator Specifications:

Model		ICB-C60AH	ICB-C170AH	ICB-C270AH
Capacity(L)		55	185	260
Internal Size (W×D×H)(mm)		310×380×470	500×570×650	555×570×832
External Size (W×D×H)(mm)		530×635×690	715×820×870	775×820×1055
Heating mode		Six-sided heating
Temperature control range		RT+3~60℃
Temperature uniformity		±0.25℃
Temperature fluctuation		±0.05℃
Temperature accuracy		±0.1℃
Temperature recovery (after opening door for 30s)		≤ 3 min	≤ 3 min	≤4 min
Ambient temperature range		18~34℃
CO2 sensor		Infrared (IR) sensor
CO2 concentration control range		0~20%
CO2 control accuracy		±0.1%
CO2 concentration recovery (after opening door for 30s)		≤3 min	≤3 min	≤4 min
CO2 inlet pressure		0.8~1.2bar
Humidification mode		Natural evaporation
Relative humidity range		≥90%RH
Sterilization mode		180 Dry heat	180 Dry heat	180 Dry heat
Sterilization duration		< 10 hours
Air intake filter		≤0.2μm
Display		7-inch LCD touch screen
The door opens		Left and right interchange
Material	Internal	304 mirror stainless steel
Material	External	Antimicrobial powder coating
Test hole		Φ32mm
Shelves		2 pcs	3 pcs	3 pcs
Shelf size (mm)		305×270	496×440	550×460
Shelf load (kg)		15
Power supply		115/220V, 50/60HZ
Electricity Consumption (W)		600	1300	1600
Shipping Size (W×D×H)(mm)		580x690x860	770x870x1040	835x865x1222
N.W./G.W. (kg)		60/70	85/105	110/120
Data output interface		USB, RS485
Over-temperature protection		Available
Alarm		High and low temperature alarm, gas concentration alarm, door opening alarm, fault alarm, etc.
IOT monitoring		Available

Model	ICB-C60AH	ICB-C170AH	ICB-C270AH
Capacity(L)	55	185	260
Internal Size (W×D×H)(mm)	310×380×470	500×570×650	555×570×832
External Size (W×D×H)(mm)	530×635×690	715×820×870	775×820×1055
Heating mode	Six-sided heating
Temperature control range	RT+3~60℃
Temperature uniformity	±0.25℃
Temperature fluctuation	±0.05℃
Temperature accuracy	±0.1℃
Temperature recovery (after opening door for 30s)	≤ 3 min	≤ 3 min	≤4 min
Ambient temperature range	18~34℃
CO2 sensor	Infrared (IR) sensor
CO2 concentration control range	0~20%
CO2 control accuracy	±0.1%
CO2 concentration recovery (after opening door for 30s)	≤3 min	≤3 min	≤4 min
CO2 inlet pressure	0.8~1.2bar
Humidification mode	Natural evaporation
Relative humidity range	≥90%RH
Sterilization mode	180 Dry heat	180 Dry heat	180 Dry heat
Sterilization duration	< 10 hours
Air intake filter	≤0.2μm
Display	7-inch LCD touch screen
The door opens	Left and right interchange
Material	Internal	304 mirror stainless steel
External	Antimicrobial powder coating
Test hole	Φ32mm
Shelves	2 pcs	3 pcs	3 pcs
Shelf size (mm)	305×270	496×440	550×460
Shelf load (kg)	15
Power supply	115/220V, 50/60HZ
Electricity Consumption (W)	600	1300	1600
Shipping Size (W×D×H)(mm)	580x690x860	770x870x1040	835x865x1222
N.W./G.W. (kg)	60/70	85/105	110/120
Data output interface	USB, RS485
Over-temperature protection	Available
Alarm	High and low temperature alarm, gas concentration alarm, door opening alarm, fault alarm, etc.
IOT monitoring	Available
