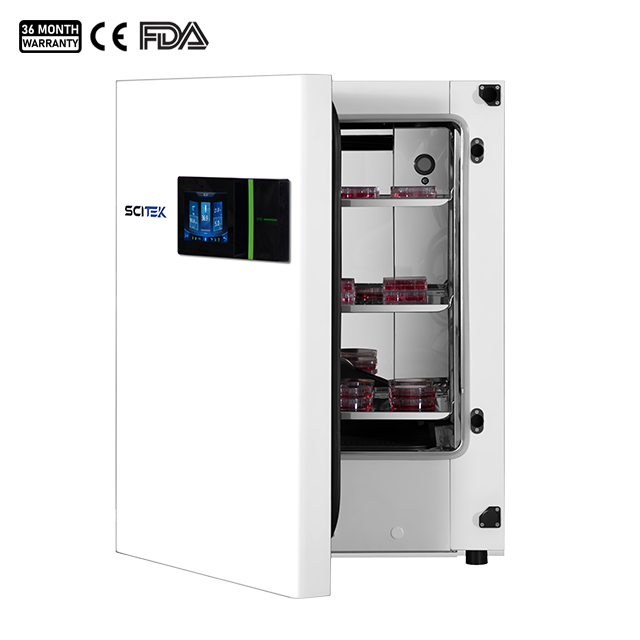

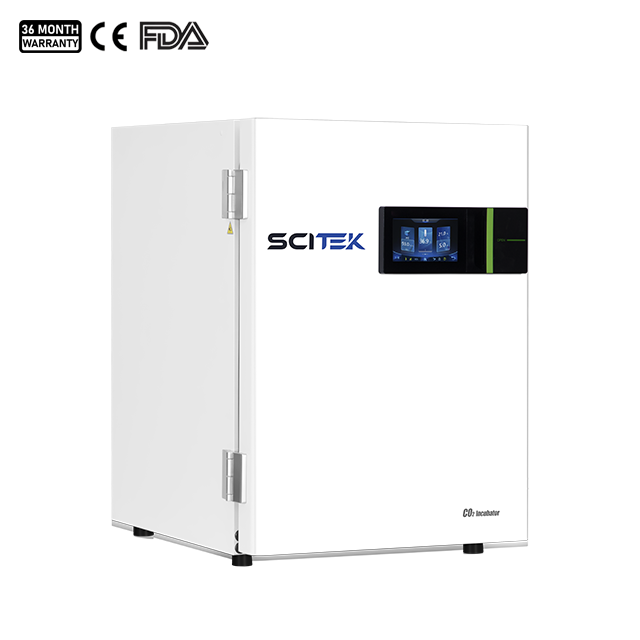

CO2 Incubator 170L

Model : ICB-170

Temperature Range(℃) : RT+3～55
CO2  Range : 0～20%
Sterilization : 180°C dry heat
Humidity Method : Integrated pan
External Size (W×D×H)(mm) : 670×825×920
This CO2 incubator has been specifically designed to provide performance reliability, ease of operation and value for a range of incubation needs, from basic research to demanding cutting-edge applications.
Availability:
Quantity:
Inquiry Add to Inquiry List

CO2 Incubator Specifications:

Model ICB-170
Temperature Type Direct Heat & Air Jacketed
Range RT+3°C to 55°C
Uniformity ≤±0.3°C
Accuracy <±0.1°C
Recovery ≤10 mins
Ambient 18-34°C
CO2 Controller PID microcomputer
Range 0~20%
Accuracy ±0.1%
Sensor IR
Recovery ≤5 mins
Sterilization 180°C dry heat
Humidity Mode Integrated pan
rH% 91% @ low rH mode, 94% @ High rH mode
Recovery 15 mins
O2 (Optional Tri-gas Type) Controller PID microcomputer
Range 1~20.7%
Accuracy ±1%
Sensor Zirconia
Accuracy O2% @ 1.0%: 24mins; O2% @ 5.0%: 10mins
Alarm and Reminder Alarms Ambient temp., rH%, CO2%, Water level, O2% (optional)
Reminder HEPA filter expiration, shortage of gas
Cleanliness Sterilization 180°C dryheat
0.2um filter
HEPA filter
Specifications Capacity 170L
Internal Construction Polished stainless steel
Shelf Qty (Standard) 3
Max Shelf Qty Up to 7 optional
Shelf Size (WxD mm) 450x485(Big); 450x440(small)
Max Loading of Each Shelf 12kg
Power Supply AC220V, 50/60Hz
Max. Power 1000W
Stable Power 42W
Internal Size (WxDxH)(mm) 490×560×621
External Size (W×D×H)(mm) 670×825×920
Shipping Size (W×D×H)(mm) 1135×730×965
N.W./G.W. (kg) 94/105

CO2 Incubator Feature:

For advanced uniformity and recovery, our airflow patterns are specifcally designed for outstanding distribution of critical environmental conditions (temperature, gas exchange and humidity). Forced-air fan gently and evenly distributes clean, humidifed air throughout the chamber ensuring all cells experience the same conditions without the threat of desiccation. Temperature and gas sensors are placed in the chamber to ensure the detected temperature and gas are in the same conditions.

Designed for sensitive cells and It is designed to protect valuable samples while optimizing cell growth.

1. 180°C Dry heat sterilization

2. Optional tri-gas

3. Top IR sensor

4. LCD touch screen

Application of CO2 Incubator:

  1. Cell culture and cell growth

  2. Tissue engineering and regenerative medicine research

  3. Cellular virology and bacteriology experiments

  4. Drug screening and pharmacological research

  5. Medical clinical diagnostics and biomedical research

Details of CO2 Incubator:

CO2 Circulation

Precisely controlled airflow path, air is evenly distributed to the petri dish or culture chamber, ensuring adequate gas supply and environmental stability for cells or tissues

IMG20240305091717(1)

The CO2 incubator is wrapped in a sealed film to ensure that the equipment is safe and undamaged during transport.

ICB-170

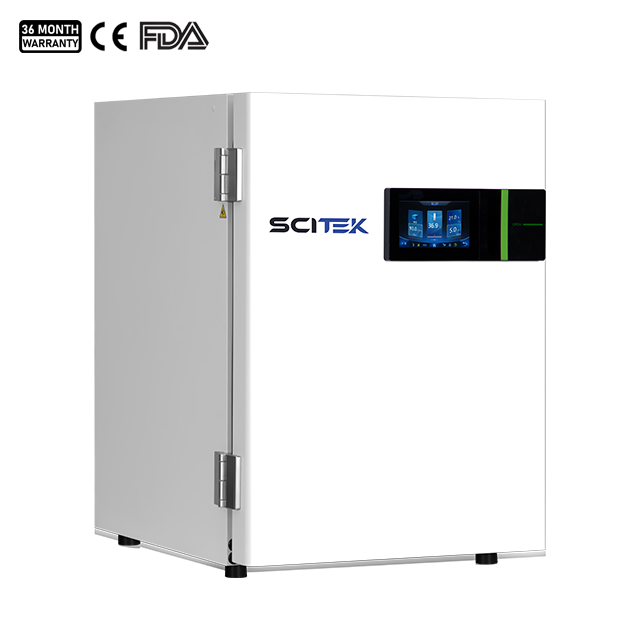

A clear LED display and safety lock ensure safe storage of samples.

IMG20240305091334(1)

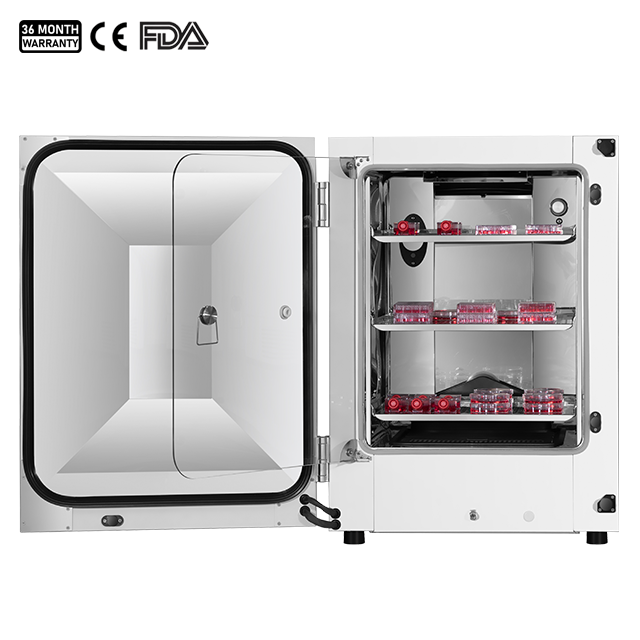

Spacious and clean interior space, high quality insulation materials and advanced temperature control technology ensure the stability and uniformity of the internal temperature.

IMG20240305091940(1)
Used to connect to an external CO2 gas source to ensure stable CO2 concentration in the incubator.
IMG20240305091906(1)

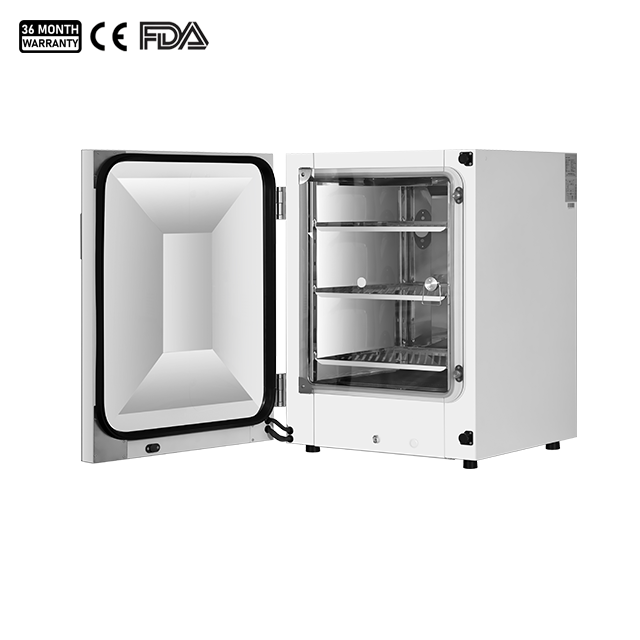

Adjustable shelves for easy placement and movement of petri dishes.

IMG20240305091958(1)

IMG20240305092031(1)

WHY SCITEK

  1. 36 Months Limited Warranty

  2. CE & FDA European Standards

  3. 1-2 Days Handling and 7-30 Days Shipping
