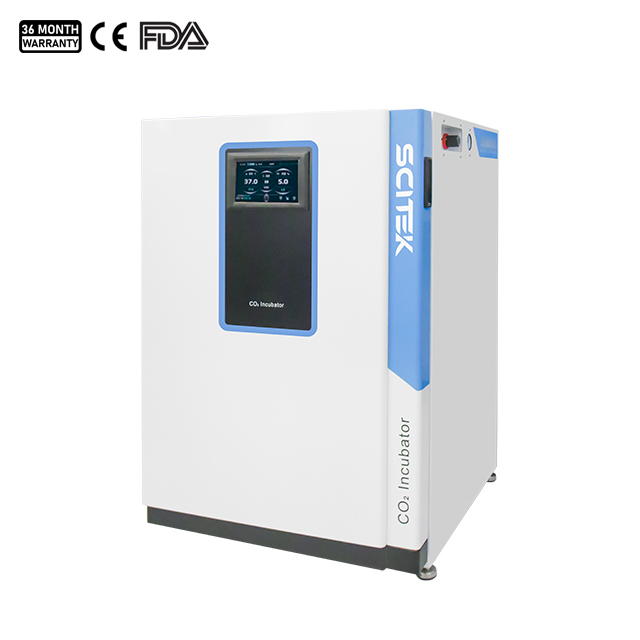

CO2 Incubator ICB-CA Series

CO2 Incubator Features:

Six-sided heating gas jacket heating system

1. Six-sided heating ensures uniform temperature distribution with a uniformity of up to ±0.4°C.

2. Built-in fan gently blows air so that it is evenly distributed in the chamber, ensuring a consistent culture environment.

3. Removable drawer-style shelves can be flexibly combined, and the independent humidification water tray can be taken out or put in according to needs.

4. Stainless steel shelves and brackets are durable and can be removed without tools.

5. Stainless steel inner cavity with large rounded corners for easy cleaning.

90°C high temperature moist heat sterilization

1. 90°C high temperature and moist heat sterilization function, no need to disassemble parts separately.

2. The 90℃ high temperature and wet heat sterilization system can effectively eliminate the microbial contamination caused by bacteria, molds, mycoplasma and other microorganisms on the surface of the inner cavity to cell culture, providing users with a safe experimental environment.

CO2 Incubator Specifications:

CO2 Incubator Technical Features:

IR sensors are designed for precise monitoring

1. Infrared (IR) CO, sensor, stable monitoring of the culture environment, effectively avoiding the measurement deviation caused by frequent opening and closing of the door.

2. Suitable for remote monitoring or when the incubator needs to be opened frequently.

Active Airflow Technology

1. The CO2 incubator is equipped with fan-assisted air circulation to achieve rapid recovery. This airflow pattern is specially designed to evenly distribute temperature, gas exchange and humidity.

2. The incubator’s built-in fan ensures that all cells, regardless of where they are placed, have the same culture environment conditions and will not lose water excessively when the incubator is turned on.

Microbial high efficiency filter

The CO2 inlet is equipped with a high-efficiency microbial filter, which has a filtration efficiency of up to 99.99% for particles with a diameter greater than or equal to 0.3um, effectively filtering bacteria and dust particles in CO2 gas.

7-inch LCD touch screen

1. Intuitive control and easy operation, can display real-time operation curve, historical operation curve.

2. The installation position on the upper part of the outer door is convenient and easy to operate, and the capacitive touch screen is sensitive and has a good control experience.

3. Voice and visual alarm, screen menu prompts, alarm records can be queried.

Unique reservoir design

The chassis water reservoir design has a large evaporation area and the humidity recovers quickly after closing the door. It ensures a high humidity environment in the incubator. Under normal room temperature conditions, even when high humidity is generated, it is still difficult to generate condensation water above the cabin. It provides the greatest protection for cell and tissue culture and avoids the formation of dangerous condensation.

Historical data can be viewed, monitored, and exported

1. Historical data can be viewed, monitored and exported through the USB interface.

2. Historical data cannot be changed, and the original data can be traced back effectively.

Free selection, enhanced experience

1. Humidity display, printer, monitoring software users.

2. Flexibly add or remove partitions as needed.
