External Size (W×D×H)(mm): 900×620×880; 1300×620×880 Internal Size (W×D×H)(mm): 880×520×600; 1280×520×600 Display: LCD display Average Air Velocity: 0.3–0.45 m/s Air Volume: 200–300 m³/h; 400–600 m³/h
This cabinet minimize exposure risks and strictly control the leakage of highly hazardous substances in the cabinet, ensuring the safety of operators and the environment.
The Class I biological safety cabinet can also be used as balance weighing hood. It’s designed for the safe weighing of highly active drugs and liquids. It is mainly used for weighing experiments involving dust, liquids, or mixtures of dust and liquid.
Class I Biosafety Cabinet Feature:
Unique back panel airflow design, it’s beneficial for stable balance readings and avoids the risk of highly active drugs falling during the replacement of the Pre-filter and HEPA filter.
Easy-to-replace Pre-filter could extend the HEPA filter’s lifetime.
Microprocessor controller equipped with an LCD display for digital indication of the operational status of all functions.
With Temperature and humidity sensor, real-time monitoring of temperature and humidity improves weighing accuracy.
Humanized design with three-sided observation window is convenient for multi-angle observation.
Memory function in case of power-failure.
Safety:
OEB Grade (Occupational Exposure Brand) is OEB 5.
For the highest-risk materials in the pharmaceutical industry, this cabinet minimize exposure risks and strictly control the leakage of highly hazardous substances in the cabinet, ensuring the safety of operators and the environment.

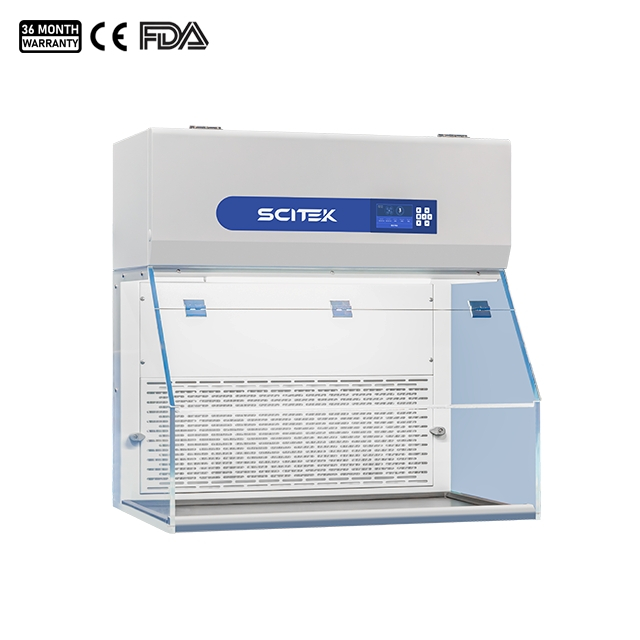

Class I Biological Safety Cabinet Specification:
Model
BSC-I-WH900
BSC-I-WH1300
External Size (W×D×H)(mm)
900×620×880
1300×620×880
Internal Size (W×D×H)(mm)
880×520×600
1280×520×600
Control System
Display
Microprocessor controller with LCD display, display the operating status of each function
Life Indicator
HEPA filter indicators facilitate a timely replacement plan
Airflow System
Average Air Velocity
0.3–0.45 m/s
Air Volume (m³/h)
200–300
400–600
Air Filtration System
HEPA Filter
1pc H14 HEPA Filter
2pc H14 HEPA Filter
Cabinet Construction
Front Panel
Electro-Galvanized steel with antimicrobial powder coating
Front and Side Window
PMMA
Work Surface
Solid physicochemical board, resistant to acid and alkali
(Note: when use it as Balance Weighing Hood, please remove the work surface and put the cabinet on the Weighing table directly.)
Electrical System
LED Lamp
6.5 W × 1
9.6 W × 1
Consumption (W)
45
75
Power Supply
AC 220 V ± 10%, 50/60 Hz;
AC 110 V ± 10%, 60 Hz.
Sound Emission
≤60 dB (A)
Standard Accessory
Pre-filter;
HEPA filter;
LED lamp;
Temperature and humidity sensor.
Optional Accessory
Balance weighing table;
Waste recycling device;
Air velocity sensor; Filter life sensor;
Gas concentration sensor;
Active carbon filter.
Net Weight (kg)
65
109
Gross Weight (kg)
95
150
Shipping Size (W×D×H)(mm)
1030×750×1090
1430×750×1090
Shipping Volume (m³)
0.9
1.2

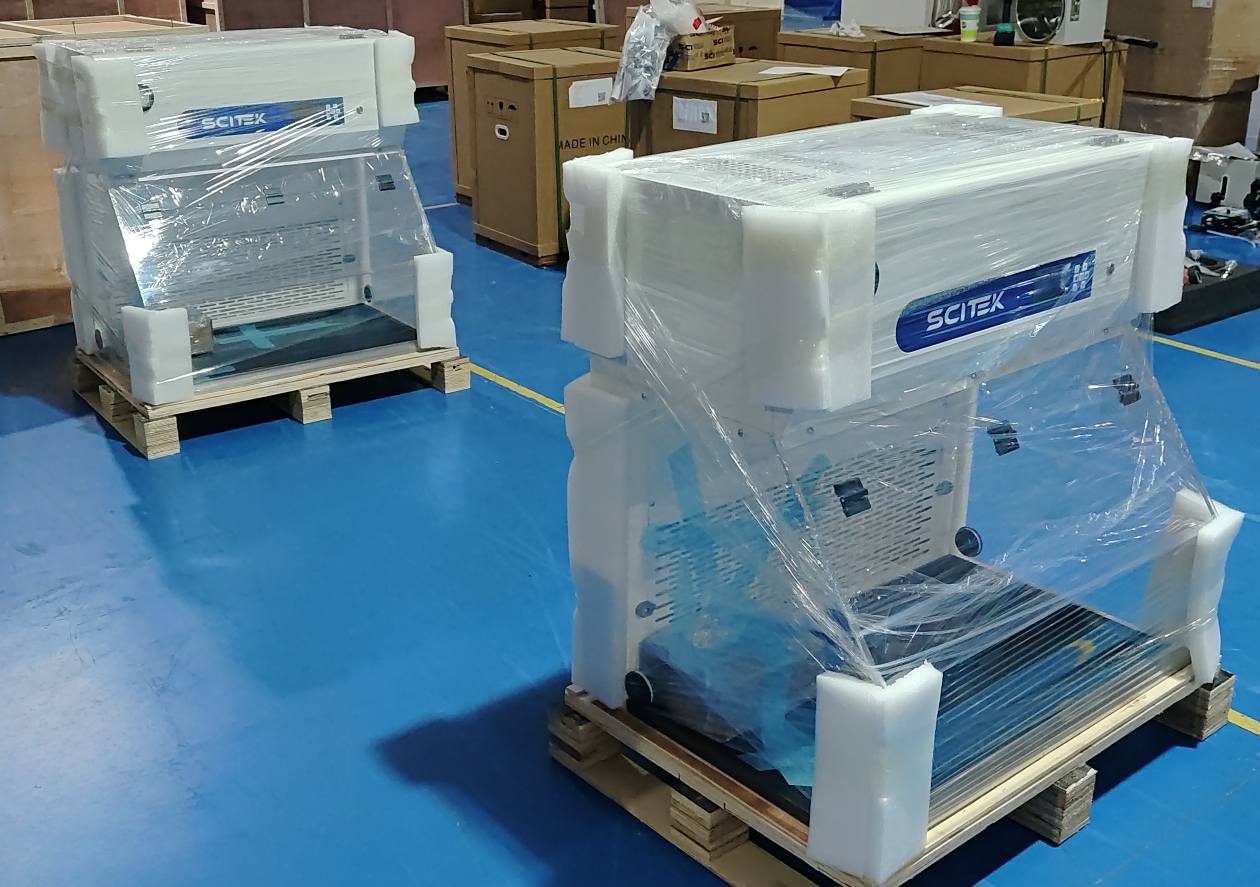

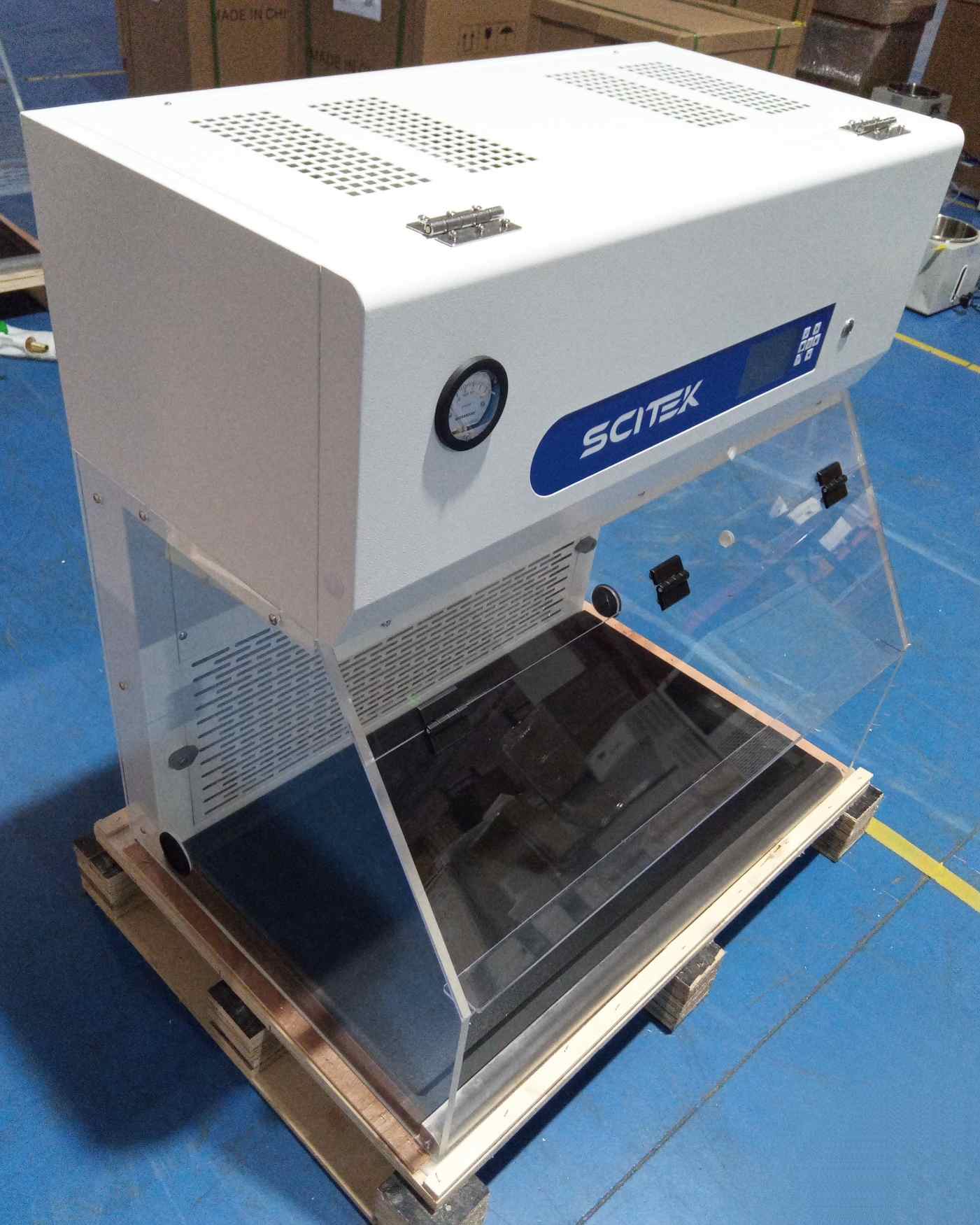

Details of Class I Biological Safety Cabinet:

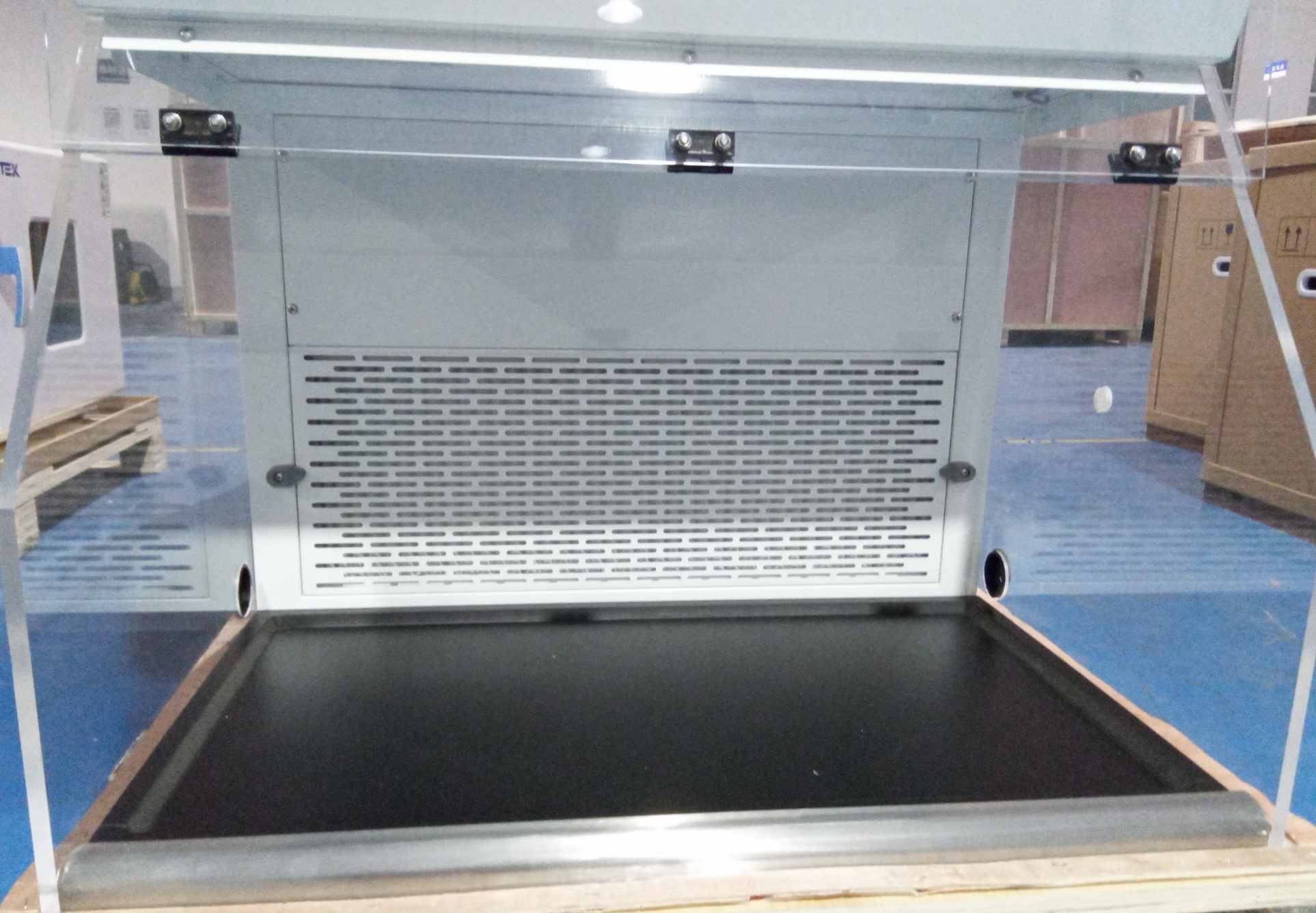

The spacious weighing area accommodates balances and sample containers comfortably, and the transparent front panel provides clear visibility during operation. A robust cabinet structure, easy-access working area, and practical front-loading design make it suitable for pharmaceutical, chemical, microbiological, and laboratory weighing applications where operator and environmental protection are key considerations.
Class I biological safety cabinet provides a controlled enclosure for powder weighing and handling processes where containment of airborne particles is essential. Its enclosed front workspace helps limit the escape of powders and aerosols, while the integrated ventilation system supports a cleaner and more controlled working environment.
As a professional lab and medical equipment manufacturer, Scitek Global is certified by ISO 9001, ISO 13485, ISO 45001 and ISO 14001. Almost all our products are certified by ETL, CE and FDA .
Scitek Global looks forward to establishing cooperation with more distributors all over the world, and working together to create greater customer value.
