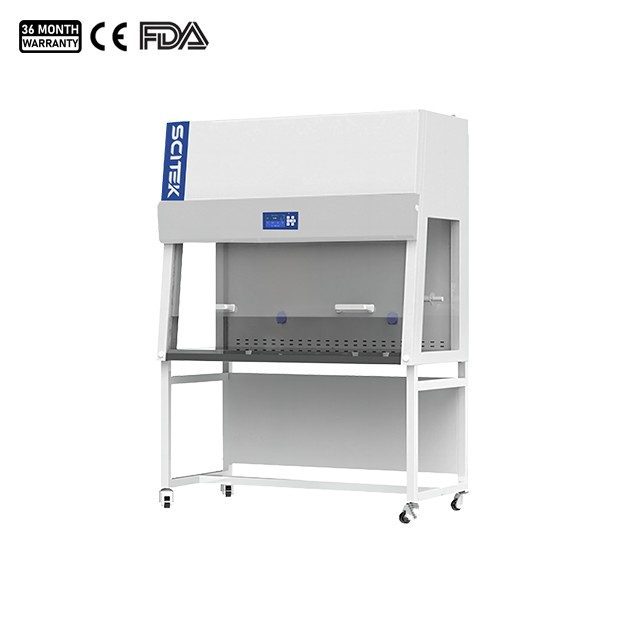

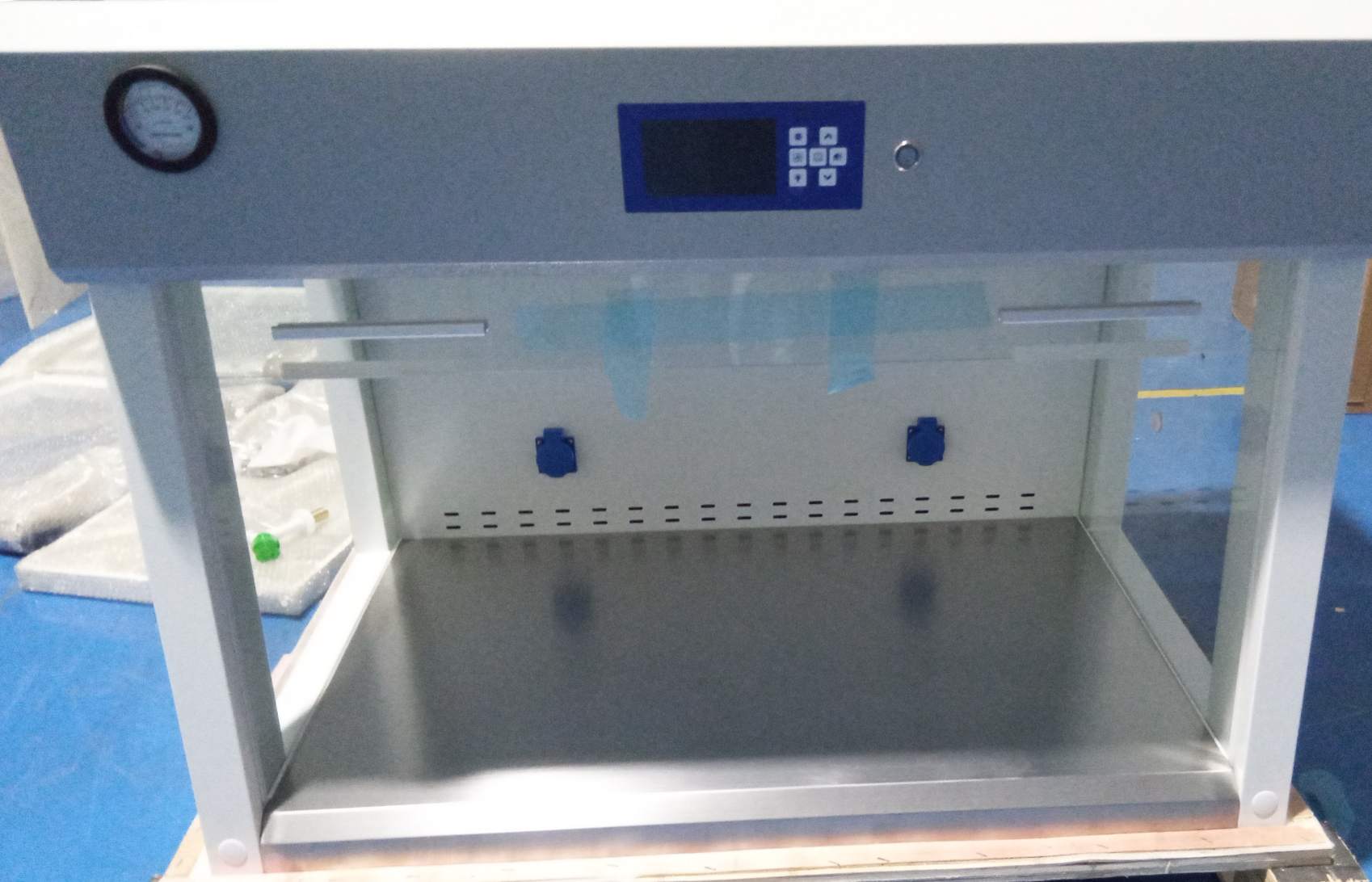

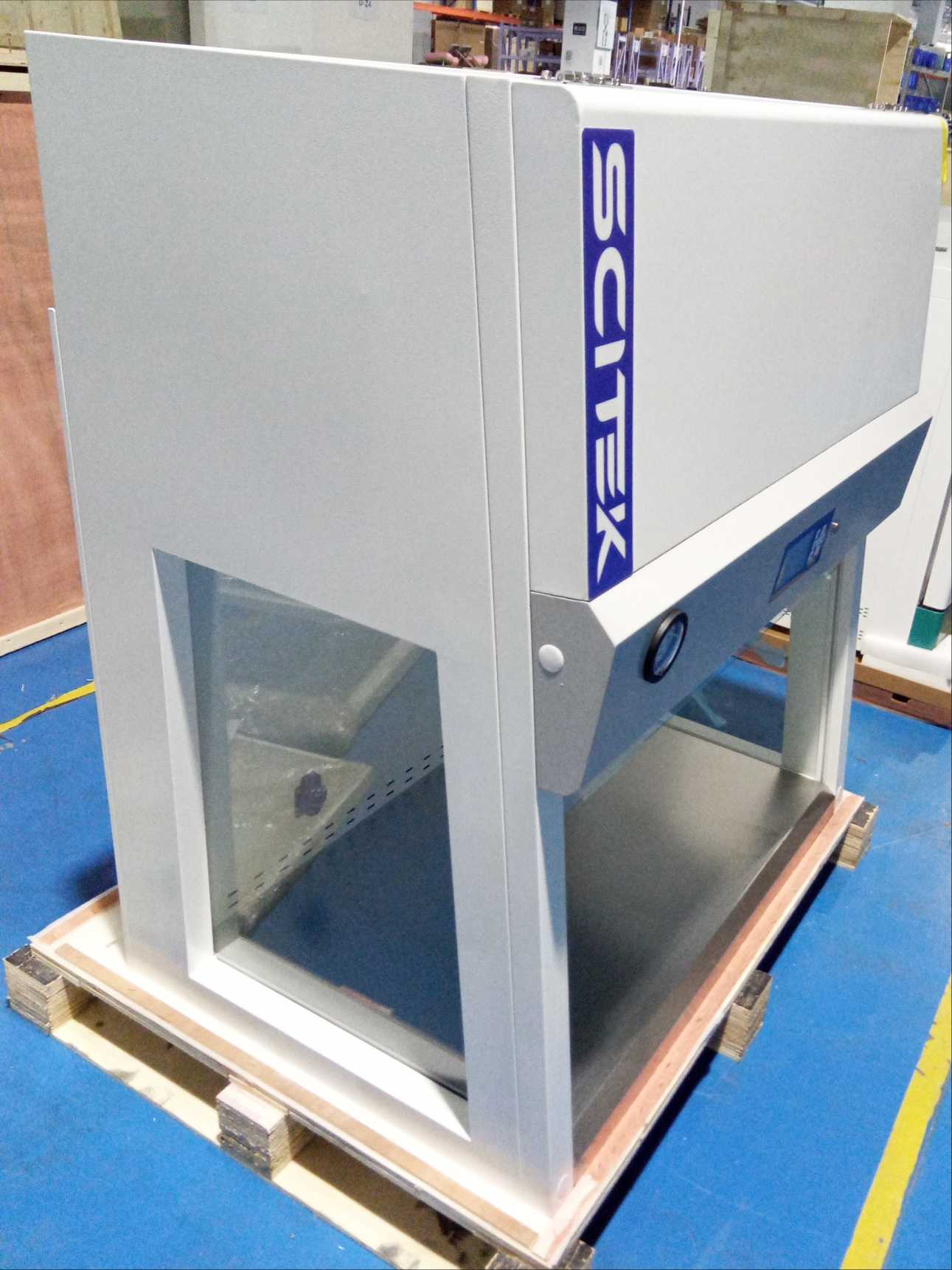

Biological Safety Cabinet Class I

Model: BSC-I-1100; BSC-I-1300; BSC-I-1600; BSC-I-1900

Work Surface Height : 750mm
Sound Emission : ≤62dB(A)
Illumination : ≥900Lx
Airflow Velocity : 0.2~0.5 m/s, Speed adjustable

Perform everyday applications safely and efficiently with this easy-to-order Biological Safety Cabinet Class I!

Availability:

Quantity:



Inquiry Add to Inquiry List

Product Description

Biological Safety Cabinet Specifications:

Model		BSC-I-1100		BSC-I-1300	BSC-I-1600		BSC-I-1900
External Size (WxDxH)(mm)		1050x710x1850		1320x710x1850	1625x710x1850		1930x710x1850
Internal Size (WxDxH)(mm)		950x615x625		1220x615x625	1525x615x625		1830x615x625
Work Surface Height		750mm
Control System	Display	Microprocessor controller with LCD display, display the operating status of each function
	Alarm	Audio and Visual alarm on filter and UV changing
	Interlock	Front sliding sash interlock with fan and UV lamp
	Life Indicator	HEPA filter and UV life indicators facilitate a timely replacement plan
Airflow System	Airflow Velocity	0.2~0.5 m/s, Speed adjustable
Air filtration System	HEPA Filter	1 pcs, Efficiency: >99.995% at particle size of 0.3μm
	Cleanliness Grade	ISO Class 5 (formerly Class 100)

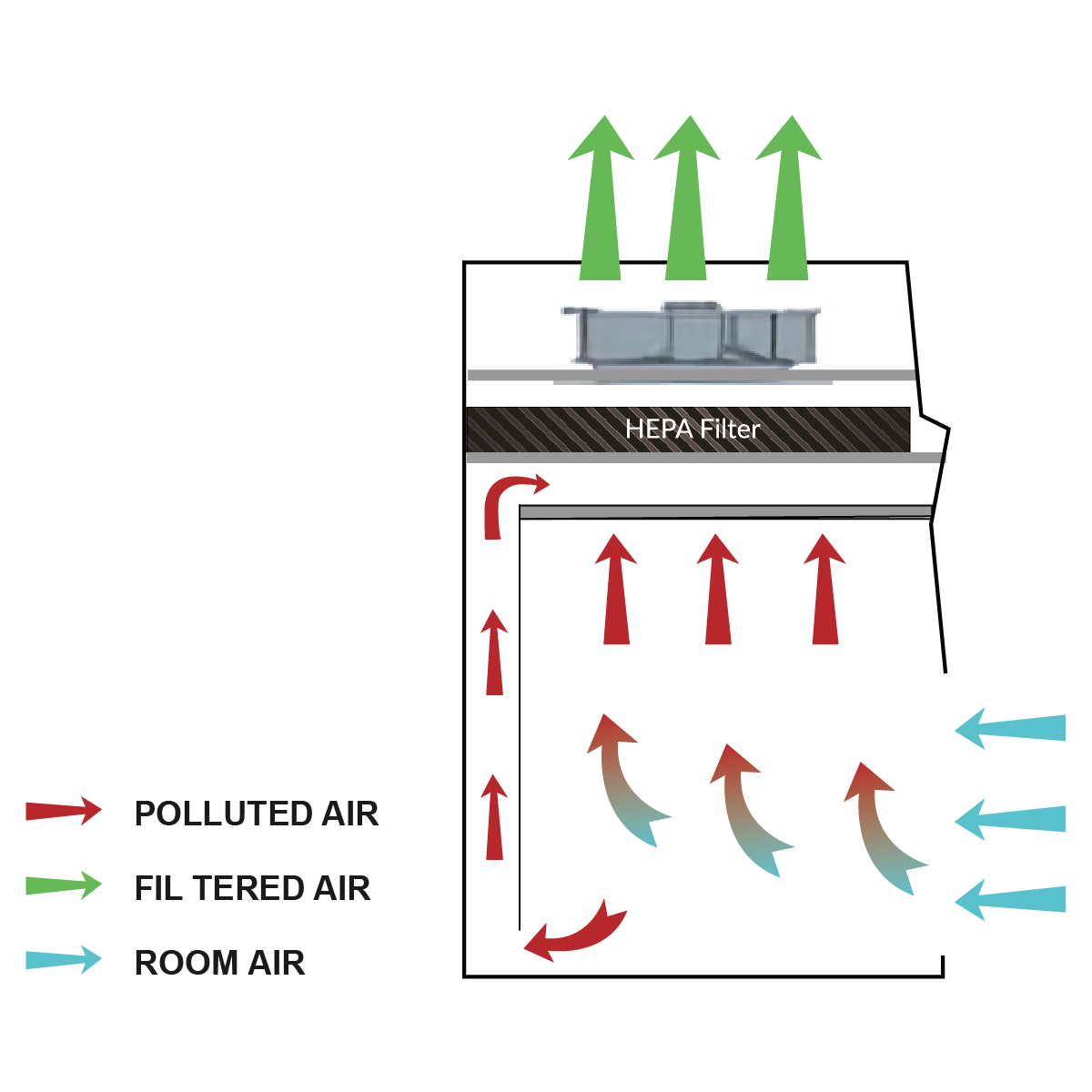

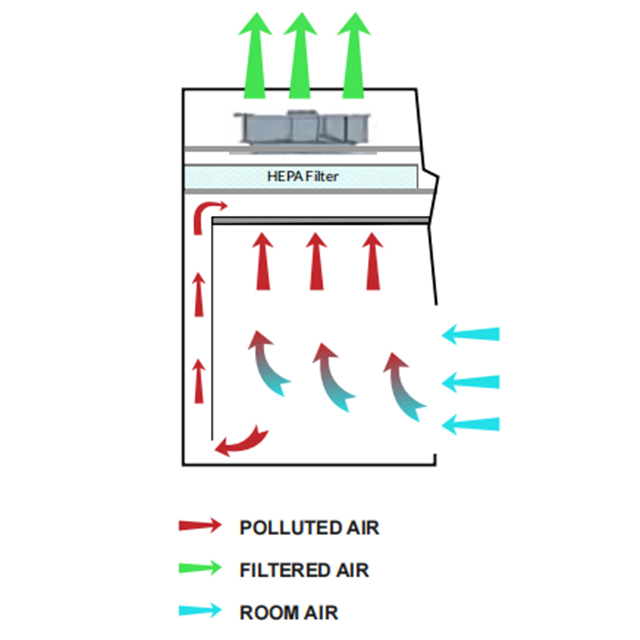

	Partial air circulation	Perforations at the back wall of the work zone which are designed to eliminate air turbulence and the possibility of dead air corners in the work zone.
Cabinet Construction	Main Body	Electro-Galvanized steel with antimicrobial powder coating
	Work Surface	304 Stainless steel, an angled front, rounded work surface front edge
	Front Window	Manual sliding sash: 5 mm UV resistant tempered glass with counter-balance system and ergonomic handle
	Side window	5 mm UV resistant tempered glass
Electrical System	UV Lamp	20W×1	30W×1		30W×1	20W×2
	UV Lamp	With timing function from 0 to 999 minutes, Interlock with front sliding sash. Emission of 253.7 nanometers for best sterilization effect.
	Consumption	155W	285W		285W	300W
	Consumption	Not include socket loading power consumption
	Power Supply	AC220V±10%, 50/60HZ; 110V±10%, 60Hz
Illumination		≥900Lux
Sound Emission		≤62dB(A)
Standard Accessory		1. Base Stand; 2. LED Lamp; 3. UV Lamp; 4. Waterproof Socket×2
Optional Accessory		1. Water Tap; 2. Gas Tap
Gross Weight (kg)		225		255	285		330
Shipping Size (W×D×H)(mm)		1190x990x1325		1460x990x1325	1765x990x1325		2070x990x1325
Shipping Volume (m³)		1.56		1.92	2.3		2.7

Biological Safety Cabinet Features:

Class I biological safety cabinet is a biological safety isolation equipment used in biological safety laboratories or other laboratories. It is usually used to handle low-risk biological materials. Suitable for testing samples without requiring protection. Protect operator and the environment.

Humanized design:

Perforations at the back wall of the work zone which are designed to eliminate air turbulence and the possibility of dead air corners in the work zone.
Intuitive and easy-to-use microprocessor controller with LCD display, graphical and digital display of the operating status of each function, such as filter life, UV life etc.
Ergonomic control panel location, centered and angled down for an easy reach & viewing.
The non-direct light source design can effectively relieve the operator's visual fatigue under the condition of ensuring the illumination.
Brushed stainless steel work surface is for easy cleaning.

Safety Performance:

Front sliding sash interlock with fan and UV lamp.
UV sterilization with UV lamp timing function.
Front sash and side windows are made of UV-resistant tempered glass.
The host and sockets have independent capacitors to prevent current overload.
Audio and visual alarm on filter life, UV life etc.

Convenience Features:

Memory function in case of power-failure.
HEPA filter and UV life indicators facilitate a timely replacement plan .
Two side glass windows installed for easy experiment observation.
Equipped with temperature sensor to show the real temperature during operation.
Waterproof socket provide convenience for small instruments to be used in the operating area.

Details of Biological Safety Cabinet:

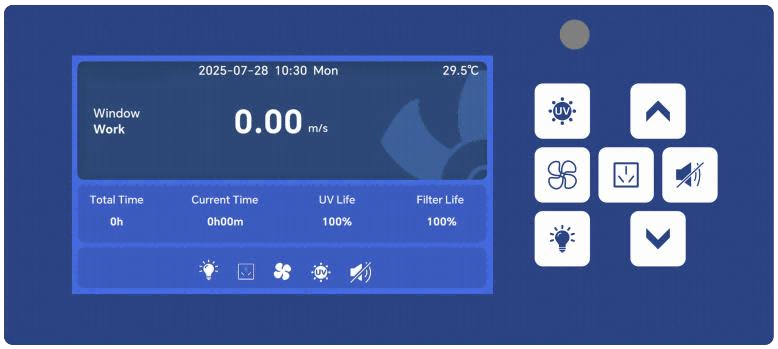

LCD Display (Real-time show the Time, Temperature, UV life and Filter life)

Waterproof Socket (IP54)

UV Lamp

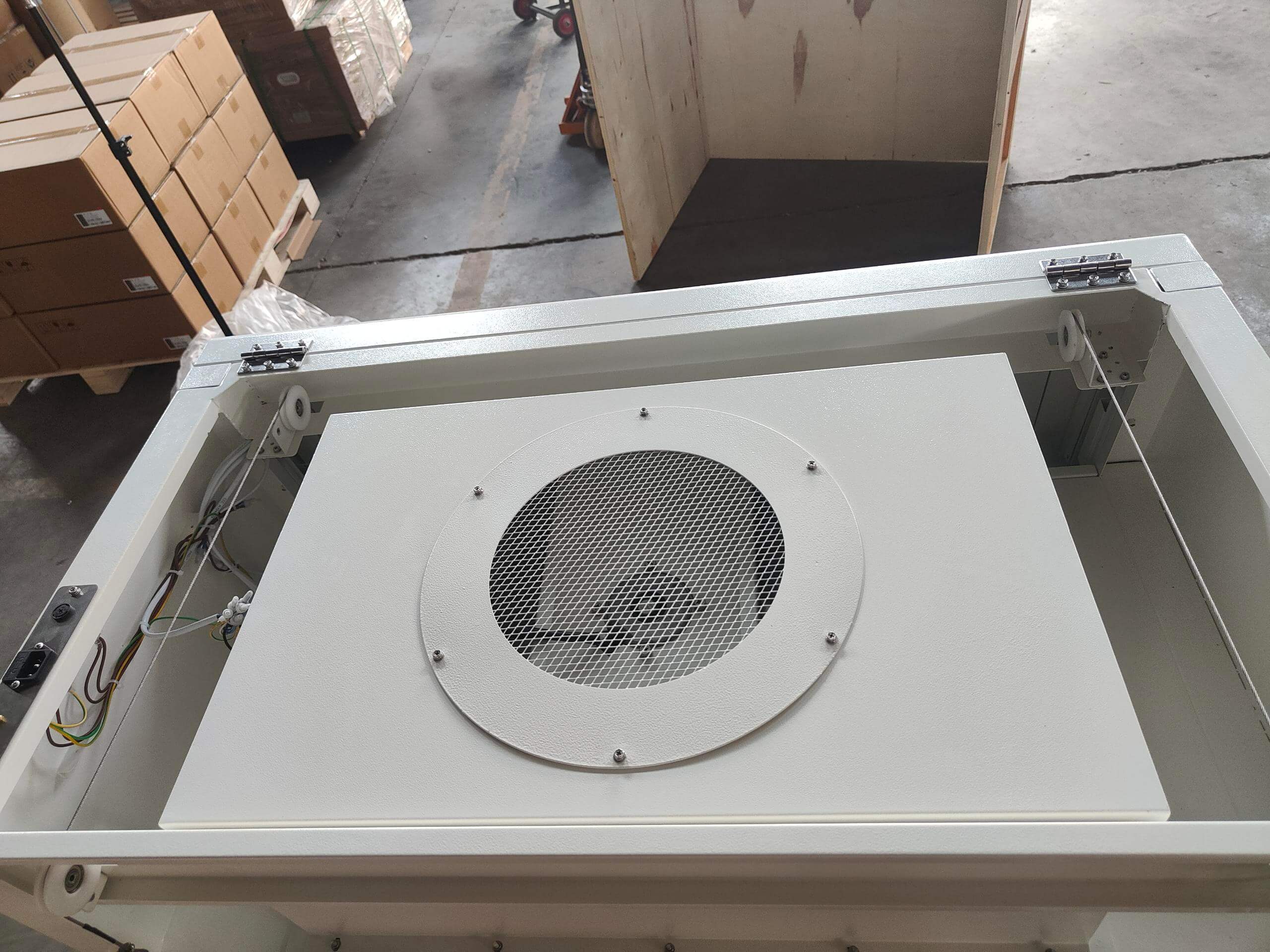

HEPA Filter

Application:

Microbiology (non-pathogenic)

Forensics

Sterile product compounding

Model	BSC-I-1100	BSC-I-1300	BSC-I-1600	BSC-I-1900
External Size (WxDxH)(mm)	1050x710x1850	1320x710x1850	1625x710x1850	1930x710x1850
Internal Size (WxDxH)(mm)	950x615x625	1220x615x625	1525x615x625	1830x615x625
Work Surface Height	750mm
Control System	Display	Microprocessor controller with LCD display, display the operating status of each function
Alarm	Audio and Visual alarm on filter and UV changing
Interlock	Front sliding sash interlock with fan and UV lamp
Life Indicator	HEPA filter and UV life indicators facilitate a timely replacement plan
Airflow System	Airflow Velocity	0.2~0.5 m/s, Speed adjustable
Air filtration System	HEPA Filter	1 pcs, Efficiency: >99.995% at particle size of 0.3μm
Cleanliness Grade	ISO Class 5 (formerly Class 100)
Partial air circulation	Perforations at the back wall of the work zone which are designed to eliminate air turbulence and the possibility of dead air corners in the work zone.
Cabinet Construction	Main Body	Electro-Galvanized steel with antimicrobial powder coating
Work Surface	304 Stainless steel, an angled front, rounded work surface front edge
Front Window	Manual sliding sash: 5 mm UV resistant tempered glass with counter-balance system and ergonomic handle
Side window	5 mm UV resistant tempered glass
Electrical System	UV Lamp	20W×1	30W×1	30W×1	20W×2
With timing function from 0 to 999 minutes, Interlock with front sliding sash. Emission of 253.7 nanometers for best sterilization effect.
Consumption	155W	285W	285W	300W
Not include socket loading power consumption
Power Supply	AC220V±10%, 50/60HZ; 110V±10%, 60Hz
Illumination	≥900Lux
Sound Emission	≤62dB(A)
Standard Accessory	1. Base Stand; 2. LED Lamp; 3. UV Lamp; 4. Waterproof Socket×2
Optional Accessory	1. Water Tap; 2. Gas Tap
Gross Weight (kg)	225	255	285	330
Shipping Size (W×D×H)(mm)	1190x990x1325	1460x990x1325	1765x990x1325	2070x990x1325
Shipping Volume (m³)	1.56	1.92	2.3	2.7
