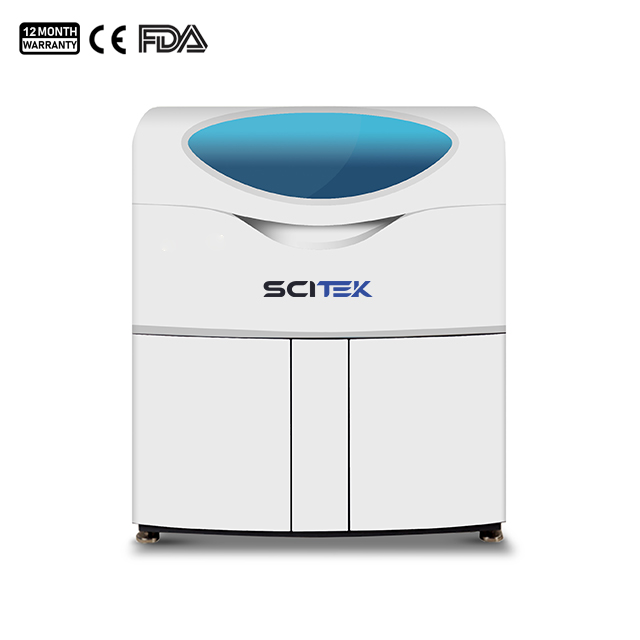

Chemistry Analyzer, BA-400T

Automatic Chemistry Analyzer Technical specifications:

1. System Functions

   Fully    automatically,discrete,random    STAT    function

   Online  test  items:at  most  40  testing  items

   Throughput: 400  tests/hour

   Analysis  Method:end-point,kinetic, two-point, double-reagents,double-wavelength,multi-standard etc,open to various reagents

   Data  Processing:memory  up  to  2  million  patients' data

2. Sample/Reagents Handling

   Sample Position: 93 pcs(Include standard,QC,STAT positions)

   Sample volume: 2-35μl, 0.1μl   step

   Sample Probe Cleaning: automatic intemal & extemal washing

   Sample  Dilution: automatc/Manual pre-dilution, with dilution  ratio  up  to  1:100

   Reagent Position: 80 pcs(With refrigerated funcion, 2℃-8℃)

   Reagent  Volume: 10-250μl, 1μl  step

   Reagent Probe: automatic liquid level detect,with collision protection Punction

   Reagent Probe Cleaning: automatic intemal & extemal washing

3. Reaction System

   Reaction Cuvette: 90  pcs  made  of  special   material

   Optical  Length   of   Cuvette: 6mm

   Reaction  Volume: 200~500μl

   Reaction Time: 8-14    minutes

   Reaction Temperature: 37℃±0.1℃

   Mixing   System: two    independent   mixing    probe

4. Optical System

   Light     Source: halogen-tungsten lamp

   Wavelength: 340-750nm, 9   wavelengths,precision    ±2nm

   Spectrophotometry: rear  spectrophotometry

   Test   Range: 0-4.0   Abs

   Resolution: 0.0001Abs

5. Bar-code Reader(Optional)

   Bar-code reader used for sample/reagent programming

6. ISE Module(Optional)

   Optional 1: K, Na, Cl, Ca, PH(5 items)

   Throughput: 300 tests/hour

   Optional 2: K, Na, Cl(3 items)

   Throughput: 180 tests/hour

7. QC

   Various QC management function and random

   QC insert

8. Control and Calibration

   Calibration: linear/nonlinear multi-points calibration

   Re-test: retest the sample automatically when the resultis out of the linearity range or the sample is not sufficient

   Automatic sample dilute function

9. Cleaning System

   8-step automatic washing, automatic cuvette dry function

   Water Consumption: 8L/hour

10. Working Condition

    Power Supply: ~100-240V, 50/60Hz, 1KVA

    Temperature: 10-35℃

    Humidity: ≤90%, no dew

11. Operation System

    Windows XP or Windows 2000

12. Input and Output

    Input: RS-232 interface/keyboard/computer

    Output: multi-format printout

13. Dimension and Weight

    Upper cabinet: 950x710x1180mm

    Net Weight: 136kgs

14. Packing Information

    890x1135x1400mm; G.W.: 215kgs(With plywood case)

Details of Automatic Chemistry Analyzer:

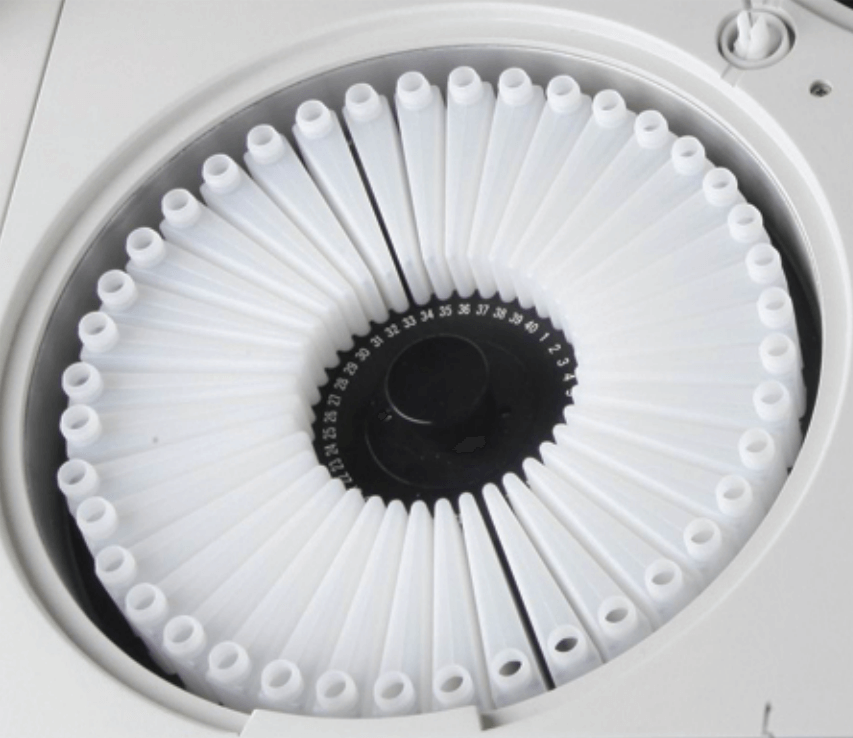

R1 Reagent Position

40 pcs R1 reagent positions

Non-stop reagents refrigerating

Auto detect of reagent volume

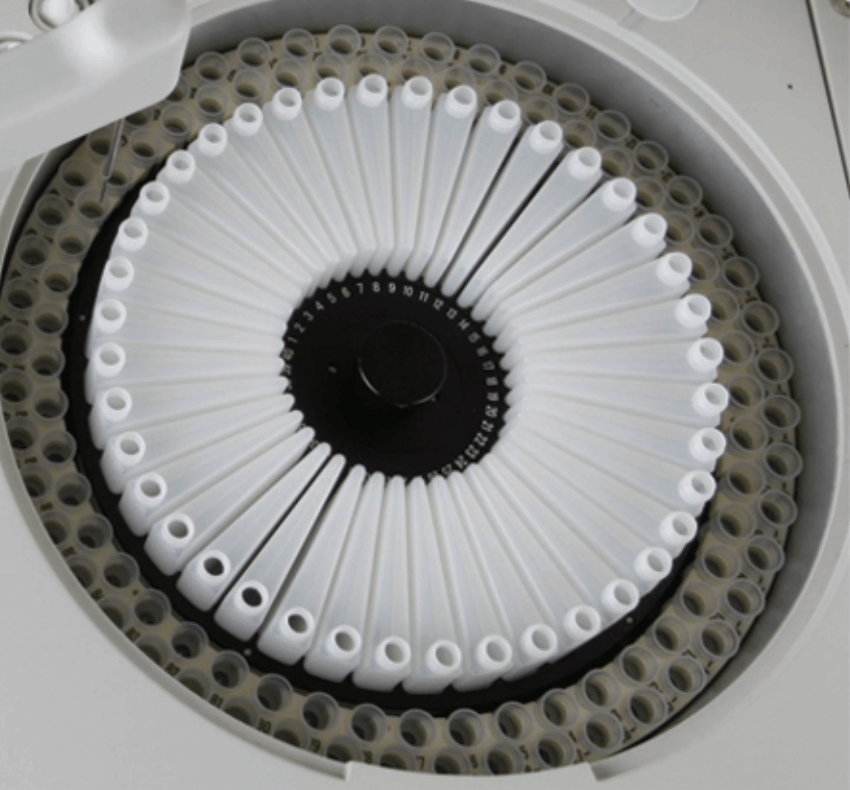

R2 Reagent/Sample position
40 pcs Rl reagent positions

93 sample positions, suitable for primary tube abd serum cup

Non-stop reagents refrigerating

Auto detect of reagent volume

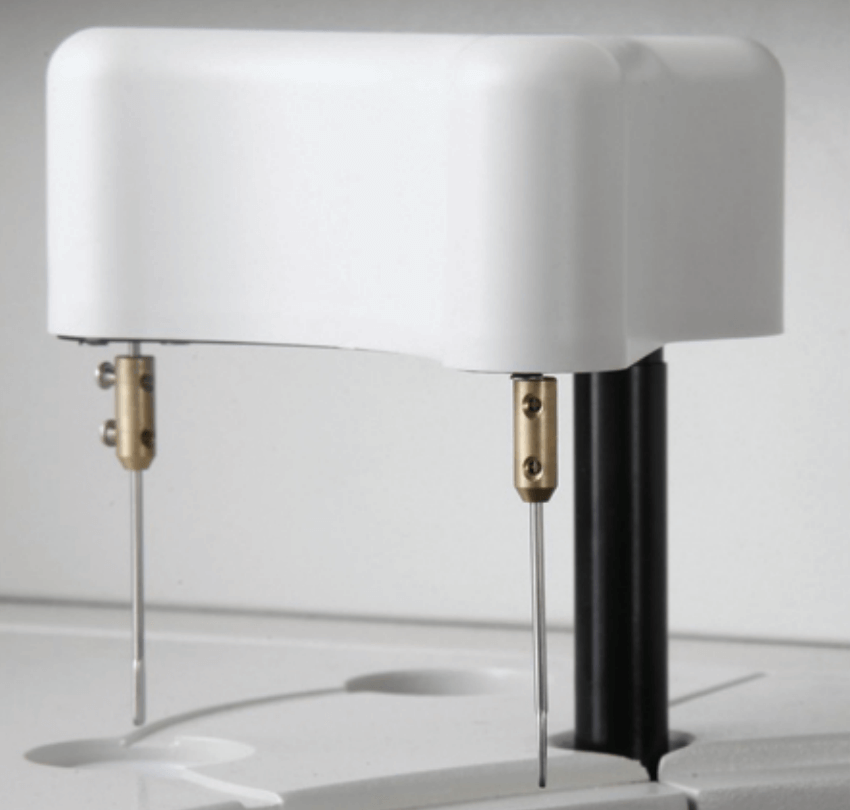

Sample/Reagent Probe

Probe telfon coating technology

Automatic liquid level detect

Collision protection function

Independent mixing probe

Probe internal/external washing

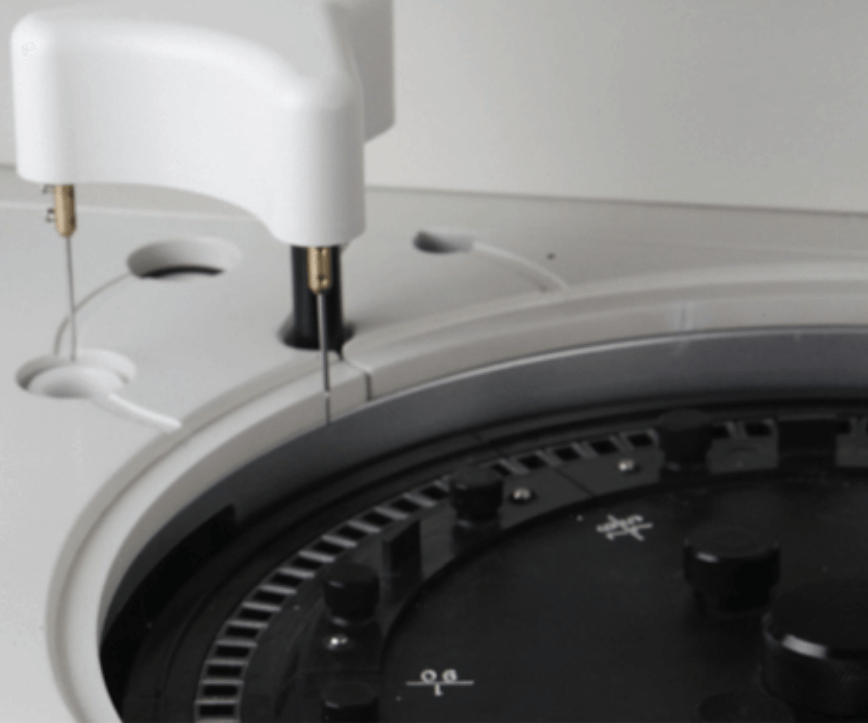

Reaction Cuvettes

90 pcs reusable cuvettes

Automatic blank testing for cuvette

Dismountable, easy to replace Cuvette

Advanced thermostat to ensure accurate test result

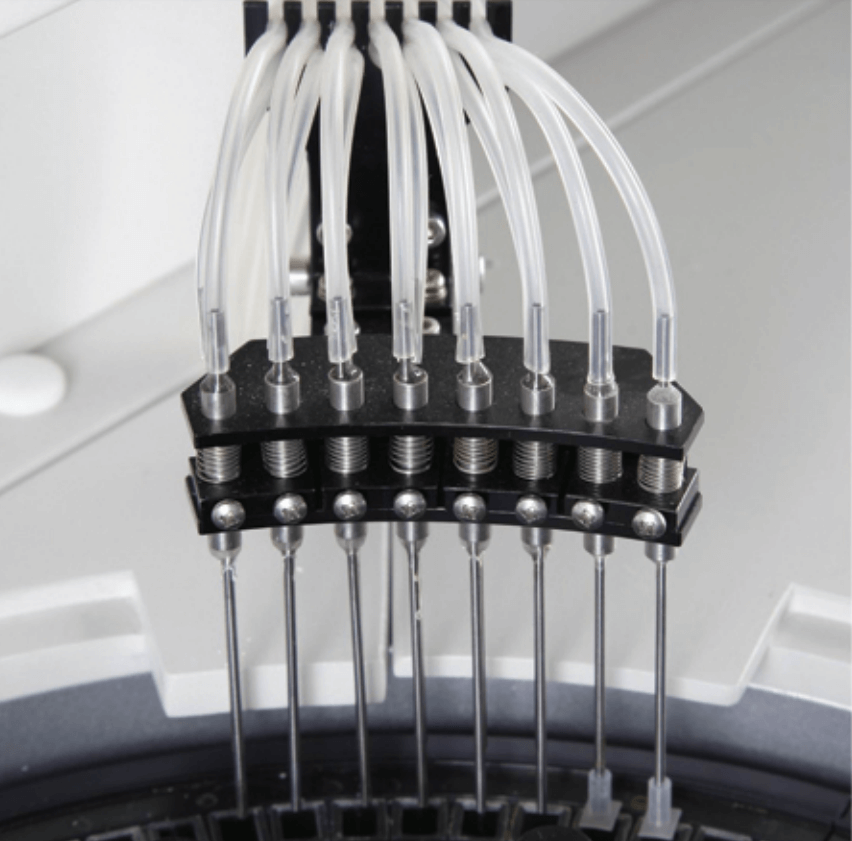

8-step auto cleaning System

Automatic 8-step washing

Automatic cuvette dry function

Hi-tech washing station to ensure accurate test results

With low water consumption: 3-5L/H

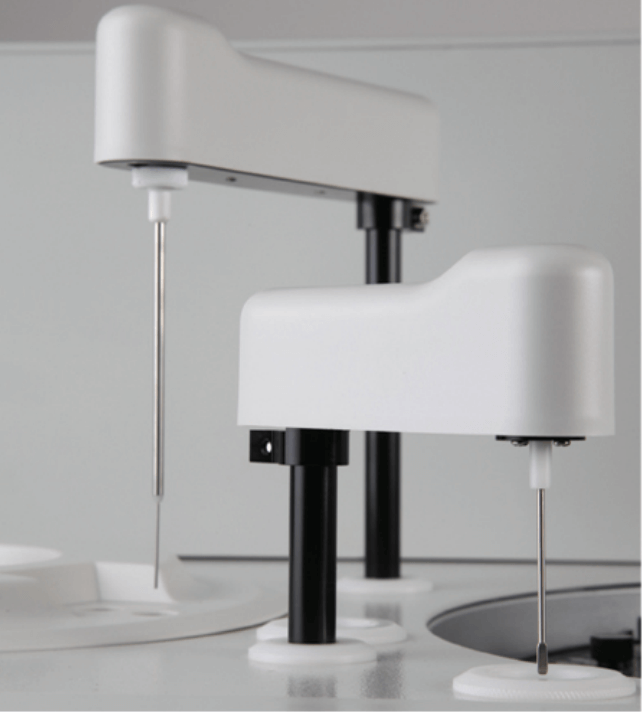

Mixing Probe

Two independant mxing probes

High precision mixing station

Collision protection function

Probe internal/external washing

Probe telflon coating technology
