User Friendly Software
Easy operate with iconic interface
Multi-language available
Easy reagent parameters setting
Support batch request, panel/calculation test
Print out report template editable
Auto troubleshoot failure and recovery
Powerful statistic system
Manual dilution, auto dilution and post dilution
Easy rerun and restore test
Calibration & QC
Multiple calibration mode
Advanced algorithm to obtain best calibration curve
Multi QC njles: Westgard, Cumulative sum check, Twin plot
Reaction System
50 high light transmittance reaction cuvettes
Metal thermostat ensures stable temperature: 37°C
Auto water blank test ensures precise result
Sample & Reagent Disk
24 hours reagent refrigerator: 4-12°C
Noise free water cooling design
40 positions for reagent
40 positions for sample with STAT priority
Optional barcode scanner available
Sampling System
High polished nano material sample/reagent probe
High accuracy ceramic syringe
Auto depth adjustment
Liquid level detection, vertical and horizontal collision protection
Maintenance free rotor with stable movement
Anti-contamination Design
6-step wash station washes cuvettes with wash solution
High polished nano material mixer
Automatic probe and mixer washing
Intelligent anti-contamination program

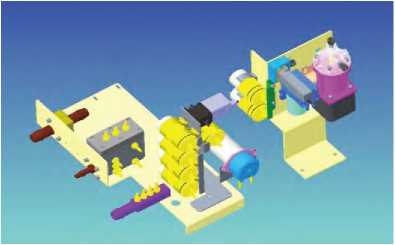

Fluid System
Branded components including:
IWAKI pump, SMC valve, Ceramic syringe,
Tygon tubing and CPC tubing couplings
Built-in degasser ensures precise sampling

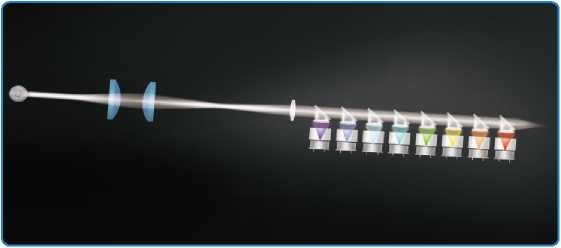

Optical System
Halogen tungsten lamp with about 12000H life time
FuII-sealed matrix spectrometric system
Simultaneously dual wavelength detection to avoid interference
Silent water cooling design

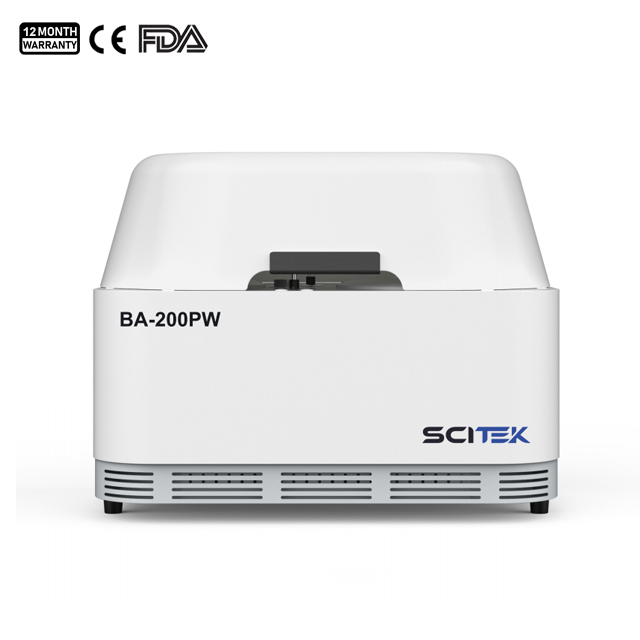

Model | BA-200PW |
---|---|
Category | Random access, fully automatic chemistry analyer |
Throughput | 200 tests/hour |
Methodology | End point, Fixed Time, Kinetic |
Reagent | Open system |
Reagent Position | 40 |
Sample Position | 40 |
Minimum Reaction Volume | 150uL |
Carryover | <0.005% |
Water Consumption | Low to SL/Hour |
Maximum Reaction Time | 14 minutes (Single reagent), 10 minutes(Dual reagent) |
Maximum Reaction Volume | 500 uL |
Principle | Colorimetry, Turbidimetry |
Testing Mode | Regular mode(single & dual reagents), fast mode (single reagent) |
Sample Mode | Random access, STAT sample priority |
Sample Volume | 2~50uL, step by 0.1 uL |
Sample Disk | 40 positions |
Sample/reagent Probe | One probe for sample and reagent with liquid level detection, vertical and horizontal collision protection and reagent volume real time monitoring function |
SampleTube | Regular sample tube (13x100mm, 13x75mm, 12x100 mm, 12x75mm), Vacuum tube, eppendorf tube, plastic tube, etc. |
Reagent Volume | R1:150-450 uL, R2:10-300uL, stepby 1uL |
Reagent Disk | 40 reagent positions, 24 hours water exiling, 4-12¢ |
Reagent Bottles | Compatible with Olympus and Hitachi reagent bottles |
Mixer | High polished nano material mixer |
Reaction Cuvettes | 50 cuvettes, semi-permanent rigid UV special plastic cuvettes |
Wash Station | 6-step auto wash station |
Reaction Temperature | 37±0.1°C |
Heater | Metal thermostat for reaction disk |
Lamp | Halogen Tungsten lamp, 12V 20W, about 2000 hours, water cooling system |
Filter | FMSS(Full-sealed Matrix Spectrometric System) |
Wavelength | 8 wavelengths: 340, 405, 450, 510, 546, 578, 630, 670nm |
Resolution | 0.0001Abs |
Linearity Range | 0-3.0Abs |
Accuracy | 0.5A: < 土 0.02Abs, 1.0A: < ± 0.04Abs |
Stray Light | >4.5 |
Stability | <0.01Abs/hour |
CV | <1.5% |
Half Band Accuracy | ±2nm |
Detector | Photodiode detector array |
Calibration Mode | One point linear, two point linear, multi-point linear, Logit-4P, Logit-5P, spline, exponential, polynomial |
Calibration Curve | Calibration curve auto check, auto curve fitting |
QC Rule | Westgard multi-rule. Cumulative sum check, Twin Plot |
QC Curve | Westgard multi-rule, Cumulative sum check, Twin Plot |
QC Warning | Out of control auto warning, data automatic record and analysis |
Operating System | Windows 7/10 |
Data Storage | Decided by computer hard disc capacity |
LIS Interface | Bi-Lis interface |
Print Mode | Multi default formats, user-defined formats |
System Monitor | Real time monitoring for sample disk, reagent disk, reaction disk. Real time monitoring for QC status. Real time monitoring for reaction cuvettes status, lamp status and temperature. Real time monitoring for reagent volume, reaction curve, calibration curve and QC curve. Linearity range limitation, substrate exhaustion judgement and prozone detecting. Abnormal status warning. |
Other Function | User authority setting,test panel function, calculated/manual parameters programing, carryover setting, sample and reagent blank auto calculation, automatic failure recovery, automatic print, data statistic, auto/manual dilution test, auto retest. |
PC Configration | CPU 2.5GHz, memory 4GB, hard disc 500G 19 inch widescreen monitor |
PC Interface | RS-232C |
Dimension | 720(L)x450(D)x 550(H) |
Power Supply | AC 100-240V, 50/60HZ ±1 Hz, 350VA |
Net Weight | 50Kg |
Optional Parts | Barcode reader, Water purification module, PC with touch screen, HP laser printer |
