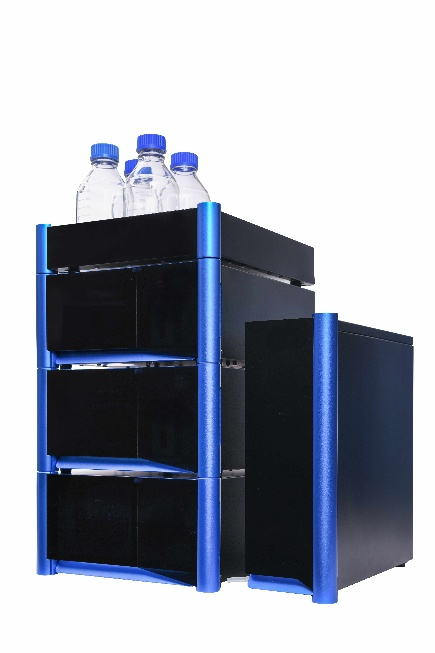

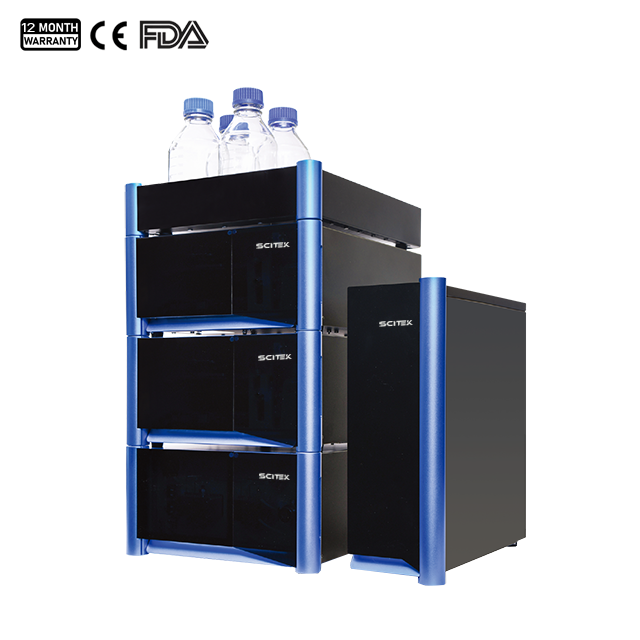

Quaternary gradient HPLC System

Item 1: P3230 low pressure quaternary pump

1. Flow rate range: 0.001-10.000 mL/min, in 0.001 mL increments

2. Flow accuracy: ≤±0.2%

3. Flow precision: RSD≤0.06%

4. Maximum pressure: 70MPa

Item 2: D3230 DAD (512)

1. 512 diodes

2. Wavelength range: 190-800 nm

3. Wavelength repeatability: ±0.1 nm

4. Wavelength accuracy: ±1nm

5. Baseline noise: ≤±1.0×10-5 AU

6. Drift: ≤2.0×10-4 AU/h

7. Path length: 10 mm (analytical cell)

8. Light source: Deuterium Lamp and Tungsten Lamp

9. SC3230A Sample cell（analytical cell/'1/32” OD 0.007” ID）

Item 3: Chromatographic Data-processing Workstation(audit+PDA)

1. Internal and external standard calculation methods

2. Automatically displays, prints, exports and starts other programs after the completion of a measurement.

3. Comply with the requirements of the 21 CFR Part 11 directive of the FDA

Item 4: 3200 System Kits

1. Containing required tubing, fittings, wreches and cables for system.

2. Supersil ODS2 4.6*250mm 5um*1

3. Solvent tray T3200*1

4. Solvent bottle 1000mL*4

Item 5: O3220 Colunm Oven

1. Accommodate max. 6PCS, 4.6*250mm column

2. Temperature range: Ambient+5.0 to 80℃, settable in 0.1℃ increments

3. Temperature accuracy: ≤±0.5℃

Item 6: S3240L Autosampler

1. Inject volum range: 0-100 μL (standard)

2. linearity: >0.999

3. Sample residual: <0.005%

4. Temperature control range:4-40℃

5. Number of sample processed: 210 bits (1mL vial); 120 bits (2mL vial); 72 bits (4 mL vial); Dual 96-well plates (supports base magnetic plate option.)

Item 7: D3250L FLD

1. Light source: xenon lamp

2. Wavelength:200-900nm

3. Wavelength precision: ±3 nm

4. Wavelength repeatability: ≤±0.2 nm

5. IFB board

Item 8: Column & spare parts

Supersil  ODS2 5μm ID4.6mm*250mm*2

Supersil  ODS2 5μm ID4.6mm*150mm*2

Supersil  ODS2 5μm ID4.6mm*100mm*2

Supersil ODS2 1.8μm ID4.6*100mm*2

Supersil ODS2 1.8μm ID4.6*150mm*2

ECoreShell SOS C18 2.7μm 90Å ID2.1*50mm*2

ECoreShell SOS C18 2.7μm 90Å ID4.6*50mm*2

0.45μm Syringe Filter, Aqueous Membrane, 13mm Diameter, 100/pack*1 pk

0.22μm Syringe Filter, Aqueous Membrane, 13mm Diameter, 100/pack*1k

Vial（100pieces/pk）*10pk

SS tube OD1/16"*ID0.02”（0.50mm)*10 meter

SS screw, drawing no.: Q/DEAIC5011.11-2012\1/16 "\3/16" -32*25pcs

Online filter*5pcs

Solvent filter*4pcs

O-ring,Φ3.5xΦ1.8*25pcs

Silicone Waste Tubing）OD9.0mm*ID6.0mm*10 meters

Deuterium lamp L6999-50*1pcs

UPS2000-H-6KRTL-L*1pcs

DELL 3030S*1PCS

Hp1003al*1pcs
