By using an automated measurement system and integrated circuit system modules; There are two operating modes coexisting: touch screen and PC software; PC software graph analysis, generating reports; Chinese/English version, equipped with communication interface, with fault prompt, correction function, environmental temperature and humidity management, multi aperture funnel selection, weighing platform, auxiliary feeding and mixing system, horizontal positioning function, providing application data for powder characterization research.
Application scope:
Used in pharmaceutical, chemical, agricultural, mining, metallurgical, pigment, food, ceramics, biological extraction, scientific research, quality inspection institutions, universities and colleges for physical property analysis of powders and particles, new product development, quality control, and application in silo design.
Test project:
Measurement of compacted density, loose/stacked density, angle of rest (angle of rest), mass flow rate, volumetric flow rate, etc. Characterizes the powder flow characteristics through flowability index.

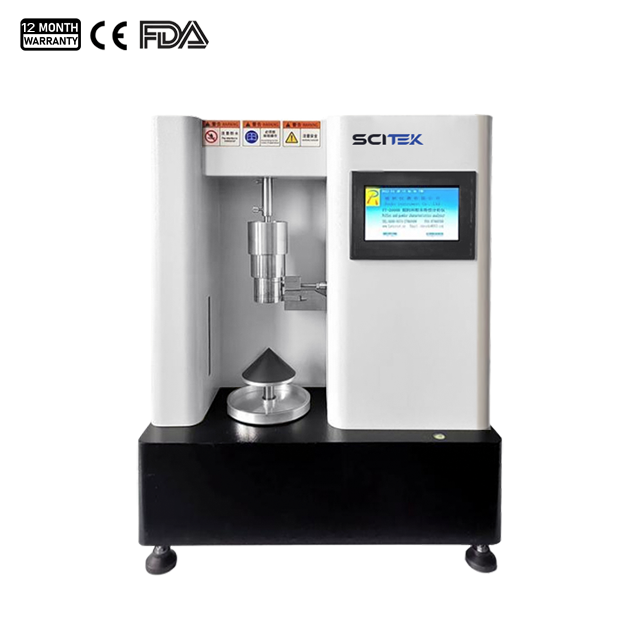

Automatic Powder and Particle Flowability Analyzer Specifications:
| Function | Range | Resolving power | Testing method |
|---|
| 1. Bulk density | 0-999.9999g/ml | 0.0001g/ml | 1. Automatically record quality |
| 2. Enter volume |
| 2. Selection of vibration density method | 0-999.9999g/ml | 0.0001g/ml | 1. Fixed mass |
| 2. Fixed volume selection |
| 3. Angle of repose | 0-90° | 0.01° | 1. Automatic calculation |
| 2. PC software analysis |
| 4. Mass flow rate | 0-9999.999g/s | 0.001 g/s | 1. Automatic timing and weighing |
| 2. PC software analysis |
| 5. Volume flow rate | 0-9999.999ml/s | 0.001 ml/s | 1. Automatic timing and weighing |
| 2. PC software analysis |
| 6. Time | 0-99999s | 0.01s | Automatic |
| 7. Weighing platform | 0-2000.0g | 0.01g | Automatic |
| 8. 304SS measuring cup selection | 25ml, 100ml, 200ml, 250ml, 500ml | (Standard configuration 25ml, 100ml 1 each) |
| 9. Disc | Diameter 100mm/64mm/customized | Angle of repose |
| 10. Selection of funnel outlet diameter Funnel volume 200ml | 2.5; 4.0; 5.0; 6.0; 7.0; 8.0; 9.0; 10; 14; 15; 16; 17; 18; 25mm | Purchase: Aperture (standard with 5) convertible structure |
| 11. Tap density glass measuring cylinder | 1. The volume is 25 ± 0.5ml, with a tolerance of ± 0.25ml; | The mass of the fixed seat of the measuring cylinder is 450 ± 20g |
| 2. The volume is 100 ± 1.0ml, with a tolerance of ± 0 5ml; |
| 12. Liquidity rating | Hausner ratio/compressibility | Automatic |
| 13. Power supply | 220V±10%; |
|
| 14. Display | 7-inch touch screen+PC software | Customer provided computer printer. |
