Description

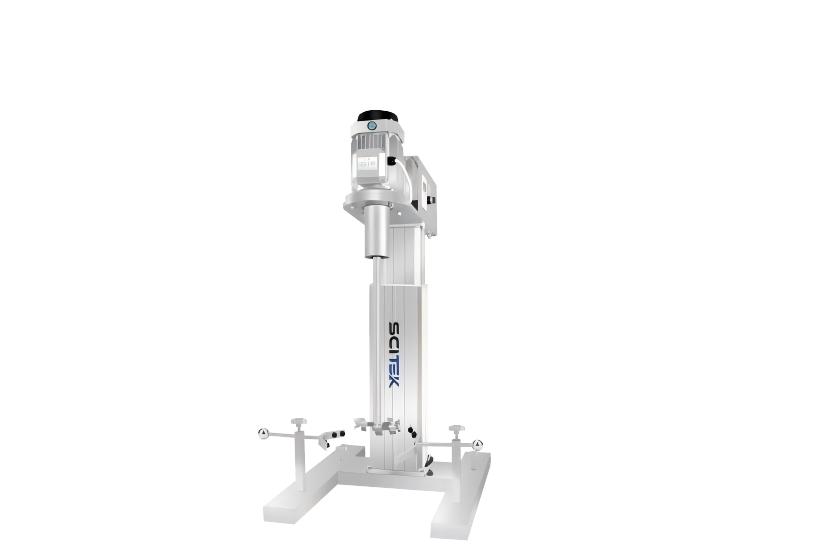

A combination of dexterity and convenience. Using variable frequency motor, the operation is more stable and the noise is low. Easily meet a variety of high-demand dispersion, stirring experimental requirements.
Main Features
● Choose high-quality electric lifting platform, which is more stable, more reliable and durable;
● Select three-phase asynchronous motor, stable operation, lower noise, long-term operation, safe and reliable design;
● The dispersion plate is made of high-quality stainless steel with good corrosion resistance;
● The dispersing plate is connected with the dispersing shaft by hexagon socket screws, which is easy and flexible to disassemble and assemble;
● Frequency conversion stepless speed regulation, brushless motor, maintenance-free, no spark, no dust, higher safety performance.
Techncial Parameters
| Model | OS-D3000BPF |
| Motor Type | Three-phase asynchronous motor |
| Braket Type | Lifting platform high bracket |
| Voltage | 220V/380v |
| Capacity | 180L( water as example) |
| Power | 3000W |
| Speed Range | 0-3000r/min |
| Viscosity | 30000cp |
| Lifting Moe | Electric lifting |
| Lifting Distance | 600mm |
| Exterior Dimension | 850*820*1250mm |
| Bottom Length And Width | 495*620mm |
| Spindle Length | 630mm |
| Spndle Diameter | 28mm |
| The Distance Between The Spindle And The Bracket | 300mm |
| Dispersion Plate Off The Ground | 80mm |
