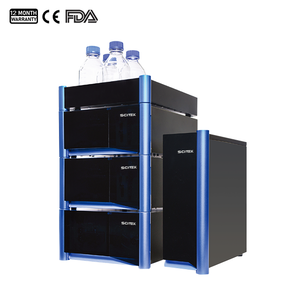

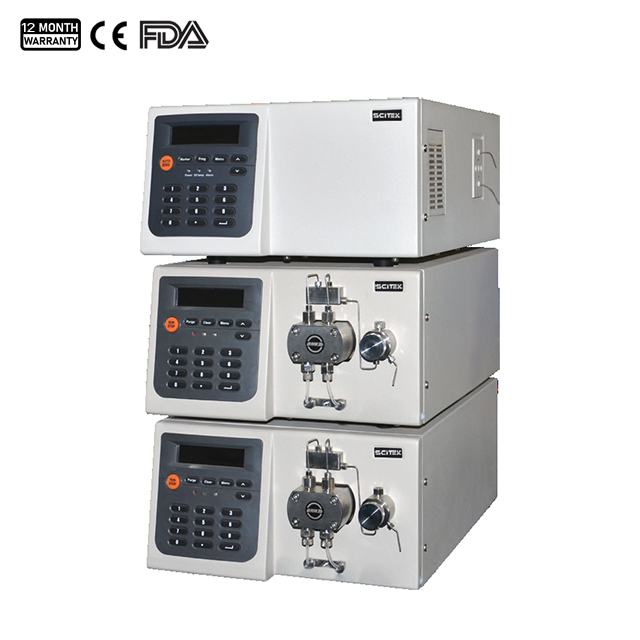

Model Binary Gradient Auto Prep HPLC System

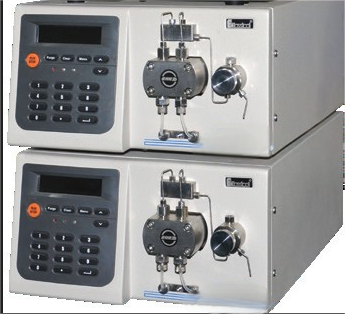

Item 1: P3700 High pressure pump

1. Flow rate range: 0.01-100.0 mL/min

2. Flow accuracy: ≤ 1%

3. Flow precision: RSD≤ 1%

4. Maximum pressure: ≥30 MPa

Item 2: D3240 DAD (1024)

1. 1024 diodes

2. Wavelength range: 190-800 nm

3. Wavelength repeatability: ±0.1 nm

4. Wavelength accuracy: ±1nm

5. Baseline noise: ≤±1.0×10-5 AU

6. Drift: ≤2.0×10-4 AU/h

7. Path length: 10 mm (analytical cell)

8. Light source: Deuterium Lamp and Tungsten Lamp

9. SC3230A Sample cell（analytical cell/'1/32” OD 0.007” ID）

Item 3: Chromatographic Data-processing Workstation (audit+PDA)

1. Internal and external standard calculation methods

2. Automatically displays, prints, exports and starts other programs after the completion of a measurement.

3. Comply with the requirements of the 21 CFR Part 11 directive of the FDA

Item 4: 3300 System Kits

1. Containing required tubing, fittings, wreches and cables for system.

2. Solvent tray TP3100*1

3. TD-1-45 gradient mixer*1

4. AD3000*1

Item 5: O3100 Colunm Oven

1. Accommodate 1PCS, 4.6*250mm column

2. Temperature range: ambient+5.0 to 80℃, settable in 0.1℃ increments

3. Temperature accuracy: ≤±0.5℃

Item 6: S3100 Autosampler

1. Inject volum range: 0-100 μL (standard)

2. linearity: >0.999

3. Sample residual: ＜0.01%

4. Number of samples processed:120 bit

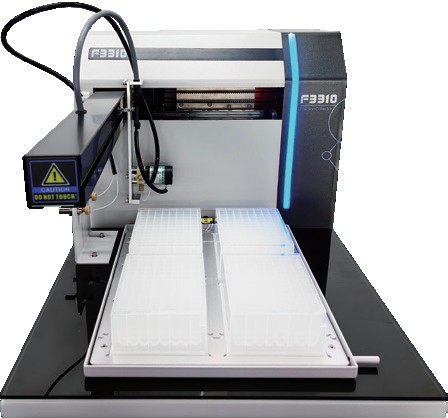

Item 7: F3310 fraction collector（30-300mL/min）

1. Flow range: 0.5ml/min-50ml/min

2.    Max pressure: 0.5bar

3. Position precision:0.1mm

4. Sample rack capacity: 2×21 \30mm\50mL; 2×40 \20mm\20mL; 2×60 \16mm\15mL; 2×90 \13mm\8mL; 2×dual 96\0.5-2mL

Item 8: Column&spare parts

Supersil  ODS2 5μm ID4.6mm*250mm*2

Supersil ODS2 5μm ID20mm*150mm*2

Supersil ODS2 5μm ID20mm*250mm*2

Supersil ODS2 5μm ID30mm*150mm*2

Supersil ODS2 5μm ID30mm*250mm*2

Supersil ODS2 prep cartridge  5μm ID20mm*10mm*2

Sinopak BEH T-C18 prep cartridge 5μm ID30mm*15mm 0.45μm Syringe Filter*2 Aqueous Membrane, 13mm Diameter, 100/pack*1 pk

0.22μm Syringe Filter, Aqueous Membrane, 13mm Diameter, 100/pack*1k

Vial (100pieces/pk)*10pk

SS tube OD1/16”*ID0.02"(0.50mm)*10 meter

SS screw,drawing no.: Q/DEAIC5011.11-2012\1/16 "\3/16" -32*25pcs

Online filter*5pcs

Solvent filter*4pcs

O-ring,Φ3.5xΦ1.8*25pcs

Silicone Waste Tubing) OD9.0mm*ID6.0mm*10 meters

Deuterium lamp L6999-50*1pcs

Huawei UPS2000-a-10 kttl*1pcs

DELL 3030S*1PCS

Hp1003al*1pcs
