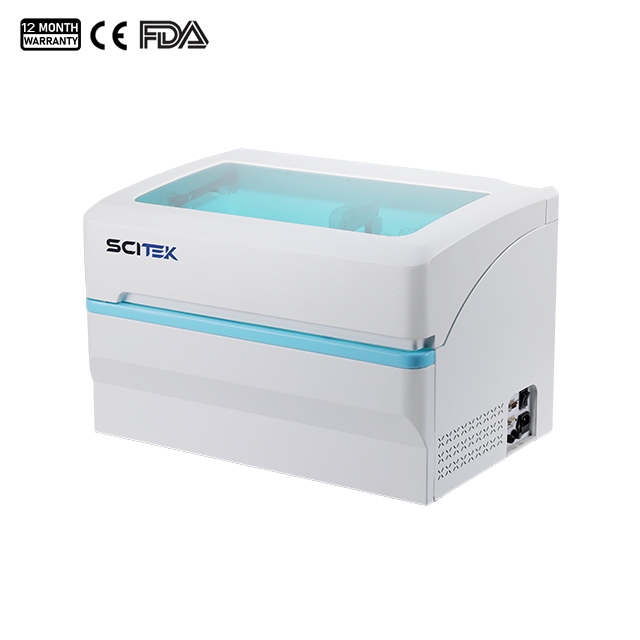

Fully Automatic Biochemistry Analyzer, BA-260I

Fully Automatic Biochemistry Analyzer, BA-260 Series

Model : BA-260I; BA-260II

Reagent Position : 40 pcs
Test Speed : Constant 200 tests/hour
Sample volume : 1.6–50 µL, 0.1 µL step
Wavelength : 340–700 nm, 9 wavelengths
Reaction tray : 60 reusable cuvettes 60 reusable cuvettes

The biochemistry analyzer is a diagnostic tool used in clinical laboratories, hospitals and research facilities for the accurate and efficient testing of biochemistry.

Availability:

Quantity:



Inquiry Add to Inquiry List

Product Description

Application of Fully Automatic Biochemistry Analyzer:

The Fully Automatic Biochemistry Analyser is a diagnostic tool used in clinical laboratories, hospitals and research facilities for the accurate and efficient testing of biochemistry. It automates the entire testing process and is suitable for analysing a wide range of clinical samples, including blood, urine and serum. It measures key biomarkers such as enzymes, electrolytes, glucose and lipids, delivering accurate and timely results.

Fully Automatic Biochemistry Analyzer Feature:

1. Optimal Performance: ideal replacement for semi-automatic chemistry analyzers.

2. Minimal Labor Requirements: designed to reduce the need for manual intervention, allowing for more efficient operations.

3. Independent Mixing Probe: features an independent mixing probe for enhanced accuracy and consistency.

4. Reduced Reagent Usage: reagent consumption is minimized, using only 300µL per test.

5. High Efficiency: fast and efficient processing speeds for improved throughput.

6. User-Friendly Interface: equipped with smart, easy-to-operate software for seamless use.

7. High Accuracy: delivers precise results with minimal operating or random errors.

8. Trusted by Clinics: highly regarded and well-reputed in clinical settings.

9. Advanced Calibration and Re-testing: automatic re-testing feature for samples outside the linearity range or when the sample is insufficient.

Fully Automatic Biochemistry Analyzer Specification:

Model	BA-260I	BA-260II
Test Speed	Constant 200 tests/hour
Test Principle	Absorbance photometry, immunoturbidimetric
Test Methodology	End-point, Fixed-time, Kinetic, Single/Double Reagent Chemistry
Calibration Type	Linear/nonlinear multi-points calibration
Calibration Model	Single point, Two point, Multiple point, Logitlog, Segment line, Exponential 5p, Polynomial, Poly4, Spline, Logistic
Sample Volume	1.6–50 µL, 0.1 µL step
Sample Dilution	Automatic/manual pre-dilution, with dilution ratio up to 1:100
Sample Tray	40 positions
Reagent Volume	10–300 µL, 0.1 µL step
Reagent Tray	Internal barcode reader, 40 positions for reagents, reagent tray in 24 hour refrigerated compartment (2–8 ℃)	Internal barcode reader, 40 positions for reagents, reagent tray in 24 hour refrigerated compartment (2–8 ℃); Water-cooled mode, compatible with Hitachi 7170 reagent bottles;
Reagent/Sample Probe	Liquid level detection, vertical collision protection, inventory checking
Probe Cleaning	Automatic washing for interior & exterior/carry over < 0.1%
Reaction tray	60 reusable cuvettes
Reaction volume	120–300 µL
Reaction time	10 minutes
Reaction temperature	37±0.1 ℃
Optical length of cuvette	5 mm
Mixing Unit	Independent mixing bar
Cuvette Washing	Automatic 7-step washing washing system	8-stage, dual-step automatic rinsing; Separate collection of high- and low-concentration waste liquids; Automatic cuvette drying; Standard configuration includes an automatic dilution function for high-concentration cleaning solutions;
Optical System	Photometry system: rear spectrophotometry
	Light source: halogen-tungsten lamp
	Wavelength: 340–700 nm, 9 wavelengths (340, 405, 450, 510, 546, 578, 620, 660, 700 nm), precision ±1.5 nm
	Absorbance range: 0–3.0 Abs
	Resolution: 0.0001 Abs/Automatic dilution and re-test when ABS and Linear out of range
Control Rule	One key calibrator import function westgard multi-rule
Analysis Method	End-point, kinetic, two-point, double-reagent, double-wavelength, multi-standard etc, open to various reagents
Operation system	Windows 7 or above
Input	RS-232 interface/computer
Output	Multi-format printout
Interface	RS-232
Temperature	10–35 ℃
Humidity	≤90%, no dew
Power Supply	110 /220 V, 350 W
Lower Water Consumption	5 L/H
Size (W×D×H)(mm)	590×420×330	640×440×420
Packing Size (W×D×H)(mm)	650×480×580	880×550×600
N.W/G.W (kg)	36 /40	42/60
