Application:

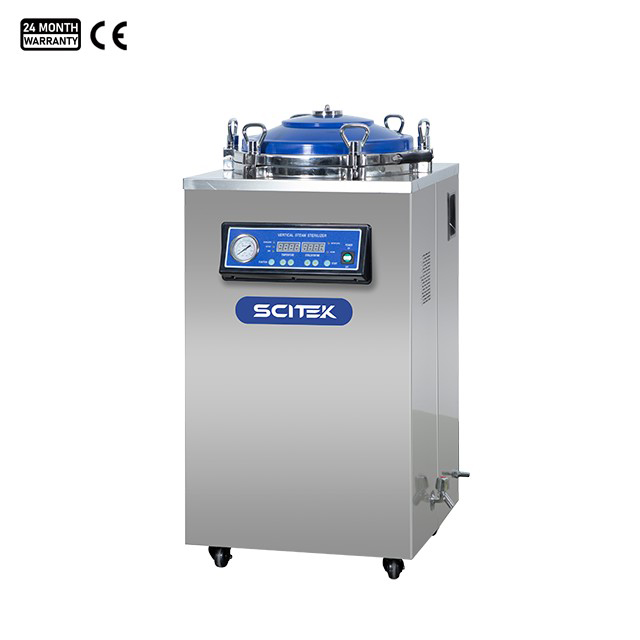

Vertical pressure steam sterilizer is suitable for sterilizing glassware, biological materials, culture media,
and other items in hospitals, clinical laboratories, research institutions, and similar settings. Vertical pressure
steam sterilizer serve diverse applications across multiple industries, helping maintain sterile environments,
ensure product quality, and safeguard public health.
Advantages:
1. Bolt type.
2. Microcomputer automatic control, arbitrary setting sterilization parameters.
3. High quality stainless steel material.
4. Digital display and Touch buttons.
5. With automatic protection function:over temperature protection,over pressure self discharge protection ;
low water level protection; Prevent dry burning.
6. Buzzer reminder after sterilization, automatic stop.
7. Automatic discharge of cold air, automatic steam exhaust after sterilization,Internal steam cycle.
Specifications:
| Model | ST-V35BS | ST-V50BS | ST-V75BS | ST-V100BS | ST-V120BS | ST-V150BS |
| Capacity (L) | 35 | 50 | 75 | 100 | 120 | 150 |
| Consumption (kW) | 2.5 | 3.5 | 4.5 | 4.5 | 4.5 | 6 |
| Power Supply | AC 220/110 V,50/60 HZ | |||||
| Design Pressure | 0.25 MPa | |||||
| Design Temperature | 139 ℃ | |||||
| Rated Working Pressure | 0.22 MPa | |||||
| Rated WorkingTemperature | 134 ℃ | |||||
| Sterilization Temperature Setting Range | 116~134 ℃ | |||||
| Sterilization Time Setting Range | 4-120 min | |||||
| Chamber Size (mm) | φ300x450 | φ350x515 | φ400x585 | φ450x620 | φ450x720 | φ500x747 |
| Bucket Size (mm) | φ275x395 | φ325x235x2 | φ375x265x2 | φ425x275x2 | φ425x315x2 | φ475x365x2 |
| External Size (mm) | 436x473x850 | 544x536x985 | 586x576x1072 | 617x627x1135 | 617x627x1205 | 660x676x1255 |
| Shipping Size(WxDxH) (mm) | 550x500x900 | 580x630x1100 | 630x680x119 | 690x650x1230 | 690x650x1330 | 750x700x1370 |
| Gross Weight (kg) | 58 | 75 | 84 | 104 | 105 | 122 |
| Net Weight (kg) | 41 | 53 | 61 | 78 | 79 | 90 |
