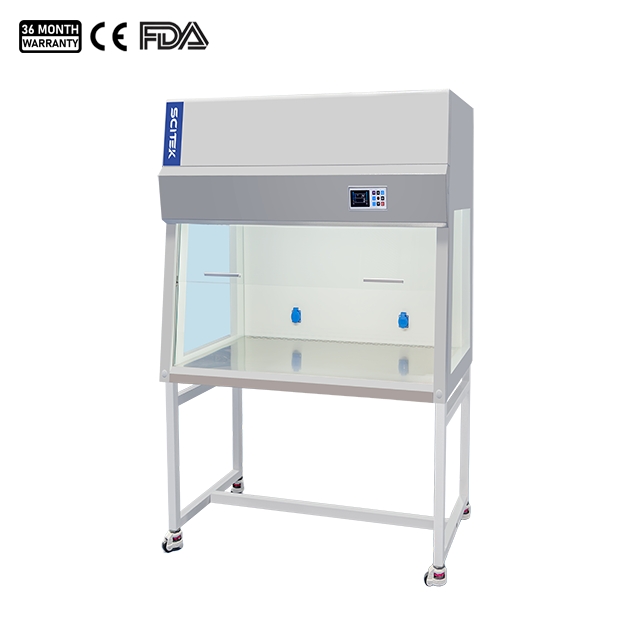

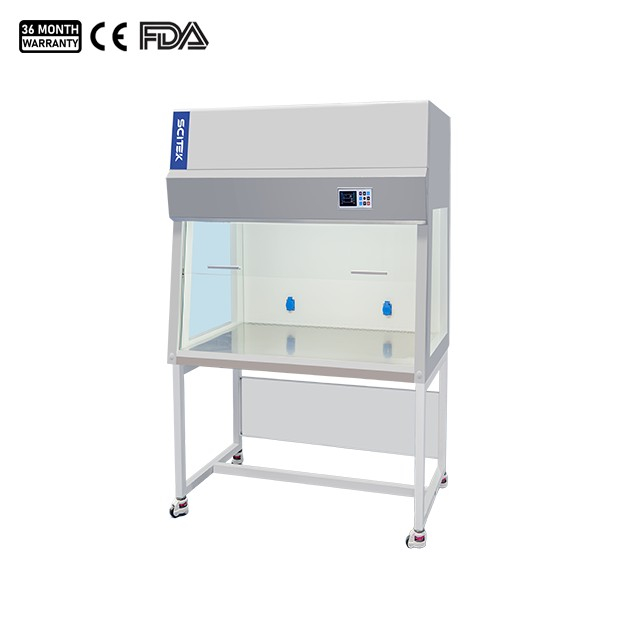

Combining a mature structural design with a highly efficient purification system and stable airflow organisation, vertical laminar flow cabinet meets the requirements of daily cell culture, sample processing and precision operations. It is highly efficient, practical and cost-effective, providing a continuous, stable and professional clean environment for scientific research and production applications.
Vertical Laminar Flow Cabinet Feature:
Humanized Design:
1.Ergonomic control panel location, centered and angled down for an easy reach & viewing.
2.Brushed stainless steel work surface is for easy cleaning.
3.The non-direct light source design can effectively relieve the operator's visual fatigue under the condition of ensuring the illumination.
4.Intuitive and easy-to-use microprocessor controller with LCD display, graphical and digital display of the operating status of each function, such as filter life, UV life etc.
Convenient Feature:
1.HEPA filter and UV life indicators facilitate a timely replacement plan .
2.Two side glass windows installed for easy experiment observation.
3.Easy-to-change pre-filter installed could extend the HEPA filter's lifetime.
4.Equipped with temperature sensor to show the real temperature during operation.
5.Waterproof socket provide convenience for small instruments to be used in the operating area.
Safety Performance:
1.Front sliding sash interlock with fan and UV lamp.
2.UV sterilization with UV lamp timing function.
3.Front sash and side windows are made of UV-resistant tempered glass.
4.The host and sockets have independent capacitors to prevent current overload.
5.Memory function in case of power-failure.
Vertical Laminar Flow Cabinet Specification:
| Model | LCB-V900E | LCB-V1100E | LCB-V1300E | LCB-V1600E |
|---|
| External Size (W×D×H)(mm) | 900×715×1700 | 1050×715×1700 | 1320×715×1700 | 1625×715×1700 |
| Internal Size (W×D×H)(mm) | 800×650×570 | 950×650×570 | 1220×650×570 | 1525×650×570 |
| Work Surface Height | 750 mm |
| Control System | Display | Microprocessor controller with LCD display, display the operating status of each function |
| Interlock | Front sliding sash interlock with fan and UV lamp |
| Life Indicator | HEPA filter and UV life indicators facilitate a timely replacement plan |
| Airflow System | Airflow Velocity | 0.2–0.5 m/s, speed adjustable |
| Air filtration System | Pre-Filter | 1 pcs, Washable Polyester fiber |
| HEPA Filter | 1 pcs, Efficiency: > 99.995% at particle size of 0.3μm |
| Cleanliness Grade | Class 100 (ISO14644.1 Class 5) |
| Cabinet Construction | Main Body | Electro-Galvanized steel with antimicrobial powder coating |
| Work Surface | 304 Stainless steel |
| Vibration Amplitude≤3 μm |
| Front Window | Manual sliding sash: 5 mm UV resistant tempered glass with counter-balance system |
| Electrical System | UV Lamp | 20W×1 | 20W×1 | 30W×1 | 30W×1 |
| With timing function, Interlock with LED lamp, blower, Socket. |
| Emission of 253.7 nanometers for best sterilization effect. |
| LED Lamp | 6.5W×1 | 6.5W×1 | 9.6W×1 | 9.6W×1 |
| Waterproof Socket | 1 pc | 2 pcs | 2 pcs | 2 pcs |
| Consumption | 155 W | 155 W | 285 W | 285 W |
| Not include socket loading power consumption |
| Power Supply | AC 220±10% V, 50 Hz |
| Illumination | ≥900 Lx |
| Sound Emission | ≤65 dB(A) |
| Standard Accessory | 1. Base Stand; |
| 2. LED Lamp; |
| 3. UV Lamp; |
| 4. Waterproof Socket; |
| 5. Foot-master Caster; |
| Optional Accessory | 1. Air Velocity Sensor and New LCD display; |
| 2. Gas Tap; |
| 3. Water Tap; |
| 4. IV bar and hooks; |
| N.W. (kg) | 115 | 130 | 155 | 180 |
| G.W. (kg) | 150 | 170 | 200 | 230 |
| Shipping Size (W×D×H)(mm) | 1040×850×1275 | 1190×850×1275 | 1460X850X1275 | 1765×850×1275 |
| Shipping Volume (m³) | 1.1 | 1.28 | 1.58 | 1.9 |
