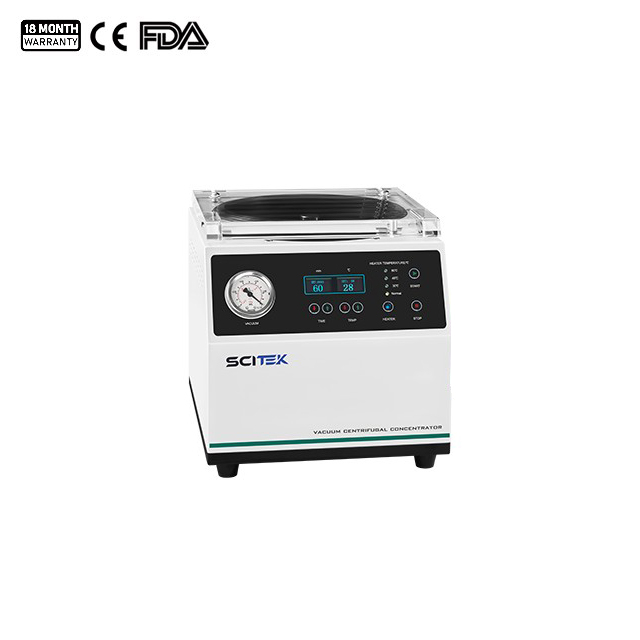

Vacuum Centrifugal Concentrator Feature: 1. Space-saving: Compact design with high capacity for small-volume sample tubes, occupying only 28 cm in width.
2. Corrosion resistance: The centrifuge chamber is treated with Teflon coating and the tubing is made of PTFE.
3. Easy operation: One-button start/stop function prevents accidental operation.
4. Temperature quick settings: Room temperature, 30℃, 45℃ and 60℃, ensuring efficient and safe sample concentration.
5. All gas contact parts are made of PTFE material which has strong resistance to chemical corrosion.
Vacuum Centrifugal Concentrator Specification: Model
VCC-M1
Speed Range
1800 rpm
Maximum Centrifugal Force
380 ×g
Time Range
0–9999 mins
Temperature Control Range
RT + 5 ℃ to 70 ℃
Noise
≤ 55 dB (A)
Standard Rotor
66×1.5/2 mL
Power
1000 W
Power Supply
AC 220/110 V, 50/60 Hz, 10 A
Machine Size (W×D×H)
350×280×290 mm
Package Size (W×D×H)
450×380×600 mm
N.W./G.W.
18/23 kg
Optional Rotor
Recommended Equipment (excluding) Cold Trap(CT-M50/CT-M80), Diaphragm Vacuum Pump (DVP-M480)
Rotor Specification : Rotor
Aperture (Number and Capacity of Sample Tube)
Standard
66×1.5/2 mL
Optional
10×15 mL
24×5 mL
6×50 mL

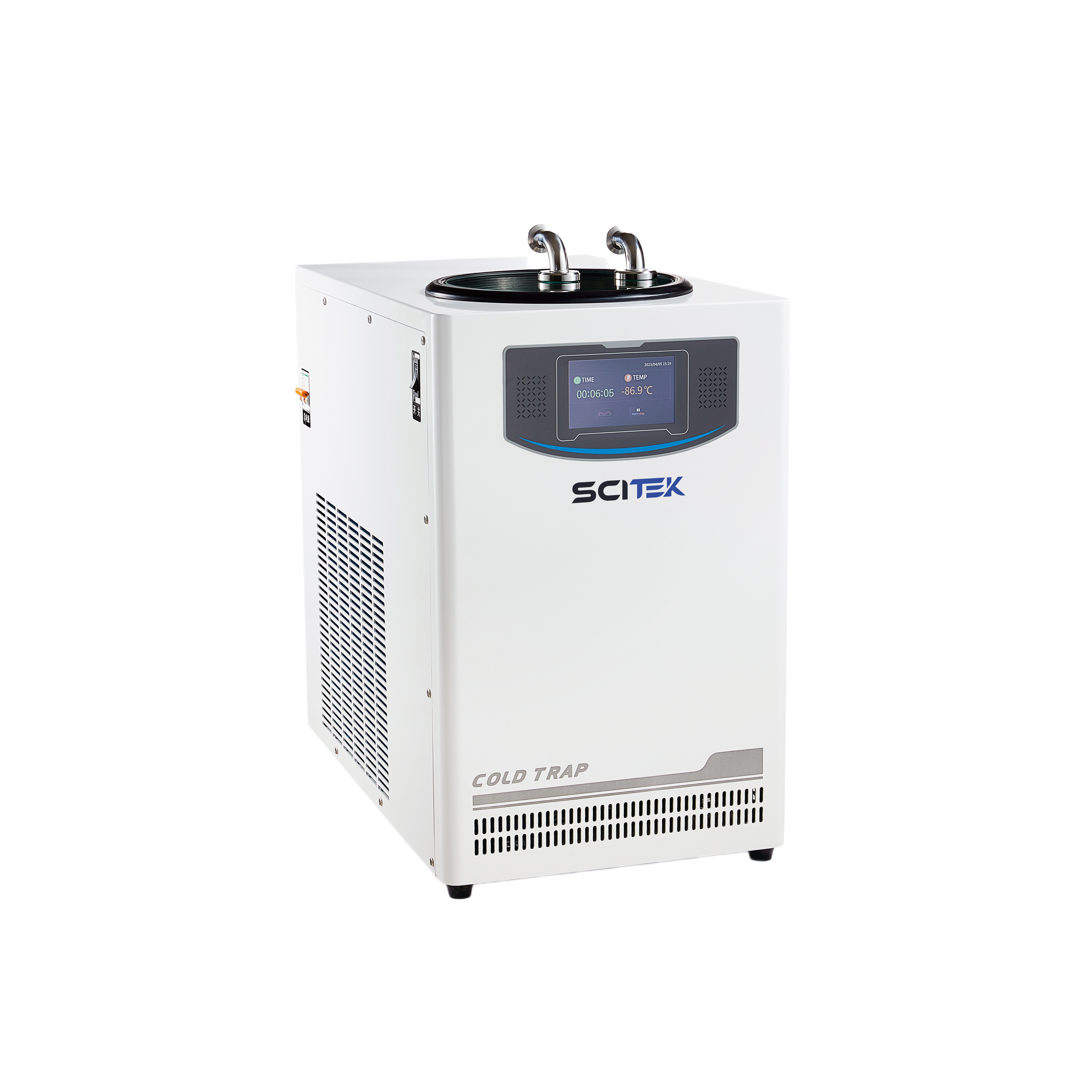

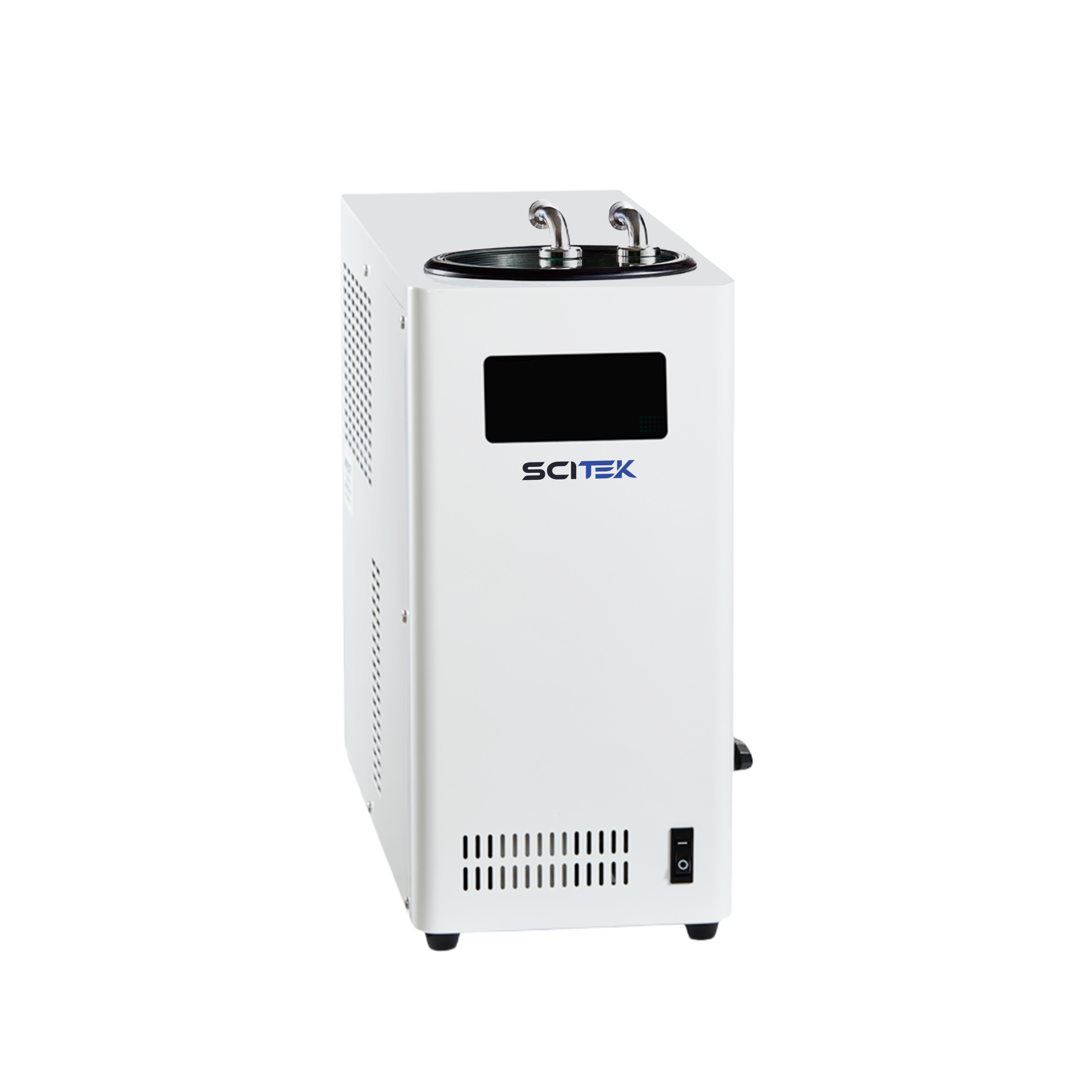

Cold Trap Specification:
Model CT-M50 CT-M80 Temperature -50 ℃ -80 ℃ Cold Trap Capacity 2000 mL 4500 mL Coil Way External coil Internal coil Cover Material Polypropylene Power 900 W 1800 W Power Supply AC 110/220 V, 50/60 Hz, 10 A Size (D×W×H) 500×210×470 mm 600×360×630 mm Shipping size (D×W×H) 590×300×560 mm 670×430×710 mm N.W./G.W. 32/39.5 kg 70/82 kg

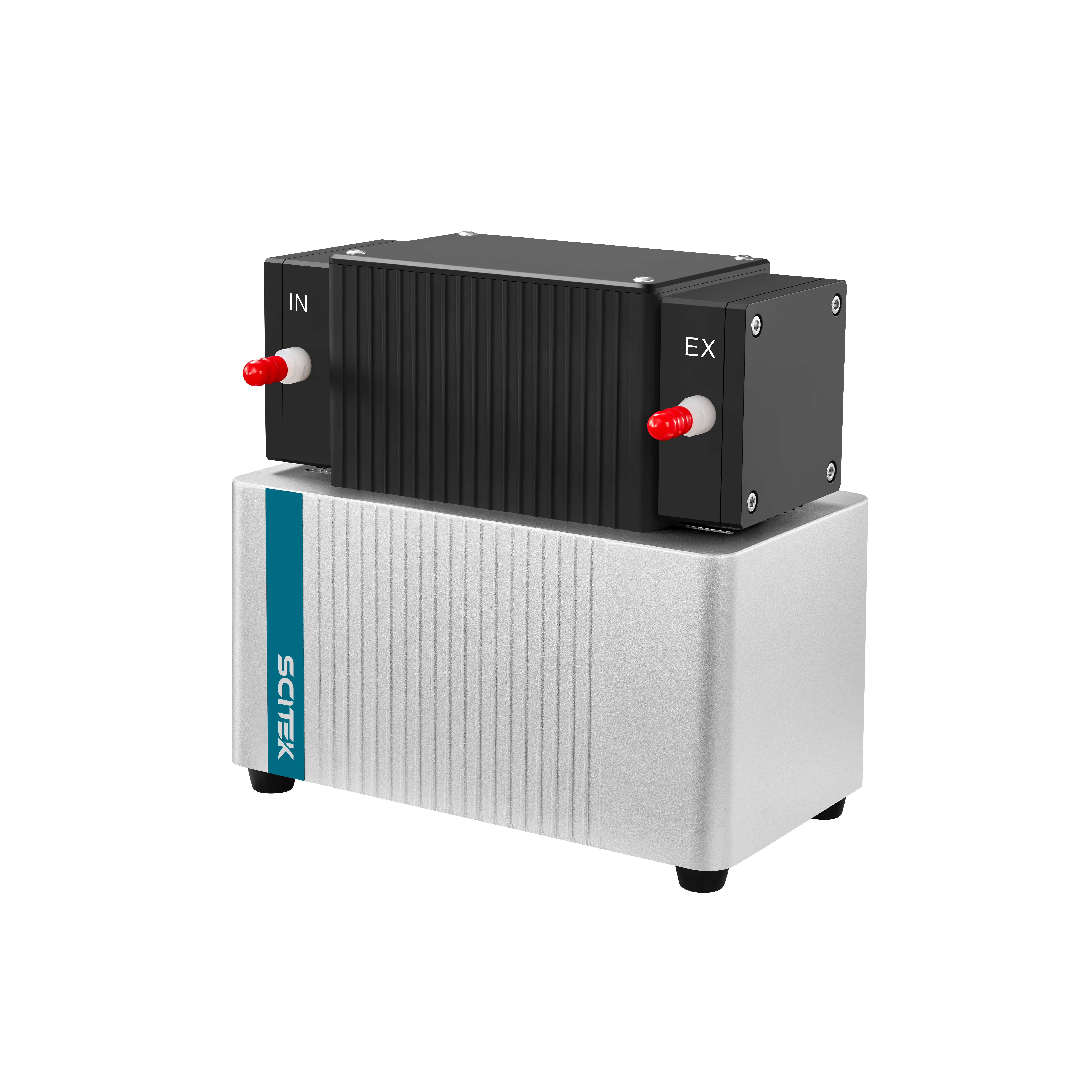

Diaphragm Vacuum Pump Specification:
Model DVP-M480 Pumping Speed (L/min) 35 L/min Ultimate Vacuum (MPa) ≤ 8 mbar Noise ≤ 50 dB Power (W) 200 W Power Supply AC 110/220 V, 50/60 Hz, 10 A Size (D×W×H) 266×163×257 mm Shipping size (D×W×H) 370×330×370 mm N.W./G.W. 9.2/13 kg
