| Availability: | |
|---|---|
| Quantity: | |
| Model | VCC-FP1 |
|---|---|
| Display | 7-inch touch screen display |
| Speed Range | 0 rpm~2000 rpm |
| Maximum Centrifugal Force | 590×g |
| Ultimate Vacuum | <10pa |
| Noise | ≤50dB(A) |
| Temperature Range | RT.~100℃ |
| Temperature Control Accuracy | ±1℃ |
| Timing Range | 0~99h59min |
| Cold Trap | -65℃; 3L; 4.3-inch touch screen display |
| Vacuum Pump Pumping Speed | 120L/min |
| Centrifugation Imaging Function | Optional |
| Power Supply | AC220V, 50/60Hz |
| Consumption | 1300W |
| Main machine Cold trap/Vacuum Pump: Shipping Size(W×D×H)(mm) | 650x450x410/550x370x650/730x330x330 |
| Main Machine/Cold Trap/Vacuum Pump: G.W. (kg) | 35/32/27 |

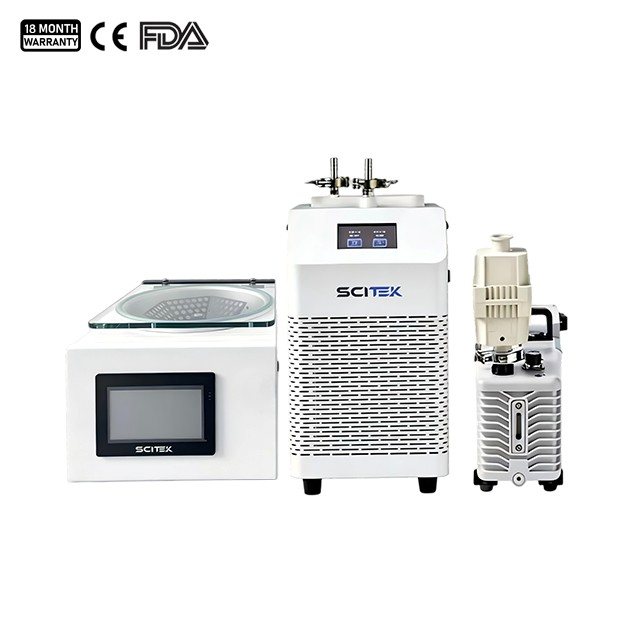

VCC-FP1 includes a concentrator mainframe, a vacuum pump, and a 3L low-temperature trap. It is suitable for research institutions and industrial enterprises that require a higher sample processing capacity, long-term equipment operation, and higher concentration efficiency. The vacuum freezing centrifugal concentrator can be used as a production instrument, equipped with 1.5ml to 250ml EP tubes, glass test tubes, various centrifuge tubes, chromatography bottles, centrifuge bottles, or 96-well plates, with the function of rapidly and safely evaporating water and organic solvents from the samples.
Modular design
7-inch touch screen display
Built-in 32 sets of different programs
One-button start function
With preheating function, can heat up to 100℃
Built-in vacuum delay function
Chemical corrosion-resistant centrifuge chamber, resistant to acid and alkali, integrally molded
Small volume, large capacity, can concentrate 184 sets 2ml centrifuge tubes at a time
