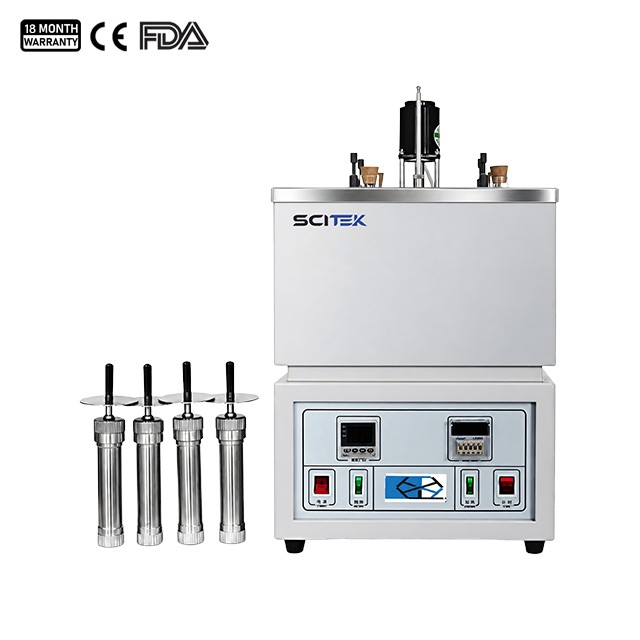

Silver Strip Corrosion Tester Application:
Silver Strip Corrosion Tester can precisely detect active sulfides and corrosive components in light petroleum products, such as aviation fuels, jet fuels, and industrial gasoline. Widely used in fields including petroleum refining, aerospace, quality control, and scientific research and education, and serves as a critical analytical instrument for ensuring fuel safety and extending equipment service life.
Silver Strip Corrosion Tester Feature:
Features a Pt100 platinum resistance sensor and microprocessor-based PID intelligent control, delivering temperature precision of ±0.1°C. Effectively eliminates temperature fluctuations to ensure highly reproducible test results.
Offers flexible 2-well or 4-well (optional) configurations, supporting the simultaneous, independent operation of multiple standard glass test tubes and rack assemblies, thereby significantly boosting laboratory testing efficiency.
Equipped with a high-precision LED digital timer that automatically counts down standard immersion reaction cycles and provides an intelligent alert to the operator upon test completion.
Incorporates a corrosion-resistant, wear-resistant industrial-grade constant-temperature bath and a powerful 2000W heating element.
Standard compliance: ASTM D7667, IP 227.
Silver Strip Corrosion Tester Specification:
Model | SST-1101 |
Temperature Range | Ambient to 100°C (Arbitrary setting) |
Temperature Accuracy | ±0.1°C |
Temperature Sensor | PT100 |
Temperature Display | LED Digital Display |
Test Position | 2 positions (optional 4 positions ) |
Timing Range | 0.01 s to 99 h 99 min (Adjustable) |
Heating Power | 2000 W |
Power Supply | AC 220±10%V, 50 Hz |
Consumption | ≤ 2100W |
External Size (W×D×H) | 160×330×6200 mm |
Shipping Size (W×D×H) | 240×410×700 mm |
N.W./G.W. | 15/24 kg |
