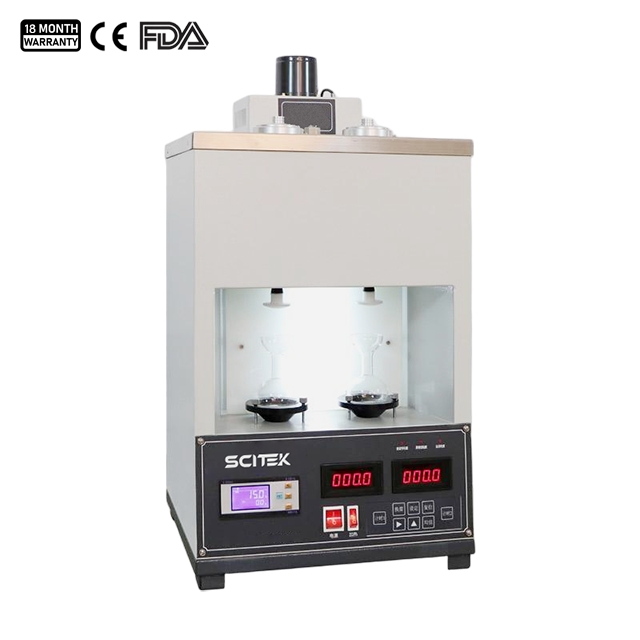

Saybolt Viscosity Tester

Model : SV-0623

Instrument Structure : Desk type
Receiving Flask : (60±0.05) mL
Timing Range : 0.0∼999.9 s
Working Mode : Double lines, parallel test
SV-0623 is suitable to determine the Saybolt viscosity of bitumen and bituminous mixtures under a constant temperature as per T0623.
Availability:
Quantity:
Inquiry Add to Inquiry List

Application:


The instrument is designed and made as per T 0623 and ASTM D88 Bitumen Saybolt Viscosity

Test (Saybolt Viscometer Method) in the JTJ052 Standard Test Methods of Bitumen and

Bituminous Mixtures for Highway Engineering. It is suitable to determine the Saybolt

viscosity of bitumen and bituminous mixtures under a constant temperature as per T0623.


Advantage:


1. This instrument is composed of bath, temperature controller, parameters display

and calculation (calibration coefficient, time, viscosity and so on).

2. This instrument adopts micro computer technology.It equips double lines to detect.

It can determine two samples at the same time. It can display the parameters and calculate

 the arithmetic mean value automatically.

3. This instrument can convert the Saybolt viscosity to Engler viscosity and kinematic viscosity

 automatically. Operator can get three viscosity data from one test. The work efficiency is high.


Specification:


ModelSV-0623
Power SupplyAC（220±10%）V,  50 Hz
Instrument StructureDesk type
Working ModeDouble lines, parallel test
Receiving Flask(60±0.05) mL
Heating Power of Bath1000 W
Working Temperature of BathRoom temp-40.0 ℃
Temperature Control Accuracy±0.1℃
Timing Range0.0∼999.9 s
Timing Accuracy±0.1 s
Ambient Temperature≤35 ℃
Relative Humidity≤85%
Overall Dimension360×360×790 mm
‌CTN500×430×770 mm
‌G.W41 kg


Previous:
Next:
Get Quotation/Become Distributor

Related Products

0.1g Electronic Balance
0.1g Electronic Balance

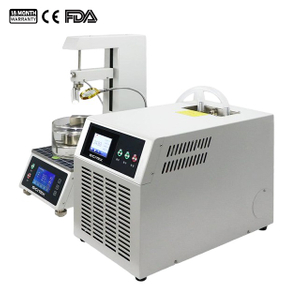

Automatic Penetrometer
