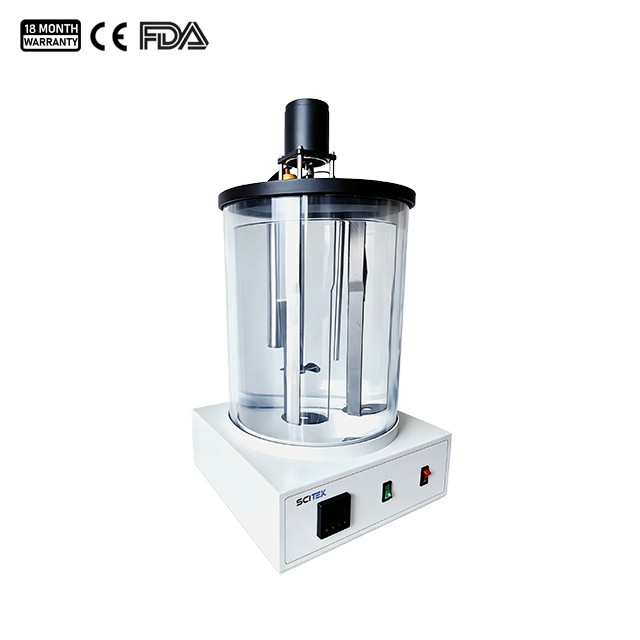

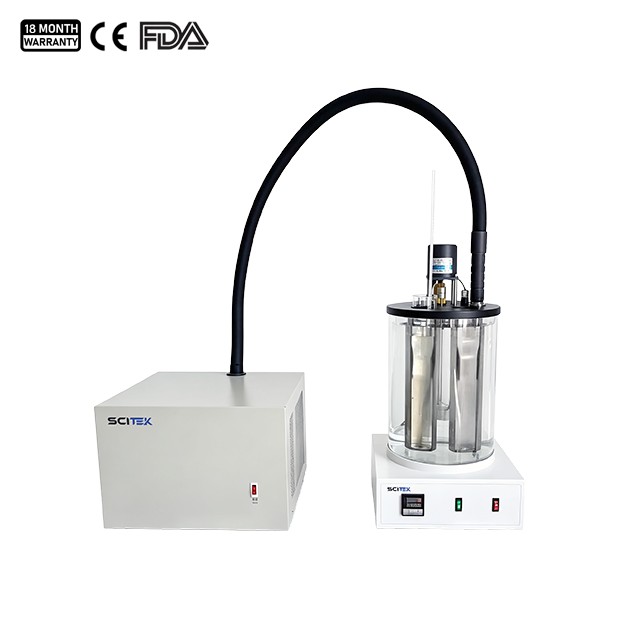

Low-Temperature Petroleum Hydrometer Bath Application:
Commonly used for the precise laboratory determination of the density of crude oil and various liquid petroleum products. Complies with major international standards, including GB/T 1884, ASTM D1298, and ISO 3675. Widely utilized in oilfield operations, petroleum refining and chemical processing, commercial inspection, bulk trade settlement, and third-party testing agencies, ensures reliable and compliant measurement and quality control for petroleum products.
Low-Temperature Petroleum Hydrometer Bath Feature:
High-quality quartz glass bath featuring excellent thermal shock resistance (0 to 100°C) and superior transparency.
Robust construction (250 mm diameter, 350 mm height, 5 mm wall thickness) allows for clear observation of hydrometer scales.
High-speed motor (1250 rpm) with an all-stainless-steel stirring rod and impeller, corrosion-resistant and durable, ensuring highly uniform temperature distribution within the medium.
Utilizes a microcomputer temperature controller paired with a high-sensitivity temperature sensor; combined with solid-state relay (SSR) control, it achieves rapid heating and high-precision, stable temperature maintenance.
The heating unit employs a stainless-steel explosion-proof heating tube, offering high heating efficiency alongside safety and reliability.
Integrated measurement assembly includes a standard 500 mL density cylinder, a precision thermometer, and a complete hydrometer set as standard equipment.
Standard Compliance: ISO 3675:1998, ASTM D1298, IP 160, DIN 51757, JIS K2249, GB/T 1884.
Low-Temperature Petroleum Hydrometer Bath Specification:
Model | DT-1110 | DT-L1110 |
Temperature Control Range | RT. to 100 °C | 20–100 °C (with Chiller) |
Temperature Control Accuracy | ±0.25 °C |
Bath Tank Dimension | Φ250 × 350 mm |
Bath Ports | 2 Ports |
Heating Power | 1500 W |
Power Supply | AC 220±10%V, 50/60Hz |
External Size (W×D×H)(mm) | 320 × 320× 580 | Main Unit: 320 × 320× 580 |
Chiller Unit: 380× 310× 300 |
Shipping Size (W×D×H)(mm) | 400× 400× 660 | Main Unit: 400× 400× 660 |
Chiller Unit: 460× 390× 380 |
N.W./G.W. | 10/18 kg | 30/45 kg |
