| External Size (W×D×H)(mm) | 900×1050×2275 | 1200×1050×2275 | 1500×1050×2275 | 1800×1050×2275 |
| Internal Size (WxDxH)(mm) | 770×500×900 | 1070×500×900 | 1270×500×900 | 1570×500×900 |
| Max Opening | 750mm |
| Work Surface Height | 800mm |

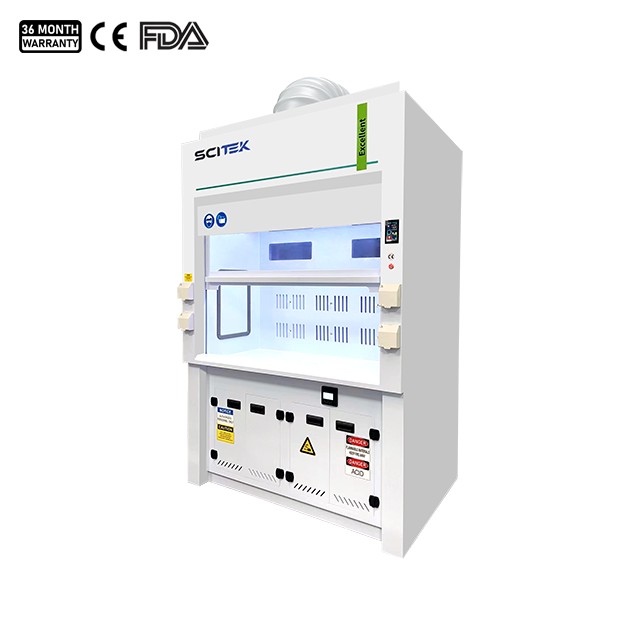

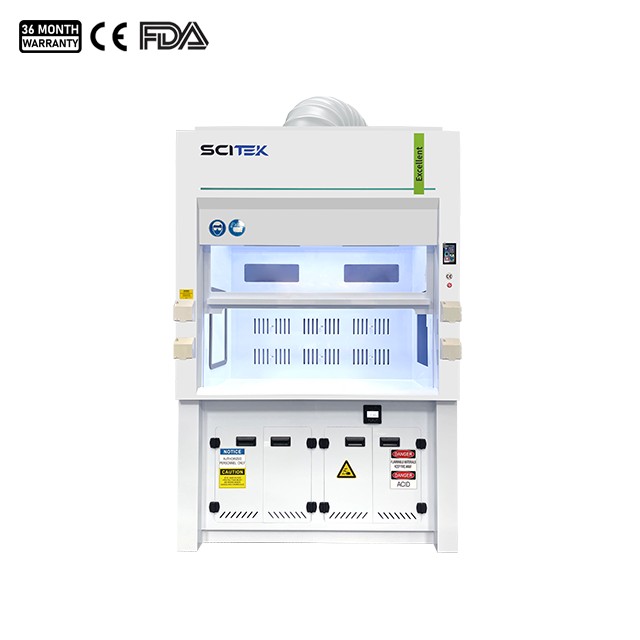

| Spray System | Double Channel Spray (with double scrubber) |

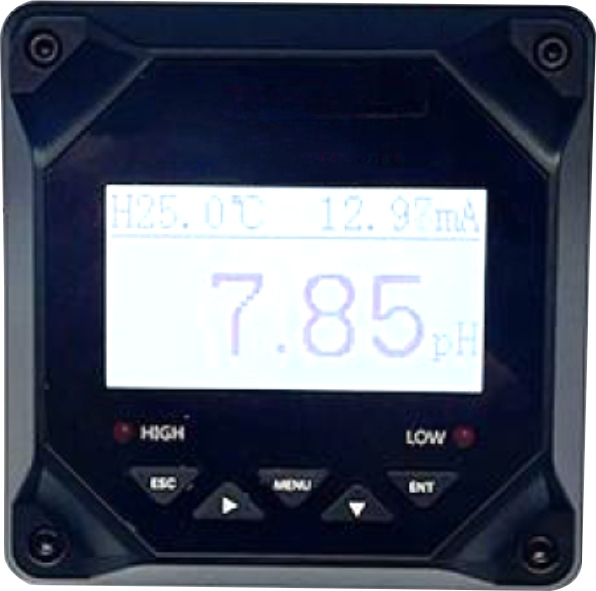

| PH Value | PH Value Display, support 485 communication protocol |

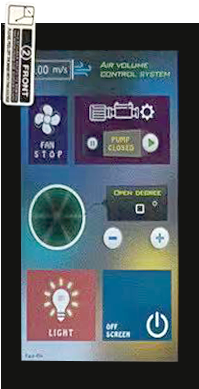

| Control System | Display | 4.3" LCD touch screen |
| Alarm | With Leakage alarm system |
| Airflow System | Airflow Velocity | 0.3-0.5m/s, speed adjustable |
| Air Volume | 1000m³/h | 1200m³/h | 1600m³/h | 1800m³/h |
| Exhaust Outer diameter | Φ160mm | Φ250mm | Φ250mm | Φ300mm |
| Cabinet Construction | Main Body | PP (polypropylene) material |
| Work Surface | PP (polypropylene) material |
| Front Window | Manual door, PVC material |
| Electrical System | LED Lamp | 2×30W |
| Max.Consumption | 200W (Not include socket loading power consumption) |
| Power Supply | AC 220V±10%, 50/60Hz, 110V±10%, 60Hz |
| Illumination | 800Lux |
| Sound Emission | ≤60dB(A) |

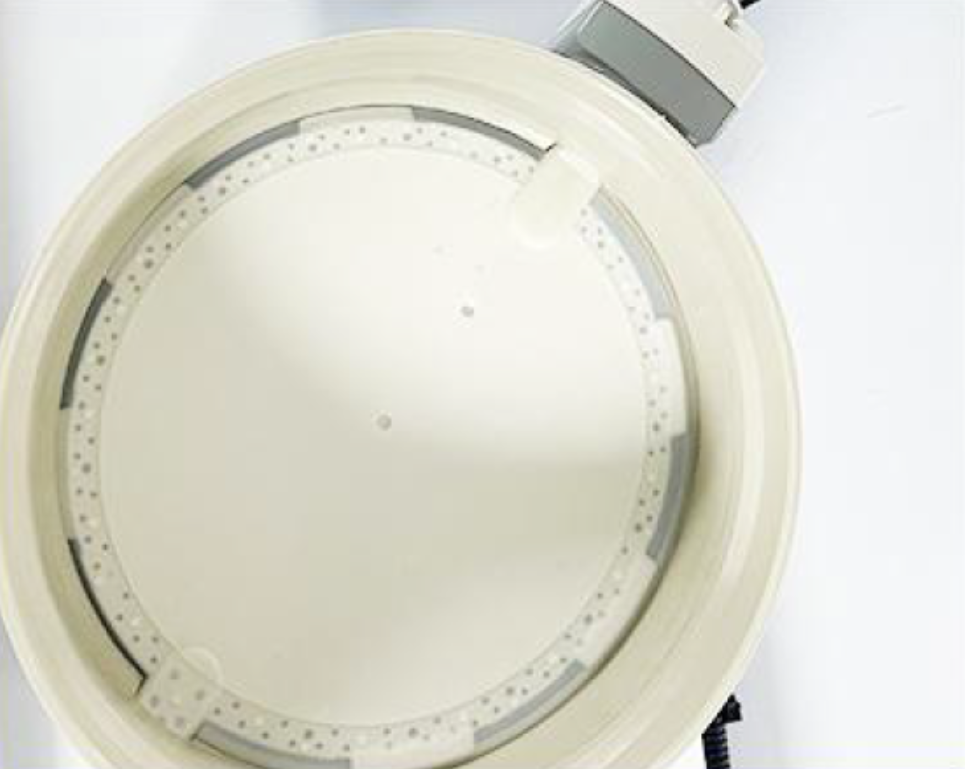

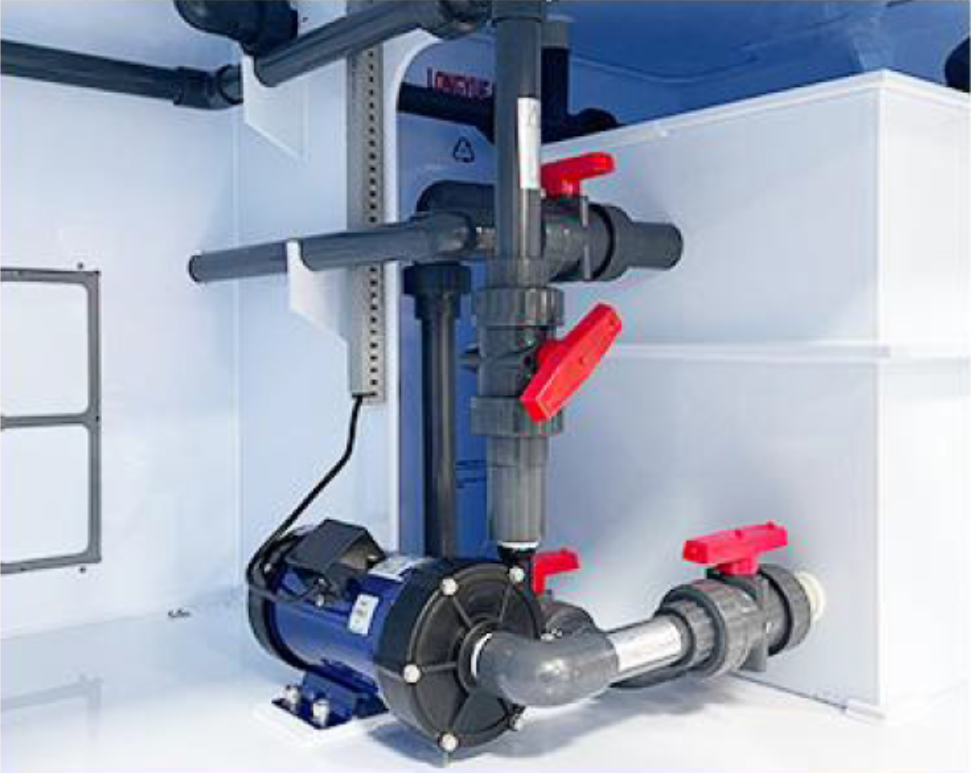

| Standard Accessory | Air Velocity Sensor, Gas & Water Tap and Valve, Waterproof Socket×4, Electric Air Valve, LED Lamp×2, Water Pump, Double Washing System, Automatic Dosing System |
| Optional Accessory | Epoxy Resin Work Surface, 0.3KW Centrifugal Blower, VAV variable air volume system |
| Net Weight(kg) | 160 | 250 | 300 | 380 |
| Gross Weight (kg) | Main Body | 150 | 220 | 270 | 300 |
| Base Cabinet | 90 | 120 | 150 | 180 |
| Shipping Size (W×D×H)(mm) | Main Body | 1050×1270×1780 | 1350×1270×1780 | 1650×1270×1780 | 1950×1270×1780 |
| Base Cabinet | 1050×1220×1020 | 1350×1220×1020 | 1650×1220×1020 | 1950×1220×1020 |
| Shipping Volume (m³) | 3.7 | 4.8 | 5.8 | 6.9 |
