Description

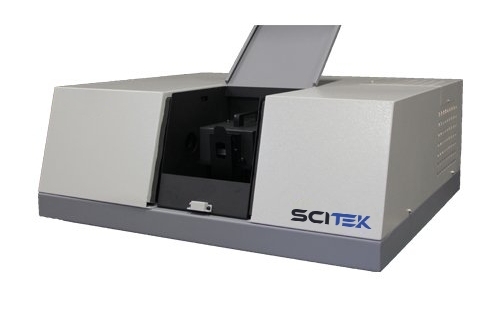

The UV-Vis-NIR spectrophotometer is capable of measuring a wide range of UV-Vis and NIR wavelengths. Utilizing the latest materials and processes, the instrument boasts superior mechanical and optical performance, along with stable and precise hardware acquisition circuitry, reaching the forefront of similar products. It is primarily used for measuring the optical properties of solid film materials and chemical liquids.
Specification
Model | SP-UVNIR5000TJ |
Wavelength Range | 250-2500nm (with integrating sphere accessory) |
Wavelength Accuracy | ±0.5nm UV/Vis; ±2nm NIR Wavelength Repeatability: ≤0.2nm UV/Vis; ≤1nm NIR |
Spectral Bandwidth | 0.2-5nm UV/Vis; 1-20nm NIR |
Photometric Accuracy | ±0.3% |
Photometric Repeatability | ≤0.2% |
Photometric Range | 0-3A |
Sampling Intervals | 0.1nm, 0.2nm, 0.5nm, 1nm, 2nm, 5nm, 10nm |
Operating Modes | Transmittance, Reflectance,Spectral Energy, Absorbance |
Grating | 1200L/mm (UV/VIS), 300L/mm (NIR) |
Measurement Modes | Transmission, Reflection, Diffuse Reflection |
Receiver | PMT, PbS |
Dimensions | 700*600*260mm |
