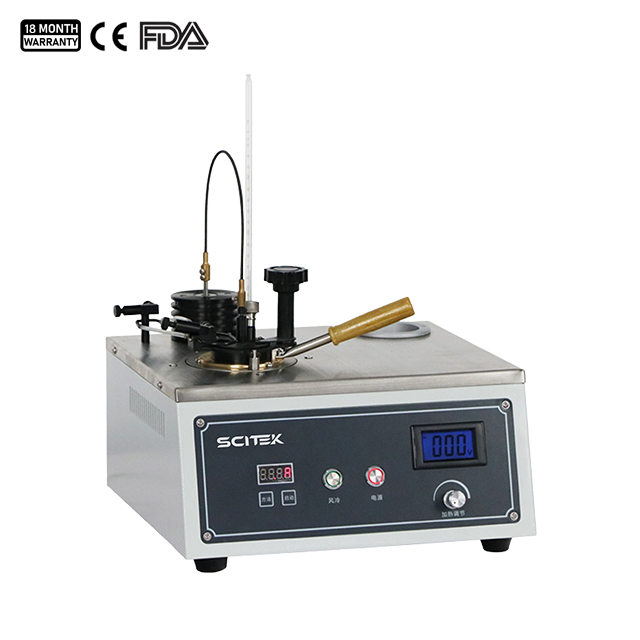

Pensky-Martens Closed-Cup Flash Point Tester, FPT-261

Model : FPT-261

Stir Mode : Mechanical drive stirring
Capacity of Testing Oil : about 70 mL
Heating Power : Adjustable from (0-600) w
Flash Point Determination Range : Ambient to 370 ℃

The Pensky-Martens Closed-Cup Flash Point Tester is used in the petrochemical, chemical, and pharmaceutical industries to accurately measure the flash point of liquids, ensuring safety and regulatory compliance.

Availability:

Quantity:



Inquiry Add to Inquiry List

Product Description

Application:

This instrument is designed and manufactured as per standards GB/T 261-2021 Determination of

Flash Point - Pensky-Martens Closed Cup Method and ASTM D93 Standard Test Method for

Flash Point by Pensky-Martens Closed Cup Tester. It is used to make determination of the closed cup

flash point of the petroleum products.

Advantage:

1. This instrument is designed as per GB/T261 and ASTM D93.

2. The heating power is continuously adjustable. The power is shown visually by voltmeter.

The temperature control mode is advanced and reasonable.

3. The structure is designed small and exquisite. The stainless-steel table board is beautiful and easy to clean.

4. Operation is easy. Test results are precise. It has been chosen as the instrument to test the closed cup flash

point by many metering and detecting institutes.

Specification:

Model	FPT-261
Heating Device	The furnace body is made of silicon carbide
Heating Device	Heating power is adjustable from 0-600 w
Heating Mode	Adjust by manual
Stir Mode	Mechanical drive stirring
Stirring Rate	Procedure A: (90~120) rpm
	Procedure B: (250±10) rpm
	Procedure C: (90~120) rpm
Oil Cup	Inner diameter: 50.7~50.8 mm
	Depth: 55.7~56.0 mm
	The scribed line depth of capacity of testing oil: 33.9~34.3 mm
	Capacity of testing oil:about 70 mL
Igniting Source	Gas (or other civilian fuels, the same below)
Thermometers (Mercury-In- Glass Thermometer. Specifications are as Below)	Scale -5~110 ℃, division 0.5 ℃
	Scale 20~150 ℃, division 1 ℃
	Scale 90~370 ℃,division 2 ℃
Ambient Temperature	15~35 ℃
Relative Humidity	≤ 85％
Power Supply	AC (220±10%) V, 50 Hz
Total Power Consumption	≤650 W
Dimension	370×320×300 mm
N.W.	7 kg
Package Dimension	650×455×360 mm
G.W.	17.6 kg
