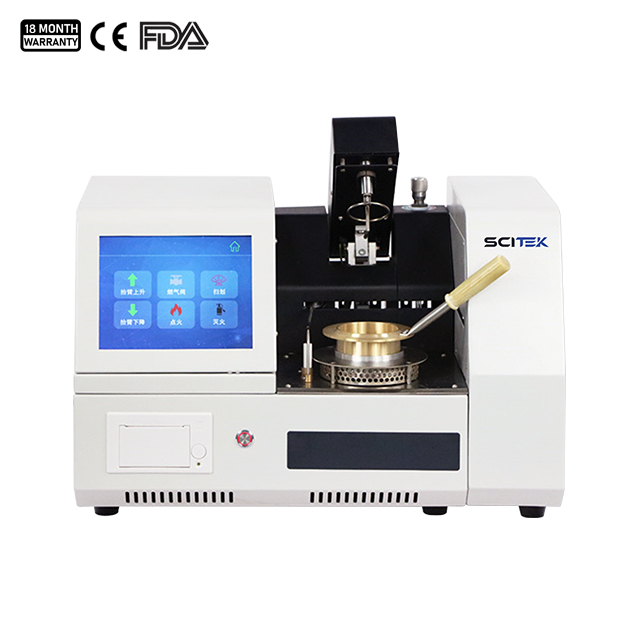

Open Cup Flash Point Tester FPT-3536D

Model : FPT-3536D

Flash Point Determination Range : Ambient to 400℃
Accuracy : 0.1℃
Heating Rate Initial Heating : 14～17℃/min
Size(W×D×H)(mm) : 510x320x330
Availability:
Quantity:
Inquiry Add to Inquiry List

Open Cup Flash Point Tester Features:

  1. It adopts an 8-inch IPS high-definition capacitive screen. Using 32-bit ARM processor and high-precision AD chip, the test data and parameters are recorded in real time and displayed by curve.

  2. Automatic measurement of atmospheric pressure, automatic correction of flash point value.

  3. Open cup flash point tester is equipped with Bluetooth interface. The user can query test data anytime.

  4. Electronic ignition, gas flame.

  5. Remote automatic upgrade to obtain the latest version, remote prediction, abnormal early warning, comprehensive evaluation and maintenance of instrument operation status.

Open Cup Flash Point Tester Specifications:

ModelFPT-3536D
Flash Point Determination RangeAmbient to 400℃
Accuracy0.1℃
Heating RateInitial heating: 14～17℃/min
It is (5-6) ℃/min after reaching the preset flash point 20 ℃
Igniting ModeElectric ignition
Diameter of igniter : 0.7mm～0.8mm
Fire Extinguishing Device1. When the fire point appears, it can automatically extinguish the fire and return to its original position
2. It can also manually press the key to extinguish the fire
Data Transmission ModeBluetooth
Ambient Temperature15～35℃
Relative Humidity≤85%
Power SupplyAC(220±5%)V, 50Hz
Total Power Consumption≦750W
Size(W×D×H)(mm)510x320x330
Net Weight20kg
Package Size(W×D×H)(mm)650x500x610
Gross Weight35kg
