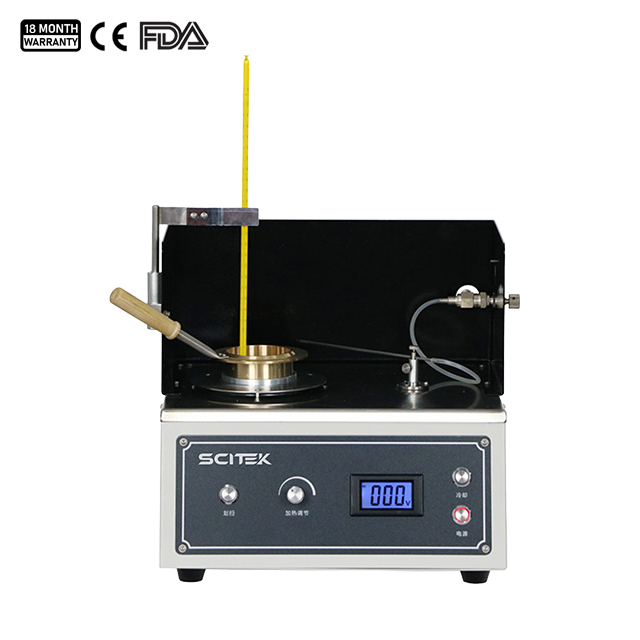

Open Cup Flash Point Tester

Model : FPT-3536

Test Flame Applicator : It applies the test flame automatically
Thermometer : -6～400℃
Thermometer Scale : 2℃
Size(W×D×H)(mm) : 350×290×350
Availability:
Quantity:
Inquiry Add to Inquiry List

Open Cup Flash Point Tester Features:

  1. It adopts special heating furnace to ensure the safety of test.

  2. The heating power is continuously adjustable. It can meet requirements of test.

  3. The open cup flash point tester is fully self-contained complete. The operator can do determination as long as connecting with coal gas or other civil gas.

  4. With fast cooling function, it can improve test efficiency.

Open Cup Flash Point Tester Specifications:

ModelFPT-3536
Heating DeviceFurnace heating, no naked fire, explosion prevented. The power is adjustable from 0W to 600W
Test Flame ApplicatorIt applies the test flame automatically
Thermometer-6～400℃
Thermometer Scale2℃
Igniting DeviceIgnition source: coal gas (or civil gas)
Nozzle aperture: about 0.8mm
Ambient Temperature15∼35℃
Relative Humidity≤85%
Power SupplyAC(220±10%)V, 50Hz
Power Consumption≤650W
Size(W×D×H)(mm)350×290×350 (thermometer is not included)
Net Weight5.5kg
Package Size (W×D×H)(mm)650x450x420
Gross Weight19.6kg


Previous:
Next:
Get Quotation/Become Distributor

Related Products

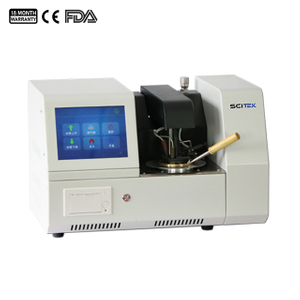

Close Cup Flash Point Tester, Automatic Control
