Lab water bath is used for precise constant temperature and au×iliary heating in medical and health institutions, medical colleges, industrial and mining enterprises, and research institutions, specifically for gene amplification e×periments. You can use it for evaporation, concentration, constant temperature heating, chemical drugs, biological products, and other purposes.
Thermostatic Water Bath Specifications:

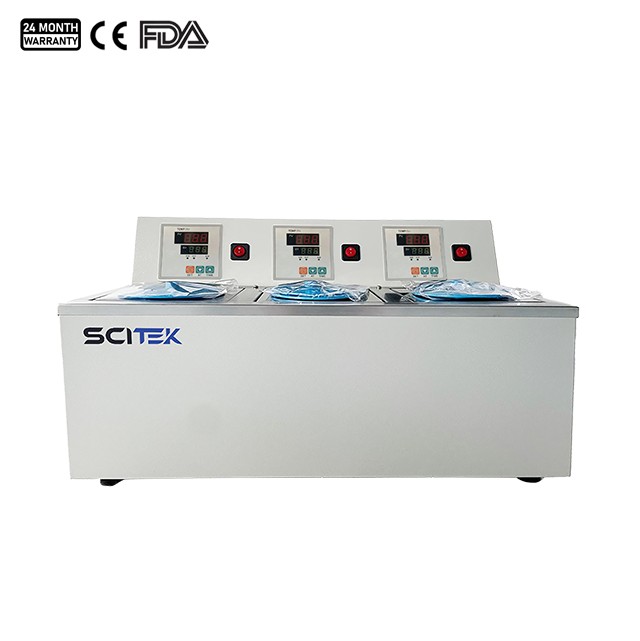

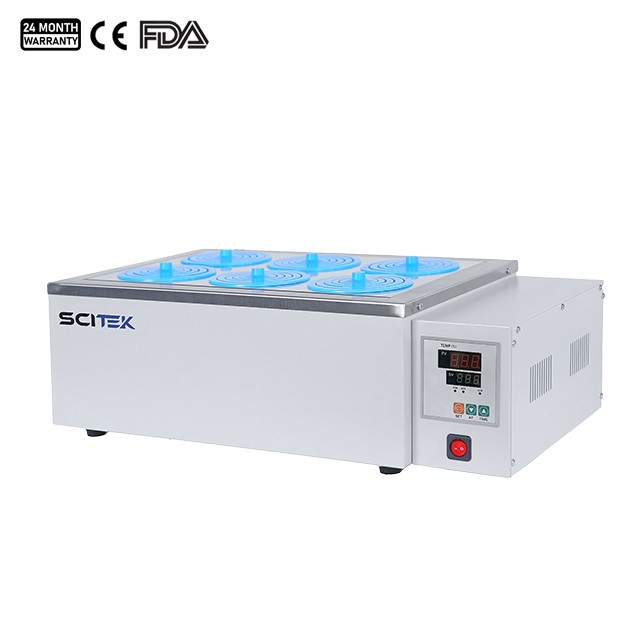

| Model | WB-1L1HV | WB-1L2HIII | WB-1L3HI | WB-2L4HII | WB-2L6HII | WB-2L8HI |
| Temperature Control Range(℃) | RT+5~99 |
| Constant Temperature Fluctuation(℃) | ±0.5 |
| Tracking Alarm(℃) | ±2 |
| Volume(L) | 2.1 | 7 | 2.1×3 | 13 | 15 | 27 |
| Power Supply | AC220V, 50/60Hz |
| Power(W) | 350 | 500 | 350×3 | 1000 | 1500 | 2000 |
| Chamber Size (W×D×H)(mm) | 165×160×150 | 310×160×150 | (140×150×100)×3 | 310×310×150 | 460×310×150 | 610×310×150 |
| Sizes (W×D×H)(mm) | 350×230×340 | 520×230×240 | 520×350×280 | 490×380×220 | 650×390×220 | 800×380×220 |
| Shipping Size (W×D×H)(mm) | 610×50×520 | 610×510×520 | 670×570×520 | 670×570×520 | 890×620×540 | 890×620×540 |
| N.W./G.W. (kg) | 5/8 | 7.5/11 | 17/24 | 9.5/14 | 12.8/18 | 13.5/19 |
Thermostatic Water Bath Features:
Advanced electronic temperature control devices.
Temperature adopts intelligent fuzzy PID control.
The measured and set values of temperature can be selected with a minimum resolution of 0.1 ℃ or 1 ℃.
It has the function of switching between Fahrenheit and Celsius degrees.
The timing function can be selected (none, constant temperature timing, running timing), the timing direction can be selected as positive or countdown, and the timing unit can be selected (minutes, hours). After the timing is completed, a buzzer will sound to prompt (the prompt time can be set).
With temperature self-turning function.
Temperature sensor open circuit, short circuit sound and light (buzzer) alarm prompt, and the controller automatically disconnects the heating output.
Details of Thermostatic Water Bath:

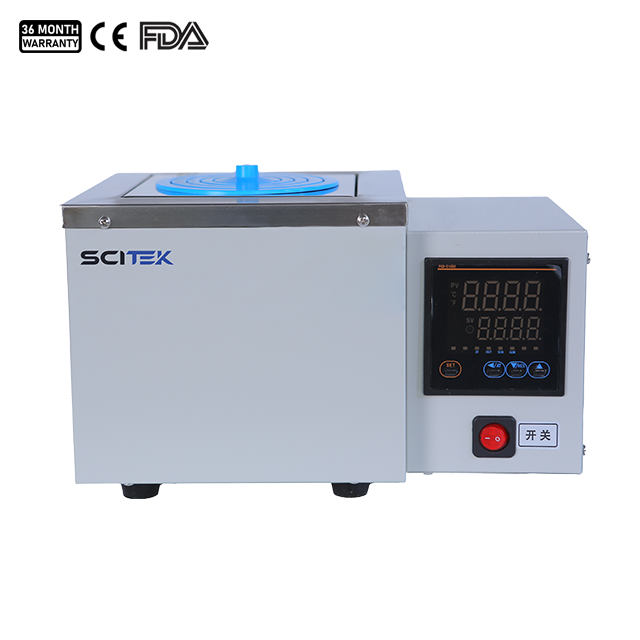

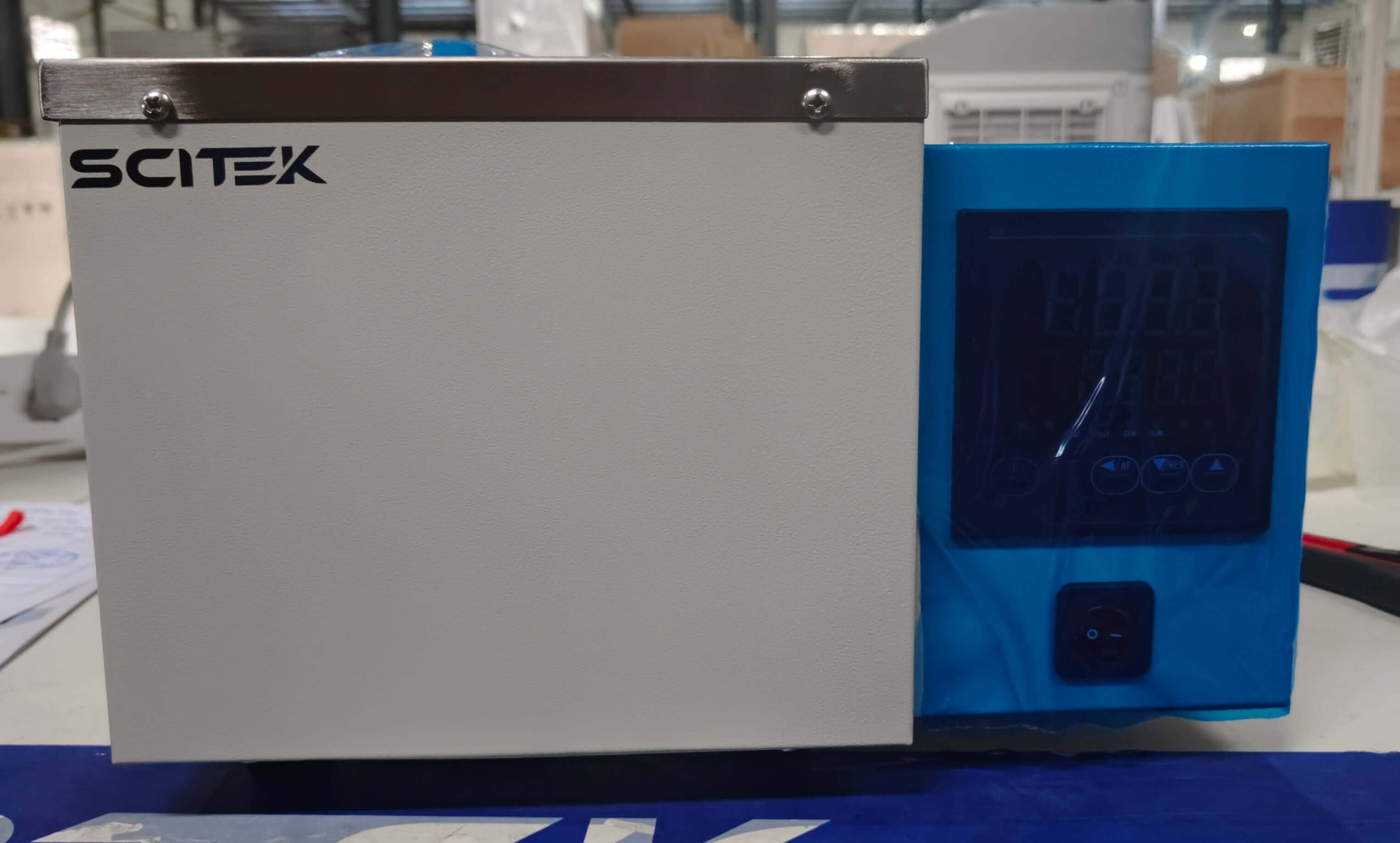

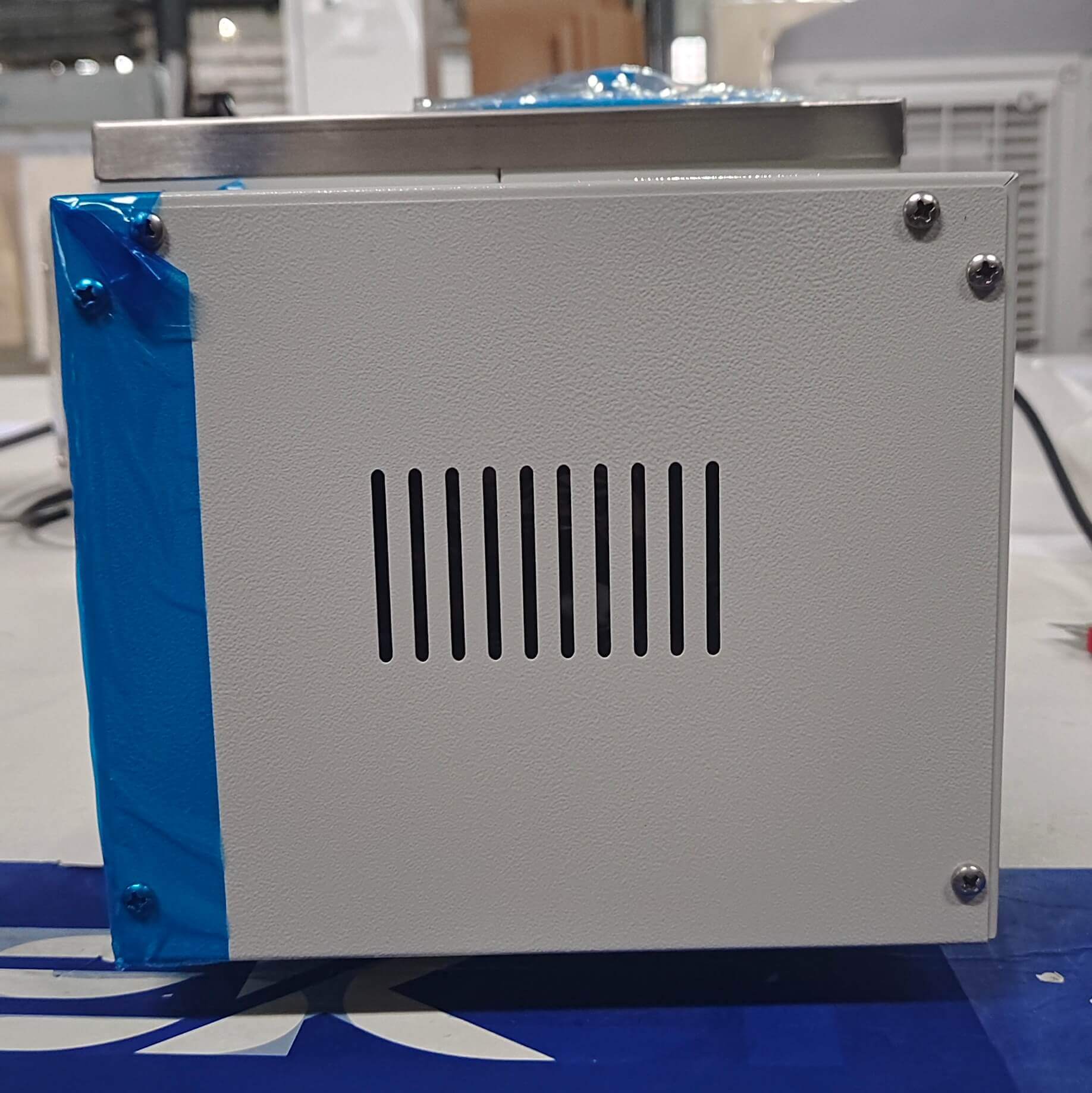

WB-1L1HV:

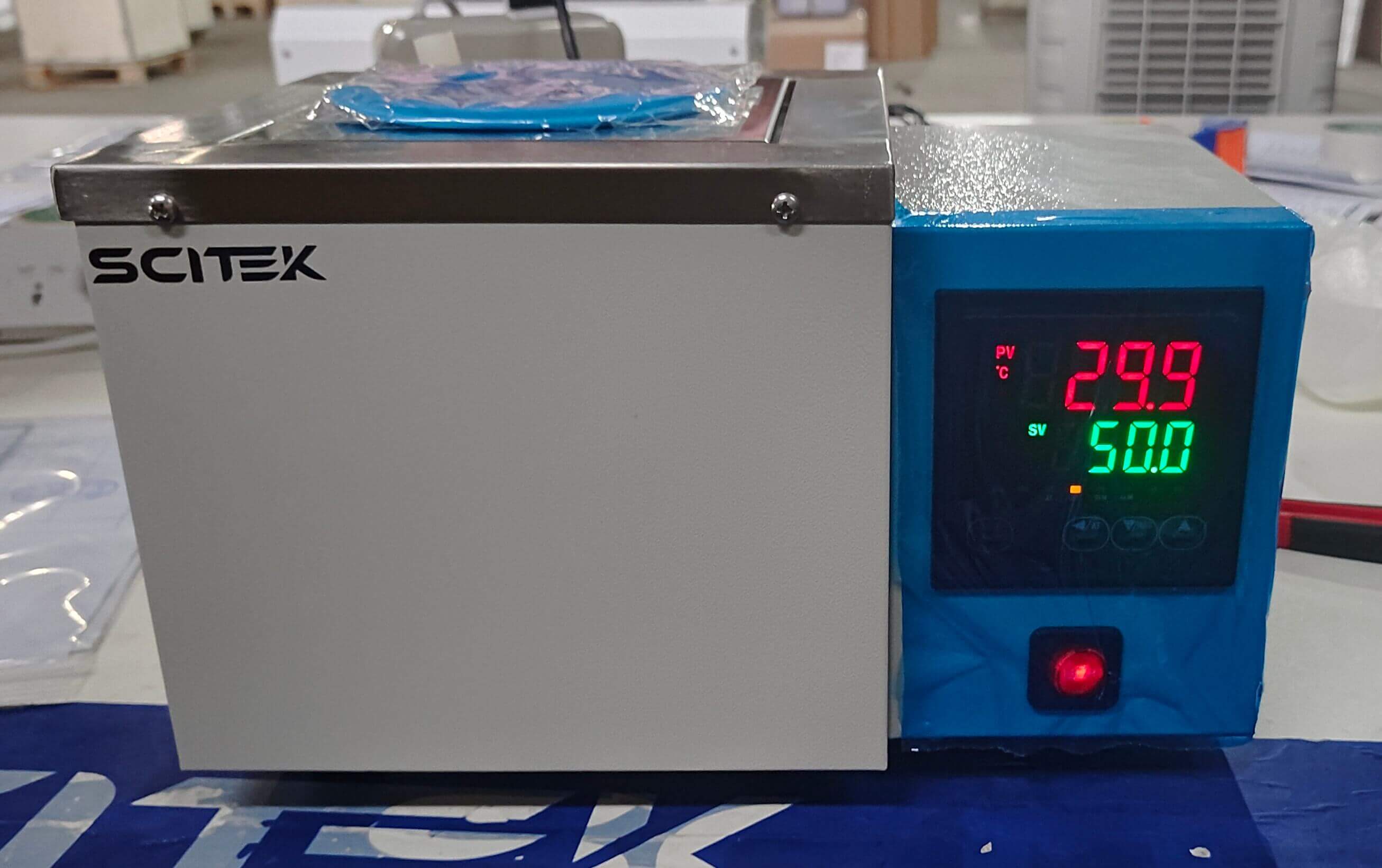

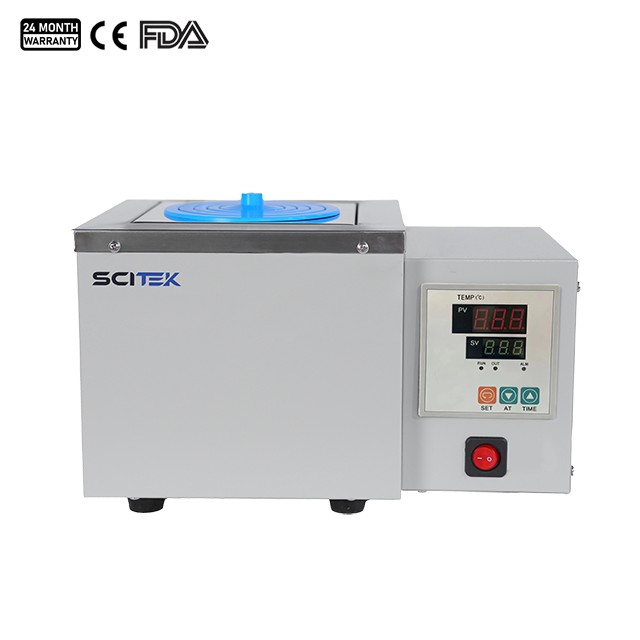

The front side is equipped with a high-definition digital display that shows the current water bath temperature in real time, providing precise temperature control and an intuitive operating interface.

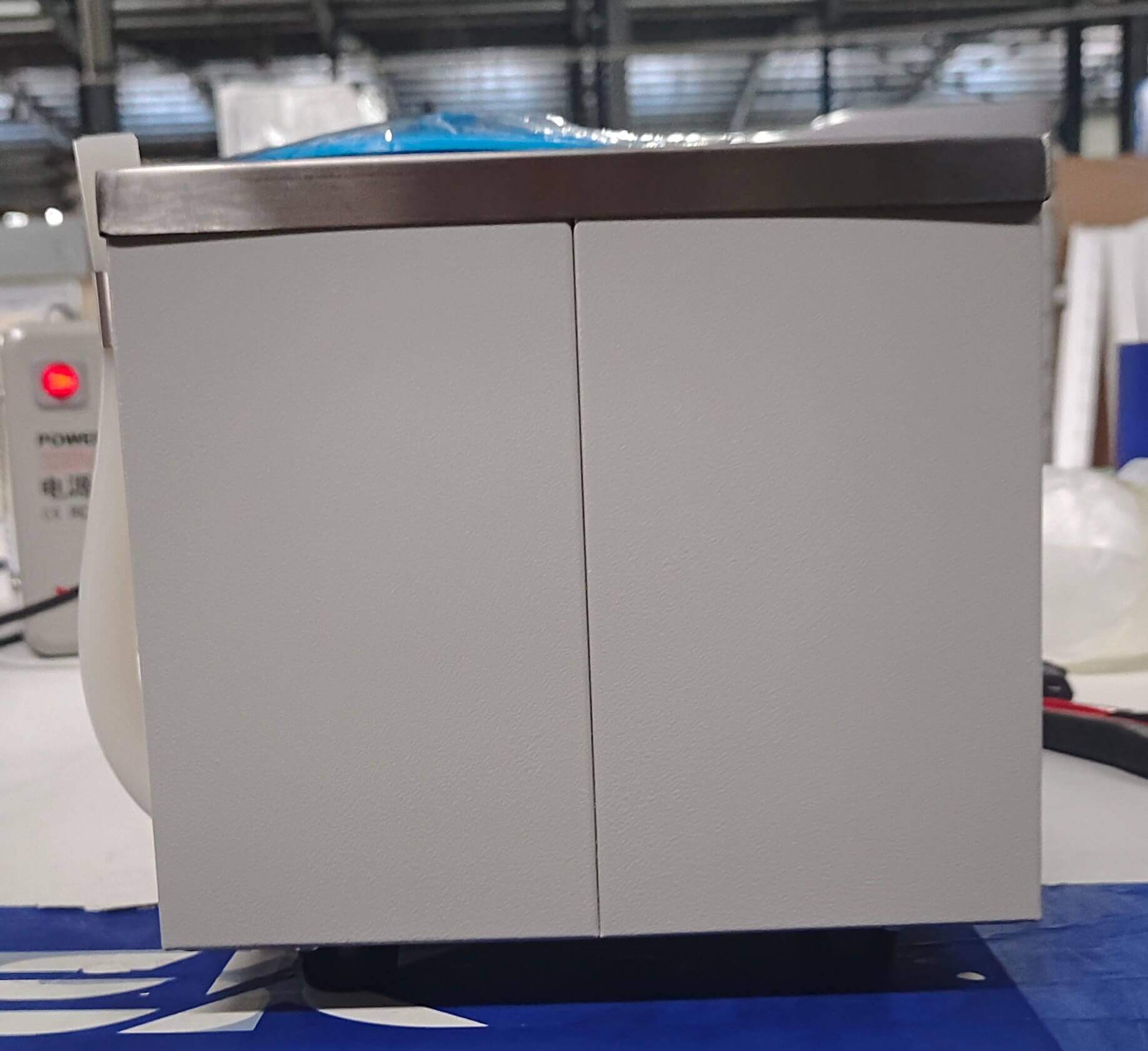

The housing is made of durable metal and the overall design is compact and easy to clean.
The outer box is made of thick cardboard with model and brand logos printed on it, providing full protection for the equipment and ensuring safety during transportation.

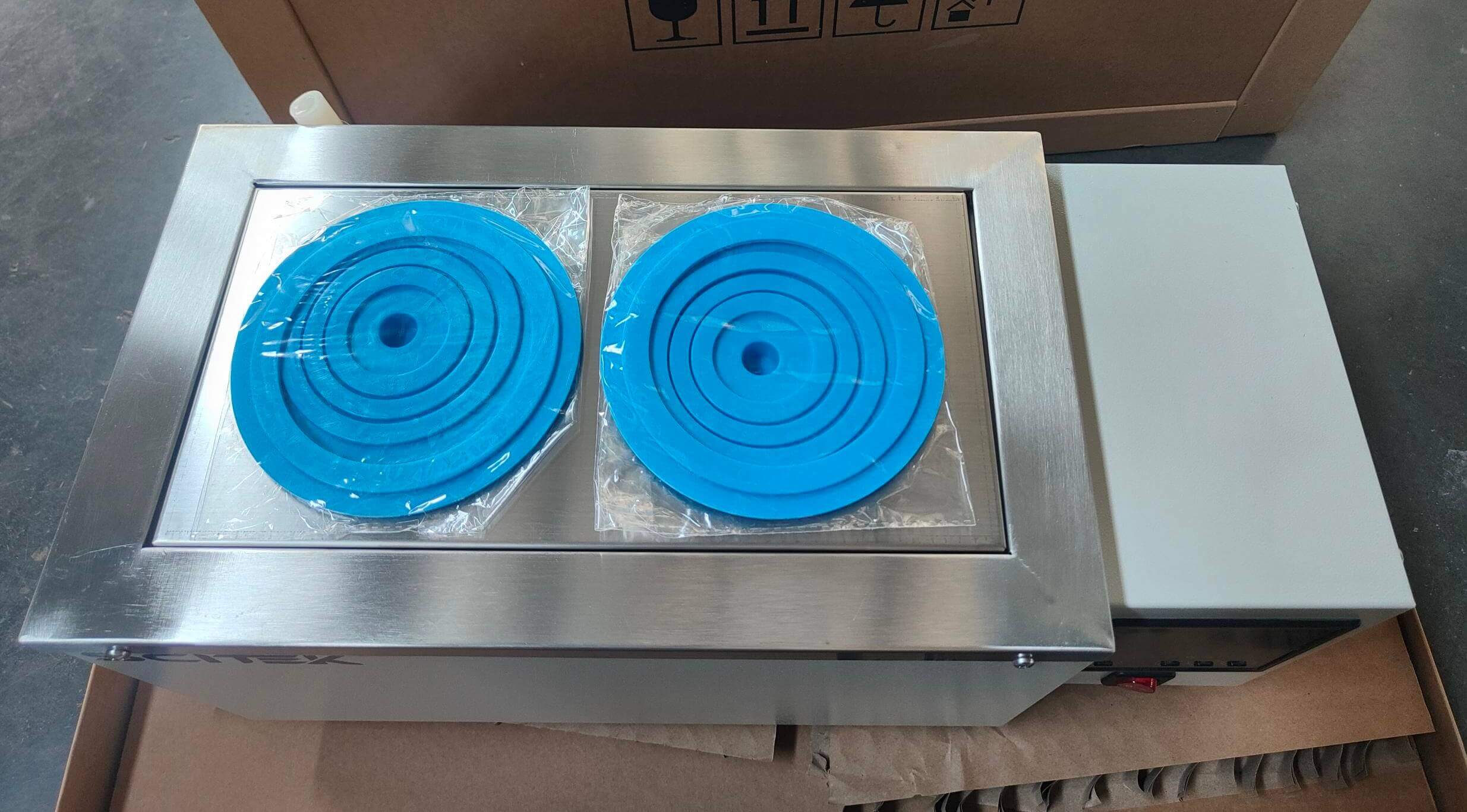

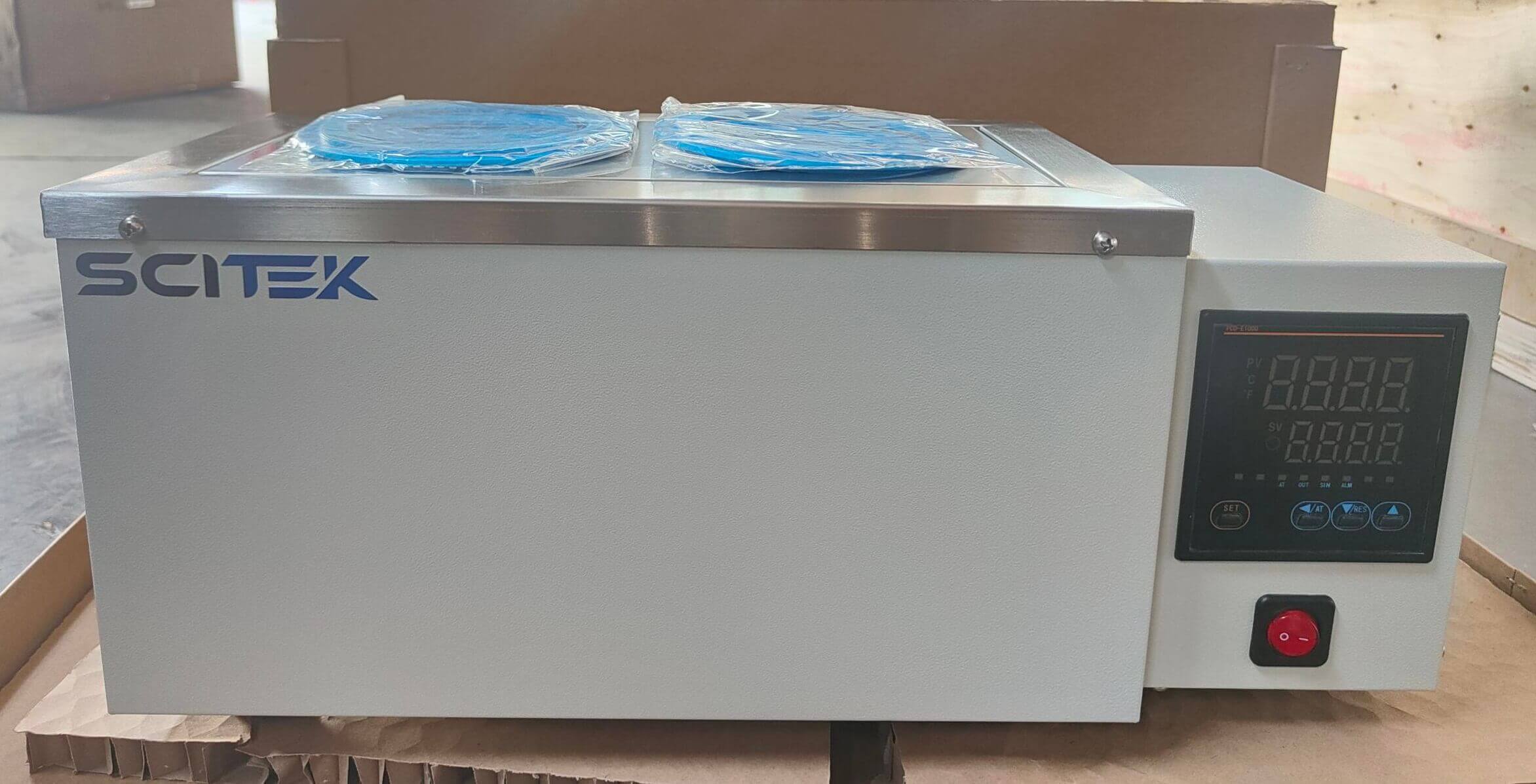

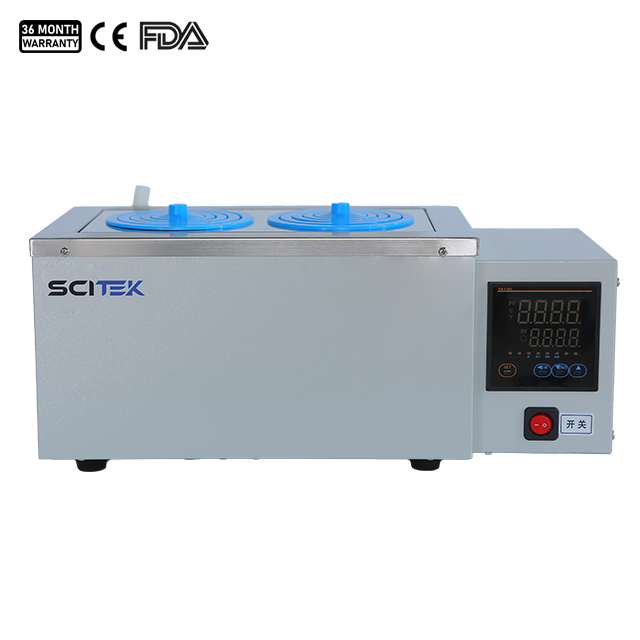

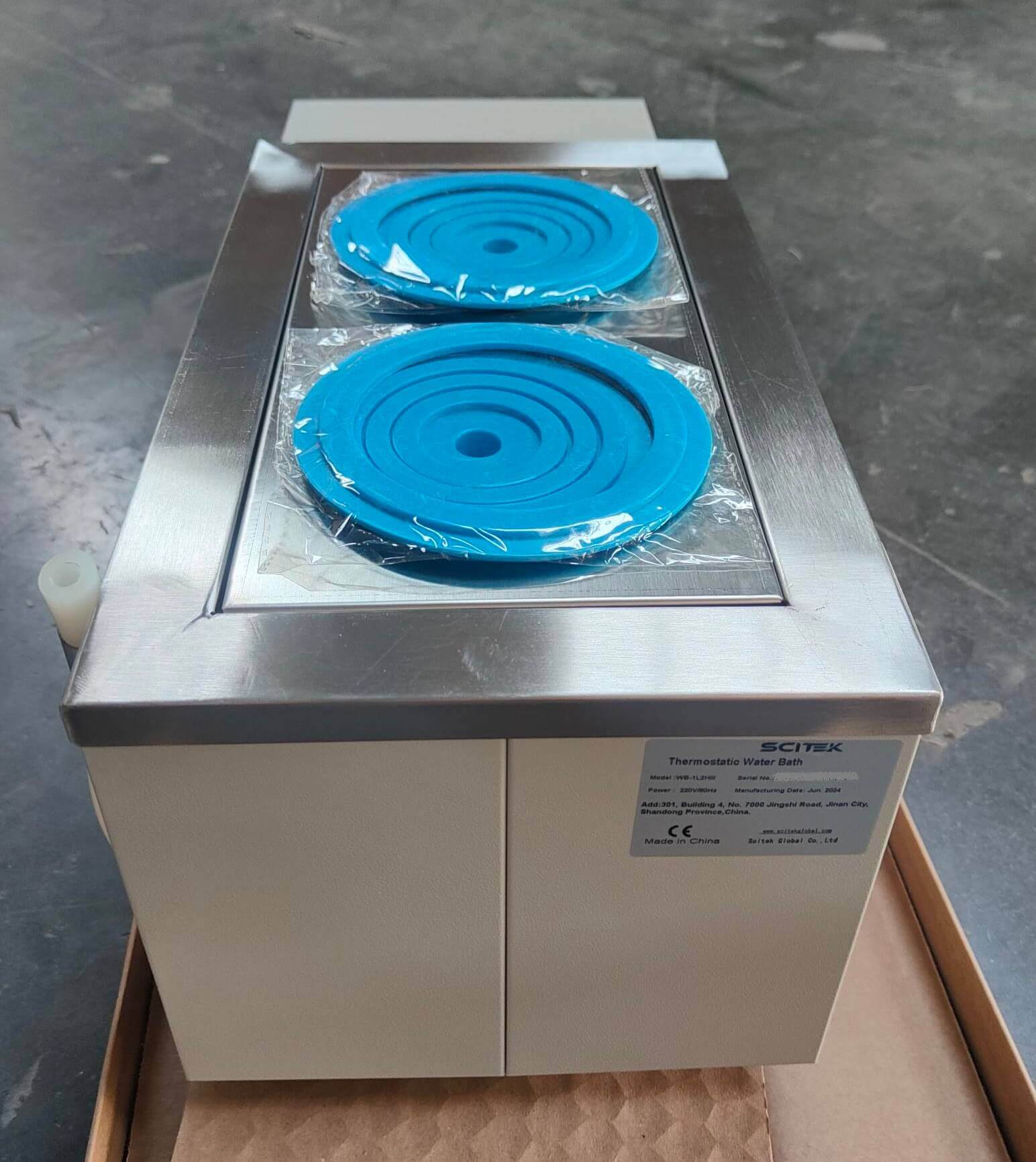

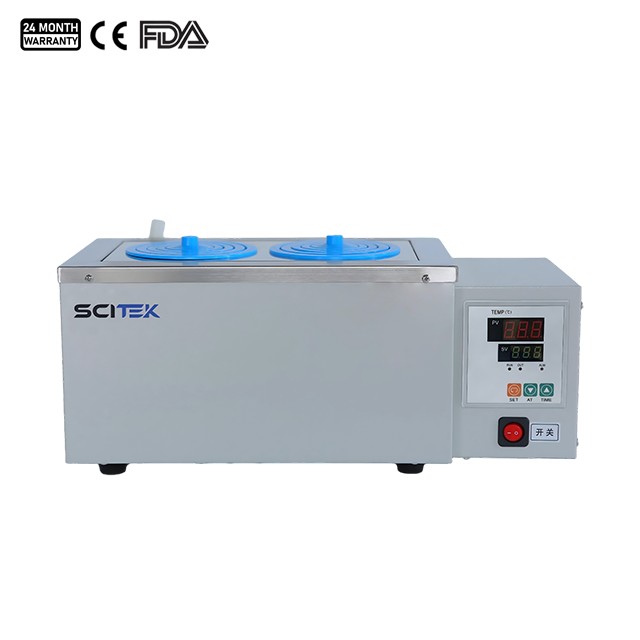

WB-1L2HIII Thermostatic Water Bath:

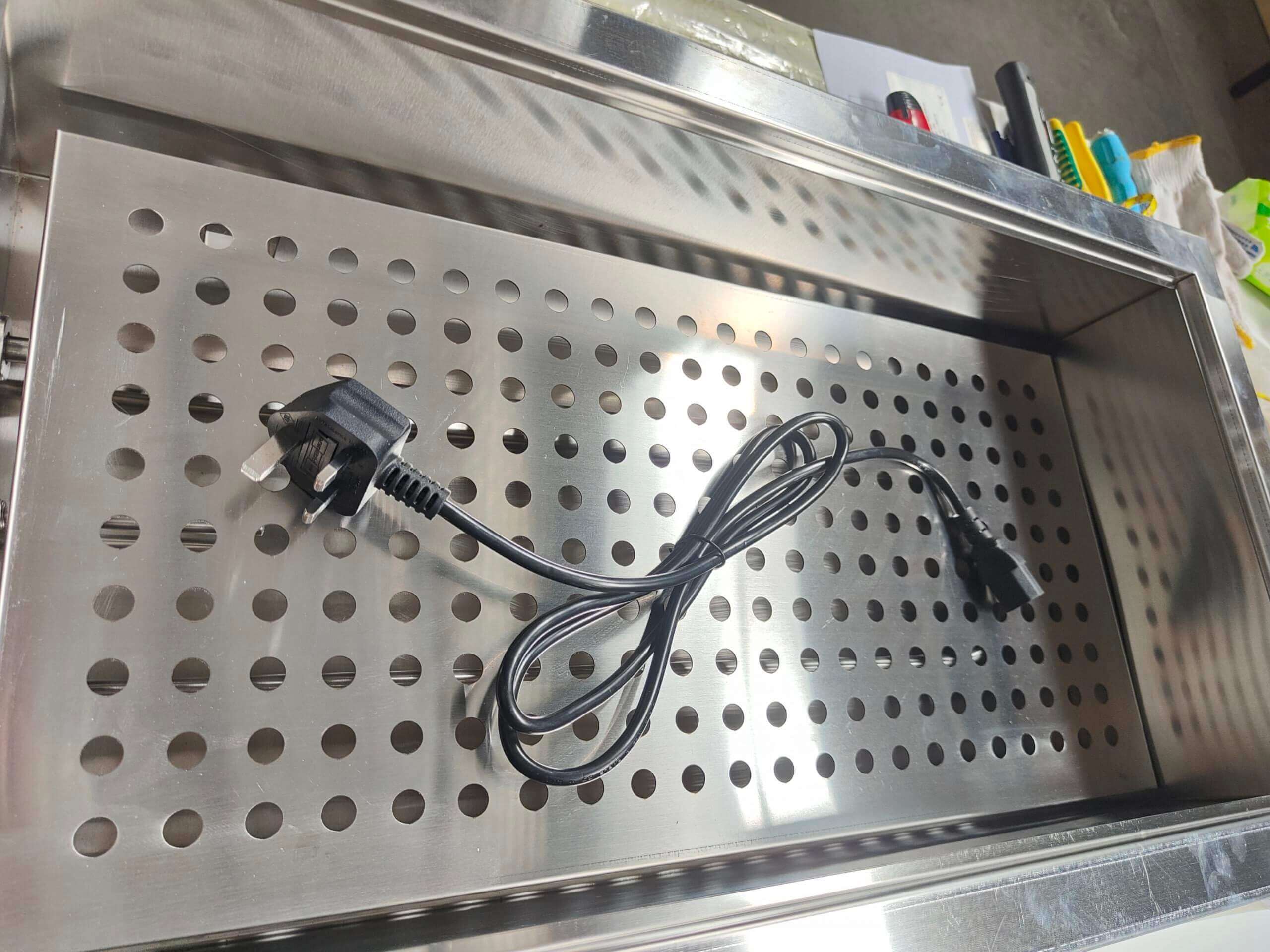

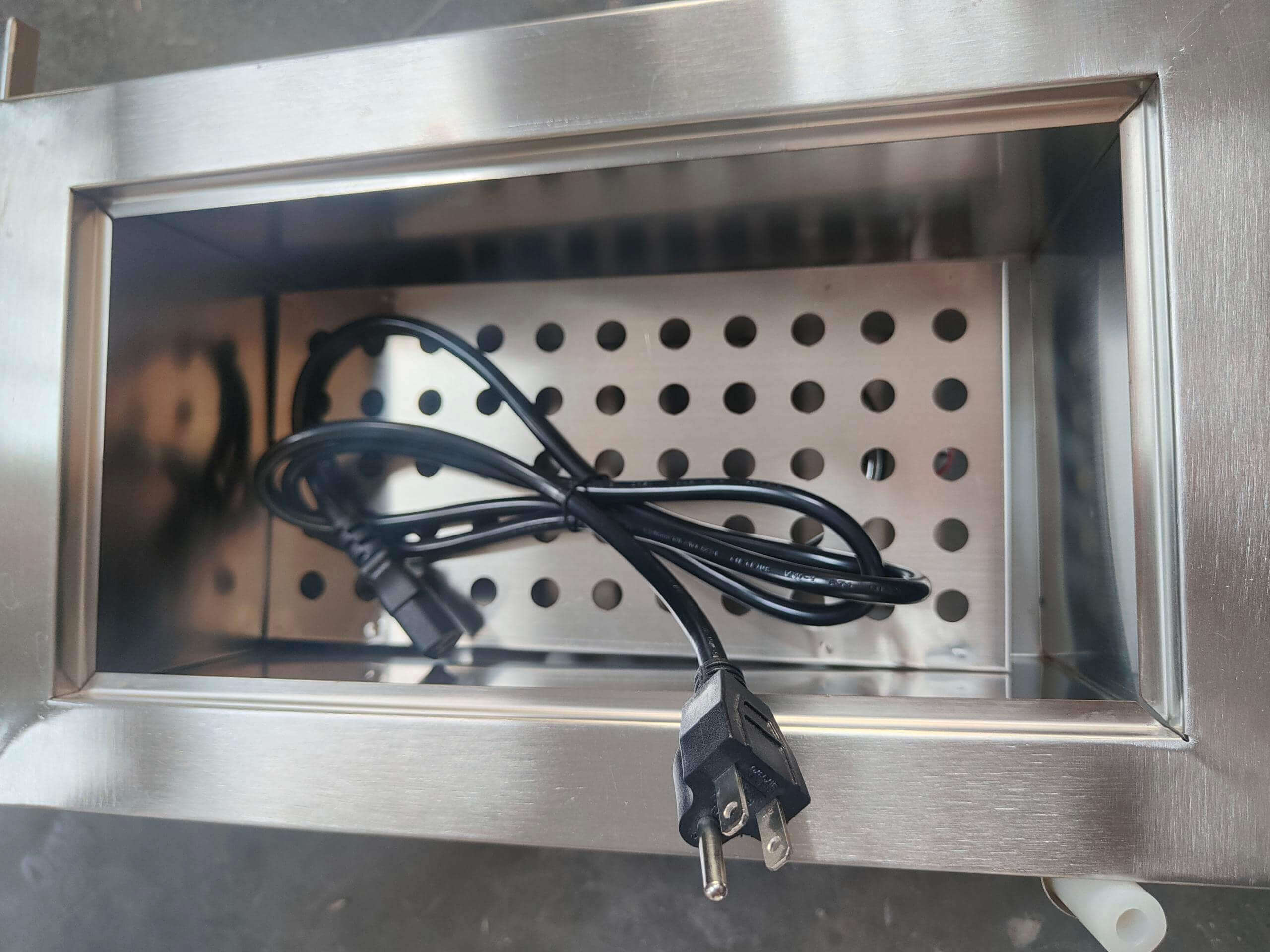

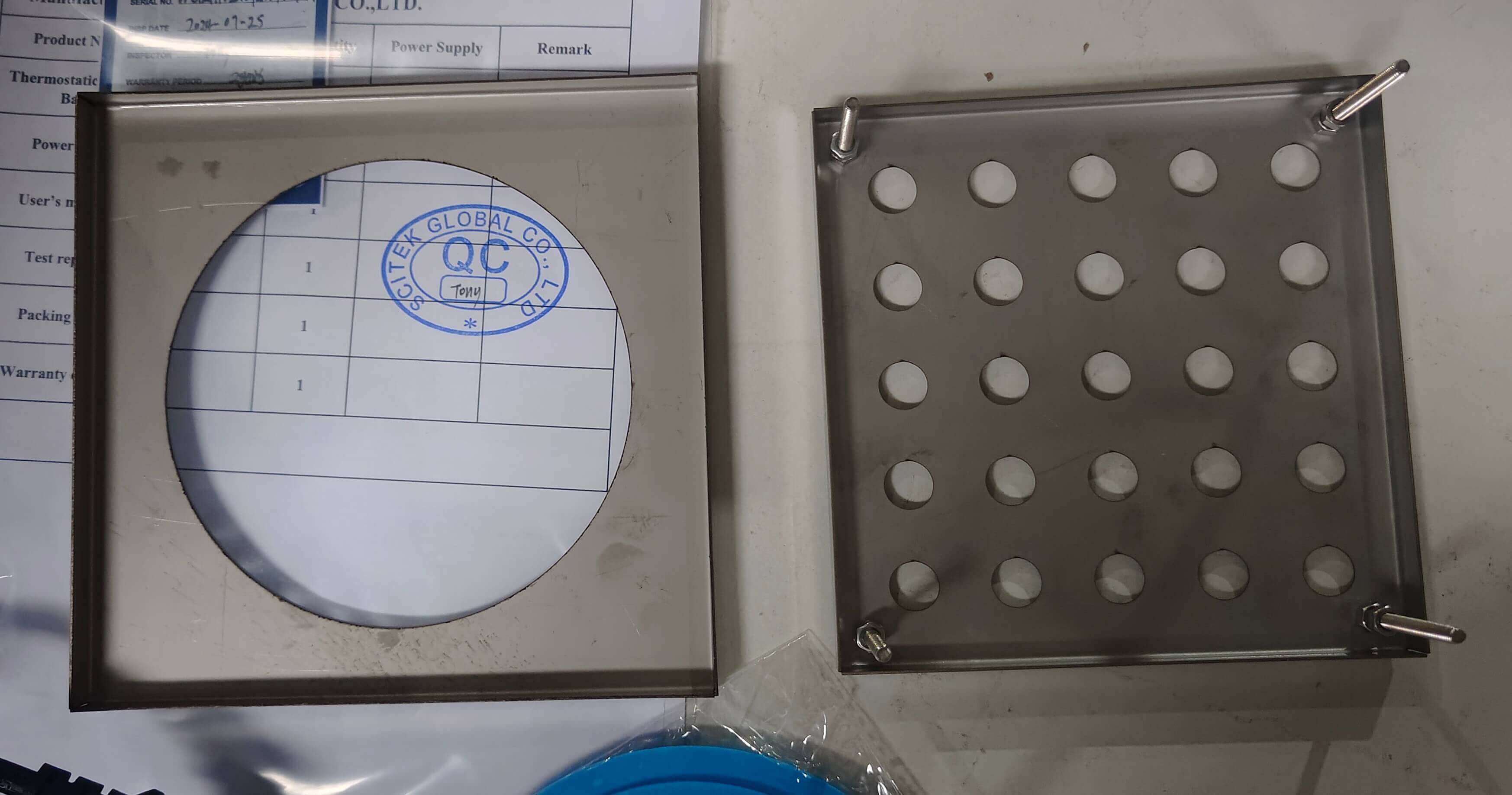

The interior is equipped with a corrosion-resistant stainless steel liner to ensure long-term performance and heating efficiency. With removable sample racks, it is convenient for users to place different sizes of sample containers and easy for maintenance.

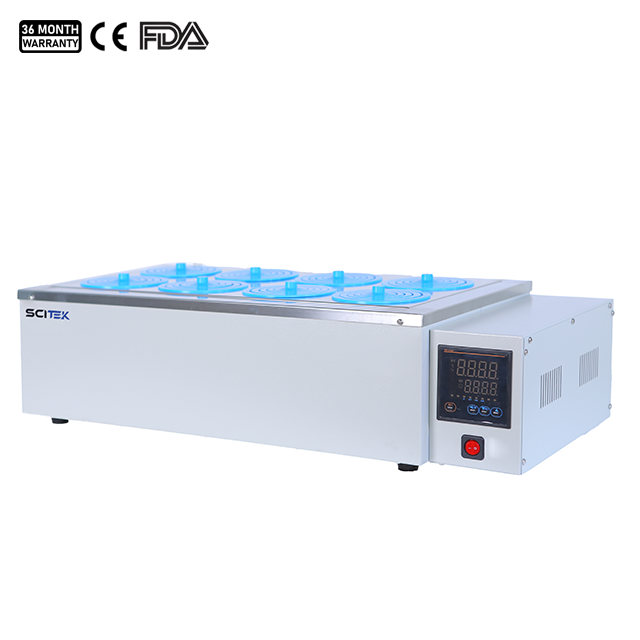

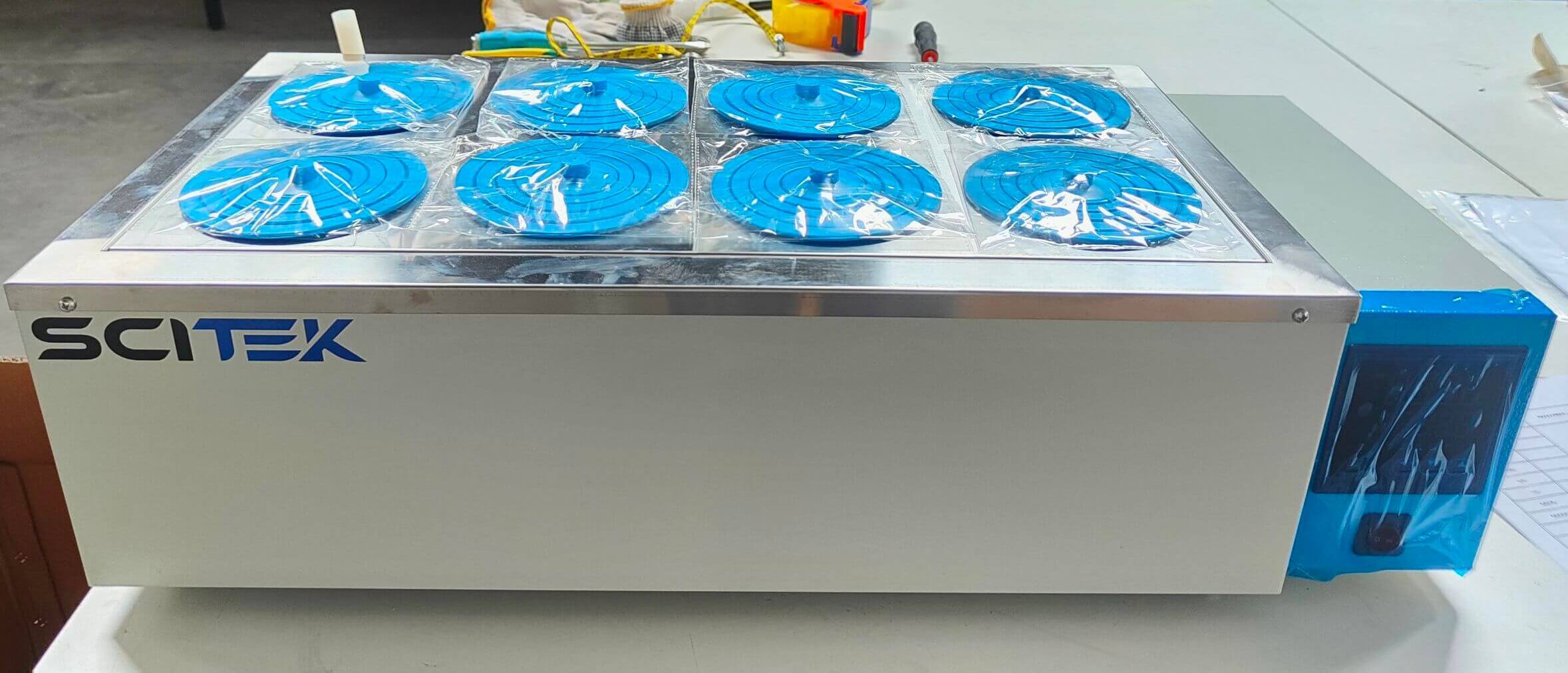

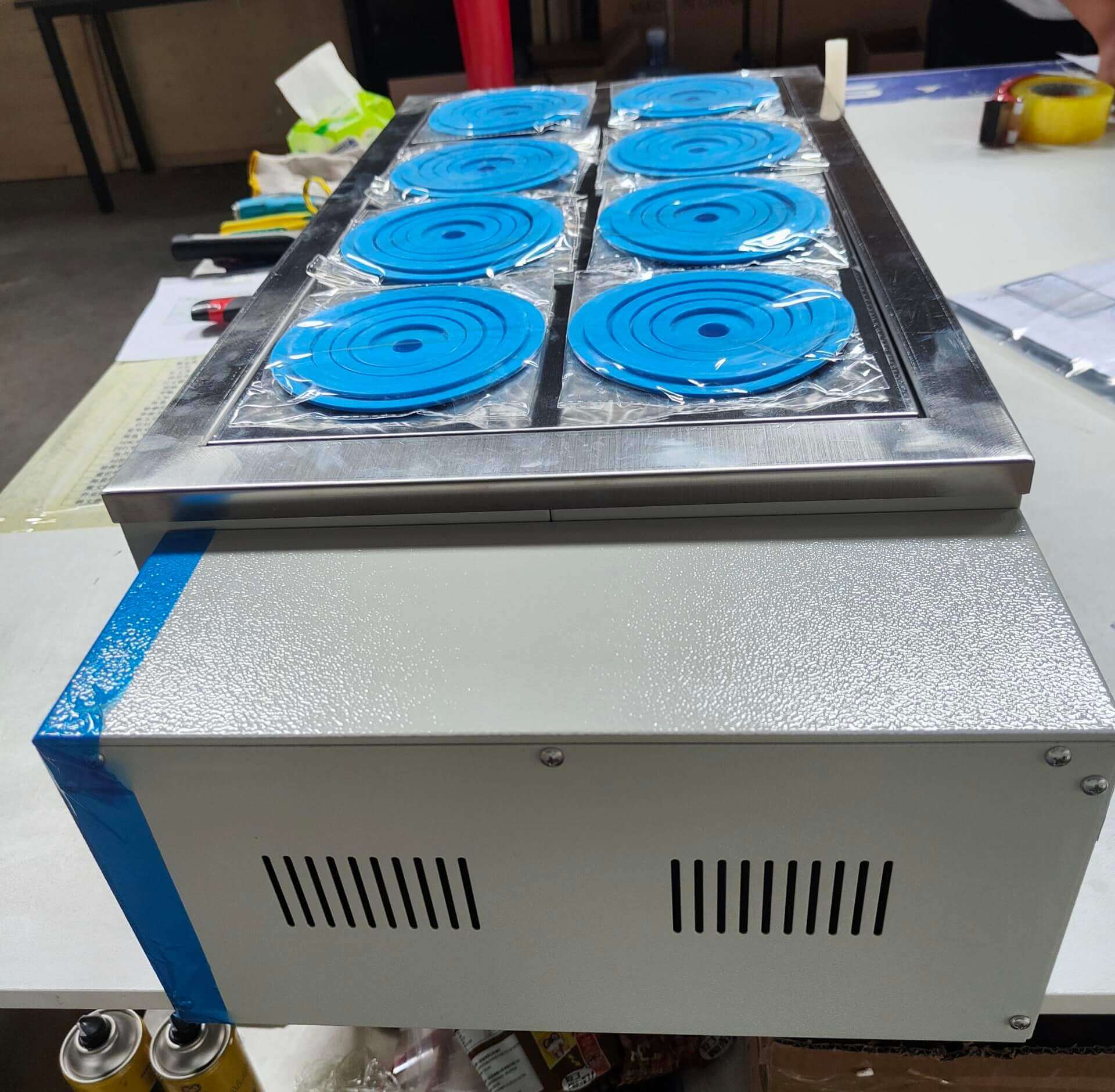

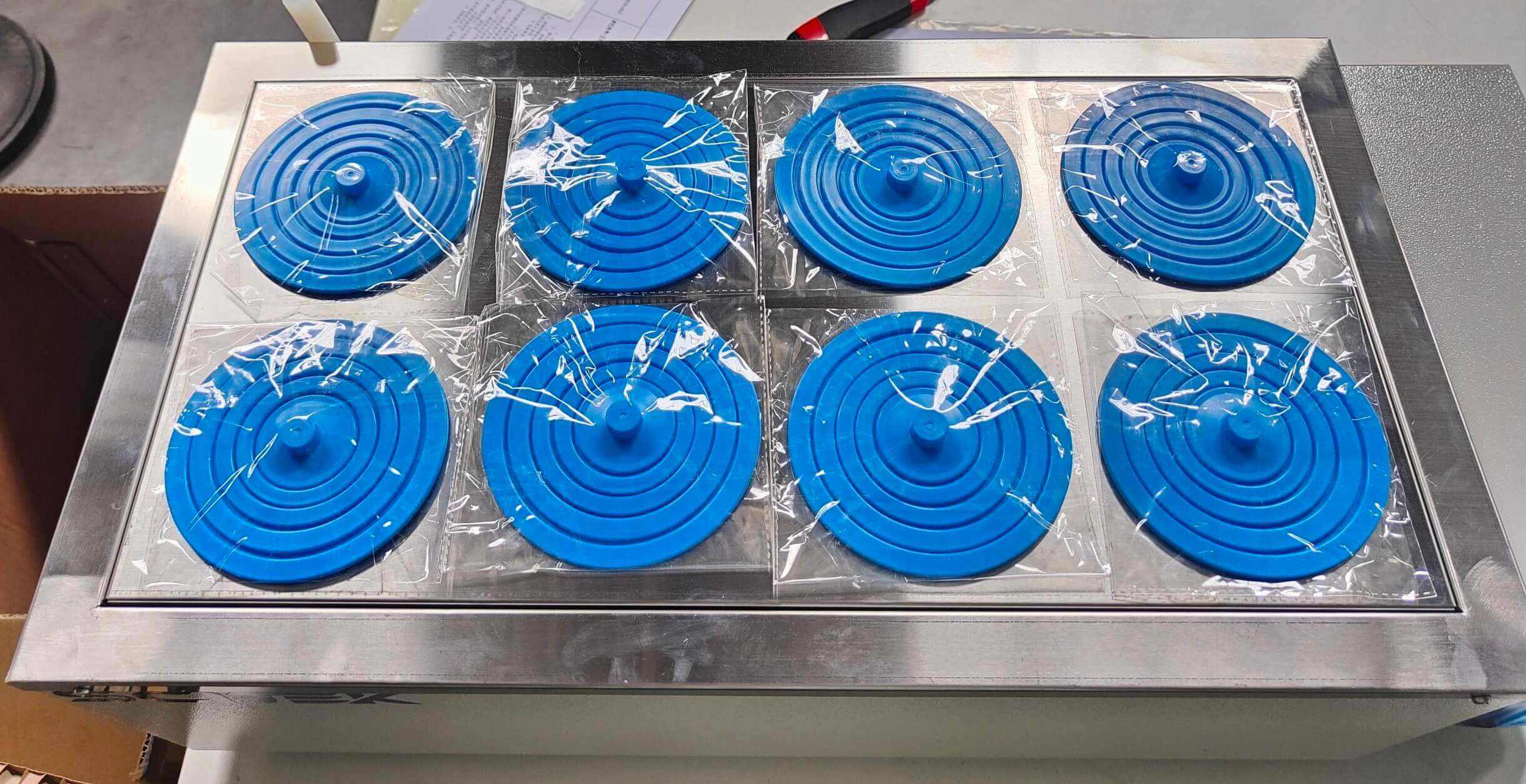

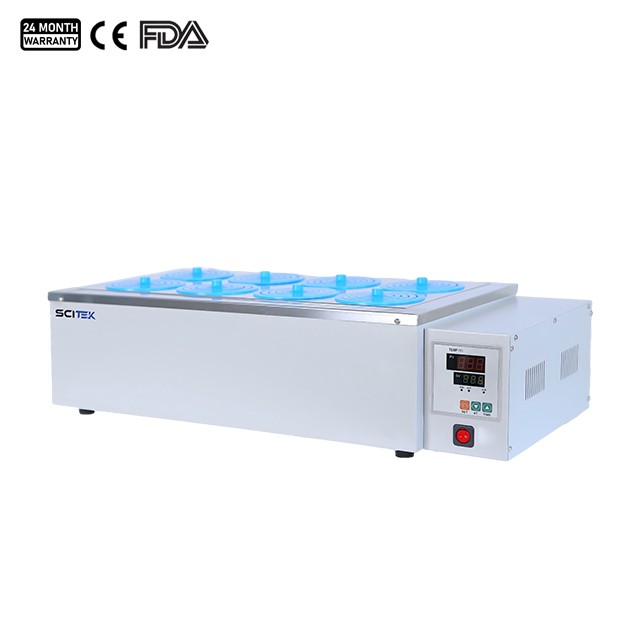

WB-2L8HI Thermostatic Water Bath:
