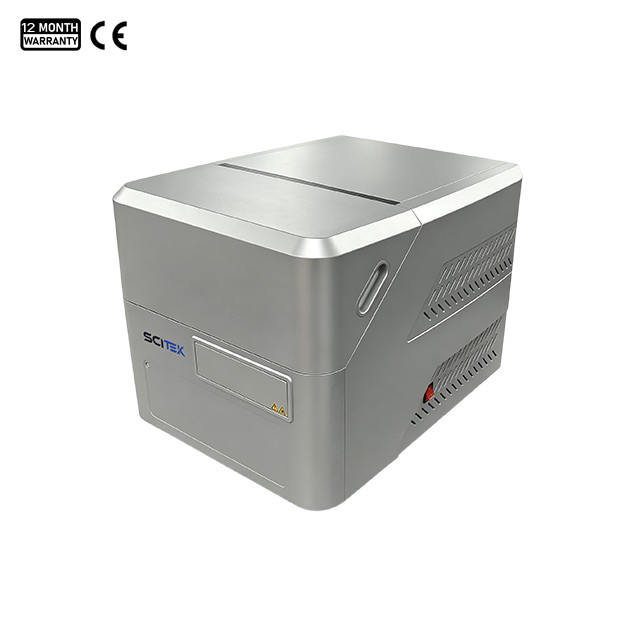

ELMR-6700 series is a multi-mode microplate reader with integrated intelligent dispensing system and advanced algorithms. Fully supports high-throughput screening and kinetic analysis across fluorescence, chemiluminescence (glow/flash), and full-wavelength absorbance modes.
KEY Application (What do users do with it?)
Absorbance Detection
Fluorescence Detection
Luminescence Detection
ELISA and various immunoassays
Intracellular calcium (Ca²⁺) and cAMP detection (GPCR signaling pathway research)
Cell viability and cytotoxicity assays
DNA/RNA concentration and purity quantification
Cell viability and cytotoxicity assessment
Mycoplasma contamination detection
Enzyme kinetics monitoring and bacterial/microbial growth curve determination
Fluorescent protein expression quantification
NanoBRET and BRET (Bioluminescence Resonance Energy Transfer) assays
Protein quantification (BCA, Bradford, and Lowry assays)
Nucleic acid fluorescence quantification
Single/Dual luciferase reporter gene assays
Multi-Mode, Multi-Tasking
One Plate, Multiple Assays

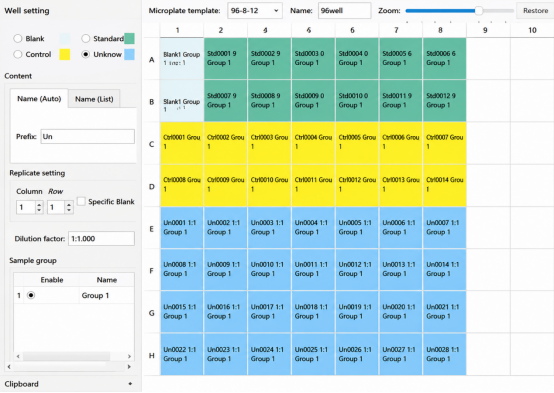

Flexible plate layout
Multi-mode Microplate Reader Feature:
Three detection modes, absorbance, fluorescence and luminescence, both the fluorescence and luminescence filter wheels are 12-position filter wheels.
Automatic gain dynamic range, equipped with light source reference detector for stable excitation light source
Intelligent gain adjustment function, amplification factor is regulated based on the signal intensity of samples, allowing samples of varying intensities and from different batches to be normalized to a consistent level for calculation and analysis. (only for ELMR-6700FLD).
12+1 independent optical channels (absorbance mode): 12 channels for sample measurement, 1 serves as a real-time light intensity reference. Designed to ensure high-throughput detection efficiency while effectively eliminating measurement errors caused by fluctuations in the light source.
Fully compatible with 96 and 384 well plates, unique adjustable optical channel aperture design to prevents cross-talk between wells and edge-effect light loss, ensuring the accuracy and reproducibility of detection data.
Unique liquid separation level for chemiluminescence, enabling simultaneous liquid separation and detection without movement
3 liquid separation holes available, supporting simultaneous placement of three reagents for automatic liquid separation
Intelligent temperature control system support automatically triggers detection once the target temperature is reached, with gradient-temperature anti-condensation design ensures accurate results for samples with lids.

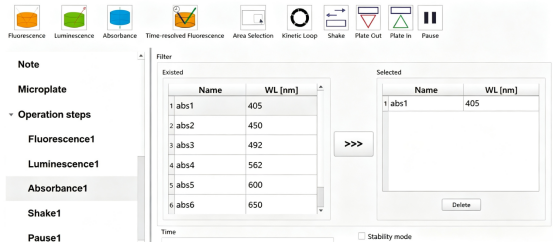

The software features powerful data analysis capabilities, such as switching between linear and logarithmic coordinate scales, normalisation, dose-response and kinetics analysis, categorisation and quality control. This enables users to perform their desired analyses without the need for external software.

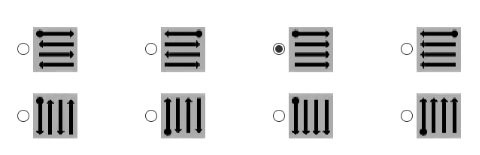

Dynamic settings can be configured for a duration of up to 7 days and support linear oscillation; 10 speed levels and 3 amplitude levels are adjustable.
Optional audit trail functionality available to ensure the authenticity and and immutability of experimental data.
As a professional lab and medical equipment manufacturer, Scitek Global is certified by ISO 9001, ISO 13485, ISO 45001 and ISO 14001. Almost all our products are certified by ETL, CE and FDA .
Scitek Global looks forward to establishing cooperation with more distributors all over the world, and working together to create greater customer value.
