| Model | ELMR-200I |
|---|---|
| Microplate Type | 96/48-well plate |
| Photodetector | Silicon photodiode |

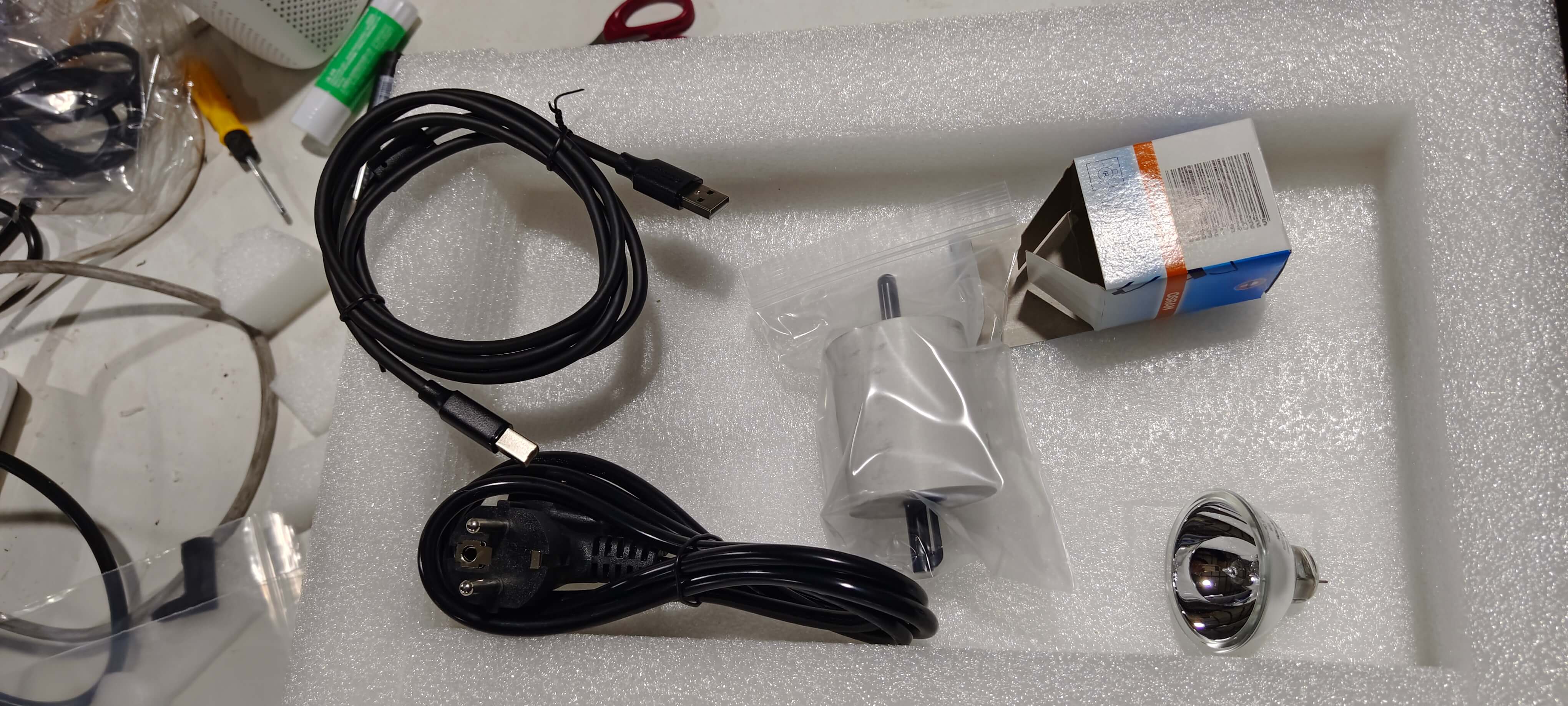

| Light Source | 8 V, 50 W controlled tungsten halogen lamp or LED |
| Wavelength Range | Wavelength Range : 400–800 nm (halogen lamp) or 400–725 nm (LED) |
| Standard Filter | 405, 450, 492, 630 nm & 4 optional |
| Reading Range | 0.000–4.000 A |
| Resolution | 0.001 A |
| Accuracy | ±0.008 A |
| Reproducibility | ≤0.2% |
| Stability | ±0.003 A |
| Reading Speed | Single wavelength≤10 s; Double wavelength≤20 s |
| Shaking | Linear shaking, 3 speeds |

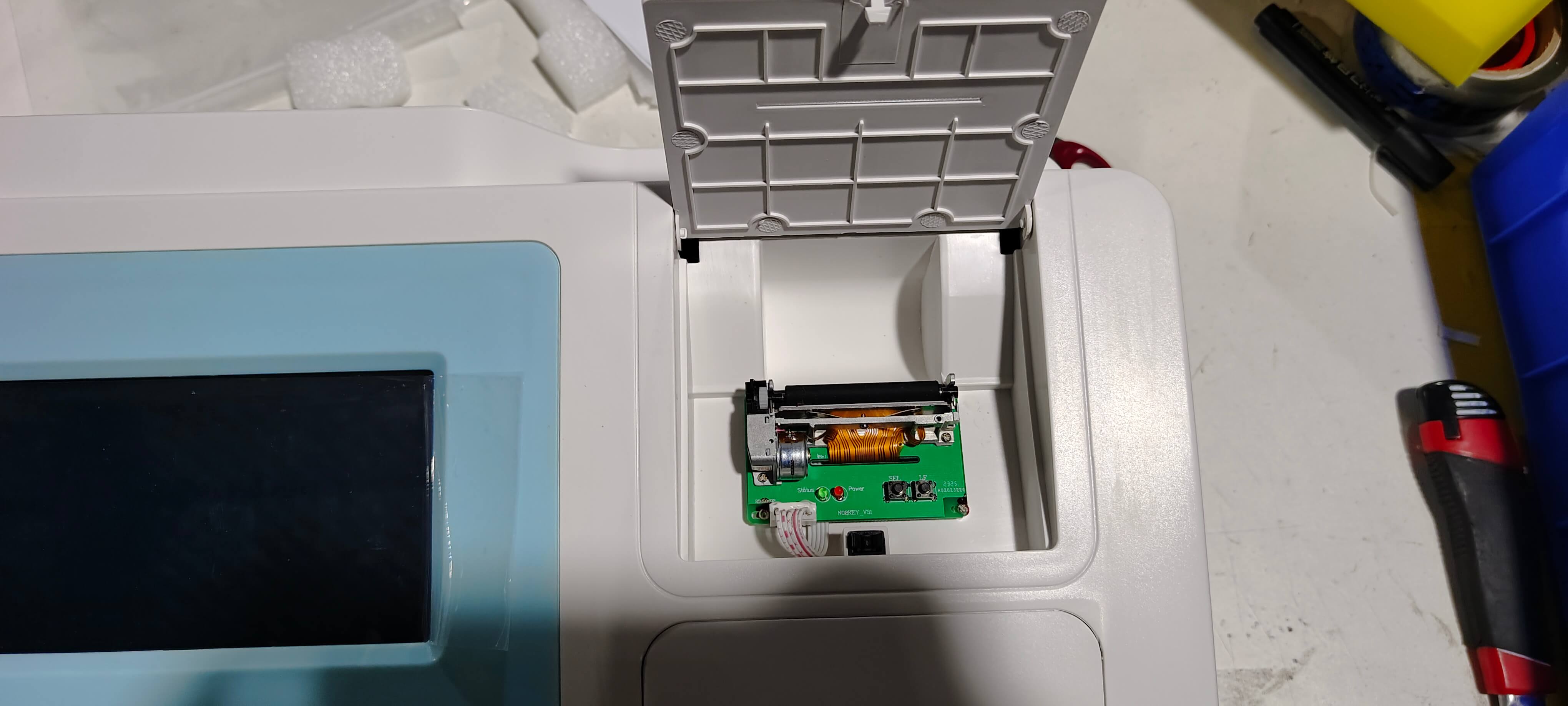

| Printer | Built-in thermal printer, optional external printer |
| Interface Connection | 2×USB-A, 1×USB-B, 1×RS-232, 1×Printer |
| Power Supply | 100–240 V, 50–60 Hz |
| Sizes (W×D×H) | 475×350×210 mm |
| Shipping Size (W×D×H) | 590×450×350 mm |
| N.W./G.W. | 9/13 kg |
This elisa microplate reader has high sensitivity and accuracy and is equipped with automation features to make experimental operations more convenient and efficient. It is widely used in medical, biological and biotechnological research for diagnosing diseases, monitoring protein interactions, drug screening and other fields.
Ultra-fast readings for absorbance, transmission, concentration and qualitative studies. Self-diagnostic system and alarm.

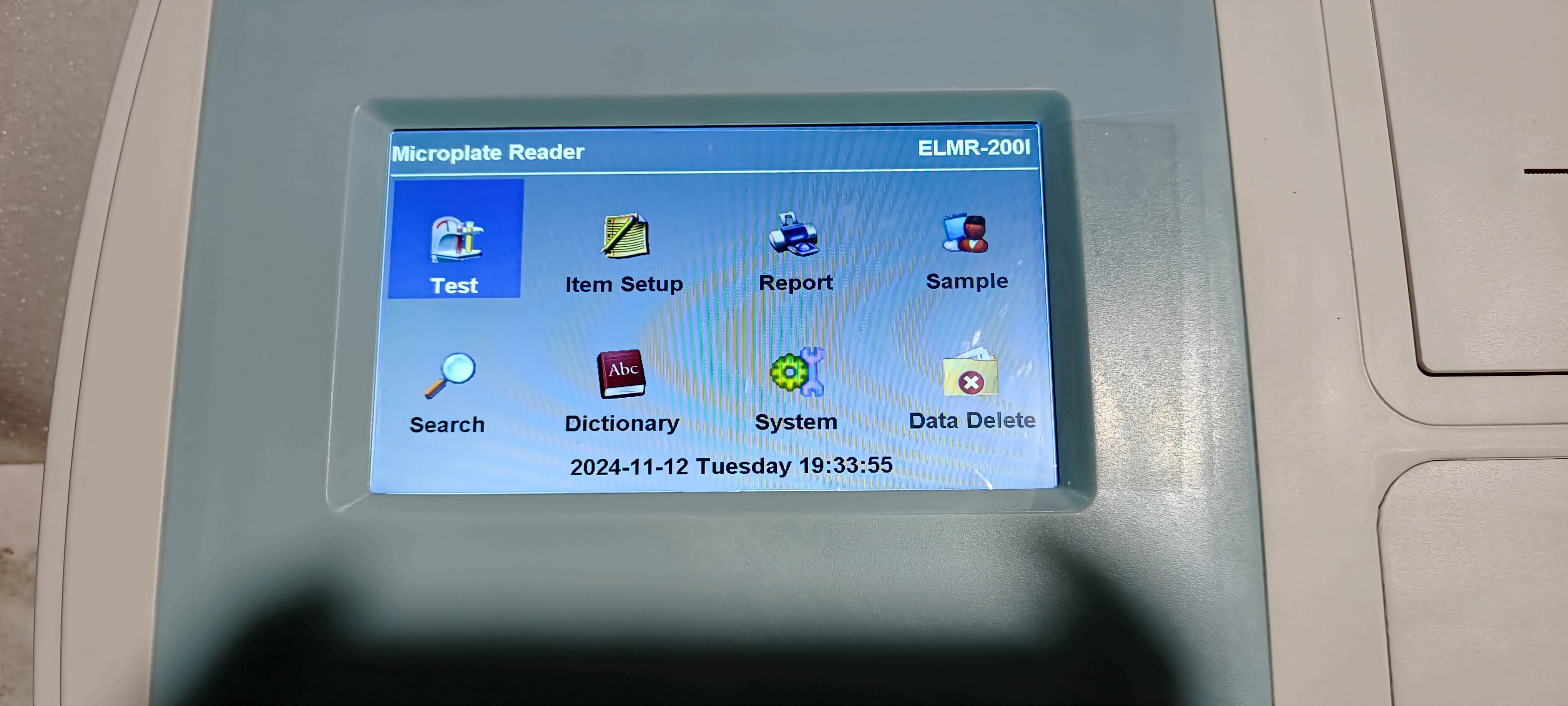

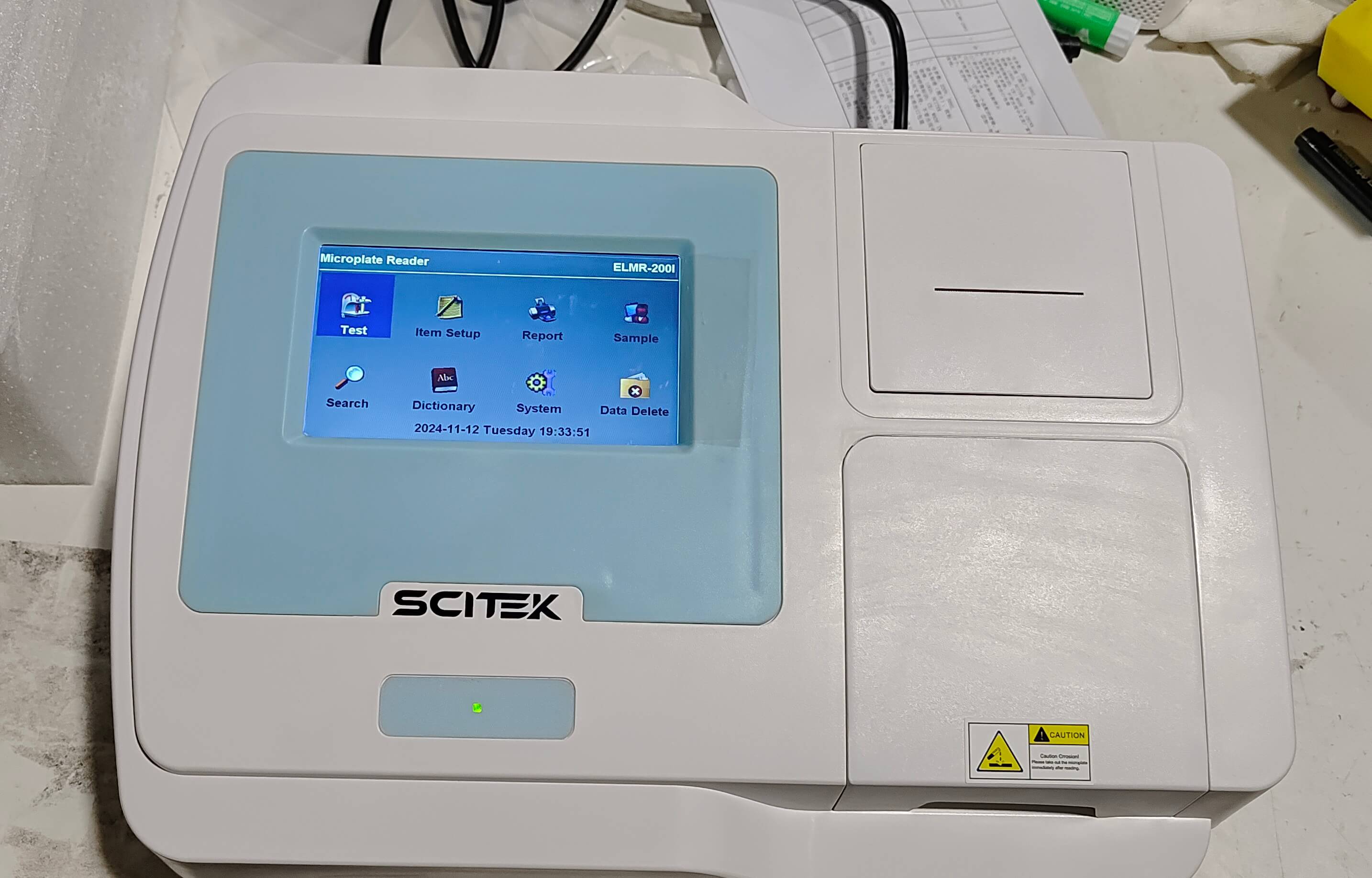

7-inch capacitive touch screen that can work alone or through a PC.
Flexible board layout with blank, standard, sample, reference, and QC on one screen.
Equipped with 405nm, 450nm, 492nm, 630nm and 4 position mounting.
Over 20 different report formats.
Comprehensive qualitative and quantitative data evaluation capabilities with cut-offs, curve fitting and conversion formulas.
Eight-channel optics for fast readout.
Automatic light tuning and auto-calibration.
Reference channel with optimized light intensity ensures reliable results.
