This ELISA microplate reader provides flexibility and convenience for a variety of assays such as protein quantification, ELISA and microbial growth. Easy to use and durable, it gives you direct access to your data. Our elisa plate reader meets the needs of a wide range of applications. Elevate your research with our seamlessly integrated microplate readers designed to provide efficiency and convenience at every step.
Elisa Microplate Reader Feature:
This is an economical elisa microplate reader with features and advantages such as high sensitivity, automated functions, versatility, user-friendliness and high-quality results. The high-definition display makes it easier to set up assay parameters and view results.
Intelligent switch of a light source to extend its life.
You can choose 13 calculation methods, such as absorbance, CUTOFF threshold, single-point calibration, etc.
Elisa microplate reader can automatically determine the current status of the instrument and performance indicators.
It can be connected to a computer and controlled by a mouse
Single-board multiple test function: A single board can simultaneously carry out 12 kinds of different tests
Perfect quality control function, automatically save the quality control data, and can print various quality control charts.
Elisa Microplate Reader Specification:
| Model | ELMR-200II |
| Microplate Type | 96/48-well plate |
| Photodetector | Silicon photodiode |
| Light Source | LED |
| Wavelength Range | 400–725 nm |
| Standard Filter | 405, 450, 492, 630 nm & 4 optional |
| Reading Range | 0.000–4.000A |
| Accuracy | ±0.008 A |
| Reproducibility | ≤0.2% |
| Stability | ±0.003 A |
| Reading Speed | Single Wavelength ≤10 s; Double Wavelength ≤20 s |
| Shaking | Linear Shaking, 3 speeds |
| Input | DIATEK Elisa Reader software |
| Interface | USB |
| Power Supply | 100–240 V, 50–60 Hz |
| Size (W×D×H) | 460×350×197 mm |
| Shipping Size (W×D×H) | 480×610×360 mm |
| N.W./G.W. | 9/13 kg |
Details of Elisa Plate Reader:

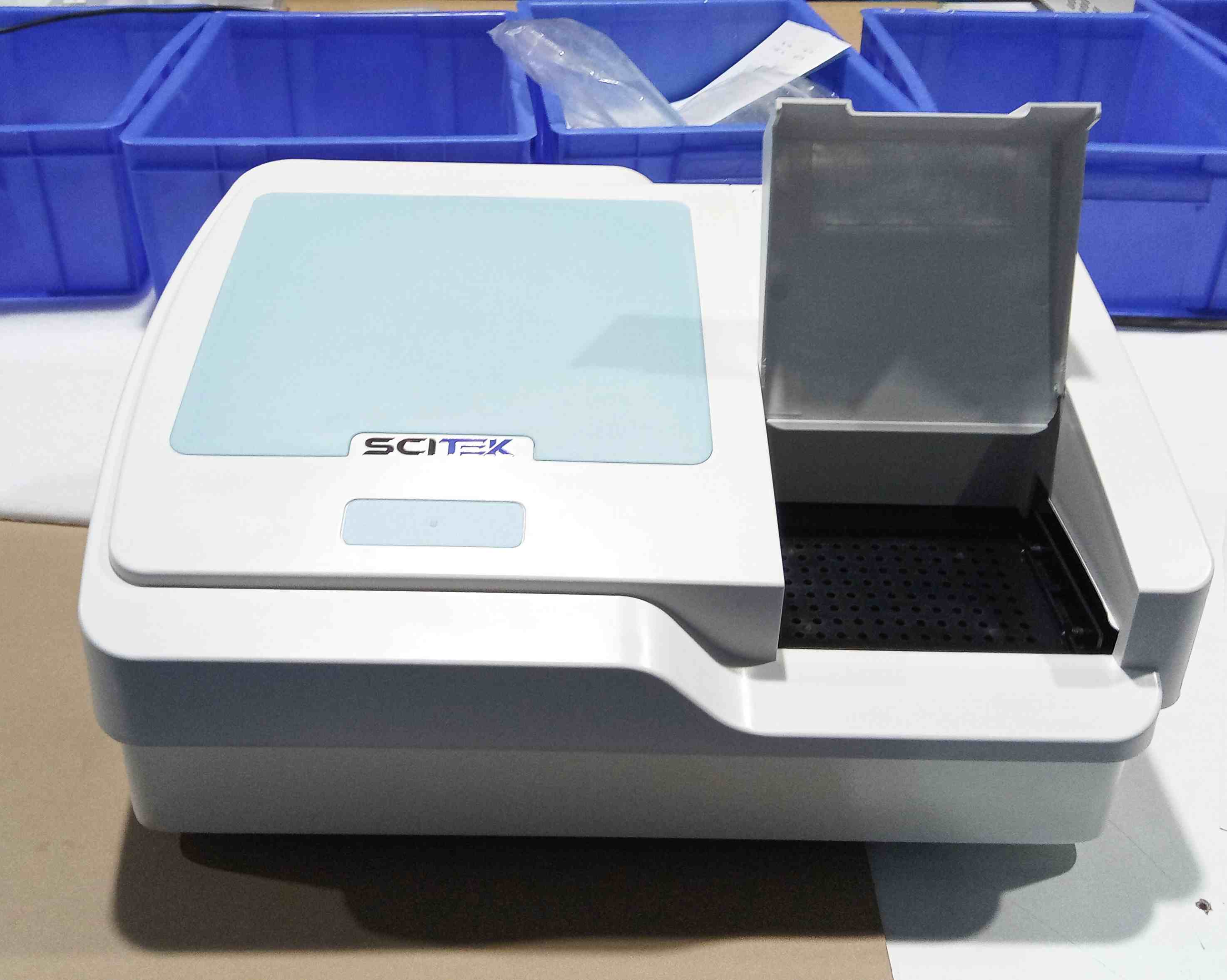

The elisa plate reader's sample slots are located at the front for quick placement and removal of microplates. Multiple samples can be processed at once, suitable for large-scale experiments

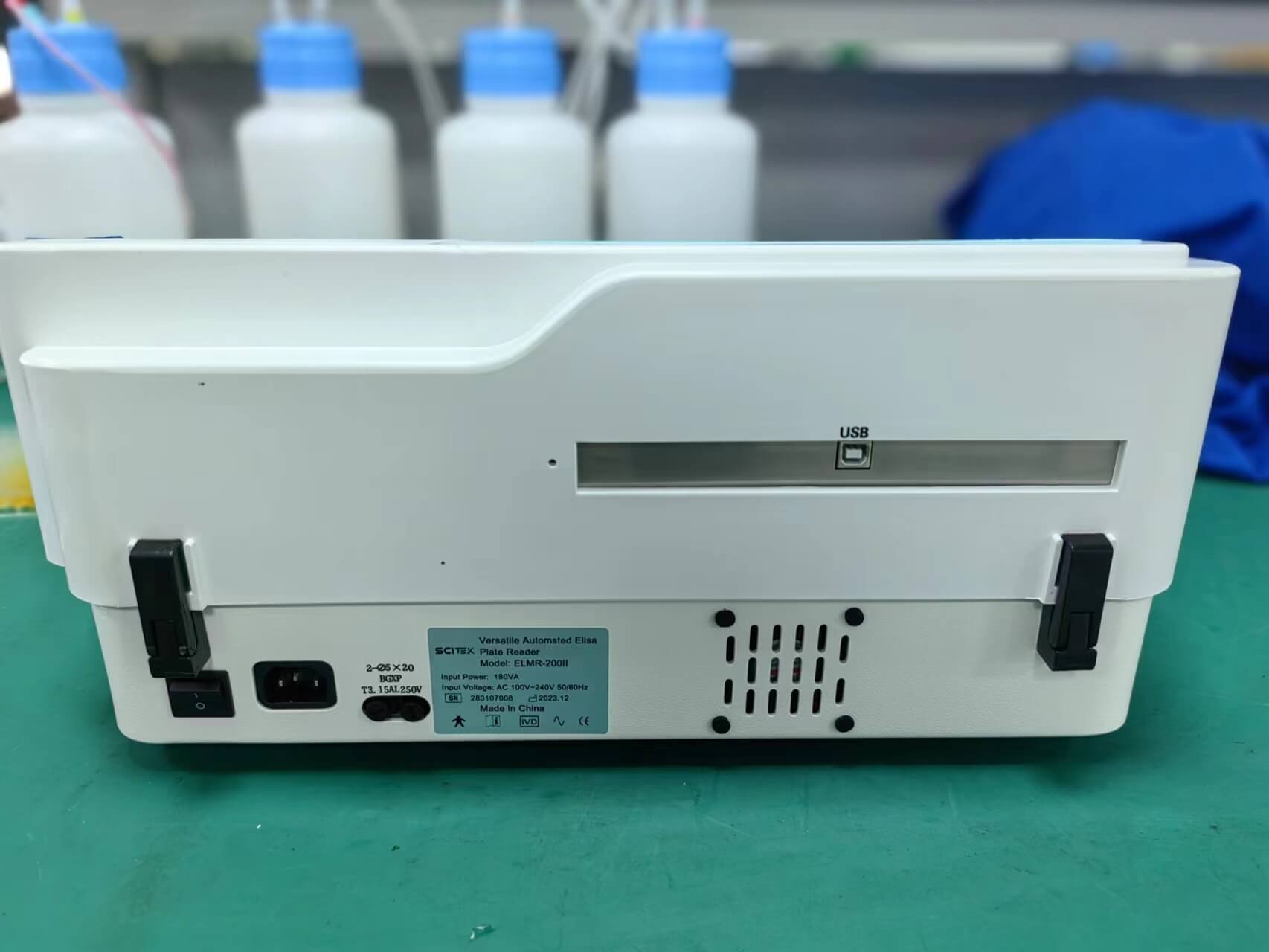

The back is equipped with power socket, switch and other connecting ports, which are well laid out for easy connection and maintenance.
What is ELISA microplate reader?
The ELISA microplate reader is a laboratory device that uses enzyme activity to measure antigen and antibody reactions in solution.
What to consider when buying an ELISA reader?
Light Source
Enzyme-linked immunosorbent assay (ELISA) readers typically use a broadband light source as the excitation source to accommodate as many detection methods and applications as possible. LED lights provide stable light output at specific detection wavelengths.
Wavelength Selection
The colorimetric reaction in ELISA produces specific absorption peaks, and the reader must measure absorbance at the appropriate wavelength. If the detection wavelength does not match, it may lead to inaccurate results, even if other performance aspects are excellent.
Compatible Microplate Formats
Please ensure that the ELISA microplate reader you select is capable of reading the microplate formats you plan to use. ELISA assays are typically conducted in 96-well plates.
